HAYA HYP008F User Manual

Led spot light 4 in 1
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LED SPOT LIGHT
4 in 1 )
USER MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYP008F and is the answer not in the manual?

Questions and answers

Summary of Contents for HAYA HYP008F

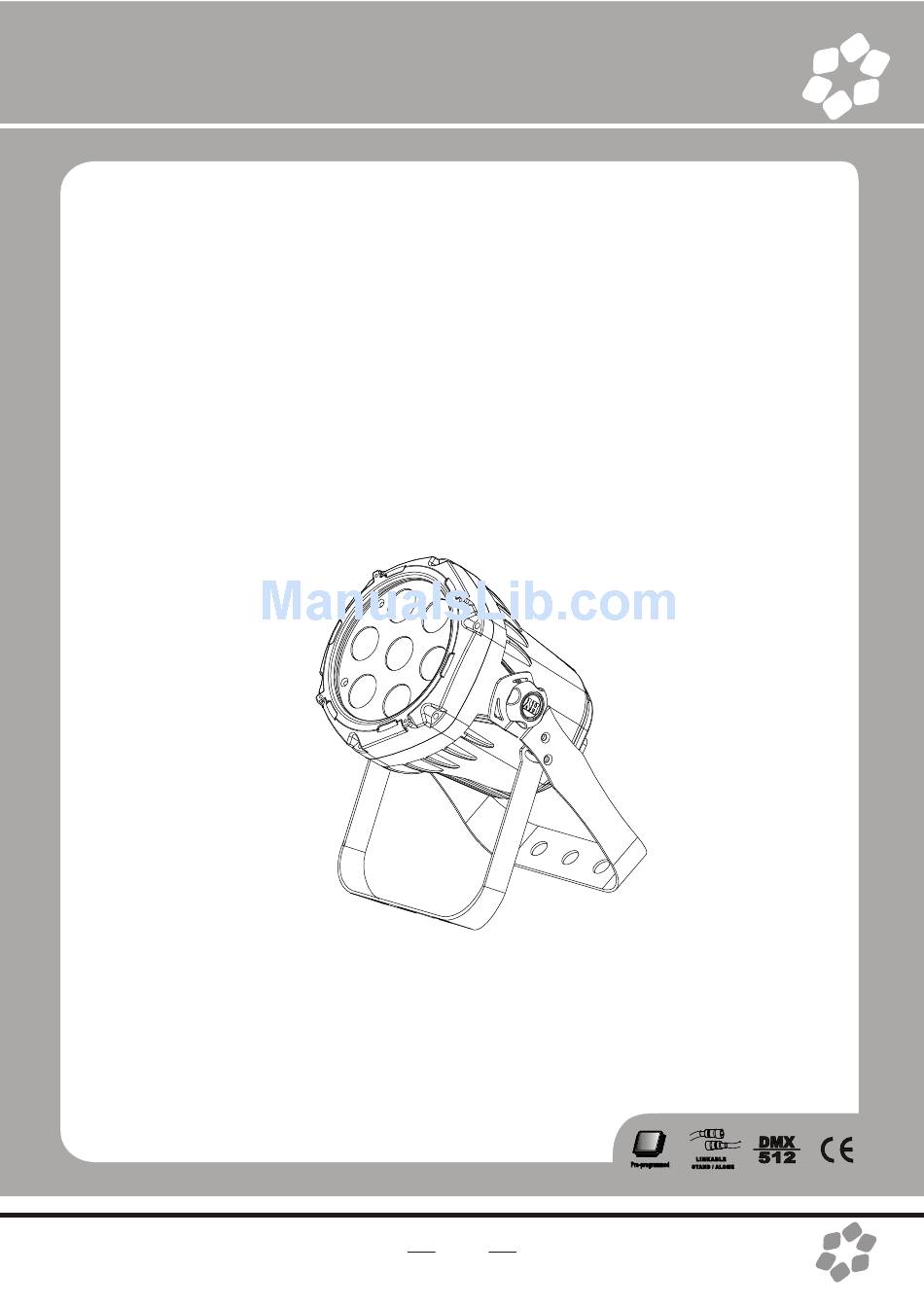

  • Page 1 LED SPOT LIGHT 4 in 1 ) USER MANUAL...

  • Page 2: Table Of Contents

    CONTENTS 1.BEFORE YOU BEGIN ............3 What is included...............3 U n p a c k i n g I n s t r u c t i o n s ............3 A C P O W E R .

  • Page 3: Before You Begin

    1.BEFORE YOU BEGIN What is included Ø 1 x Fixture Ø 1 x Power cable with plug Ø 1 x User Manua Unpacking Instructions Immediately upon receiving a fixture, carefully unpack the carton; check the contents to ensure that all parts are present, and have been received in good condition.

  • Page 4: Safety Instructions

    Safety Instructions WARNING! Please read these instructions carefully, which includes important information about the installation, usage and maintenance of this product.. The following symbols are used to identify important safety information on the product and in this manual: DANGER! DANGER! WARNING! WARNING! WARNING!

  • Page 5: Introduction

    2.INTRODUCTION Specifications l Voltage Rating: AC100V 240V 50-60Hz l Power Rating: 60W l LED Quantity: 7 pcs 4 in 1LEDs(RGBW) l LED: 500mA l Beam Angle: 20°/30°/40°(option) l Ingress Protection: IP65/IP20 l Product Size: 190X148X238mm l Package Size:230X200X295 mm l N/W:2.5Kgs Features l RGBW color mixing with or without DMX controller l 5 distinct dimming curves...

  • Page 6: Product Overview

    Product Overview Control board POWER OUT POWER IN DMX OUT DMX IN Dimensions Hanging bracket/ floor stand Bracket adjustment knob...

  • Page 7: Setup

    3.SETUP Installation Requirement l This product can be used in a variety of situations, can hang and put on the ground. l If hanging the fixture for over head use, then please follow the below steps. l Please choose the suitable location to put or hang the light when installing it. You must use the exclusive clamp hanger and screw when hanging it, and make sure the weight of the light is within limits of the hanger.

  • Page 8: Connection Of Dmx Signal Wire

    Connection of DMX Signal Wire Please use the fixture controller wire specially when use the DMX512 Controller. Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3 pin connector of the first fixture. Connect the end of the cable coming from the first fixture which will have a (male) 3 pin connector to the input connector of the next fixture consisting of a (female) 3 pin connector.

  • Page 9: Operatig Instructions

    4.OPERATING INSTRUCTIONS Control Panel Functions BUTTON FUNCTION MODE Exits from the current menu or function Enables the currently displayed menu or sets the currently selected ENTER value in to the selected function Navigates upwards through the menu list and increases the numeric value when in a function Navigates downwards through the menu list and decreases the numeric DOWN...

  • Page 10: Menu Map

    MAIN SUB- FUNCTION SELECTION INSTRUCTION FUNCTION Dimmer 000~255 User can combine RED, GREEN,BLUE (0 ~ 100%) and WHITE to generate a custom color Select strobe frequency 00~20 10 auto programs available 01~10 chose program from 10 “EDIT” programs 01~10 Set DMX start addressSets the 001~512 operating mode for the fixture:to receive signal from a DMX controller...

  • Page 11: Operating Instructions

    Operating instructions 1.Upload custom program or set to another machine Set all the fixtures which receive custom programs from the source fixture as 1 Press MODE button until is displayed. 2 Then press ENTER button, use UP/DOWN buttons until is displayed. Press MODE return to MENU 3 On the Master unit, Press MODE button until is displayed on source fixture.

  • Page 12: Dmx512 Controller Mode

    When 'R000' display on the screen, press the UP/DOWN button to choose the value. Repeat this step to edit the value of 'G000', 'b000', 'C000', 'S000', 'T000' and 'F000'. Please pay attention for the 'S' is the rate of strobe. 'T' is the operating time of the present step, the value is between 0 to 255.
  • Page 13 11 channels STAG Channel Value Description 1 Dimming 000~255 0-100% 2 RED 000~255 0-100%(Or STEP TIME when CUS.01-10 is activated) 3 Green 000~255 0-10 0%(Or FADE TIME when CUS.01-10 is activated) 4 Blue 000~255 0-100% 5 White 000~255 0-100% 6 Macro color 000~255 Macro color control 7 Strobe...
  • Page 14 ID ADDRESS SELECTION VALUE FUNCTION VALUE FUNCTION VALUE FUNCTION 000~009 All Ids ID23 ID46 010~019 ID24 ID47 020~029 ID25 ID48 030~039 ID26 ID49 040~049 ID27 ID50 050~059 ID28 ID51 060~069 ID29 ID52 070~079 ID30 ID53 080~089 ID31 ID54 090~099 ID32 ID55 100~109 ID10...
  • Page 15 COLOR MACROS Channel 6 selects the required Color Macro. Channel 6 has priority over Channels 2, 3,4 & 5 . Channel 1 is used to control the intensity of the current Color Macro. STROBE Channel 7 controls the strobe of Channels 1 through 6. Channel 7 has priority over Channels 2, 3, 4,5 &...

  • Page 16: Id Address Instructions

    ID Address Instructions 1.Setting ID address 1 Access control panel function by pressing MODE until is displayed. Press ENTER, increase or reduce ID values by pressing UP/DOWN between 01 and 66. 3 Press MODE to exit. 2. Enable or disable ID Ü...

  • Page 17: Master/Slave Control Mode

    simultaneously. When using channel 11 select the channel number is 020-029 and ID Address=02, the controller can control the second light individually. When using channel 11 select the channel number is 000-010 and ID Address=00, all the lights are in common use at the same DMX address. Master/Slave Control Mode 1 Setting master machine ess control panel function by pressing MODE until...

  • Page 18: A P P E N D I

    5. APPENDIX Service Maintenance Guide Symptom(s) Possible Solution(s) Clean the fixture regularly to avoid any such failure. This fixture is convection cooled, which means that if the surface is kept clean and free of debris, then proper cooling will be allowed to occur 1 or more LED's are An LED may have failed, resulting in an open circuit.
  • Page 19 Symptom(s) Possible Solution(s) Breaker/Fuse keeps Check total load placed on the electrical circuit blowing Check for a short in the electrical wiring: internal and/or external Check for power on Mains -Note: In the event of autoswitching transformer failure, the unit Device has no power can be sent in for repair;...

  • Page 20: B L O W - O U T D I A G R A

    Blow-out Diagram. Description Part Number Glass cover 6P00609 LED Lens assembly 4170709 LED Metal-core PCB assembly 2P00609 Electronic Transformer 50801029 House P00606 power socket 2P00605 Display PCB 803004 Display Clear plastic cover 6P00613 Display watertight seal 5050101 DMX socket 5040201 Bracket adjustment metal knob 6P00611 Bracket Assembly...
