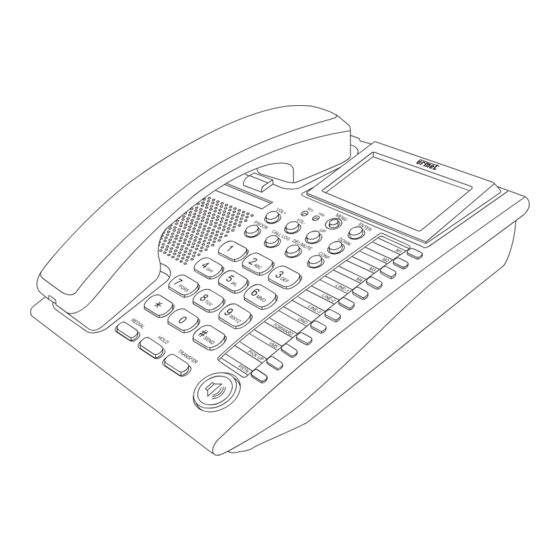

"DOMUS VOIPHONE" TELEPHONE
Ref. 4501/5
QUICK INSTALLATION GUIDE
&
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4501/5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for urmet domus 4501/5

Summary of Contents for urmet domus 4501/5

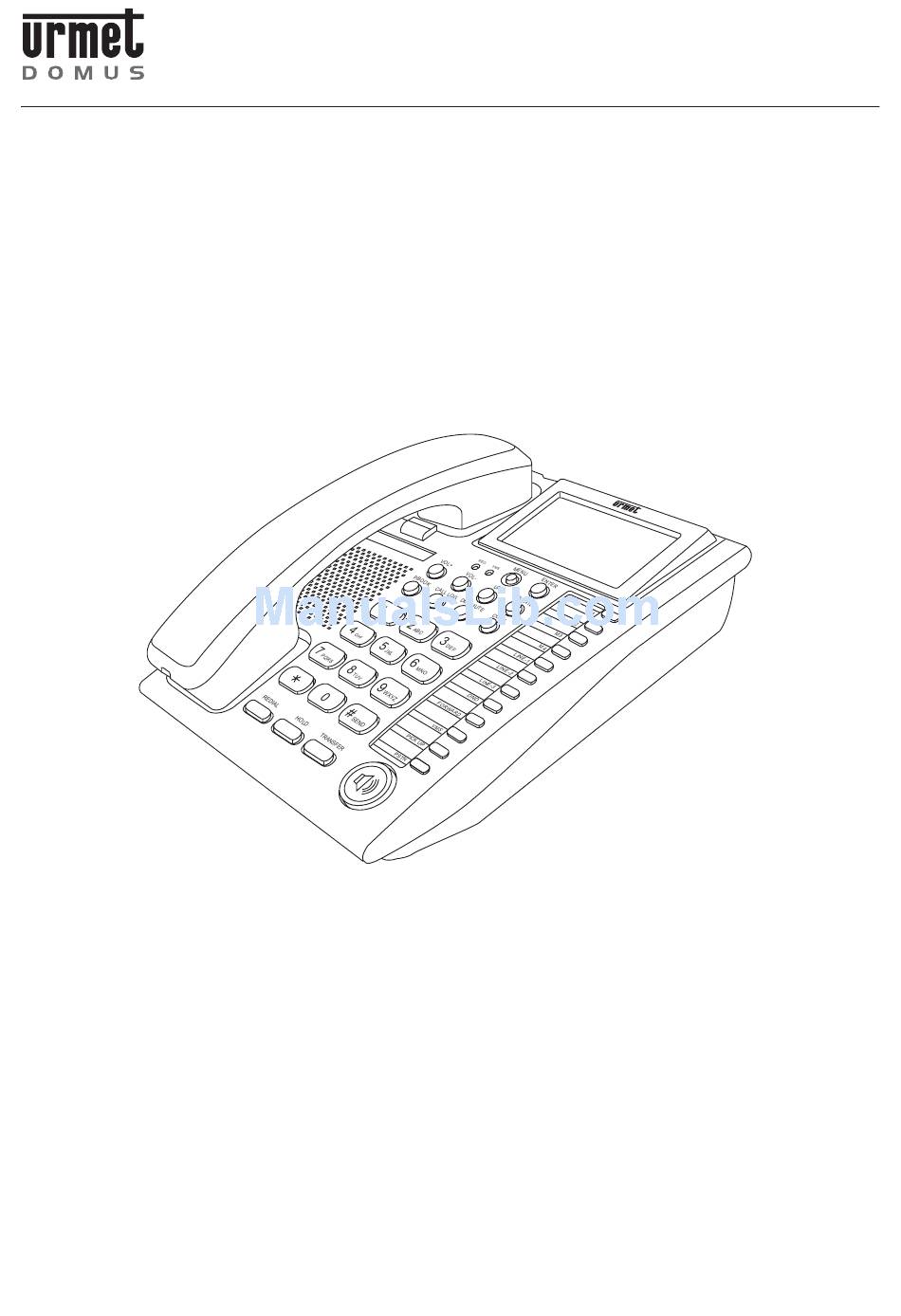

  • Page 1 Mod. 4501 DS 4501-002 LBT 8249 “DOMUS VOIPHONE” TELEPHONE Ref. 4501/5 QUICK INSTALLATION GUIDE & USER MANUAL...

  • Page 2: Table Of Contents

    DECLARATION OF CONFORMITY The manufacturer Urmet Domus S.p.A. whose legal offi ces are in via Bologna n° 188/C – 10154 Torino (TO) Italy, declares that this device complies with the requirements of the European Parliament and Council Directive 1999/5/CE dated 9 march 1999 regarding radio apparatures,...

  • Page 3: Quick Installation Guide

    QUICK INSTALLATION GUIDE STEP 1: VOIPHONE KEYPAD E REAR PANEL DC POWER PSTN HEADSET MENU ENTER DESCRIPTION VOL+ VOL- DOWN M1…M3 MEMORY DIAL P.BOOK CALL LOG DEL/MUTE CONF. LINE-1 SIP ACCOUNT LINE-1 LINE-2 SIP ACCOUNT LINE-2 LINE-3 SIP ACCOUNT LINE-3 DO NOT DISTURB FORWARD VOICE MESSAGE...
  • Page 4 5. The following system information page will appear on the web browser. 6. Program the following network confi gurations in the left-hand column: Phone, Network WAN/LAN Settings, SIP Settings. Remember to click on “Save Change” and then save to confi rm and activate settings: the telephone will be restarted with the new settings. 7.
  • Page 5 Two confi guration modes are possible for the LAN (LAN mode): NAT (default): By using this mode, the WAN and LAN ports refer to two separate interfaces; in this case, as shown in the example above, the PC connected to the LAN port will obtain the address from the telephone (192.168.123.x). Bridge: By using this mode, the telephone will behave transparently (as an Ethernet hub/bridge) and in this case, the PC connected to the LAN port will obtain the address from the ADSL Router/Modem to which the telephone is connected (192.168.101.x in the mentioned example).
  • Page 6 9. The “Display name” programmed during SIP server registration will appear on the LCD if this was successful. STEP 4: CONFIGURATION VIA KEYPAD The confi gurations seen in the paragraph above via PC can also be performed using the keypad. How to program Password and SIP account via the keypad: 1.

  • Page 7: User Manual

    USER MANUAL 1. INTRODUCTION The Domus VoIPhone is a SIP protocol based IP telephone for Voice Over IP applications (VoIP). It is provided with a PSTN port for connecting to the traditional telephone line. Connect to the Internet and to a PSTN, the Domus VoIPhone can be used to make VoIP calls and traditional telephone calls. The Domus VoIPhone has a WAN port for ADSL connections, a LAN port for connecting to the PC and two RJ11 ports for connecting to the PSTN telephone line (FXO) and a headset.
  • Page 8 Please enter the username and password into the blank fi eld. The default settings are: Username: root Password: test Click the “Login” button to enter the System information page for web confi gurations. Whenever you change the setting in each Web page, remember to click the “Submit” button in the page, and click the “Save” button to save into the non-volatile memory and click the “Reboot”...
  • Page 9 PHONE BOOK PHONE BOOK SETTINGS You may add/delete Name up to maximum 140 entries in Phone book list. • To add a phone name, you need to enter the position, the name, and the phone URL. When you fi nished a new phone list, just click the “Add Phone”...
  • Page 10 SPEED DIAL PHONE LIST You can add/delete Speed Dial number up to maximum 10 entries in Speed Dial Phone List. If you need to add a phone number into the Speed Dial list, you need to enter the position, the name, and the URL. Click the “Add Phone” button to fi...
  • Page 11 PHONE SETTING CALL FORWARD SETTING You can select the forward mode and enter the forward URL. All Forward: All incoming call will forward to the URL you choose. Busy Forward: The incoming call will forward to the URL when you are busy and on the phone. No Answer Forward: The incoming call will forward to the URL when no answer.
  • Page 12 SNTP SETTINGS You can setup the primary and the second SNTP Server IP Addresses to get the date/time information. You may also set the Time Zone, and how long need to synchronize again. When you fi nished the setting, please click the “Submit” button. VOLUME SETTINGS You can setup the Handset Volume/Gain, Ringer Volume, and Speaker Volume/Gain in this page.
  • Page 13 MELODY SETTINGS You can select the ringer melody type for the imcoming call. DND SETTINGS You can setup the DND (Do Not Disturb) to keep the phone slience. You can choose DND Always or DND period.. DND Always: All incoming call will be blocked until the feature is disabled. DND Period: Set a time period and the phone will be blocked during the time period.
  • Page 14 AUTO ANSWER SETTING You may enable the Auto Answer function to answer the incoming call by VoIPhone FXO port. When the ring count exceeds the number set in Auto Answer Counter, the FXO port will auto answer and allow for extension calls from VoIP to PSTN and vice vesa. For the incoming call from the Internet, the FXO port will answer with a PSTN dial tone and allow caller to redial to PSTN phone number.
  • Page 15 CALL WAITING SETTING: When call waiting is set ON, you will hear an interrupt “dodo” tone over the phone to remind that there is an incoming call from the third party. SOFT KEY SETTING You can confi gure the pickup and VMS key setting to co-work with IP PBX in this page. DS4501-002...
  • Page 16 PICK UP & VOICE MAIL VoIPhone may pick up the incoming call for another VoIPhone when registered in the same IP PBX. When you hear other VoIPhone is ringing, you may pick up you phone and press Pick Up function key to answer for that VoIPhone. You may press the Speaker Phone key then Pick Up function key as well.
  • Page 17 NETWORK You can check the Network status, and confi gure the WAN, LAN, DDNS, and VLAN settings in this section. NETWORK STATUS You can check and show the current Network setting in this page. DS4501-002...
  • Page 18 WAN SETTINGS The WAN setting is used to confi gure the Ethernet port connects to the ADSL Modem/Router. The default setting is NAT mode for IP PHone, and this enables the embedded NAT router between the LAN port and PC port. You may change to Bridge Mode if you need NOT use the embedded NAT router.
  • Page 19 LAN SETTINGS The default IP address is 192.168.123.1 for VoIPhone, with Net Mask 255.255.255.0., and DHCP Server enabled. The IP addresses for DHCP are from 150 to 200. Connect your PC to the PC port, set your PC as DHCP Client mode, and then the PC will get an IP address from the VoIPhone automatically. When you fi...
  • Page 20 DDNS SETTINGS You can confi gure the DDNS setting in this page. You need to have the DDNS account and input the informations properly. You need a DDNS account with a public IP address then others can call you via the DDNS account. Most of the VoIP applications are working with a SIP Proxy Server as well as DDNS Server.
  • Page 21 VLAN SETTINGS There are two parts for VLAN settings. One is to set for VoIP packets related to VoIPhone, and the other is for the VLAN setting in the NAT Mode. There are two kinds of destination packets coming to the WAN port, one is VoIP packets for VoIPhone, and the other will go through the WAN port to the LAN port.
  • Page 22 DMZ SETTING The DMZ can be enabled/disabled and confi gured in this page. DS4501-002...
  • Page 23 VIRTUAL SERVER The Virtual Server IP and Port numbers can be confi gured in this page. PPTP SETTING The PPTP Server can be set ON/OFF in this page. DS4501-002...
  • Page 24 SIP SETTINGS SERVICE DOMAIN SETTINGS You can setup the Service Domain, Port Settngs, Codec Settings, RTP Setting, RPort Setting and Other Settings for SIP Proxy Server registrations in this page. You may register up to three SIP Servers for three Realms in the VoIPhone. You can receive the incoming calls from all the three SIP Servers. For outgoing calls, you may select the registration SIP server fi...
  • Page 25 PORT SETTINGS The SIP Port and RTP Port numbers are default at 5060 and 60000, respectively. The RTP port number must be even number. If you have more than one VoIP phones under the same NAT router, it is recommended that different RTP port numbers be assigned to each of IP Phones. You may need to program specifi...
  • Page 26 CODEC ID SETTINGS You can set the Codec ID to meet the other device’s requirement. When you fi nished the setting, please click the Submit button. DTMF SETTINGS You can setup the options for DTMF function in this page. The options include RFC2833 (Outband DTMF), Inband DTMF, and Send DTMF SIP info.
  • Page 27 OTHER SETTINGS You can setup the Hold by RFC, Voice/SIP QoS and SIP expire time in this page. To change these settings please following your ISP information. When you fi nished the setting, please click the Submit button. The QoS setting is to set the voice packets’ priority. Higher value for voice packets will get higher priority to the Internet.
  • Page 28 NAT TRANSVERSAL STUN SETTING You can Enable/Disable and confi gure STUN Server IP address in this page. This function helps IP Phone working properly behind NAT. To change these settings please follow your ISP information. When you fi nished the setting, please click the Submit button. DS4501-002...
  • Page 29 OTHERS You can setup Auto Confi g, FXO port, MAC Clone, Tone and Some Advanced Settings in this page. AUTO CONFIGURATION SETTING Auto Confi guration function can be used to download the confi guration fi le stored in the TFTP, HTTP, or FTP server. This function must co-work with the Auto Confi...
  • Page 30 TONES SETTINGS The Tone setting can be adjusted to generate Dial tone, Ring tone, Ring Back tone, and Busy tone for different countries. When you fi nished with the settings, please click the Submit button. ADVANCED SETTING The advanced settings might be useful for some network requirements. The ICMP function is to echo when someone ping this device. This can prevent from haker attacking the device by not echoing.
  • Page 31 SYSTEM AUTHORITY The user login name and password can be changed in this page. SAVE CHANGE If you want to save the changes you have made for new setting in the VoIP Phone, You have to click the Save button. After you click the Save button, the VoIP Phone will automatically restart and the new setting will get effective.
  • Page 32 UPDATE UPDATE FIRMWARE The IP Phone provides two methods, HTTP or TFTP, to update new fi rmware as the following steps: • Select the fi rmware code type, Risc or DSP code. (mostly for Risc code) • Click the “Browse” button to choose the updated fi le location for HTTP download. •...
  • Page 33 AUTO UPDATE SETTINGS The IP Phone provides two methods, HTTP or TFTP, to update new fi rmware as the following steps. RESTORE DEFAULT SETTINGS You can restore the VoIP Phone to factory default in this page. Click the Restore button, then the IP Phone will restore to default and automatically restart again.

  • Page 34: Lcd Display With Keypads Settings

    8. LCD DISPLAY WITH KEYPADS SETTINGS KEYPAD DESCRIPTIONS Key Name Descriptions “1”, “-“, “_”, “!”, “?” “2”, “a”, “b”, “c”, “A”, “B”, “C” “3”, “d”, “e”, ”f”, “D”, “E”, “F” “4”, “g”, “h”, “I”, “G”, “H”, “I” “5”, “j”, “k”, “l”, “J”, “K”, “L” “6”, “m”, “n”, “o”, “M”, “N”, “O”...
  • Page 35 LCD DISPLAY WITH KEYPAD SETTINGS 1. Phone Book 1.1 Search: Search Phone Book 1.2 Add entry: Add new phone number to phone book 1.3 Speed dial: Add speed dial phone number to speed dial list 1.4 Erase all: Erase all phone number from Phone Book 2.
  • Page 36 5. SIP Settings To set the SIP setting from keypad, you have to press Menu_7_4 to input the password fi rst, or the SIP setting may not be allowed to access. 5.1 Service Domain: 5.1.1 First realm: 5.1.1.1 Activation 5.1.1.2 User name 5.1.1.3 Display name 5.1.1.4 Register name 5.1.1.5 Register password...

  • Page 37: Voip Application Examples

    9. VOIP APPLICATION EXAMPLES You can use PC Web browser to confi gure VoIPhone. For example, enter http://192.168.123.1:9999 from PC web browser. A. ADSL Connections without Router for VoIPhone ADSL Modem INTERNET PSTN PSTN PC IP: 192.168.123.1 B. ADSL Connections with Router for VoIPhone ADSL Modem INTERNET Router...
  • Page 38 BLIND TRANSFER 1. Party A calls Party B. 2. While in conversation, Party B may press Transfer key, and should hear a dial tone. 3. Party B press [Party C number] # and hang up to transfer to Party C. ATTENDANT TRANSFER 1.

  • Page 39: Trouble Shooting For Web Confi Gurations

    10. TROUBLE SHOOTING FOR WEB CONFIGURATIONS DO NOT HEAR DIAL TONE? When you pick up the phone and hear a busy tone, it indicates the WAN port is NOT connected. The LCD will show Ethernet Error! Make sure the ADSL Ethernet cable is connected to the WAN port of VoIPhone and Power Reset again. CAN NOT ACCESS WEB PAGE? Web Browser is a useful tool to confi...

  • Page 40: Glossary
