Summary of Contents for LightwaveRF LW931

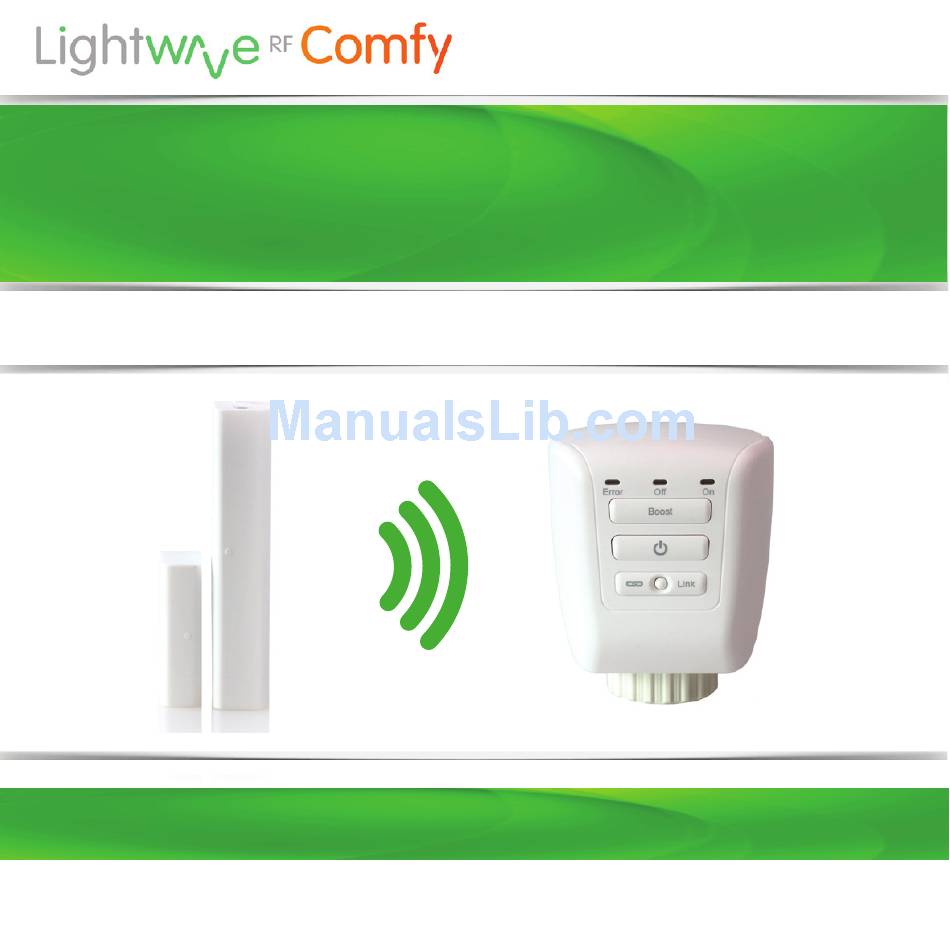

- Page 1 Version 2.1 Magnetic Trigger Model No. LW931 Instruction Manual Professional Series www.lightwaverf.house...
- Page 2 EN 55022: 2010, EN 61000-3-2: 2006 +A1: 2009 +A2: 2009 Class A, EN 61000-3-3: 2008, EN61000-4-2: 2009, EN 61000-4-3: 2006 +A1: 2008 +A2: 2010, EN 61000-4-4: 2012, EN 61000-4-5: 2006, EN 61000-4-6: 2009, EN 61000-4-11: 2004 For and on behalf of LightwaveRF PLC ---------------------------------------- Name J Shermer...
-
Page 3: How Do I Get Started
LightwaveRF heating devices. How does it work? The Magnetic Trigger can directly link to and control LightwaveRF heating devices such as the Thermostatic Radiator Valve (TRV), Home or Room Thermostat or Electric Switch. When the door or window that the trigger is attached to is opened or closed, the radiator in the room will be turned o or on. -
Page 4: Installation
Line up the dots when two sections are attached to a window / door Magnet section LED indicator IMPORTANT: Please retain these instructions for guidance on how to link other LightwaveRF devices to the Magnetic Trigger. For additional guidance please visit www.lightwaverf.com... -
Page 5: Inserting The Batteries
Installation Inserting the batteries 2 x AAA batteries can be inserted under the battery cover at the rear of the device. This can be removed by pulling down on the catch and gently unhooking the cover from the hooks at the base of the unit. IMPORTANT: In the battery compartment there is a slider switch marked A/B. -
Page 6: Device Setup

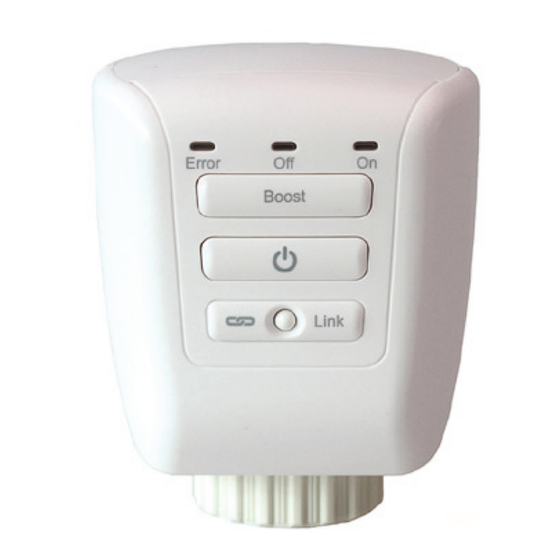

Device setup How to use the Magnetic Trigger Each LightwaveRF Magnetic Trigger can be used to turn on and o LightwaveRF TRV, Electric Switch or Thermostat if a window or door is opened or closed. The trigger will automatically setback a TRV, an Electric Switch or Thermostat (default of 11 degrees) if a window is opened and return them to their previous set temperature when the window is closed again. - Page 7 Device setup Linking the trigger to a TRV, Electric Switch or Thermostat To directly control a LightwaveRF TRV, Thermostat or Electric Switch using a Magnetic Trigger, you will need to ‘link’ them. The trigger can be linked to these devices using the following method: Press and release the ‘Linking’...
- Page 8 Add other heating devices Home Thermostat Boiler OR Electric Switch Lightwave App (turns boiler on/o ) (control from anywhere) (monitors house temp.) Home or Away button Lightwave Link Heating Remote (turn house on/o ) (runs the show) (sets house temp.) Electric Switch Magnetic Trigger (controls electric radiators)
-
Page 9: Troubleshooting
The LED indicator will flash ten times to report a low battery status. If this measure fails, there may be a fault. Please contact technical support via www.lightwaverf.com. Problem: The trigger turns the TRV on rather than o when opened. - Page 10 You can currently only link one TRV directly. . Is it legal for me to install a LightwaveRF devices myself? Yes, LightwaveRF products are fully legal to install in your own home. How long do the batteries last? This can vary, but a minimum of one year can be expected with normal use.
-
Page 11: Specification
Technical Specification Specification RF frequency: 868 MHz Batteries: 2 x 1.5V (AAA) Warranty: 2 year standard warranty... - Page 12 Version 2.1 2 Quadrant Park Mundells Welwyn Garden City Herts AL7 1FS 01707 386035 www.lightwaverf.house...
