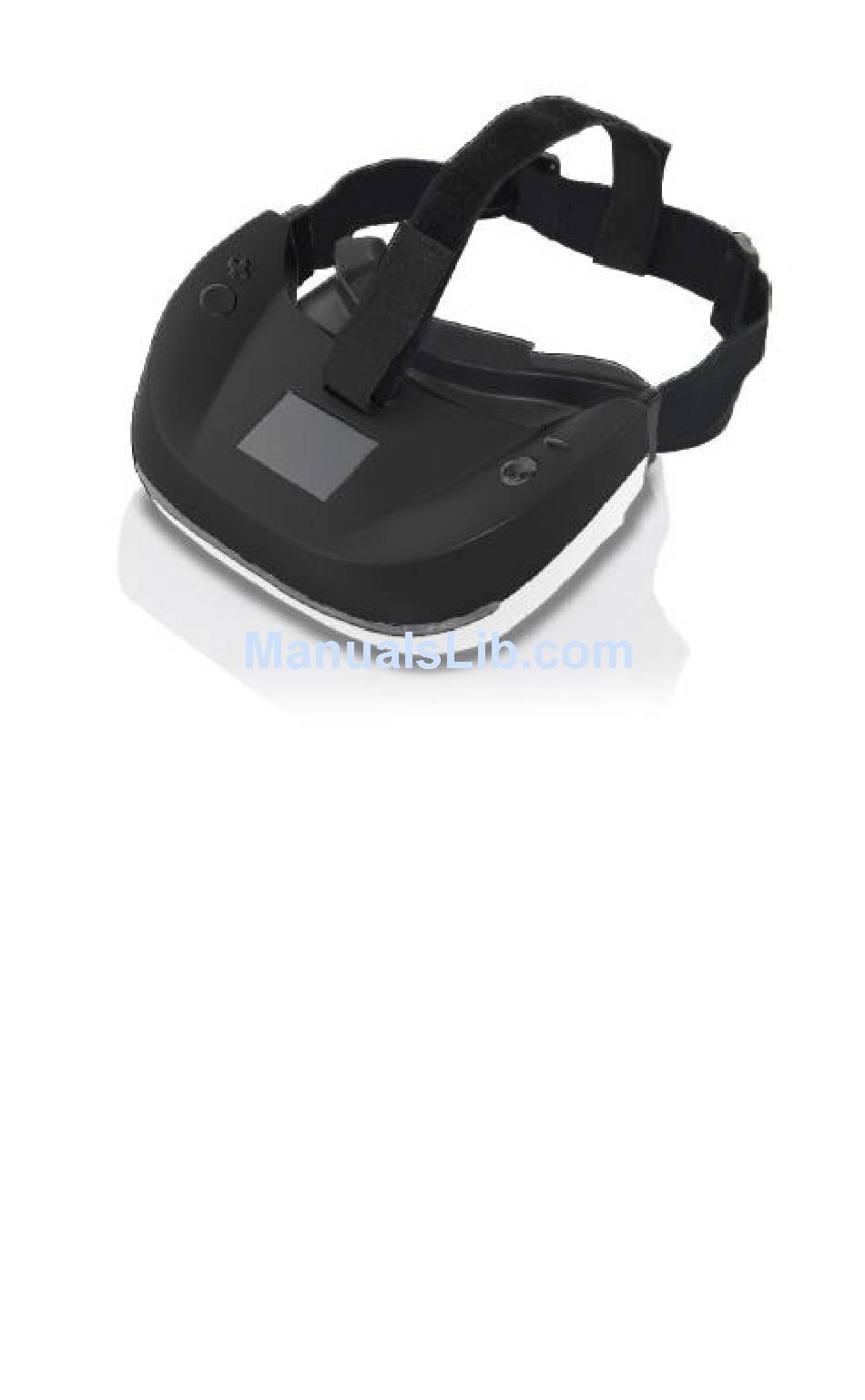

Bēm Wireless Entertainment Goggles
Your dedicated private-screen TV
Instructions
Model: BM0100
Dear Entertainment Goggles User:
Thank you for purchasing the Bēm Wireless Entertainment Goggles! We sincerely hope that our products
can bring you convenience and happiness! To make better use of Entertainment Goggles, please read the
instructions carefully and keep them handy for future reference.
Advertisement
Summary of Contents for bem wireless BM0100
- Page 1 Bēm Wireless Entertainment Goggles Your dedicated private-screen TV Instructions Model: BM0100 Dear Entertainment Goggles User: Thank you for purchasing the Bēm Wireless Entertainment Goggles! We sincerely hope that our products can bring you convenience and happiness! To make better use of Entertainment Goggles, please read the...
- Page 2 1. Read Instructions Before using the equipment, please read all safety and operating instructions. 2. Cautions and Warnings Improper usage of the product may cause an electric shock or fire. Please follow the instructions to operate the product to achieve the best results. 3.
- Page 3 Accessory List 1. In-ear earphones 2. Wireless Mouse 3. Flannel bags 4. 5V / 2A power adapter 5. USB Charging Cable which supports 5V/2A power adapter (one end Standard USB，the other port for Micro USB） 6. User’s Manual 7. Warranty Card Technical Specifications 1.1 CPU: Rock chip RK3188 4-core 1.6GHz 1.2 1GB memory, 4GB Flash storage capacity...
- Page 4 2. The Key Positioning and Functions: Each key position is shown below: 2.1 Power: Pressing and holding for 4 seconds or more will power on/off Entertainment Goggles 2.2 Home: Short press to return to the main screen 2.3 Vol +: Short press to increase the volume 2.4 Vol -: Short press to reduce the volume 2.5 Reset: Compulsorily stop the system and perform shutdown 2.6 Touch Pad: Move the mouse to operate the System...
- Page 5 3. Function Operation 3.1 Touch Pad Operation (1) Selection on the Touch Pad: to perform the selection, slide the cursor up and down, left and right, to move the cursor to the selected symbolic icon or words. Then click on the cursor or the selected symbolic icon on the touch pad surface.
- Page 6 3.4 Shutdown Press and hold the Power Button for 4 seconds, the system enters the shutdown process, which will be indicated on the screen. 3.5 WIFI connection 3.5.1 Online surfing by connecting the USB (Host) port with the mouse (recommended), or by operating on the touch pad screen.
- Page 7 3.5.4 Click “Wi-Fi” to enter into the network search interface. The system will automatically search for and display all the WIFI networks that can be received, as shown below 3.5.5 Click on the workable network to enter the password settings interface, as shown 3.5.6 Click the Password field to enter the password input interface, you are allowed to choose “Show password”.
- Page 8 3.5.7 Click on the touch pad or use the mouse to enter the password, click the upper “Done” icon or the below “Done” button to confirm the password. After confirmation it will switch to the network connection interface, as shown below 3.5.8 Click the “Connect”...
- Page 9 4.2 To connect to another site, click on the address bar and enter into the keyboard interface, enter the full domain name and then click GO graphic on the bottom right corner of the keyboard to navigate the site. 5. Bluetooth Pairing connection settings The Entertainment Goggles audio signal, such as music, can be sent to and displayed on a Bluetooth speaker/Earphone/Headset which has been paired via Bluetooth.
- Page 10 5.3 Click on Bluetooth to enter the Bluetooth device search interface, as shown below 5.4 Click on the device name to enter pairing operating interface 5.5 Click the “Pairing” button for pairing connection. To ensure that your device has successfully paired please make sure the icon is listed next to the device.
- Page 11 6. Mobile Phone Screen Function This function is only limited to Android phones. The Entertainment Goggles and Android phones be simultaneously connected to the same WIFI network. to enter application management interface, click on the icon “Wi-Fi Display”, Click on the icon and then click on the symbol of the Android phone name.
- Page 12 7.2 Click on the Explorer icon , enter the resource management interface, as shown below 7.3 Insert your TF card, click on the SD Card option, enter the TF Card Resource Manager interface which displays all the resources, as the following chart 7.4 Click on the selected picture / music / video resources, the system will list out all the players of the system for your choice, and prompt you to select a video player, double-click on the selected player, then it starts playing the video.
-
Page 13: Power Consumption
9. Electrical Performance Specifications: Standby Current: 1mA Power Consumption: Power On: 23 seconds Shutdown Duration: 4 seconds Wi-Fi Distance: 164 feet Bluetooth transmission distance: 40 Feet Battery charging time: 5 Hours (Powered off) Total Weight: 1 lb. 10. Technical Specifications: a. - Page 14 Headphone jack: 3.5MM stereo headphone output jack for connecting an external headphone or speakers Button /Key: Power: Press the power button for about 4 seconds to power on / off Vol +/-: Volume +/- adjust the volume HOME: Press the HOME key to return to the main interface Reset button: Press the reset button, forcibly stop the system and shut down Input Devices: Single-point capacitive touch panel Indicator: Bright bar, when charging the indicator will turn red.
- Page 15 Frequently Asked Questions Video Output No image is displayed or shows no signal (1) Please check to see if this product is under normal start-up; (2) Charge the battery; Screen color cast or flashing If using battery power, please charge the battery Device connection USB control device does not work (1) Check to see if the "Connect to PC"...
- Page 16 More Info For questions, comments or to purchase more bēm wireless products go to: bemwireless.com You can also follow us at: facebook.com/bemwireless twitter.com/bemwirelessco youtube.com/bemwireless Please call 855-839-8616 if you have any questions or issues For information on your product’s warranty go to: bemwireless.com/support FCC Statement 1.
- Page 17 FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Safety Instructions This product is specially designed based on the full attention to safety; in order to make sure the accident-free operation, please abide the guidelines listed below: •...
- Page 18 bēm wireless http://bemwireless.com/ bēm wireless LLC. 1725 Kilkenny Ct. Woodstock, IL. USA Made in China...
