Table of Contents

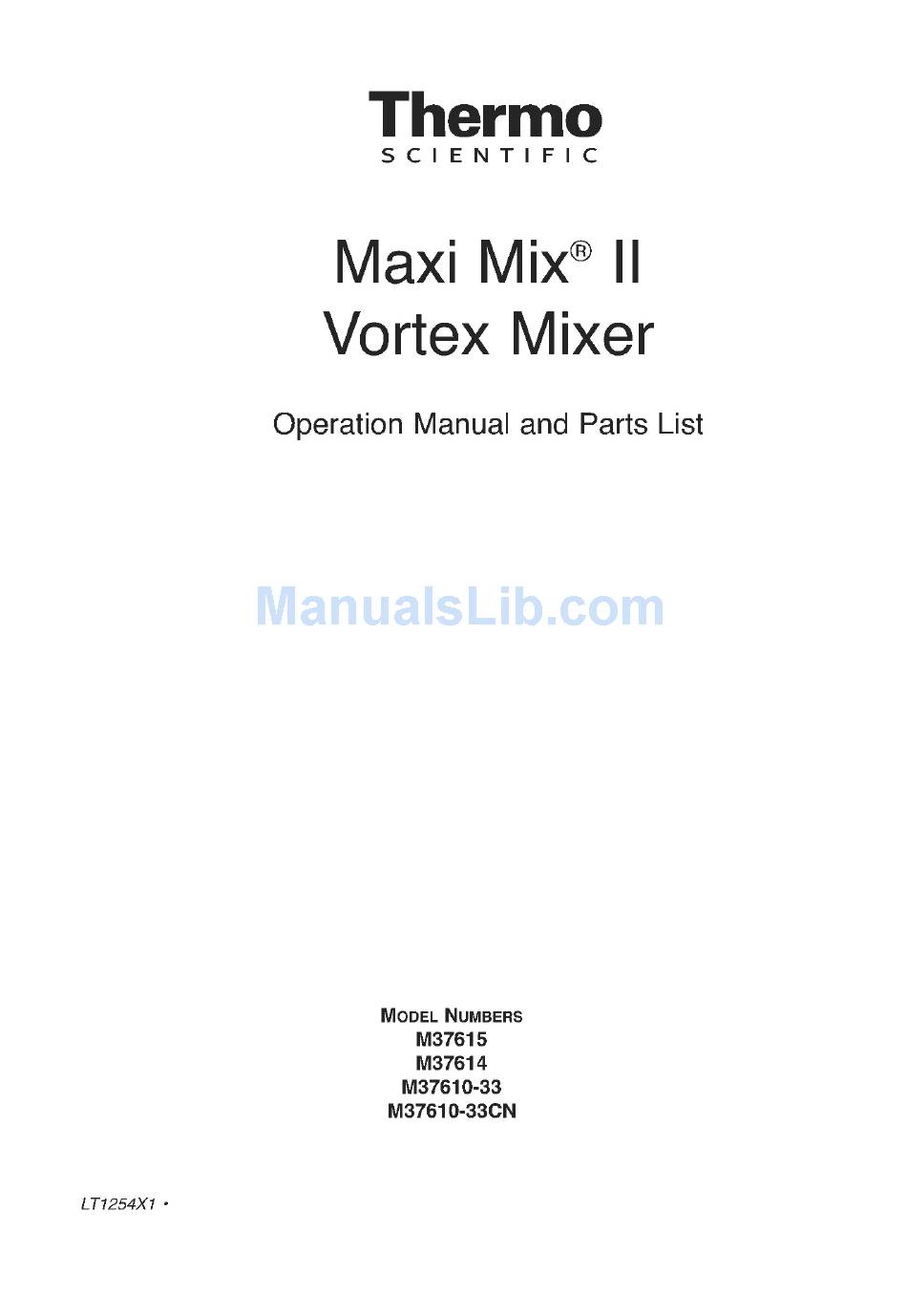

Summary of Contents for Thermo Maxi Mix II
- Page 1 12/8/10...
-
Page 2: Table Of Contents
Table of Contents General Specifications ............................3 Declaration of Conformity ..........................3 Environmental Conditions ..........................3 Safety Information ..............................4 Important Information ............................4 Warnings ................................4 Introduction................................5 Intended Use ..............................5 Principles of Operation ..........................5 Installation ................................6 Unpackaging ..............................6 Site Selection: ..............................6 Specifications ..............................6 Operation ................................7 Power Switch: ..............................7 Speed Control: ..............................7 Maintenance and Servicing ..........................8... -
Page 3: General Specifications
Thermo Fisher Scientific Robert-Bosch-Strasse 1,D-63505 Langenselbold,Germany. -
Page 4: Safety Information
Safety Information Alert Signals Important Information Your Thermo Scientific Maxi Mix II Vortex Mixer has been designed with function, reliability, and safety in mind. It is Warning your responsibility to install it in conformance with local elec- Warnings alert you to a possibility of per- trical codes. -
Page 5: Introduction
Introduction Intended Use The Type M37600 vortex mixers are general laboratory vortex mixers. They are intended for applications where vortexing of single or multiple tubes is required. Vessels with closure tops up to a maximum of 125 ml can also be vortexed. -
Page 6: Installation
Installation Unpackaging Unpack Maxi-Mix II from box. An interchangeable rubber Warning cup for mixing test tubes and a replacement mixing surface Use a properly grounded electrical disc are included in the box. outlet of correct voltage and current handling capacity. Site Selection Do not use in the presence of flam- mable or combustible materials;... -
Page 7: Operation
Operation Power Switch: Warning The power switch is a combination ON/OFF and mode Do not turn the mixer on unless the switch to enable TOUCH operation. Move the power switch speed control is turned to minimum; to either the “FULL” position or the “TOUCH” position. In failure to do so may cause acces- the “FULL”... -
Page 8: Maintenance And Servicing
Maintenance and Servicing To Replace the Power Switch: Warning Disconnect mixer from power supply. Disconnect from power supply before servicing. Peel off the mixing surface disc. Hold the mixing platform to keep from turning and remove the Refer servicing to qualified personnel. platform from the counterweight assembly. -
Page 9: To Replace Microswitch
AINTENANCE AND ERVICING Desolder the two wires from rheostat. Identify or mark wires disconnected to insure proper placement and connection when reinstalling. Loosen set screw on knob and remove knob. Remove lock nut from rheostat and remove defective rheostat. Insert new rheostat into dial plate and secure with lock nut. -
Page 10: To Replace Motor
AINTENANCE AND ERVICING microswitch from motor. Save the spring and plunger from defective microswitch. Identify or mark wires dis- connected to insure proper placement and connec- tion when reinstalling. Insert spring and plunger into the shaft of the new microswitch. Position microswitch on mounting studs and secure with two screws. -
Page 11: To Replace Damper Springs
AINTENANCE AND ERVICING Resolder the wires as identified or marked in Step (e). Reinstall plastic housing and secure with four screws. While holding the mixing platform to keep it from turn- ing, secure the platform to the counterweight assem- bly. If the mixing surface is in good condition, reapply it to the mixing platform. -
Page 12: To Replace Mixing Surface Disc
AINTENANCE AND ERVICING Remove the paper backing from the new mix- ing surface disc and apply. Reconnect mixer to power supply. To Install Single Cup Mixing Head: Disconnect mixer from power supply. Peel off mixing surface disc and while holding the mixing platform to keep from turning, remove mixing platform. -
Page 13: Problem Solving Guide
Problem Solving The Problem Solving tips section is intended to aid in defining and correcting possible service problems. When using the guide, select the problem category that resembles the malfunction, then proceed to the possi- ble causes category and take necessary corrective action. Problem Possible Causes Corrective Action... -
Page 14: Replacement Parts List
800- 943-2006 or 800-926-0505... -
Page 15: Exploded View
Exploded View Exploded View... -
Page 16: One Year Limited Warranty
North America: USA/Canada +1 866 984 3766 (866-9-THERMO) www.thermo.com Europe: Austria +43 1 801 40 0, Belgium +32 2 482 30 30, France +33 2 2803 2180, Germany national toll free 08001-536 376, Germany international +49 6184 90 6940, Italy +39 02 02 95059 434-254-375, Netherlands +31 76...
