Summary of Contents for Toolex 596168

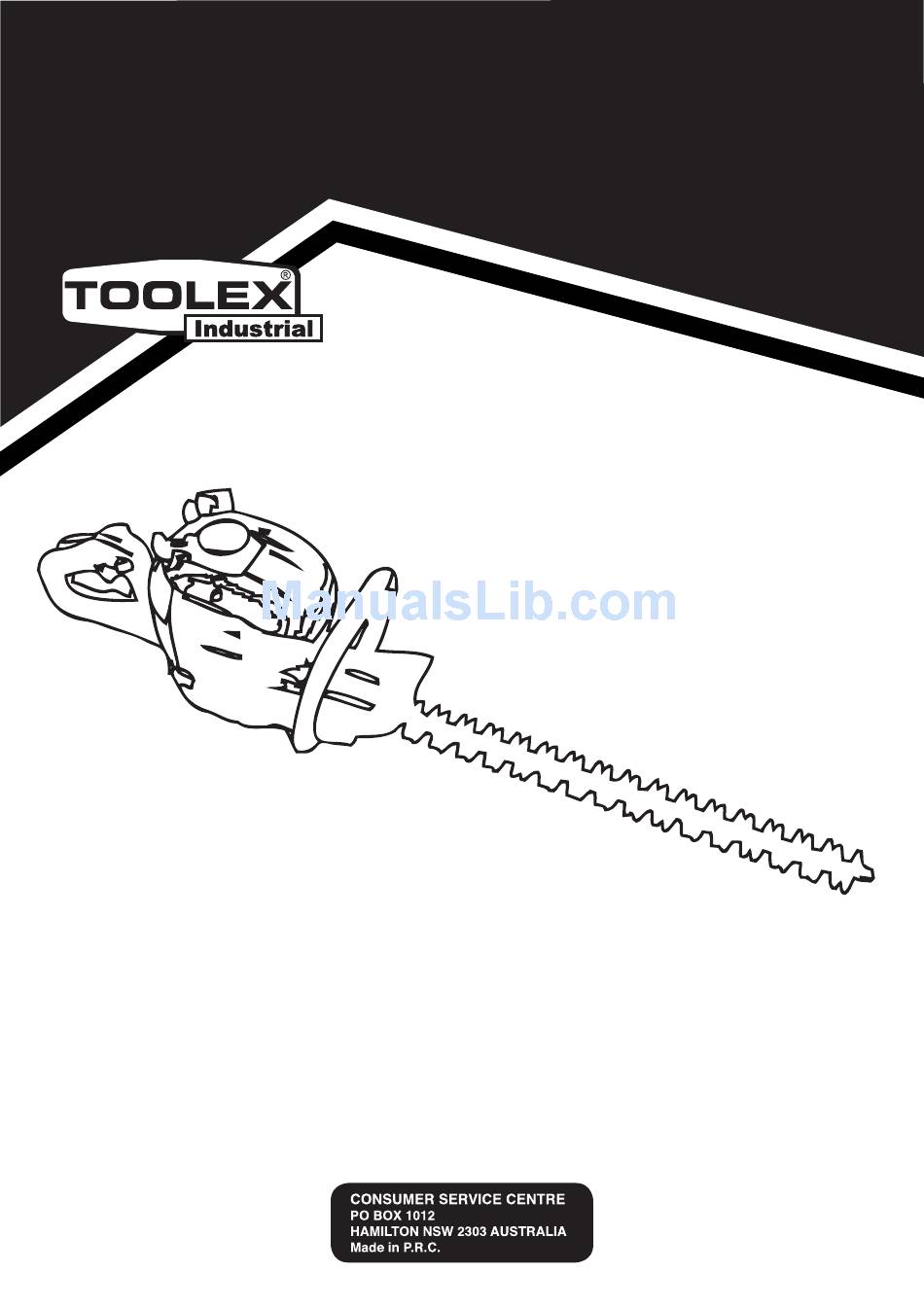

- Page 1 596168 PETROL HEDGE TRIMMER INSTRUCTION MANUAL...
- Page 2 1. PARTS 1. Rear handle Blade 13. Gear case 2. Safety lock lever 8. Muffler 14.Throttle cable 3. Engine stop switch 9. Choke lever 15.Spark plug 4. Fuel cap 10. Fuel tank 16.Grease nipple 5. Starter 11. Lock lever 17.Right handle 6.
- Page 3 2. SYMBOLS a) Choke ON b) Choke OFF. c) Handle adjustment d) Unlock Handle adjustment...
- Page 4 3. SAFTEY PRECAUTION I. Before using the hedge cutter: a. Read this owner ’s manual carefully to unders tand how to operate the Trimmer properly. b. The product has been designed for trimming leaves and branches from trees and hedges, and it should never be used for any other application. c.
- Page 5 ■WARNING - HANDLING OF FUEL a. The 2 stroke fuel mixture is highl y flammable. No not sm oke while operating the hedge-trimmer or refueling b. If any fuel spillage occurs during refu eling, use a dry rag to wipe up spills before turning the engine back on engine.
-
Page 6: Operation
4. OPERATION ■ FUEL MIXTURE ● Use 2 -Stroke Oil and Petrol Mixture at 30:1 ratio. ■ SAFETY LOCK WARNING To operate the throttle the safety lock must be depressed. ■ STARTING THE ENGINE Warning - The blades will start to m ove when the engine is started. Keep the blades clear of any objects. -
Page 7: Stopping The Engine
■ STOPPING THE ENGINE a. Release the throttle lever completely. b. Press the stop switch “O Stop” ■ WARNING a. Keep the cutting blades clear of fences, posts, wires, and rocks to prevent kickback and damage to the blades. HANDLE For easy of working the handle can be swiveled through 90°... -
Page 8: Maintenance
● When a n ew machine is first operated, in the first few m inutes grease may come out of the gear case. 5. MAINTENANCE WARNING Before cleaning, inspecting or repair ing the unit, make sure that th engine has stopped and is cool. ■... - Page 9 ■ ANTI-VIBRATION SYSTEM WARNING A deformed or damaged anti-vibration system may cause serious damage. ● Check periodically that the rubber cushions are not deform ed or damaged. ● Check periodically that the springs are not deformed or damaged. ■ AIR CLEANER Clogged air cleaner reduces engine performance.
- Page 10 Spark gap: 0.5-0.6mm ■ GREASE GEARCASE Use a grease pump, feed grease until it comes out of the base of blades. ■ ADJUSTING CARBURETOR The carburetor has been adjusted at the factory . Shoul d your unit need readjustment due to the dif ference of altitude or ope rating conditions, please let your skillful dealer make the adjustment.
- Page 11 b. Tighten all screws, bolts, and fitting. c. Check to see if any oil or grease has worked its wa y in between the clutch lining and drum , and if it has, wipe it away using lead-free gasoline. ■ MAINTENANCE BEFORE STORAGE a.
-
Page 12: Specifications
6. SPECIFICATIONS Model No. 596168 Type Double blade (single blade) Blade width 600mm Engine model 1E32FL Displacement 22.5cc Ignition system C.D.I Spark plug NHSP LD L9T Fuel Mixed Fuel tank capacity 0.6L Starter Recoil starter Clutch Centrifugal type Reduction ratio Dry weight 5.3kg...
