Universal Wireless RF Receiver Module & Remote keyfob Control DIY Kit

(Input 12VDC~24VDC/AC)

One Step Easy Installation

Model: PKAll

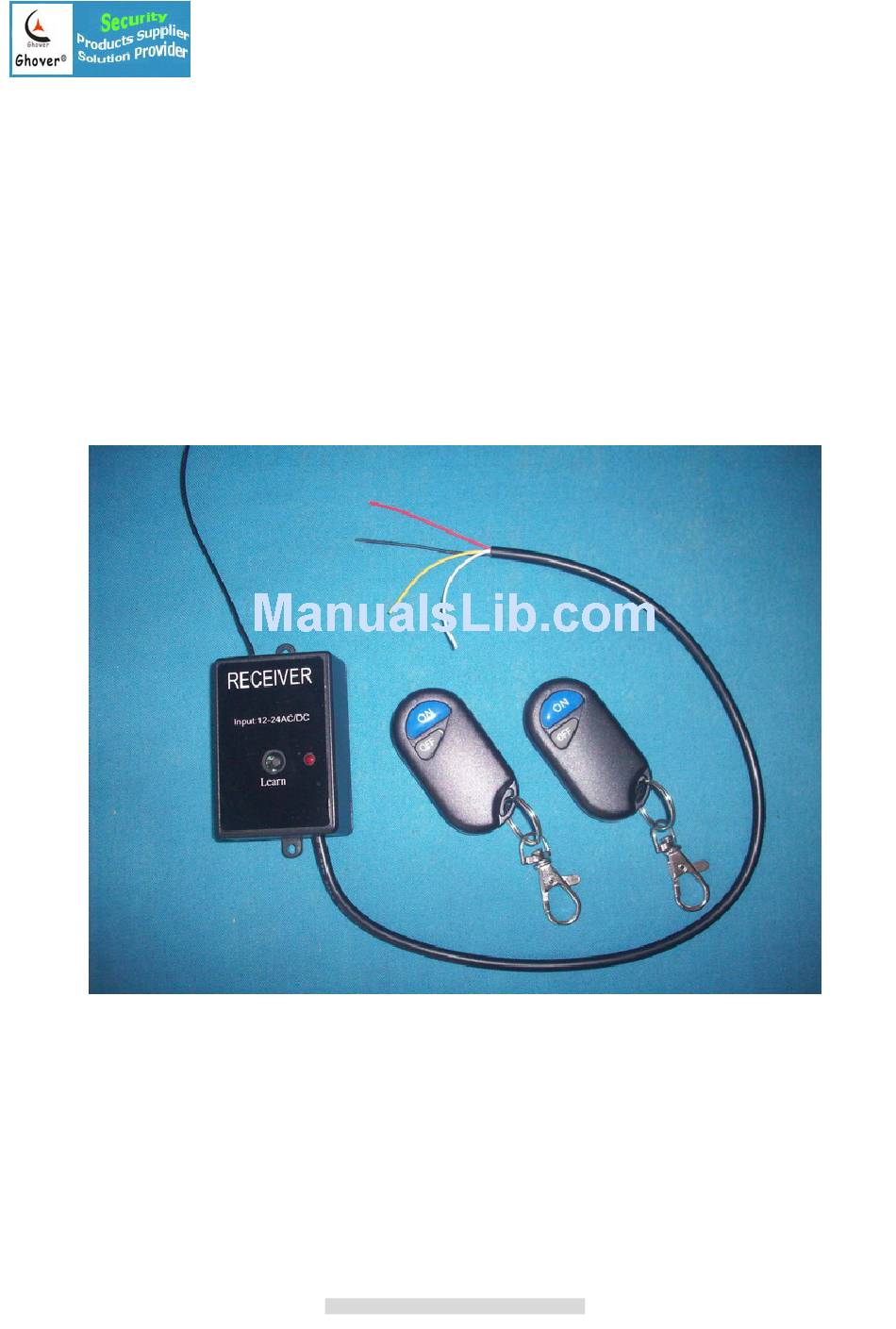

The Universal Wireless DIY Kit is designed to provide a convenient OPEN/CLOSE Control

for the Garage door and electronic automation gate.

It is suitable for replacing existing remote unit if you have lost the original hand unit or

those hard to get the old remotes.

This Remote keyfobs and add-on receiver can be used to replace any manufacturer's

remote as long as there is an "Emergency" switch or wired "Exit" in door switch (normal

situation). It allows the existing remotes to operate in parallel too.

Table of Contents

Do you have a question about the PKAll and is the answer not in the manual?

Page 1: User Manual
This Remote keyfobs and add-on receiver can be used to replace any manufacturer’s remote as long as there is an "Emergency" switch or wired "Exit" in door switch (normal situation). It allows the existing remotes to operate in parallel too. Copyright 2011 Ghover Security Products Ltd...
Page 2 10) Compact Size Remote Controls; 11) Distance: 100 Meters; 12) Frequency: 433MHz; 13) Relay Output: Voltage-free NO, Com. 14)Size: Receiver Unit 60 x 40 x 24 (mm), Remote Keyfob 55 X 28 X 9 (mm). Copyright 2011 Ghover Security Products Ltd...
Page 3: Specifications
1) Range: 100 meters; 2) Input: 12~24VDC/AC 3) Channels: 1 4) Signal coding: 4 bits 5) Static current: = 6mA 6) Sensitivity: > = -95dB 7) Frequency: 315/433 MHz 8) Working modes: Momentary Wiring Connection Copyright 2011 Ghover Security Products Ltd...
Page 4 PCB of Opener; *Com (Relay Com, no polarity) on Receiver wiring to Com Terminal on the PCB of Opener. Usually speaking, it's more convenient and nice for you to put the receiver on the back Copyright 2011 Ghover Security Products Ltd...
Page 5 1)Garage Door, Electronic Automation Gate sliding or swing, Alarm, Control. 2)Suitable for Garador, AHI, Merlin, MotorLift, Cham-berlain, Guardian, Dominator etc. 3)Home Electrical appliances. What includes: 1)Remote keyfob (2 button) with Batteries x 2; 2)Receiver unit x 1. Copyright 2011 Ghover Security Products Ltd...
