Harman Home Heating PC 45 Installation & Operating Manual

Corn/pellet/grain stove
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

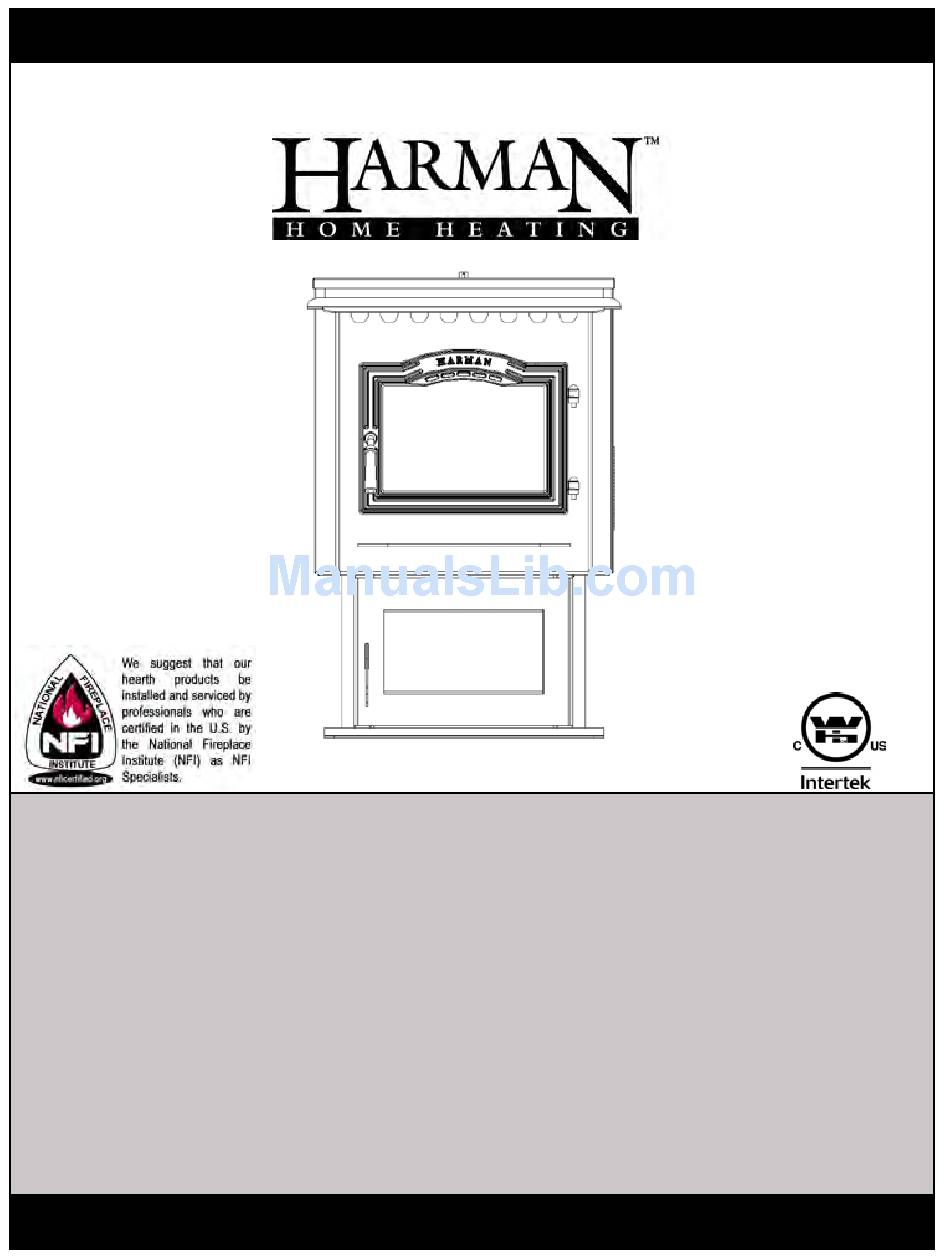

Installation & Operating manual
The harman PC 45 Corn/Pellet/grain Stove
r13
SAFETY NOTICE
PlEASE rEAd ThIS ENTIrE mANuAl bEFOrE YOu INSTAll ANd uSE YOur NEw rOOm hEATEr. FAIlurE
TO FOllOw INSTruCTIONS mAY rESulT IN PrOPErTY dAmAgE, bOdIlY INjurY, Or EvEN dEATh.
FOr uSE IN ThE u.S. ANd CANAdA. SuITAblE FOr INSTAllATION IN mObIlE hOmES.
IF ThIS APPlIANCE IS NOT PrOPErlY INSTAllEd, A hOuSE FIrE mAY rESulT. FOr YOur SAFETY, FOllOw
INSTAllATION dIrECTIONS.
CONTACT lOCAl buIldINg Or FIrE OFFICIAlS AbOuT rESTrICTIONS ANd INSTAllATION INSPECTION
rEQuIrEmENTS IN YOur ArEA.
CONTACT YOur lOCAl AuThOrITY (SuCh AS muNICIPAl buIldINg dEPArTmENT, FIrE dEPArTmENT, FIrE
PrEvENTION burEAu, ETC.) TO dETErmINE ThE NEEd FOr A PErmIT.
CETTE guIdE d'uTIlISATION EST dISPONIblE EN FrANCAIS. ChEz vOTrE CONCESSIONNAIrE dE hArmAN
hOmE hEATINg.
R1
SAvE ThESE INSTruCTIONS.
Item # 3-90-02686

Advertisement

Table of Contents
loading

Related Manuals for Harman Home Heating PC 45

Summary of Contents for Harman Home Heating PC 45

  • Page 1 Installation & Operating manual The harman PC 45 Corn/Pellet/grain Stove SAFETY NOTICE PlEASE rEAd ThIS ENTIrE mANuAl bEFOrE YOu INSTAll ANd uSE YOur NEw rOOm hEATEr. FAIlurE TO FOllOw INSTruCTIONS mAY rESulT IN PrOPErTY dAmAgE, bOdIlY INjurY, Or EvEN dEATh.
  • Page 3 The Outside Air option can increase heat efficiency even more. The PC 45 can burn corn or grain with moisture levels up to 16%, with 14.5% or less being ideal. It can also burn Harman PC 45 Corn/Pellet Stove pellets regardless of ash content.

  • Page 4: Assembly And Installation

    Assembly and Installation unpacking The PC 45 is bolted to the skid to prevent move- ment during shipping. To free the stove from the skid you must remove the hold-down bolts in the rear of the pedestal base. removing or Installing rear panels...

  • Page 5: Installation

    It is imperative that control compartments, burners, and circulating air passageways of the stove be kept clean. mobile home installation should be done in accordance with the manufactured home and Safety Standard (hud), CFr 3280, Part 24. PC 45 Corn/Pellet Stove...
  • Page 6 CAN/CSA-b365. (if in Canada) H. A vent must not be installed within 3 feet (90 cm) above a gas meter/regulator assembly when measured from the horizontal center-line of the regulator. = Vent terminal PC 45 Corn/Pellet Stove...

  • Page 7: Important Notice

    1-00-08543 When installing in a house with a Heat Reclaiming Ventilation System (HRV) be sure the system is bal- anced and is not creating a negative pressure in the house. Inlet Cover part# 1-10-08542 Fig. 8 PC 45 Corn/Pellet Stove...
  • Page 8 Consult with your local HVAC during a power failure condition. professional to determine the ventillation demands for your house. PC 45 Corn/Pellet Stove...
  • Page 9 1 foot above grade. CAuTION Keep combustible materials (such as grass, leaves, etc.) at least 3 feet away from the flue outlet on the outside of the building. 3 ft. combustibles Fig. 10 PC 45 Corn/Pellet Stove...
  • Page 10 If the chimney condition is questionable you may want to install a liner all the way to the top as in method #5. Check with your local regulations, some municipalities require a complete liner. Fig. 12 PC 45 Corn/Pellet Stove...
  • Page 11 Check with your local codes. The pipe or liner inside the chimney should be 4"diameter. In this method a cap should also be installed on the chimney to keep out rain. Fig. 14 PC 45 Corn/Pellet Stove...
  • Page 12 NOT CONNECT ThIS uNIT TO A ChImNEY FluE SErvINg ANOThEr APPlIANCE. INSTAll vENT AT ClEArANCES SPECIFIEd bY ThE mANuFACTurEr CAuTION STOvE IS hOT whIlE IN OPErATION. KEEP ChIldrEN, ClOThINg, ANd FurNITurE AwAY. CONTACT mAY CAuSE SKIN burNS. Fig. 17 PC 45 Corn/Pellet Stove...
  • Page 13 You may opt to change the others may work better with the larger holes. burn pot to this version with smaller holes. This option has the letter "S" marked on it & is Part # 1-10-724208. PC 45 Corn/Pellet Stove...
  • Page 14 This allows the PC45 to produce more heat when burning pellets. The larger ring does the opposite when burning corn. If you want to switch back to corn or grain, exchange the inlet ring back to the smaller opening. PC 45 Corn/Pellet Stove...
  • Page 15 The automatic system will allow the fire size to be adjusted to match the heating needs and even put the fire out if necessary. If heat is needed after the fire is out, the PC 45 will automatically re-ignite and adjust the fire size to match the heating need. The totally automatic room sensor mode is recommended because of its efficiency.

  • Page 16: Automatic Start Up

    "NEVER USE GASOLINE, GASOLINE-TYPE LANTERN FUEL, KEROSENE, CHARCOAL LIGHTER FLUID, OR SIMILAR LIQUIDS TO START OR "FRESHEN UP " A FIRE IN THIS HEATER. KEEP ALL SUCH LIQUIDS WELL AWAY FROM THE HEATER WHILE IN USE". PC 45 Corn/Pellet Stove...
  • Page 17 ESP Temperature reaches F, or 81% output. Fig. 23: This setting will produce a large viewing fire without a distribution blower operating. PC 45 Corn/Pellet Stove...

  • Page 18: Manual Start Up

    If the load door is opened the smoke may escape. HEATER WHILE IN USE". The best way to shut down the stove is simply let it run out of fuel, then the stove will shut down automatically. PC 45 Corn/Pellet Stove...
  • Page 19 5 blinks (In Igniter Auto. mode Only): Indicates that Harman Dealer. the unit has failed to light within the 45 minute start cycle. To reset - Turn Mode Selector to "OFF", then turn to either mode again. PC 45 Corn/Pellet Stove...

  • Page 20: Low Draft Voltage Adjustment

    0.5 inches of water column (W.C.). and ignitor operation. The PC 45 is then factory set 2. Plug the unit's power cord into a 120VAC, 60 HZ at a mid-point adjustment and in most cases will not grounded outlet.

  • Page 21: Maintenance

    • Remove the burnpot grate. Wheel Blower Cover • Clean all fines and debris. Latch • Reinstall in reverse order. NOTE: See burnpot maintenance section for a more detailed description on burnpot maintenance and clean- ing. Fig 30 PC 45 Corn/Pellet Stove...
  • Page 22 ESP probe NOTE: The frequency could vary from once a month when cleaning with to once a season depending on the quality of the fuel Fig. 37 brush. being used. PC 45 Corn/Pellet Stove...

  • Page 23: Safety Features

    The indicator lights for these components may be Hopper Lid illuminated even though power is not flowing to the components. Be sure all doors, Position Switch including the hopper lid, are securely closed when operating the appliance. PC 45 Corn/Pellet Stove...
  • Page 24 The PC 45 can burn corn with moisture levels up to 16%, 3. The air chamber under the burnpot may be filled with with 14.5% or less being ideal.
  • Page 25 Damp pellet stove performance or extra maintenance required fuel could turn back into sawdust which does not flow as a result of using fuel with higher ash or mineral properly through the feed system. content. PC 45 Corn/Pellet Stove...

  • Page 26: Specifications

    249 lbs. Blower 135 cfm Feed Rate 0 to 5.0 lbs. per hr. Hopper Capacity 80 lbs. Fuel Corn & Wood Pellets Flue Size 3 inch Outside Air Size 2 3/8" I.D. Fuse Rating 6 amp PC 45 Corn/Pellet Stove...
  • Page 27 Decorative tile is available in four choices of slate or holes will be best for pellets. Feel free to experiment a brushed stainless deer cutout (shown above). The tile with both grates. installs behind the trim on the ash door. PC 45 Corn/Pellet Stove...
  • Page 28 Side heat shields are available to reduce the attach to the brick channel. The logs stack from largest clearance to combustible materials. See Fig. 43. to smallest onto the brick channel and bracket set. Log Brackets Installed Fig. 43 PC 45 Corn/Pellet Stove...
  • Page 29 PC 45 wiring diagram PC 45 Corn/Pellet Stove...

  • Page 30: Limited Lifetime Warranty

    Hearth & Home Technologies Inc. LIMITED LIFETIME WARRANTY Hearth & Home Technologies Inc., on behalf of its hearth brands (”HHT”), extends the following warranty for HHT gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer. WARRANTY COVERAGE: HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership of the appliance at the site of installation within two years following the date of original purchase, that the HHT appliance...

  • Page 31: Warranty Conditions

    WARRANTY CONDITIONS: • This warranty only covers HHT appliances that are purchased through an HHT authorized dealer or distributor. A list of HHT authorized dealers is available on the HHT branded websites. • This warranty is only valid while the HHT appliance remains at the site of original installation. •...

  • Page 32: Service Parts

    PC45 Pellet Service Parts beginning manufacturing date: N/A Steel Pellet Stove Ending manufacturing date: Active 1-90-06800-1 (black), 1-90-06800-2 (Charcoal), 1-90-06800-3 (goldenfi re), 1-90-06800-4 (metallic blue), 1-90-06800-5 (honey glo), 1-90-06800-10 (mojave red), 1-90-06800-12 (Forest green) 2 & 3 Part number list on following page. 02/11...
  • Page 33 PC45 Pellet Service Parts beginning manufacturing date: N/A Ending manufacturing date: Active IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer. at depot ITEm description...
  • Page 34 PC45 Pellet Service Parts beginning manufacturing date: N/A Ending manufacturing date: Active #3 Feeder Assembly Post SN #008055950 3.15 3.14 3.13 3.12 3.11 3.10 IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. All parts listed at depot in this manual may be ordered from an authorized dealer.
  • Page 35 PC45 Pellet Service Parts beginning manufacturing date: N/A Ending manufacturing date: Active IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for Stocked your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
  • Page 36 PC45 Pellet Service Parts beginning manufacturing date: N/A Ending manufacturing date: Active IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer. at depot ITEm description...
  • Page 37 CAUTION! Always keep appliance doors and hopper lid closed and latched during operation and during power failures to minimize risk of smoke or burn-back. CAUTION! Use only Harman approved battery back-up devices. Other products may not operate properly, can create unsafe conditions or damage your appliance. PC 45 Corn/Pellet Stove...

  • Page 38: Service & Maintenance Log

    Service & maintenance log date Of Service Performed by description Of Service PC 45 Corn/Pellet Stove...
  • Page 40 Proudly Printed On 100% Recycled Paper...
