Summary of Contents for Ormed ARTROMOT K3

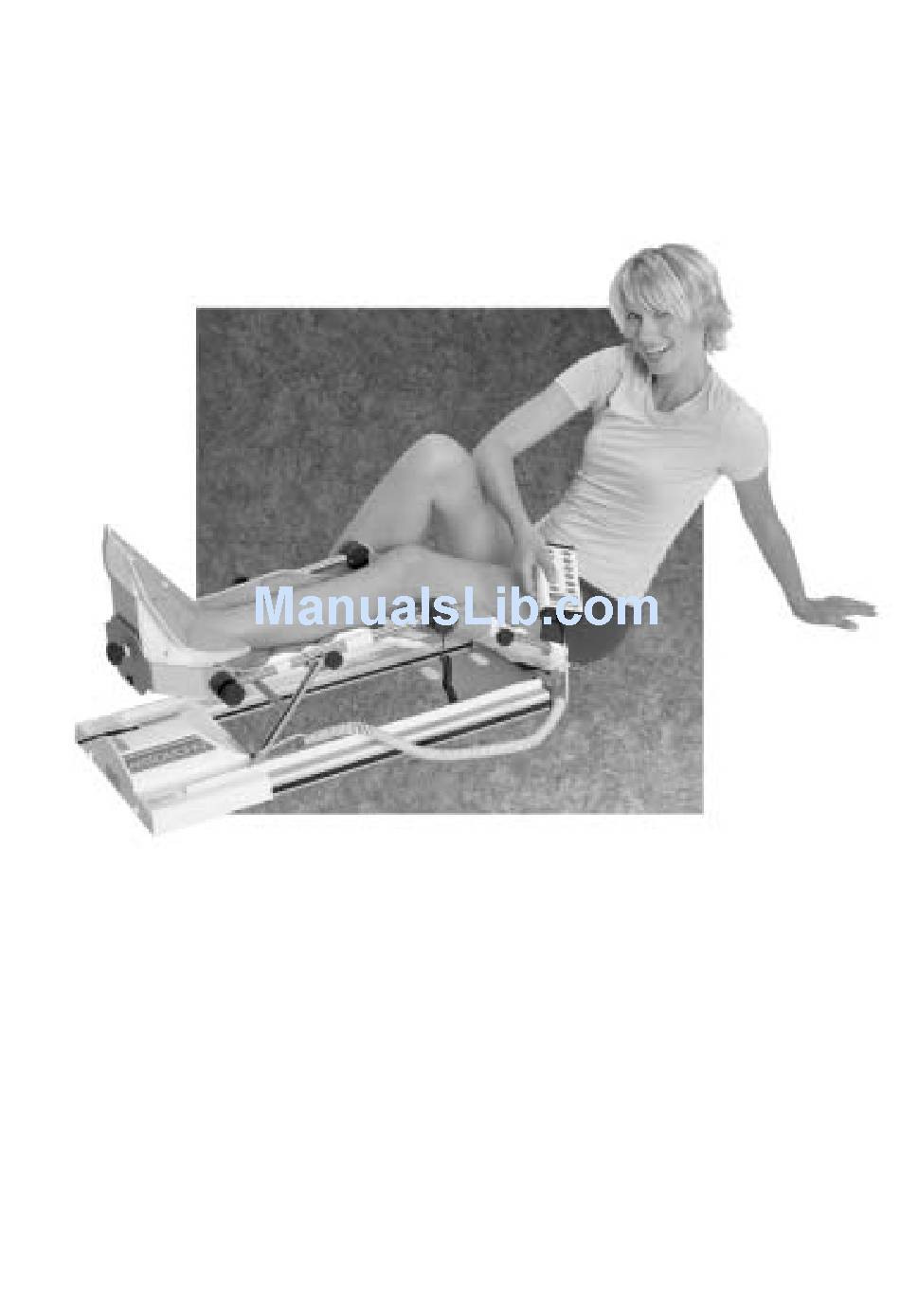

- Page 1 ARTROMOT ® Operation Manual...
- Page 2 Device description Knob for femur length adjustment Socket for power adapter Base Knurled knob for rotating foot plate Coiled cord Kit straps Controller cable Lower leg patient kit Hand-held controller Knee pivot point Knurled knob for length adjust- ment of lower leg Thigh patient kit Power adapter On/Off switch...
-
Page 3: Table Of Contents
Contents 1. How to use ARTROMOT ® 1.1. Application 1.2. Objectives of therapy 1.3. Indications 2. Description of the ARTROMOT ® - K3 3. Safety instructions 4. Adjusting the device 4.1 Connecting the device 4.2. Adjusting the femur length 4.3. Adjusting the supports Setting the treatment values 5.1. -
Page 4: How To Use Artromot
1. How to use ARTROMOT ® - K3 1.1. Application 1.3. Indications The ARTROMOT -K3 is a motor- The ARTROMOT -K3 CPM device is ® ® operated motion device used for indicated in the treatment of most Continuous Passive Motion (CPM) of injuries, postoperative states and the knee and hip joints. -
Page 5: Description Of The Artromot
2. Description of the ARTROMOT ® - K3 The ARTROMOT ® -K3 CPM device Explanation of functioning elements allows extension and flexion of the knee joint in the range of –5-0-110 degrees. There is no need to convert Note: Fold out page 1 the device when switching from the right to left side (or vice versa). -
Page 6: Safety Instructions
3. Safety instructions - Make sure that the characteristic CAUTION! values of your power supply correspond to the voltage and these instructions must be read frequency data indicated on the ID before start- up! plate. - Only connect the ARTROMOT ®... -
Page 7: Adjusting The Device
4. Adjusting the device Note: Fold out pages 1 and 17 4.3. Adjusting the To get a better understanding of the patient kit individual steps. - Fix patient kit (14) for the lower leg 4.1. Connecting and patient kit (16) for the upper leg by using the velcro tapes. -
Page 8: Setting The Treatment Values
5. Setting the treatment values 2. You can now select the treatment 5.1. Programming the values in succession by pressing the ARTROMOT ® parameter keys. 3. Change the value by pressing the +/- keys. The following treatment values can be 4. -
Page 9: Programming The Special Functions
Adjusting the force (reverse on load) Center warm-up - Minimum setting for reverse on load: 25 kp Warm-up allows the patient to attain - Maximum setting for reverse on load: gradually full programmed range of motion. 45 kp The device starts in the middle between the two values set for extension and fle- Settings are approximate! xion. -
Page 10: Maintenance
6. Maintenance 7. Specifications - Always unplug the device before Electrical rating 115/230V~ cleaning 50/60Hz 15V/27VA - The ARTROMOT ® -K3 can be wiped clean with disinfectant and therefore Input current 0.3 Amps complies with the required standards Rated 1.33 A of hygiene for medical equipment. -
Page 11: Service
To avoid transport damages, use only Headquarters Germany the original packing boxes. These ORMED GmbH & Co. KG boxes can be ordered from Ormed. Merzhauser Straße 112 Before carrying the device, always D-79100 Freiburg, Germany make sure the femur length adjustment is locked. -
Page 12: Declaration Of Conformity
Declaration of Conformity According to the EC-Regulation for medical devices the EC Medical Devices Directive (MDD) 93/42/EEC dated 14th June 1993, appendix 2 The Manufacturer ORMED GmbH & Co. KG Merzhauser Straße 112 D-79100 Freiburg herewith declares that the following units Type Knee &... -
Page 13: Figures
Figures Fig. 6 Fig. 2 Fig. 7 Fig. 3 Fig. 4 Fig. 8 Fig. 5... - Page 14 O R M E D G m b H & C o . K G • M e r z h a u s e r S t r a ß e 112 • D - 7 910 0 F r e i b u r g Phone +49 7 61 4566-01 • Fax +49 761 4566-5501 • www.ormed.de • E-Mail: info@ ormed.de St.
