Summary of Contents for Show Technology SM-8/2

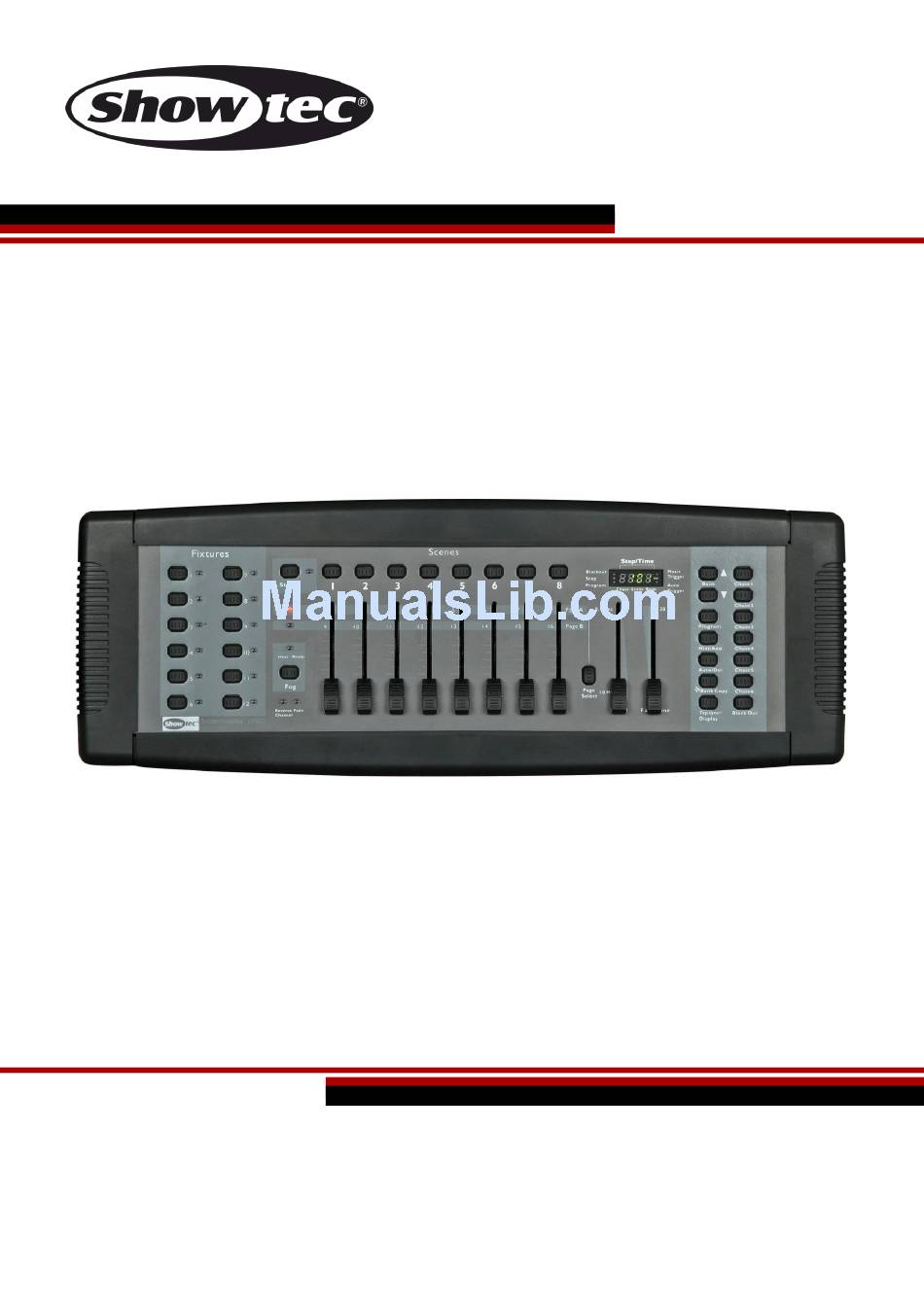

- Page 1 MANUAL ENGLISH SM-8/2 Ordercode: 50700 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
SM-8/2 Table of contents Warning ....................................2 Unpacking Instructions ..............................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Connection with the mains............................4 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Frontside..................................5 Backside ..................................7 Installation ................................... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec SM-8/2 DC 9V, 300 mA power adapter (1,5 m) ... -
Page 4: Operating Determinations
For adult use only. Device must be installed out of the reach of children. Never leave the unit running unattended. The user is responsible for correct positioning and operating of the SM-8/2. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. ... -
Page 5: Connection With The Mains
SM-8/2 Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER PHASE BLUE BLACK... -
Page 6: Description Of The Device
SM-8/2 Description of the device Features SM-8/2 is a light controller from Showtec and is equipped with the following features: • 192 DMX channels; up to 12 intelligent fixtures with 16 channels each • 30 banks of 8 scenes, a maximum of 240 scenes •... - Page 7 SM-8/2 01) Fixture buttons Press the buttons to select scanners for setting, programming or recording. 02) Fixture indicator The LEDs indicate the currently selected fixture. 03) Strobe button + LED Press the button to control Showtec strobes. 04) Page A Indicator The LED indicates CH1~8 range.
-
Page 8: Backside
SM-8/2 Backside Fig. 02 24) MIDI input port Connect this input for external triggering of banks, scenes, chases, and blackout using a MIDI device. 25) DMX polarity switch Press the switch to change signal polarity. 26) DC input 9V, 300 mA Power supply. -
Page 9: Installation
SM-8/2 Installation Remove all packing materials from the SM-8/2. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 10: Set Up And Operation
This will erase all programs and settings. Fixture Addressing The SM-8/2 is programmed to control 16 DMX channels per fixture. Therefore, the fixtures you wish to control with the corresponding FIXTURE buttons on the unit must be spaced 16 channels apart from each other (check the respective fixture’s manual for how to enter the information into the fixture). -
Page 11: Reverse Channel Output (Optional Setup)
A scene is a static lighting state. Scenes are stored in banks. There are 30 bank memories on the controller and each bank can hold 8 scene memories. The SM-8/2 can save 240 scenes in total. 01) Press and hold down the PROGRAM button for 3 seconds. -
Page 12: Edit A Scene
SM-8/2 Notes: Deselect BLACKOUT if LED is lit. A FIXTURE button represents one lighting fixture. You can access channels 9~16 by pressing the PAGE SELECT button. This is necessary for fixtures that use more than 8 control channels. When switching pages, it will be necessary to move previously moved faders up and down to activate. -
Page 13: Bank Delete
SM-8/2 Bank Delete 01) Press and hold down the PROGRAM button for 3 seconds. 02) Locate the bank which you want to delete. Press the AUTO/DEL and MUSIC/BANK-COPY buttons at the same time to delete the bank. Note: All LEDs will flash to indicate a successful deletion. -
Page 14: Delete All Chase Programs
SM-8/2 Delete All Chase Programs CAUTION! This procedure will result in irrevocable loss of chase step memory. The individual scenes and program banks will be preserved. 01) Press and hold down the BANK DOWN button and the AUTO DEL button while turning OFF the controller. -
Page 15: Playback (Chases)
SM-8/2 Playback (Chases) Manual Run Chases This function allows the user to manually step through each individual step in a chase. 01) Press and hold down the PROGRAM button for 3 seconds to enter programming mode. 02) Start a chase by pressing any of the CHASE buttons (1~6). -
Page 16: Midi Operation
SM-8/2 Midi Operation The controller will only respond to MIDI commands on the MIDI channel when it is set to full stop. All MIDI control is performed by using note on commands. All other MIDI instructions are ignored. In order to stop a chase, send the blackout on note. -
Page 17: Maintenance
02) There may not be any deformations on housings, fixations and installation spots. 03) The electric power supply cables must not show any damages or material fatigue. Showtec SM-8/2 requires almost no maintenance. However, you should keep the unit clean. -
Page 18: Product Specifications
SM-8/2 Product Specifications Model: SM-8/2 Input Voltage: DC 9V, 300mA (power adapter is included) Dimensions: 535 x 195 x 100 mm (LxWxH) 3HE (3U) 19" rack mount Weight: 2,9 kg Features: 192 DMX channels; up to 12 intelligent lights with 16 channels each... -
Page 19: Notes
SM-8/2 Notes Ordercode: 50700... - Page 20 ©2015 Showtec...
