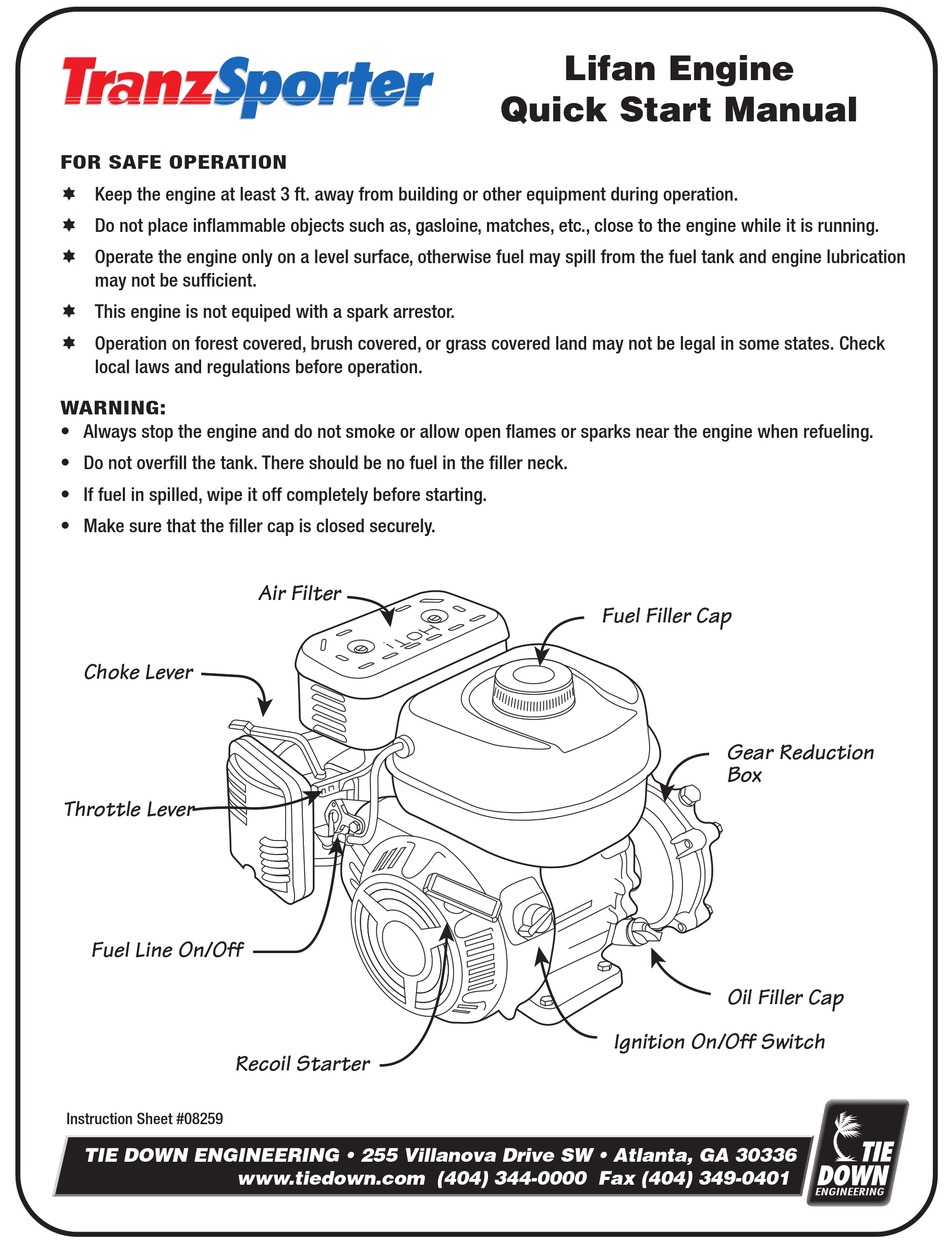

FOR SAFE OPERATION
Keep the engine at least 3 ft. away from building or other equipment during operation.
Do not place inflammable objects such as, gasloine, matches, etc., close to the engine while it is running.
Operate the engine only on a level surface, otherwise fuel may spill from the fuel tank and engine lubrication
may not be sufficient.
This engine is not equiped with a spark arrestor.
Operation on forest covered, brush covered, or grass covered land may not be legal in some states. Check
local laws and regulations before operation.
WARNING:
• Always stop the engine and do not smoke or allow open flames or sparks near the engine when refueling.
• Do not overfill the tank. There should be no fuel in the filler neck.
• If fuel in spilled, wipe it off completely before starting.
• Make sure that the filler cap is closed securely.
Choke Lever
Throttle Lever
Fuel Line On/Off
Recoil Starter
Instruction Sheet #08259
TIE DOWN ENGINEERING • 255 Villanova Drive SW • Atlanta, GA 30336
www.tiedown.com (404) 344-0000 Fax (404) 349-0401
Air Filter
Lifan Engine
Quick Start Manual
Fuel Filler Cap
Ignition On/Off Switch
Gear Reduction
Box
Oil Filler Cap
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Tie Down Engineering 160F-AH
-
Page 1: Recoil Starter
Fuel Filler Cap Choke Lever Gear Reduction Throttle Lever Fuel Line On/Off Oil Filler Cap Ignition On/Off Switch Recoil Starter Instruction Sheet #08259 TIE DOWN ENGINEERING • 255 Villanova Drive SW • Atlanta, GA 30336 www.tiedown.com (404) 344-0000 Fax (404) 349-0401... - Page 2 Lifan Engine Operation Check IMPORTANT! PRIOR TO USE 10W-30 FILL CRANK CASE WITH OIL. 5W-30 Engine oil recommended: SAE10W-30. As viscosity varies with regions and temperatures, select the -20˚ 20˚ 40˚ 60˚ 80˚ 100˚F proper engine oil in accordance with the chart below. Only the gear reduction housing comes pre-oiled! -30˚...
- Page 3 Lifan Engine Starting Step 1 Turn the Fuel Line “on/off” valve to the “on” (vertical) position. Step 7 Once the motor has been running for 1-2 minutes adjust the Throttle Step 2 lever for the desired engine speed. Start Up: Turn the “Red” ignition switch to the “On”...
- Page 4 TIE DOWN ENGINEERING 255 Villanova Drive SW • Atlanta, Georgia 30336 800-241-1806 • 404-344-0000 • Fax 404-349-0401 ISO 9001:2008 Certification Trade, brand, names and drawings are the intellectual property of TIE DOWN ENGINEERING. ©2014 TIE DOWN, Inc. Manual #08259 (Rev. 10-7-15) E1437...
