Summary of Contents for Tangent fjord DOCK
- Page 1 User manual Brugermanual DOCK...
-
Page 2: Table Of Contents
UK - USER MANUAL ..................3 Top Panel ...................... 4 Front Panel ....................5 Rear Panel ....................6 Remote Control ..................... 7 Specifications ....................8 DK - BRUGERMANUAL ................9 Toppanel ..................... 10 Frontpanel ....................11 Bagpanel ..................... 12 Fjernbetjening ..................... 13 Specifikationer .................... - Page 3 iPhone® and iPod® are trademarks of Apple Inc., registered in the U.S. and other countries. “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards.
-
Page 4: Uk - User Manual
UK - USER MANUAL... -
Page 5: Top Panel
Top Panel 1. Dock: Place your Apple device in the dock. 2. POWER LED: 50% brightness in standby mode, 100% brightness in ON mode. -
Page 6: Front Panel
Front Panel 1. IR Eye: Infrared receiver... -
Page 7: Rear Panel
Rear Panel 1. POWER: Use this input to connect the Tangent fjord’s DC power supply; 12V/2A. 2. AUX IN: Connect any stereo or mono audio source to this stereo input. -
Page 8: Remote Control
Remote Control 1. Skip/search reverse and forward. 2. Arrow keys down/up, used for scroll in iPhone mode. 3. MENU for iPhone and PLAY/PAUSE. 4. Volume down and up respectively. 5. POWER and MODE. [Note a.] Notes a. The MODE button on the remote has two functions. It acts as ENTER button in iPhone menu mode and as MODE button too. -
Page 9: Specifications

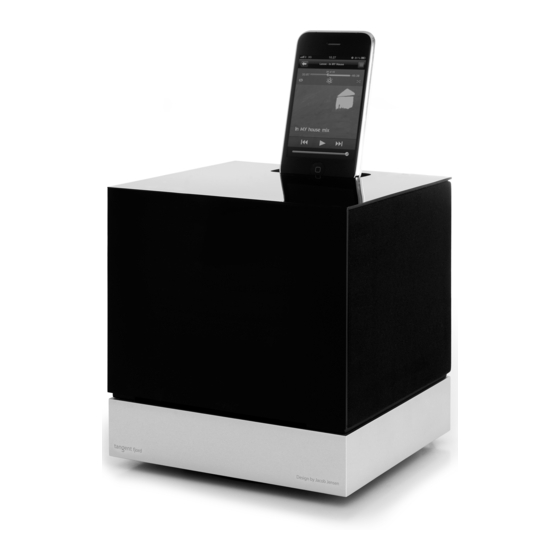

Specifications Model: Tangent fjord DOCK Controls: IR remote Speaker: 2pcs 3” wide range speakers Power Output: 2x7 Watt RMS@1% THD Connections: 3.5mm jack for stereo analog audio AUX input 12 V DC input Power: DC 12V/2A Dimensions: 170mm x 180mm x 170mm (W x H x D) Weight: 2.4Kg (Power supply and radio) -
Page 10: Dk - Brugermanual
DK - BRUGERMANUAL... -
Page 11: Toppanel
Toppanel 1. Dock: Placer din Apple-enhed i dockingstationen. 2. POWER LED: 50 % lysstyrke ved standby, 100 % lysstyrke når tændt. -
Page 12: Frontpanel
Frontpanel 1. IR øje: Infrarød modtager... -
Page 13: Bagpanel
Bagpanel 1. POWER: Brug denne indgang til at tilslutte Tangent fjords DC- strømforsyning, 12V/2A. 2. AUX IN: Tilslut en hvilken som helst stereo- eller mono-lydkilde til denne stereoindgang. -
Page 14: Fjernbetjening
Fjernbetjening 1. Spring over/søg baglæns og fremad. 2. Piltaster ned/op for at rulle i iPHONE-funktionen. 3. MENU for iPhone og AFSPIL/PAUSE 4. Lydstyrke henholdsvis ned og op. 5. POWER og MODE. [Bemærkning a.] Bemærkninger a. MODE-knappen på fjernbetjeningen har to funktioner. Den fungerer som ENTER-knap i iPHONE-menuen og også... -
Page 15: Specifikationer
Specifikationer Model: Tangent fjord DOCK Knapper: IR fjernbetjening Højttaler: 2 stk. 3” fuldtonehøjttalere Udgangseffekt: 2x7 Watt RMS@1% THD Tilslutninger: 3,5mm jack til stereo analog audio AUX-indgang 12 V DC indgang Strømforsyning: DC 12V/2A Dimensioner: 170mm x 180mm x 170mm (B x H x D) Vægt:... - Page 16 The result is a unique and sculptural combination of form and function. Tangent Fjord is a small dock with a big sound. It appears as a minimal- istic sculpture in the home, inviting operation all by itself. The high-...
