Summary of Contents for Ambrosia 2000

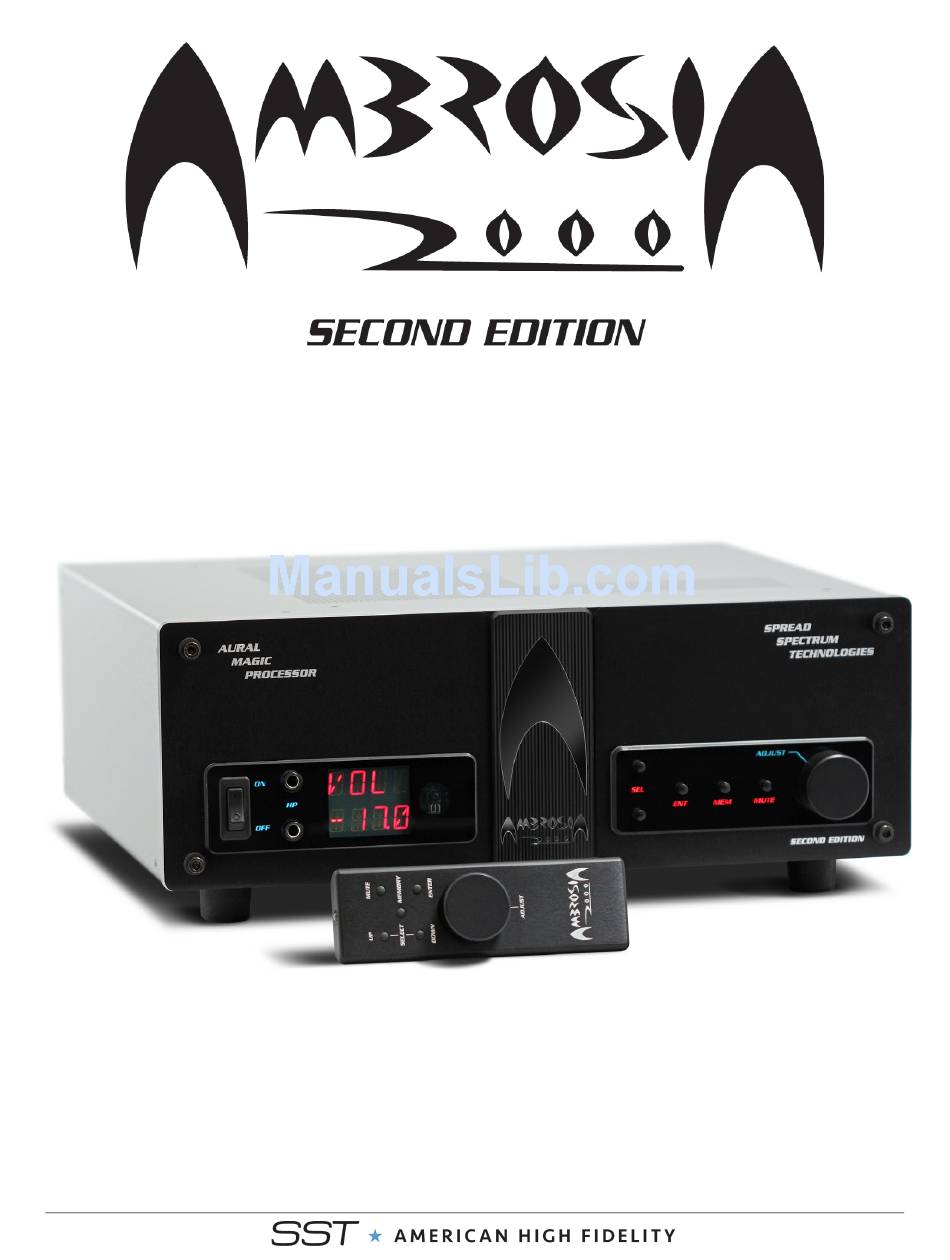

- Page 1 USER MANUAL WARNING: DO NOT INSERT OR REMOVE ANY PLUGS INTO THE PHONO INPUTS WHILE THE POWER IS ON. SEVERE DAMAGE MAY OCCUR TO THE INPUT STAGE. ...
- Page 2 What’s Included ● Ambrosia 2000 Second Edition preamplifier ● User Manual ● Detachable power cable ● Remote control (optional) ● One (1) pair “combo jack” gold-plated RCA adapters With phonostage: ● Eight (8) pairs RCA shorting plugs No phonostage: ● Six (6) pairs RCA shorting plugs © Spread Spectrum Technologies. All rights reserved Ambrosia 2000 Second Edition Manual V1 2 ...
- Page 3 The appliance should not be used near water or moisture – for example, in a wet basement or near a swimming pool, and the like. ● Clean only with dry cloth. ● Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. ● Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. ● Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit your outlet, consult an electrician for replacement of the obsolete outlet. ● Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and at the point where they exit from the apparatus. ● Unplug this apparatus during lightning storms or when unused for long periods of time. ● Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way such as the power cord or plug is damaged. Other damage may occur if liquid or objects have been dropped or spilled into the apparatus. Dropping the apparatus, exposure to rain, and excessive moisture may cause additional damage. ● Keep the unit in a well ventilated environment. ● CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. ● WARNING: To reduce the risk of electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed on apparatus. ● WARNING: The mains plug/appliance coupler is used as disconnect device, the disconnect device shall remain readily operable. © Spread Spectrum Technologies. All rights reserved Ambrosia 2000 Second Edition Manual V1 3 ...
- Page 4 ● The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock. ● No naked flame sources, such as lighted candles, should be placed on the apparatus. ● WARNING: The terminals marked with symbol of “+/-“ may be of sufficient magnitude to constitute a risk of electric shock. The external wiring connected to the terminals requires installation by an instructed person or the use of ready made insulated leads or cords. ● Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling. ● Keep your packaging! It is custom made for your unit and will effectively protect it for possible future use. ● Be sure to register your product. It is very important to complete the warranty registration form located on our website. Complete and submit the form within 30 days of purchase to activate your warranty. © Spread Spectrum Technologies. All rights reserved Ambrosia 2000 Second Edition Manual V1 4 ...
-
Page 5: Table Of Contents
Contents Section Page Introduction 6 Noteworthy Features 7 Front Panel Button and Control Definitions 8 Remote Control 9 First Time Operation and Making Menu Adjustments 10-11 Menu Selections 12 Connections 13 Specifications 14 Warranty Coverage 15-17 © Spread Spectrum Technologies. All rights reserved Ambrosia 2000 Second Edition Manual V1 5 ... -
Page 6: Introduction
Introduction am·bro·sia \am-ˈbrō-zh(ē-)ə\ The food of the Greek and Roman gods. Something extremely pleasing to taste or smell or, in this case, to hear. The Ambrosia 2000 Second Edition preamplifier is a brilliant example of what a reference, full-featured, stereo preamplifier can be. This fully-balanced system nucleus features giant power supplies, an optional MM/MC phono stage, headphone amplifier, tone and balance controls and an ingenious remote control. Some recent improvements include redesigned internals for improved stability, lower noise and a new home theater bypass function. There are no physical switches or controls of any kind in the signal path; the user interface is all electronic and galvanically isolated from the audio circuit. All functions are 100% microprocessor controlled and can be controlled from both the front panel as well as the optional remote control. At 50 pounds, the Ambrosia outweighs many power amplifiers! Most of the weight is due to the huge low-EMI power transformer. It features four secondary windings that power each circuit section independently, and in the process, eliminate ground loops. In addition, 15 independent power supply regulators are employed throughout for immunity against AC mains fluctuations. Every attention to detail and function contributes to the final, undeniable conclusion: The Ambrosia is a sonic tour-de-force befitting the finest audio systems. © Spread Spectrum Technologies. All rights reserved Ambrosia 2000 Second Edition Manual V1 6 ... -
Page 7: Noteworthy Features
Noteworthy Features The Ambrosia 2000 Second Edition is a revolutionary preamplifier in many ways. Below are some highlights. ● Four completely separate sets of transformer windings to power the four main preamp sections: moving coil, moving magnet, line, and display control. An additional 15 independent power supply regulators work in concert to eliminate ground loops and power supply noise. ● Optional phonostage: RIAA equalized, completely separate circuits for both MC and MM cartridge sources. Each circuit has its own set of direct outputs which bypass the internal switching and each has a dedicated user-selectable low cut filter. ● Highly configurable, sophisticated Menu system to tailor virtually every parameter of Ambrosia’s robust feature set to your satisfaction. ● A total of nine pairs of inputs: ○ Three main inputs (CD, TUN, AUX) ○ Two tape loop inputs ○ (Optional) phonostage inputs, one each for MM and MC ○ One combination XLR jack that can be used balanced or unbalanced ○ Home Theater Bypass input ● Outputs: two pairs unbalanced and two pairs balanced. ● Two headphone output jacks on the front panel powered by a unique, balanced power buffer idling at 4.5 watts per channel, capable of driving virtually any pair of headphones. The top output is a “switched” output: while in use, the Ambrosia will mute the line output to the connected amplifier. ● Fully balanced design with a sophisticated circuit that generates almost no distortion. Moreover, all of the distortion by-products in the Ambrosia come only from the passive switches and volume control, which are virtually inaudible. ● Highly customizable bass and treble controls. ... -
Page 8: Front Panel Button And Control Definitions
Front Panel Button and Control Definitions On/Off Switch Headphone Outputs The top output is a “switched” output: while in use, the Ambrosia will mute the line output to the connected amplifier. 3. LED Main Display Remote Control Sensor 5. “SEL”: Menu Select These buttons are used to cycle through the USER and MAIN Menus. It is a continuous scroll function in that upon reaching the end of either Menu, the next step starts back at the beginning. 6. “ENT”: Enter After deciding on a Menu option setting, you must push the ENT button to save that setting to memory. The only function that does not require this action is the volume control. After you have entered a setting, the Ambrosia display will revert to master volume. “MEM”: Memory This button allows you to get back to the last Menu option you were on, eliminating having to scroll through the Menu to get there . Ex: You saved an option for the BASL (Bass Left) position and the Ambrosia display has reverted to the master volume. Pushing the MEM button will now call up the BASL position. The MEM button recalls the last Menu position for which ENT was pressed. 8. “MUTE”: Mute Mutes the volume. 9. “ADJUST”: Shaft Encoder This is a multi-function control. Use it to scroll through the various options within a Menu position. It also controls the master volume, balance, bass and treble. © Spread Spectrum Technologies. All rights reserved Ambrosia 2000 Second Edition Manual V1 8 ... -
Page 9: Remote Control
Remote Control The optional all-aluminum remote control unit is laid out similarly, and functions identically, to the front panel. If you do not have a remote control and wish to obtain one, please contact your SST dealer or SST directly. © Spread Spectrum Technologies. All rights reserved Ambrosia 2000 Second Edition Manual V1 9 ... -
Page 10: First Time Operation And Making Menu Adjustments
First Time Operation and Making Menu Adjustments Before you turn on the Ambrosia for the first time, it is important that you read, understand and familiarize yourself with the following for optimal operation and enjoyment. Refer to the section “Front Panel Button and Control Definitions” for descriptions. First Time Operation ● IMPORTANT: Insert the supplied RCA shorting plugs into all of the unused input jacks, including the tape inputs . This will prevent audible clicks and pops while cycling through the Menu and open inputs. None of the inputs are internally shorted when not selected. If you do not use the shorting plugs, there is a chance that clicks and pops may cause speaker damage. SST will not be responsible for any speaker damage due to negligence in this regard. ● Ensure the Ambrosia is POWERED OFF before making or changing any input connections. Once connections are securely made, push the On/Off rocker switch to On. You will notice that the display shows the Initialization mode (“INIT”). It may take 30 to 40 seconds for the Ambrosia to initialize. After this first initialization period is finished, the display will read “VOL - 69.0” (the lowest volume setting). The Ambrosia will recall the last used volume level for each subsequent time it is turned on, or “- 15.0”, whichever volume level is lower. Making Menu Adjustments There are actually two Menu systems in the Ambrosia: USER and MAIN. USER is simply a condensed subset of the MAIN Menu, showing only the most oft-used positions. The following will help familiarize you with Menu operation and settings. For instructional purposes we will concentrate on the MAIN Menu, since it contains all the positions in the USER Menu. Refer to the next section, “Menu Selections”, for a complete list of the USER and MAIN Menu positions. ● Push the bottom SEL button to arrive at the SEL (Source) position. Turning the Shaft Encoder to the right, you can move through the various source options as follows: TUN, AUX, CD, BAL*, HT (Home Theater bypass), MC**, MM**. Push ENT to select your desired input. The main display will then revert to showing the volume. *BAL refers to the XLR “combo jack” input, which can be used as an additional balanced (or unbalanced via the supplied adapter) input. Note the Menu will always refer to this input as “BAL” even if used as unbalanced. ** If no phonostage is installed, these options will not appear in the Menu. ● Next, push the bottom SEL button until you arrive at MODE. Use the Shaft Encoder to choose one of three options: Stereo, Mono or Stereo Reverse. Note that MODE is a global setting, not unique to each Source ... - Page 11 ● The next Menu position is FILT (Low Cut Filter) and will only display with the optional phonostage installed. The options are None, MC, MM or MCMM (applies to both). The phono filters are set at approximately 20 hz. ● From here, pushing MEM and then the down SEL button will take you to LOFT (Low Frequency Turnover). There are four options possible. Be advised that these numbers only indicate the relative area of frequency turnover points. The same holds true for the next position, HIFT (High Frequency Turnover). There are four options available. For LOFT and HIFT, use your ears to determine which sounds best to you. ● Next is COPY (Tape Copy) which allows you to copy from one tape recorder to another. The positions are OFF, T1 >T2 or T2 >T1. ● The next option is TAPE (Tape Monitor). You can select either OFF, MON 1 or MON 2. ● The last Menu position is HTGA (Home Theater Bypass Gain). You can select either -14 or +0. Default is -14 for US units. All of these functions are mirrored in the available remote control and can be adjusted in the same way as above. © Spread Spectrum Technologies. All rights reserved Ambrosia 2000 Second Edition Manual V1 11 ...
-
Page 12: Menu Selections
MODE - Mode STER, MONO, STRV (Stereo Reverse) BASL - Bass Left -7 to +8 BASR - Bass Right -7 to +8 BSLR - Bass Left & Right -7 to +8 TRBL - Treble Left -7 to +8 TRBR - Treble Right -7 to +8 TBLR - Treble Left & Right -7 to +8 FILT - Low Cut Filter (only with phono option) NONE, MC, MM, MC & MM (applies to both) LOFT - Low Frequency Turnover 270H, 330H, 400H, 515H (in Hz) HIFT - High Frequency Turnover 2.7kH, 3.2kH, 3.9kH, 5.0kH (in kHz) COPY - Tape Copy OFF, T1 > 2, T2 > 1 TAPE - Tape Monitor OFF, MON 1, MON 2 Home Theater Bypass Gain - HTGA -14 or +0 *This represents the XLR “combo jack” input (see “Connections” section, next page), which can be used as an additional balanced (or unbalanced via the supplied adapter) input. Note the Menu will always refer to this input as “BAL” even if used as unbalanced. ** If no phonostage is installed, these options will not appear in the Menu. © Spread Spectrum Technologies. All rights reserved Ambrosia 2000 Second Edition Manual V1 12 ... -
Page 13: Connections
Left channel single-ended inputs 11. Left channel MC output and input* 3. Right channel single-ended inputs 12. MC Gain switch, in decibels* Left channel tape loop outputs 13. Right channel MC input and output* 5. Right channel tape loop outputs 14. Left channel MM output and input* 6. HT Bypass inputs, left and right 15. Right channel MM input and output* Left channel outputs (single-ended and balanced) 16. Main AC inlet 8. Right channel outputs (single-ended and 17. Fuse: ¼” 1A slow blow balanced) 9. AC switched inputs. Power to a connected device is dependent on Ambrosia being on. *Present if optional phonostage is installed. WARNING: DO NOT INSERT OR REMOVE ANY PLUGS INTO THE PHONO INPUTS WHILE THE POWER IS ON. SEVERE DAMAGE MAY OCCUR TO THE INPUT STAGE. © Spread Spectrum Technologies. All rights reserved Ambrosia 2000 Second Edition Manual V1 13 ... -
Page 14: Specifications
Specifications Phono: MC 64dB, 58dB, 52dB selectable gain; MM 42dB Input Gain Line: 20dB (or 5. dB with internal jumper) ± 12dB nominal Tone Controls Turnover points: Bass 200, 300, 400, 500Hz nominal; Treble 2kHz, 3kHz, 4kHz, 5kHz nominal Maximum Output 10V RMS unbalanced; 20V RMS balanced Output Impedance 60Ω, all outputs Input Impedance 100kΩ balanced, 29kΩ unbalanced Headphone Output 1Ω output; power 475mA (300Ω) MC: 70µV, (32µV with 400Hz–20kHz filter) at -0dB (max) gain setting Noise MM: 45µV, (20µV with 400Hz–20kHz filter) Linestage: 10µV (Awt) THD (Awt, 20Hz-20kHz) .004% max inputs to main outputs @ 2V RMS output MC/MM Phono: ± 0.6dB max deviation Frequency Response (5mV in, RIAA Equalized, 20Hz–20kHz) Linestage: ± 0.25dB max deviation (20Hz–20kHz) Dimensions 14 ¾" L x 17½" W x 7" H Weight 50 lbs. © Spread Spectrum Technologies. All rights reserved Ambrosia 2000 Second Edition Manual V1 14 ... -
Page 15: Warranty Coverage
Spread Spectrum Technologies may opt that you replace the defective parts with new or refurbished user-installable parts that Spread Spectrum Technologies provides in fulfillment of its warranty obligation. A replacement product or part, including a user-installable part that has been installed in accordance with instructions provided by Spread Spectrum Technologies, assumes the remaining warranty of the original product or ninety (90) days from the date of replacement or repair, whichever provides longer coverage for you. When a product or part is exchanged, any replacement item becomes your property and the replaced item becomes Spread Spectrum Technologies's property. Parts provided by Spread Spectrum Technologies in fulfillment of its warranty obligation must be used in products for which warranty service is claimed. When a refund is given, the product for which the refund is provided must be returned to Spread Spectrum Technologies and becomes Spread Spectrum Technologies's property. Any shipping charges are the responsibility of the owner. EXCLUSIONS AND LIMITATIONS Spread Spectrum Technologies does not warrant that the operation of the product will be uninterrupted or error-free. Spread Spectrum Technologies is not responsible for damage arising from failure to follow instructions relating to the product's use. This warranty does not apply: (a) to damage caused by use with non-Spread Spectrum Technologies products; (b) to damage caused by accident, abuse, misuse, flood, fire, earthquake or other external causes; (c) to damage caused by operating the product outside the permitted or intended uses described by Spread Spectrum Technologies; (d) to damage caused by service (including upgrades and expansions) performed by anyone who is not a representative of Spread Spectrum Technologies or a Spread Spectrum Technologies Authorized Service Provider; (e) to a product or part that has been modified to significantly alter functionality or capability without the written permission of Spread Spectrum Technologies; (f) if any Spread Spectrum Technologies serial number has been removed or defaced. TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, STATUTORY, EXPRESS OR IMPLIED. AS PERMITTED BY APPLICABLE LAW, Spread Spectrum Technologies SPECIFICALLY DISCLAIMS ANY AND ALL STATUTORY OR IMPLIED WARRANTIES, INCLUDING, AND WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND WARRANTIES AGAINST HIDDEN OR LATENT DEFECTS. IF Spread Spectrum Technologies CANNOT LAWFULLY DISCLAIM STATUTORY OR IMPLIED WARRANTIES THEN TO THE EXTENT PERMITTED BY LAW, ALL SUCH WARRANTIES SHALL BE LIMITED IN DURATION TO THE DURATION OF THIS EXPRESS WARRANTY AND TO REPAIR OR REPLACEMENT SERVICE AS DETERMINED BY Spread Spectrum Technologies IN ITS SOLE DISCRETION EXCEPT AS PROVIDED IN THIS WARRANTY AND TO THE EXTENT PERMITTED BY LAW, Spread Spectrum Technologies IS NOT RESPONSIBLE FOR © Spread Spectrum Technologies. All rights reserved Ambrosia 2000 Second Edition Manual V1 15 ... - Page 16 WILL BE ABLE TO REPAIR ANY PRODUCT UNDER THIS WARRANTY. Obtaining Warranty Service Please access and review the resources referred to in the documentation accompanying this hardware product before requesting warranty service. If the product is still not functioning properly after making use of these resources, please contact the Spread Spectrum Technologies representatives or, if applicable, an Authorized Service Provider/dealer using the information provided on the Spread Spectrum Technologies website. A Spread Spectrum Technologies representative or an Authorized Service Provider will help determine whether your product requires service, and if it does will inform you how Spread Spectrum Technologies will provide it. Spread Spectrum Technologies or its Authorized Service Providers will provide warranty service on products that are tendered or presented for service during the Warranty Period, as permitted by law. Spread Spectrum Technologies is not responsible for freight charges to or from our facility for warranty repairs. In accordance with applicable law, Spread Spectrum Technologies may require that you furnish proof of purchase details and/or comply with registration requirements before receiving warranty service. For more details on this and other matters on obtaining warranty service contact your dealer. Recovery and reinstallation of system and application software and user data are not covered under this Limited Warranty. Service In the unlikely event there is a problem with your Spread Spectrum Technologies component, please contact your dealer, distributor, or Spread Spectrum Technologies to discuss the problem before you return the component to our manufacturing facility for repair. Products shipped to the factory will be refused and returned freight collect if not accompanied by a Spread Spectrum Technologies Service Department issued return authorization number (RA Number). Return authorization numbers must be prominently displayed on the outside of the box and an accompanying letter describing the problem and re-listing the RA number must be inside the box to qualify for service. To contact the Spread Spectrum Technologies Service Department: Telephone: 1-805-466-9973 Fax: 1-805-462-8962 Email: support@sst.audio Website: http://www.sst.audio Once service has been approved, please follow the following procedure: Fill out the Service Request form located on our website and be sure to document all details. © Spread Spectrum Technologies. All rights reserved Ambrosia 2000 Second Edition Manual V1 16 ...
- Page 17 If service is approved we will issue a Return Authorization Number (R/A number) from the Spread Spectrum Technologies Service Department. Be sure to confirm the current shipping address. 3. Insure and accept all liability for loss or damage to the product during shipment to the SST facility and ensure all freight (shipping) charges are prepaid. The product may also be hand delivered to the California facility if arrangements with the Service Department have been made in advance. Proof of purchase from an authorized Spread Spectrum Technologies dealer, distributor or agent will be required for warranty validation at the time of hand delivery. Use the original packaging to ensure safe transit of the product to the factory, dealer, or distributor. Spread Spectrum Technologies may, at its discretion, return a product in new packaging and bill the owner for such packaging if the product received by Spread Spectrum Technologies was boxed in non standard packaging or if the original packaging was damaged to the point it was unusable. If Spread Spectrum Technologies determines that new packaging is required, the owner will be notified before the product is returned. To purchase additional packaging, please contact your authorized Spread Spectrum Technologies dealer, distributor, or the Spread Spectrum Technologies Service Department for assistance. If you did not purchase the product directly from us and require service please contact your dealer or distributors’ service department for information regarding service. If you feel your authorized dealer or distributor is either unwilling or unable to service your Spread Spectrum Technologies products, please contact our service department by emailing support@sst.audio or calling by phone to discuss and resolve the situation. © Spread Spectrum Technologies. All rights reserved Ambrosia 2000 Second Edition Manual V1 17 ...
- Page 18 Ph: +1 (805) 466-9973 Fax: +1 (805) 462-8962 Website: www.sst.audio Email: support@sst.audio © Spread Spectrum Technologies. All rights reserved Ambrosia 2000 Second Edition Manual V1 18 ...
