USER MANUAL
Super Narrow Bezel Monitors 46"/ 55" LAV
SNB Monitor (46"/ 55")
with VGA, HDMI, DVI, RS 232
DATA DISPLAY GROUP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SNB 46 Lavinia and is the answer not in the manual?

Questions and answers

Summary of Contents for Data Display Group SNB 46 Lavinia

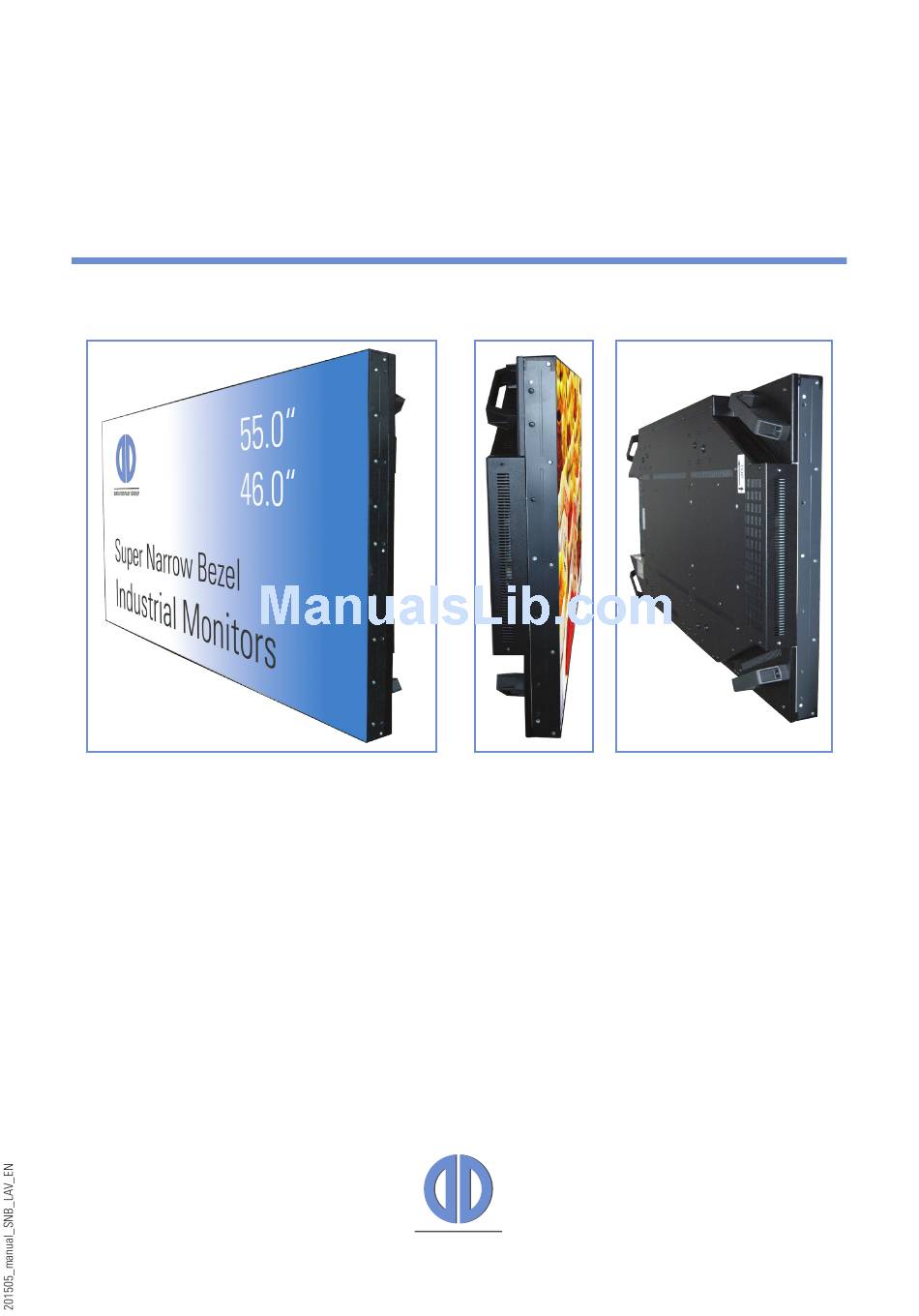

  • Page 1 USER MANUAL Super Narrow Bezel Monitors 46“/ 55“ LAV SNB Monitor (46“/ 55“) with VGA, HDMI, DVI, RS 232 DATA DISPLAY GROUP...
  • Page 2 Reproduction of this manual in parts or entirely without the previous authorization of Data Display Group is prohibited. Data Display Group is not liable for errors and collateral or subsequent damage which result from supply, deployment or any other utilisation of this document.

  • Page 3: Table Of Contents

    Table of Content 1. General Specifications ................4 Scope of Delivery ..................5 General Safety Regulations ............... 6 First Installation ..................9 Super Narrow Bezel Video Lavinia ............12 Maintenance .................... 28 Guarantee / Service ................. 28 Disposal ....................30 Declaration of Conformity ................ 31...

  • Page 4: General Specifications

    This user manual is valid for Super Narrow Bezel 46“ and 55“ monitors. Article numbers: DS-91-235; DS-91-303 Important note: This user manual is complemented by other additional documents when indicated. All documents are also available for download from Data Display Group web site: www.datadisplay-group.com. Monitor versions: SNB 46“/ 55“...

  • Page 5: Scope Of Delivery

    Scope of Delivery Scope of Delivery When unpacking the monitor, please check if the following accessories are included in the shipment: Note: Pictures can differ from actually supplied products. DATA DISPLAY GROUP Product information* Accompanying DVD* DVI cable* Power cable*...

  • Page 6: General Safety Regulations

    Please read this safety information carefully for your personal safety and for the prevention of property damage. In case of a malfunction immediately disconnect the power plug and contact your dealer or the next Data Display Group service center. A malfunction is also considered if the housing, a control element or cable is damaged or if liquids or other objects penetrate the monitor.
  • Page 7 General Safety Regulations Safety guidelines for the handling of LCD monitors • If the device is not in use over a longer period of time, unplug the power cable. • To unplug the device without problems, sockets have to be easily accessible. •...
  • Page 8 General Safety Regulations • Ensure sufficient ventilation of the device. • Keep a minimum distance of at least 10 mm devices to the wall, for devices with inte- grated PC of at least 40 mm. • Pay attention to the compliance with the operating temperature. •...

  • Page 9: First Installation

    First Installation First Installation Position of connectors and controls All connectors for power and cables are located at the bottom of the back side of the display. Connection elements for data cables, keys of the OSD menu, power cable and on-/ off-switch Removing the transport lock Please solve the indicated screws of the transport lock and remove the transportation lock carefully.
  • Page 10 First Installation Exercise caution when installing It is only allowed to lift and transport the device by the handles. The frame of the panel-casing is only 0,3 mm. By lifting the device at the frame of the panel-casing, breakage of the glass, defaults of the slots or buckle of the case could be possible results.
  • Page 11 First Installation Allowed tilt angle for mounting Attention! All monitors are not allowed to be mounted with a tilt angle of 0° - +180°. monitor The following monitors may be mounted only with a tilt angle of 0˚ to -180˚: •...

  • Page 12: Super Narrow Bezel Video Lavinia

    Super Narrow Bezel Video Lavinia Super Narrow Bezel Video Lavinia SNB Video Lavinia monitors have the following connectors and OSD buttons. OSD Tastatur Down Left Right Enter Menu Power Input RS232 VGA (RGB) HDMI Output RS232 VGA (RGB) Stromversorgung Ein/Aus Schalter Connecting to a PC with VGA cablel VGA (RGB) VGA (RGB)
  • Page 13 Super Narrow Bezel Video Lavinia Connecting to a PC with HDMI cable HDMI HDMI Connecting the remote OSD to a PC with RS232 cable RS232 RS232 Remote OSD Control To control the OSD menu of the display remotely from a PC, use a RS2342 cable and connect the display to your PC as described above. The OSD menu can then be operated via the remote control.
  • Page 14 Super Narrow Bezel Video Lavinia Operating the OSD menu via keyboard Operation Power Power On/ Off Menu • Activates main OSD menu • Navigates higher menu in main OSD menu • Stops auto frequency searching • Exits OSD menu Enter •...
  • Page 15 Super Narrow Bezel Video Lavinia Operation via remote control continuation Exit Exit OSD menu Info Displays input source information Sleep • Set minimum sleep timer value more than current sleep timer value when sleep timer OSD activated • If sleet timer is maximum value, disables sleep timer Mute Toggles sound status of speaker/headphone in mute Source...
  • Page 16 Super Narrow Bezel Video Lavinia OSD-Menu In this menu system, there are several ways to customize the menu settings provided. Most menus consist of three levels to set up the options, but some require greater depth for the variety of settings. If you press the MENU button, only the first and second level of the menu system will appear on the monitor screen.
  • Page 17 Super Narrow Bezel Video Lavinia On Screen Menus Language Selection • Press the MENU button and then use / button to select the SETUP icon. • Press the  button and then use / button to select Menu Language menu. •...
  • Page 18 Super Narrow Bezel Video Lavinia Video Input Press the SOURCE button and then / button to select each video source. Press the / SELECT button to go to desired video source Picture Mode Select the picture appearance to suit your preference and viewing situations. Press the MENU button and then /...
  • Page 19 Super Narrow Bezel Video Lavinia Color Temperature Control Choose one of five automatic color adjustments. Set to warm to enhance hotter colors such as red, or set to cool to see less intense colors with more blue. Press the MENU button and then use / button to select the PICTURE icon. Press the ...
  • Page 20 Super Narrow Bezel Video Lavinia Video Wall Layout Settings X Max: Maximum number of column tiles to divide video image. Y Max: Maximum number of row tiles to divide video image. Set X: Coordinate of video image’s column position. Set Y: Coordinate of video image’s row position. X Axe/ X MAX = 3 Setting the Bezel Corrections for Natural Tiled Image X Gap: Proportional Value of Vertical Bezel to Panel size by Per-mil unit.
  • Page 21 Super Narrow Bezel Video Lavinia PC Menü Press the MENU button and then use / button to select the PICTURE icon. Press the  button and then use / button to select PC Menu. Press  button and then use /  button to make appropriate adjustments. Press EXIT button to return to monitor viewing or press MENU button to return to the previous menu.
  • Page 22 Super Narrow Bezel Video Lavinia Clock If current time setting is wrong, reset the clock manually. Press the MENU button and then use / button to select the SETUP icon. Press the  button and then use / button to select Time. Press the ...
  • Page 23 Super Narrow Bezel Video Lavinia Sreen Saver Enables screen saver functions to avoid panel burning Press the MENU button and then use / button to select the SETUP icon. Press the  button and then use / button to select the Screen Saver Menu. Press the ...
  • Page 24 Super Narrow Bezel Video Lavinia Advanced Menu - X768 Mode When PC input resolution is x768 series, fix output resolution Press the MENU button and then use / button to select the SETUP icon. Press the  button and then use / button to select the Advanced Menu. Press the ...
  • Page 25 Super Narrow Bezel Video Lavinia Advanced Menu - Auto Source Change When present mode is no signal(not connect cable), auto detect other source and display Press the MENU button and then use / button to select the SETUP icon. Press the  button and then use / button to select the Advanced Menu. Press the ...
  • Page 26 Super Narrow Bezel Video Lavinia PIP - Picture in Picture Watch two programs or source at the same time. And set up PIP size and position. PIP On/ Off Press the MENU button and then / button to select the PIP icon. Press the ...
  • Page 27 Super Narrow Bezel Video Lavinia PIP - Position Press the MENU button and then use / button to select the PIP icon. Press the  button and then use / button to select the Positione Menu. Press the  button and then use / button to select the desired Position option. Press EXIT button to return to monitor viewing or press MENU button to return to the previous menu.

  • Page 28: Maintenance

    Data Display Group Service Centre together with all information as specified in the RMA process. Guarantee Exclusions and Limitations This guarantee does not apply to any defect for which Data Display group is not responsible and which include but are not limited to the following: •...
  • Page 29 Group RMA process. In order to avoid unnecessary charges, it is important to adhere to the RMA regulations. Products must be packed appropriate and professional for a safe return to toe Data Display Group Service Centre. Products with panel sizes equal or larger 81 cm (32“) must be shipped on pallets in upright position.

  • Page 30: Disposal

    Disposal Service addresses Germany Great Britain Distec GmbH Apollo Corp. Display Technology Ltd. Augsburger Str. 2b 87 Raynor Avenue, Unit 1 5 The Oaks Business Village D-82110 Germering Ronkonkoma NY 11779 Revenge Road, Lordswood T +49 (0)89 / 89 43 63 0 T +1 (1)631 / 580-4360 Chatham, Kent, ME5 8LF B support@distec.de...

  • Page 31: Declaration Of Conformity

    Declaration of Conformity Declaration of Conformity EC Declaration of Conformity Address: Distec GmbH Augsburger Str. 2B 82110 Germering, Germany Product: Super Narrow Bezel Lavinia 117 cm (46“) / 140 cm (55“) Model: DS-91-235; DS-91-303 The product is in compliance with the requirements of the following European directives: Main Unit: 2004/108/EG Electromagnetic Compatibility (EMC)
  • Page 32 Declaration of Conformity with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Canadian Department of Communications Compliance Statement This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

This manual is also suitable for:

Snb 55 lavinia
