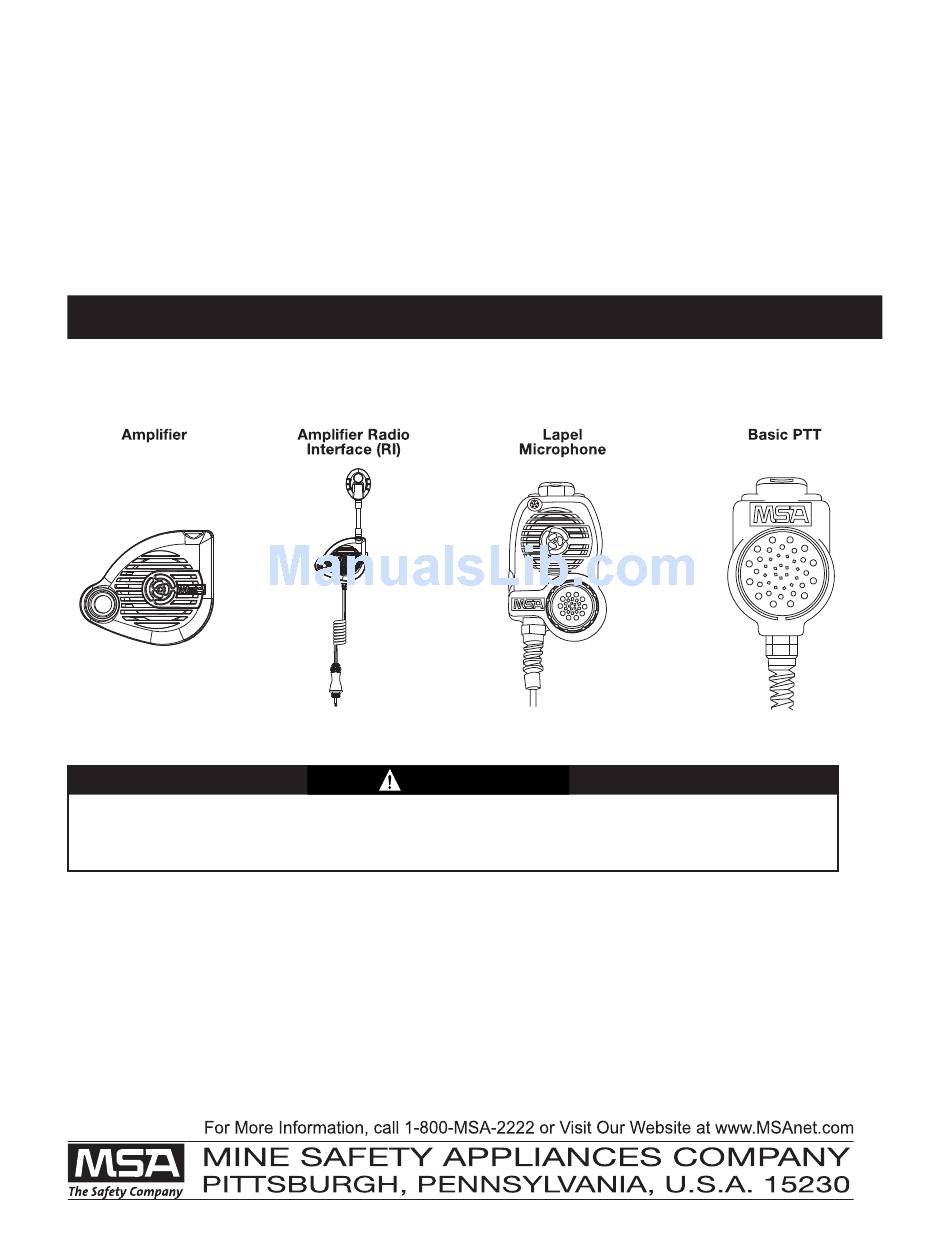

ClearCommand
Communications System
OPERATING AND MAINTENANCE INSTRUCTIONS

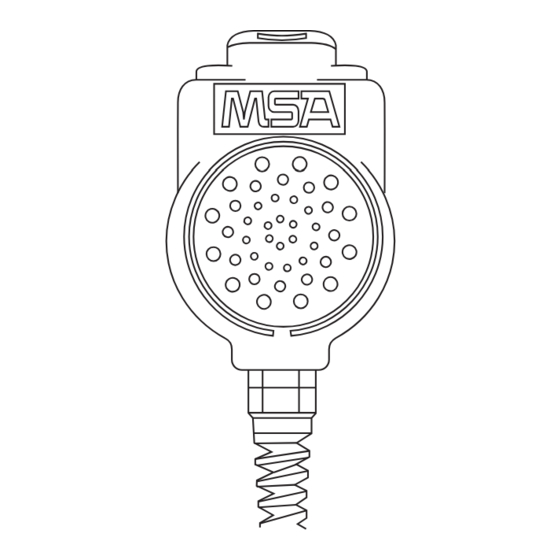

Voice Amplifier/Radio Interface
Read this manual carefully if you have, or will have, the responsibility for using or servicing the product. The
ClearCommand Communication System from MSA will perform as designed only if used and serviced accord-
ing to the instructions. Otherwise, the product could fail to perform as designed and persons who rely on
this product could sustain serious personal injury or death.
The warranties made by MSA with respect to the product are voided if the product is not installed, used,
and serviced in accordance with the instructions in this manual. Please protect yourself and your employees
by following the instructions. Please read and observe the WARNINGS and CAUTIONS inside. For any addi-
tional information relative to use or repair, write or call 1-800-MSA-2222 during regular working hours.
This product is NIOSH certified as an accessory for the Ultra Elite® Facepiece for use with all MSA MMR
breathing apparatus. Only the Amplifier and Amplifier Radio Interface are approved by NIOSH for use in a
CBRN application when used in an approved configuration.
TAL 7001 (L) Rev. 4
See Page 8 for Part Numbers
WARNING
© MSA 2007
Amplifier
P/N 10023056
Amplifier Kit
P/N 10024074
Amplifier RI
P/N 10051289
Amplifier RI Kit P/N 10051290
®
Prnt. Spec. 10000005389(A) Mat. 10053366
Doc. 10000018636
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MSA 10023056
Summary of Contents for MSA 10023056
- Page 1 The warranties made by MSA with respect to the product are voided if the product is not installed, used, and serviced in accordance with the instructions in this manual. Please protect yourself and your employees by following the instructions.
-
Page 2: Table Of Contents
INTRODUCTION TABLE OF CONTENTS Cautions and Limitations............2 Inspection ................6 Special User’s Instructions..........2 Storage ................6 Description .................2 Installing the Batteries............6 Intrinsically-Safe Rating............3 Replacement Parts and User’s Instructions.......8 Preparing For Use ..............4 Drawing ................8 Cleaning and Maintenance..........6 NIOSH APPROVAL INFORMATION The system consists of three main components that CAUTIONS AND LIMITATIONS attach to the user’s radio: •... -
Page 3: Intrinsically-Safe Rating
MSA’s website, replaced. Each Amplifier and Amplifier RI has a low bat- www.msanet.com/catalog/product852.html or by contact- tery LED indicator. ing MSA’s Customer Service Department directly: Phone: 1-800-MSA-2222 Intrinsically-Safe Rating Fax: 1-800-967-0398 Email: info@msanet.com... - Page 4 NOTES TAL 7001 (L) Rev 4 - 10053366...
-
Page 5: Preparing For Use
PREPARING FOR USE PREPARING FOR USE 2. Turn the Voice Amplifier ON: a. Depress the on/off button on the amplifier and then Attachment of Amplifier or Amplifier RI to Bracket release it. b. Look through the facepiece lens. A small, red LED should be illuminated at the top of the amplifier housing. -
Page 6: Cleaning And Maintenance
3. Clean by wiping with a damp sponge or cloth contain- CAUTION ing Confidence Plus from MSA. Follow the directions Evaluate this unit and any radio transceiver with which on the Confidence Plus container for mixing directions it may be used. -
Page 7: Storage
PREPARING FOR USE d. You should hear this sound reproduced in the WARNING amplifier speaker. Use only 1.5 Volt Duracell MN2400 or Energizer E92 e. Depress and release the on/off button again to turn AAA alkaline batteries. Use of other batteries, or a the unit OFF. -
Page 8: Replacement Parts And User's Instructions
TROUBLESHOOTING TROUBLESHOOTING Lapel Microphone and Basic PTT Microphone Kits for Radio Interface. Ear Speaker Not Receiving (Contact MSA Customer Service if specific radio is not • Verify that radios communicate with each other with listed below). no accessories attached. •...
