Summary of Contents for Eve Audio TS107

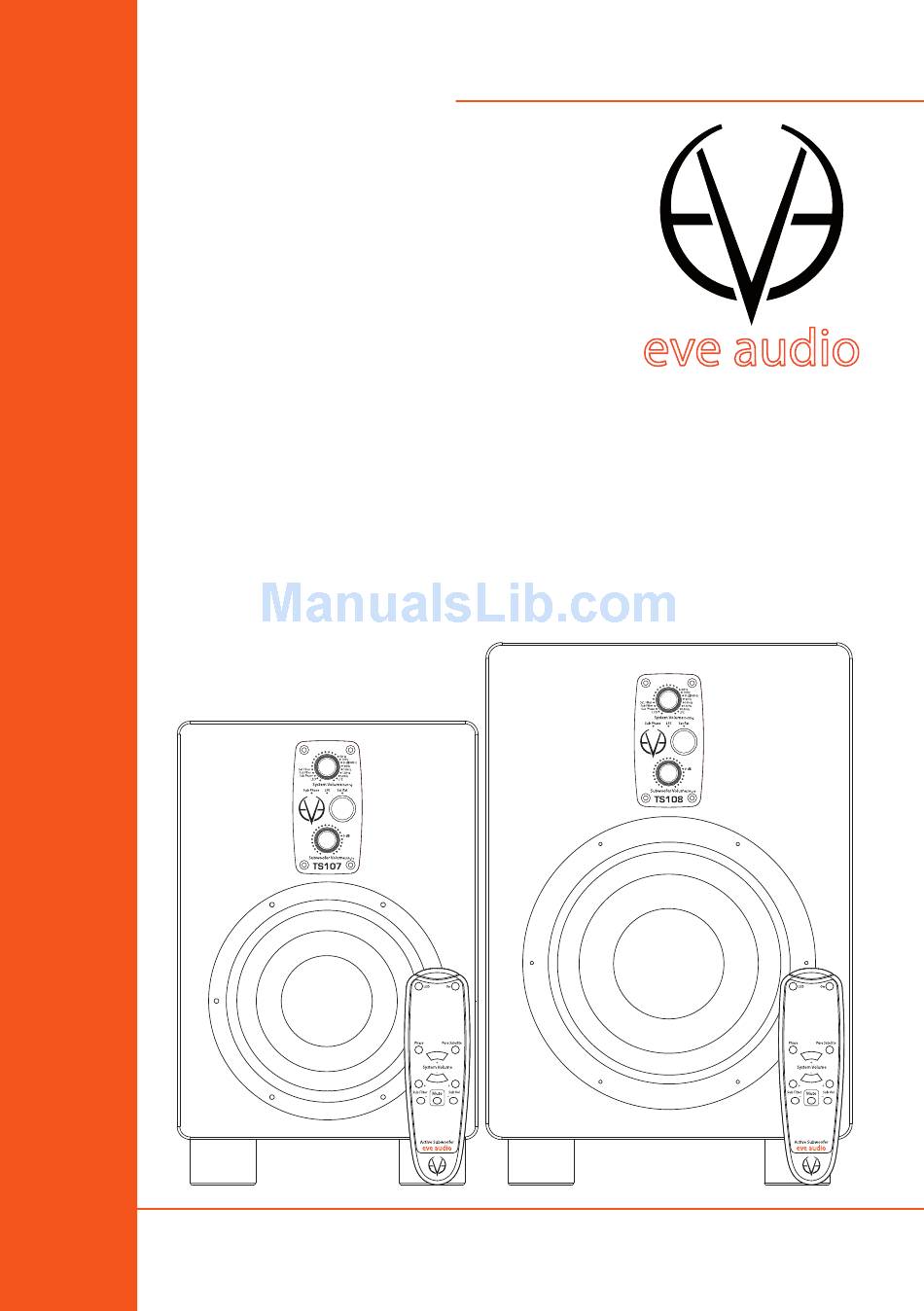

- Page 1 AUDIO PRODUCT MANUAL JAN 2016 TS107 TS108...
-
Page 2: Safety Instructions
TS107 TS108 SAFETY INSTRUCTIONS READ these instructions. KEEP these instructions. HEED all warnings. FOLLOW all instructions. DO NOT use this apparatus near water. CLEAN ONLY with dry cloth. DO NOT block any ventilation openings. Install in accordance with the manufacturer’s instructions. - Page 3 Audio product manual To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed on apparatus.
- Page 4 TS107 TS108 WARNING: This product is intended to be operated ONLY from the AC Voltages listed on the back panel or included power supply of the product. Operation from other voltages other than those indicated may cause irreversible damage to the product and void the products warranty. The...
-
Page 5: Table Of Contents
Audio product manual TABLE OF CONTENT INTRODUCTION ................6 QUICK START .................7 2.1. First Steps ..........................7 2.2. Subwoofer Connection ....................7 2.3. Powering On ........................7 OPERATION ...................8 3.1. First Steps ..........................8 3.2. Operating Modes ......................9 3.3. Powering on/off: Standby Mode .................9 3.4. Volume Mode ........................9 3.5. -
Page 6: Introduction
SC203 Master/Slave system optimally. We wish you a lot of fun with your EVE Audio subwoofer. If you have any questions regarding our products, do not hesitate to contact your nearest dealer or get directly in touch with us... -
Page 7: Quick Start
Audio product manual QUICK START If you already have experience with studio subwoofers, the Quick Start guide ought to be more than enough to get you started. For unexperienced users we recommend reading the whole user’s manual in order to prevent any misuse. 2.1. -
Page 8: Operation
• Unbalanced XLR pin assignment: 1+3 = Shield, 2 = Signal. The rear side also offers an unbalanced RCA input connector for the connection to the dedicated Sub out of an EVE Audio SC203 Master/Slave system. • RCA pin assignment: Sleeve = Shield, Tip = Signal. -
Page 9: Operating Modes
+ satellites). Depending on the LED mode selected (see LED mode), the volume will be displayed as a dim/bright circle or as a dim/bright point. In case the subwoofer is connected to an EVE Audio SC203 Master/Slave system via the dedicated RCA Unbalanced in, the System Volume control will affect only the subwoofer volume, not the system volume. - Page 10 TS107 TS108 independently from the satellites. This allows you to strike the right balance between subwoofer and satellites. The LED ring indicates the volume setting. -20 dB 1 Step = 0.5 dB (1 LED = 4 Steps) 1 Step = 1 dB...
-
Page 11: Settings Menu
To exit the System Mute mode simply turn the System Volume control clockwise until you reach the desired volume. In case the subwoofer is connected to an EVE Audio SC203 Master/Slave system via the dedicated RCA Unbalanced in, the System Volume control will switch the subwoofer to Mute mode but not the satellites. -
Page 12: Sat. Filter (Only When Using The Xlr Ins & Outs)
80 Hz, the Sat Flat LED lights on and the audio signal is not filtered. In case the subwoofer is connected to an EVE Audio SC203 Master/Slave system via the dedicated RCA Unbalanced in, the Sat. Filter will have no effect on the satellites signal. -
Page 13: Saving Your Settings
3.12. Remote Control Your EVE Audio subwoofer comes with an IR remote control that allows you to control almost all functions available on the front panel. In order to start using the remote control, you must first insert the supplied batteries in the battery compartment. - Page 14 (without subwoofer and without any filtering). In case the subwoofer is connected to an EVE Audio SC203 Master/Slave system via the dedicated RCA Unbalanced in, use the Pure Satellite button to mute the subwoofer (Mute function: see Subwoofer Mute).
-
Page 15: Power Switch
3.14. DIP Switches On the rear panel of your EVE Audio subwoofers you will find four DIP Switches. These allow you to secure your subwoofer settings to prevent them from being changed inadvertently. Filter Lock •... -
Page 16: Power Connector (Iec)
3.15. Power Connector (IEC) Use the power cord supplied to connect your EVE Audio subwoofer to the power grid. The IEC connector includes an integrated fuse. If your EVE Audio loudspeaker stops working and the fuse seems to be the problem, proceed as follows: •... -
Page 17: Stereo Setup + Subwoofer (2.1)
The high frequencies are forwarded to the full-range satellite speakers. In case the subwoofer is connected to an EVE Audio SC0203 Master/Slave system via the dedicated RCA Unbalanced in, it is fed by the signal of the Master satellite Sub out. -
Page 18: Multichannel Setup (5.1)
TS107 TS108 Refer to the table above to determine the best 2.1 setup for your room. The so-called “stereo triangle” is the best way to place the satellites in a stereo setup, i.e. the monitors and the listening position should form an equilateral triangle. -
Page 19: Room Acoustics
Audio product manual Refer to the table above to determine the best 5.1 setup for your room. The positioning of the two front speakers and the subwoofer should be done in the same manner as in a stereo setup with a subwoofer (see “Stereo Setup + Subwoofer“). - Page 20 TS107 TS108 wall parallelism, proportion, and reflective behavior of the room, as well as the corners, the building materials and their characteristics play a very important role in the acoustics of a room. Room acoustics is a science in itself and it is unfortunately out of the scope of this manual.
-
Page 21: Technical Specifications
Audio product manual TECHNICAL SPECIFICATIONS Product TS107 TS108 Description Subwoofer Subwoofer Dimensions (WxHxD) (mm) 230 x 355 x 300 280 x 415 x 365 Dimensions (WxHxD) (“) 9.06 x 13.98 x 11.81 11.02 x 16.34 x 14.37 33 - 300Hz... -
Page 22: Compliance
EVE Audio GmbH, with registered office in Ernst Augustin Str. 1a, 12489 Berlin, Germany, herewith declare that the TS107 and TS108 comply with the following norms: EC Norms: EN 60065: 2002 + A1:2006 + A11:2008 + A2:2010 + A12:2011 EN 50564: 2011... -
Page 23: Warranty
Always keep the original packaging of any EVE Audio product: Only products with original packaging are eligible for warranty service. If the product is not packaged in its original box, EVE Audio will not be liable for any damages occurred during transit. - Page 24 . w w w. e v e - a u d i o. c o m . facebook.com/EveAudio . twitter.com/EveAudio Jan 2016 © EVE Audio. All rights reserved. EVE Audio reserves the right to make changes in or additions to the information provided at any time.
