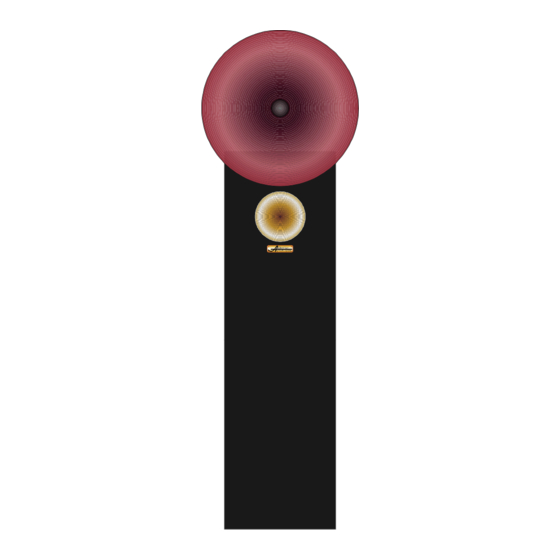

Summary of Contents for Acapella Violon 2001

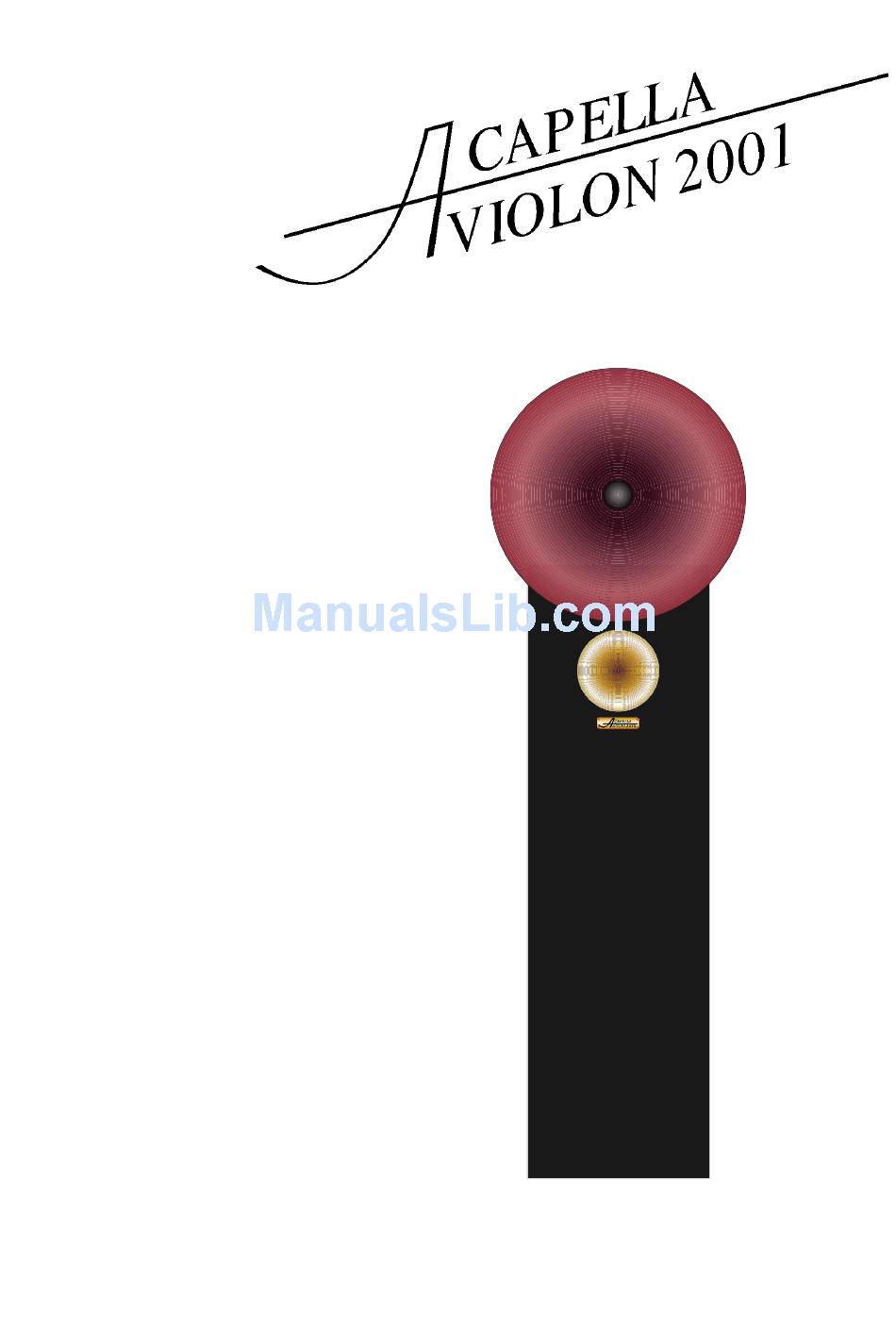

- Page 1 Instruction manual...
- Page 2 ACAPELLA products are unique combinations of design, function and engineering. All parts are carefully handcrafted by ACAPELLA. The serial numbers are marked by hand and registered in the production records. Every unit has its own serial number and production trail. On the basis of these recorded data’s, all characteristics can be reproduced at any time.
- Page 3 Unpacking For transportation the VIOLON 2001 has been wrapped in stretch foil which provides an excellent protection. Remove this foil by cutting it carefully with a blade or a pair of scissors on the rear side of the loud- speakers at the height of the ion tweeter. Undo the foil right to the bottom.
-
Page 4: Power Connection
Before connecting the loudspeaker for the first time, please check all components in your system for correct polarity of the AC mains. Correct phase is marked on the ACAPELLA ion tweeter. Please keep an eye on the red-marked side of the AC-connector. AC mains phase should be there. - Page 5 Because of his built-in Class-A amplifier and is valve oscillator, the ion tweeter requires sufficient ventilation. When used together with the VIOLON 2001, minimum clearances have constructionally been taken into consideration. Should you have purchased the ion tweeter for use with other loudspeakers, be sure to allow the following minimum clearances.
-
Page 6: Control Panel
Control panel 1. Level control 2. Input RCA jack 3. Mode switch (manual/automatic) 4. Fuse F1 0,4A slo-blo 5. Fuse F2 1,2A slo-blo 6. Fuse F3 0,1A slo-blo 7. AC connector with phase identification 8. Hand marked serial number Getting started Bring the mode switch on the rear panel of the unit to the „automatic“... -
Page 7: Basic Position
2 cm narrow strip. This position will be the basic position of the loudspeakers. Connection to the amplifier The VIOLON 2001 is equipped with large binding posts for termination to an amplifier. In principle, it comes with connectors for bi-wiring. For optimum performance connect the VIOLON 2001 carefully to your amplifier, by using high quality speaker cables. - Page 8 Optimising imaging accuracy Control of monophonic reproduction The meaning of this control is to optimise placement of the loudspeakers relative to your living room. Without proper adjustment you won’t be able to localise voices or instruments precisely in the imaginary room which is reproduced by the loudspeaker.
-
Page 9: Specifications
Care of the loudspeakers Please clean the varnish or Acryl surface with a clean and humid chamois Note: only. When cleaning the mid-range horn unit, be careful with the very sensitive membrane of the driver. You can polish the ion tweeter with an Before cleaning appropriate cloth until it becomes shiny again. -
Page 10: Troubleshooting
Acapella dealer or by us. Crackling Dirt particles in the Bring the unit into the „manual“...
