Power input connector
• MIDI in
• MIDI Thru
MIDI learn button:
• Headphones out
Audio OUT:
VCF Audio IN:
Pitch CV IN:
VCF CV IN:
Gate IN
:
CV 1 Pitch OUT:
Gate OUT:
CV2 Velo OUT:
CV3 Wheel OUT:

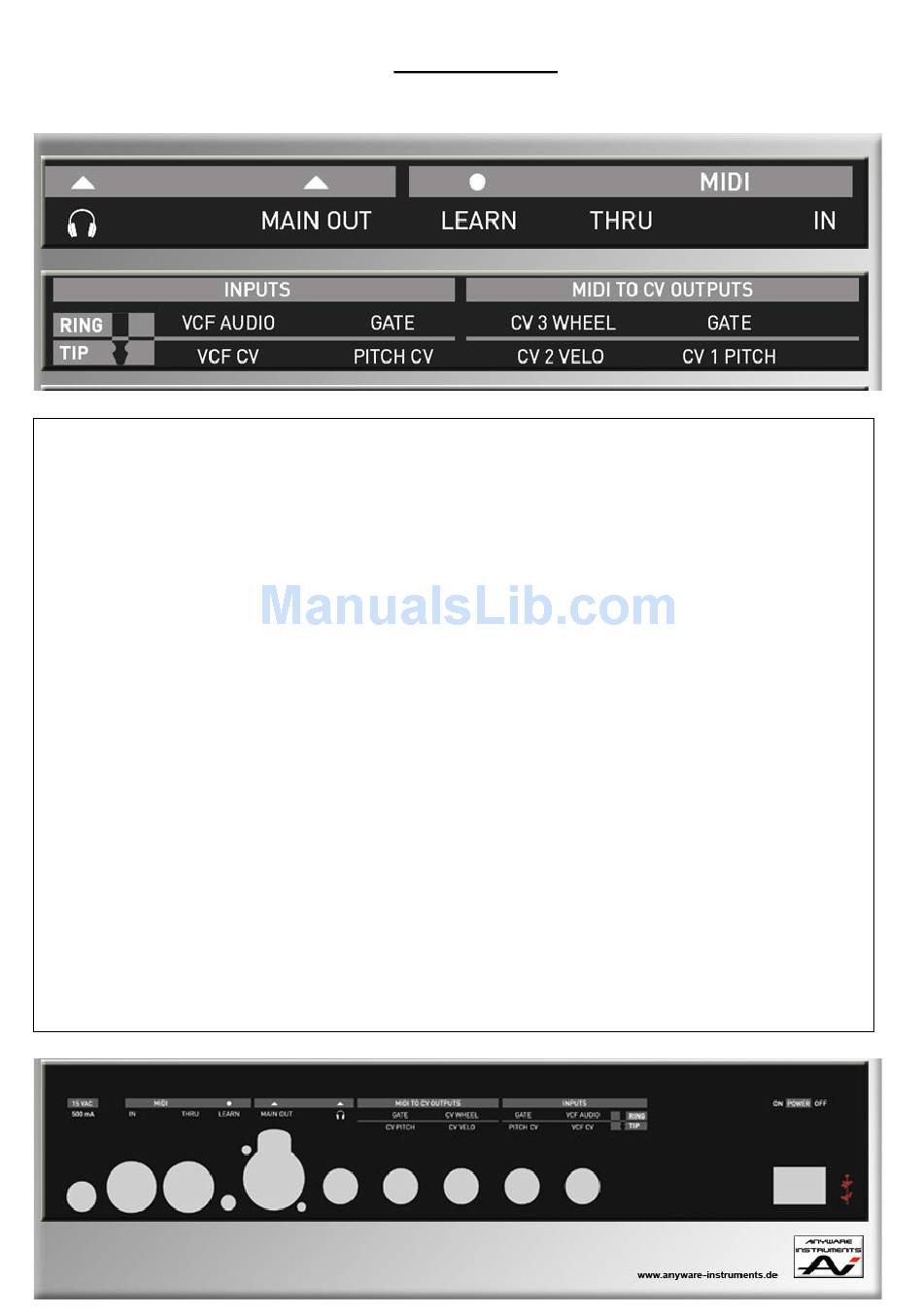

CONNECTIONS
: 15v AC 500mA
(see MIDI section)
Balanced audio out.
Audio input for processing through the VCF/VCA.
External CV input for the oscillator's pitch and vcf cutoff.
External CV input for the VCF´s cutoff frequency.
External Gate input to trigger the envelopes.
CV output 1, assigned to midi note number.
Gate output to trigger external analogue synths. +5 Volt
CV output 2, assigned to midi note velocity.
CV output 3, assigned to modulation wheel.
5
