Summary of Contents for Factor Electronics VT-1

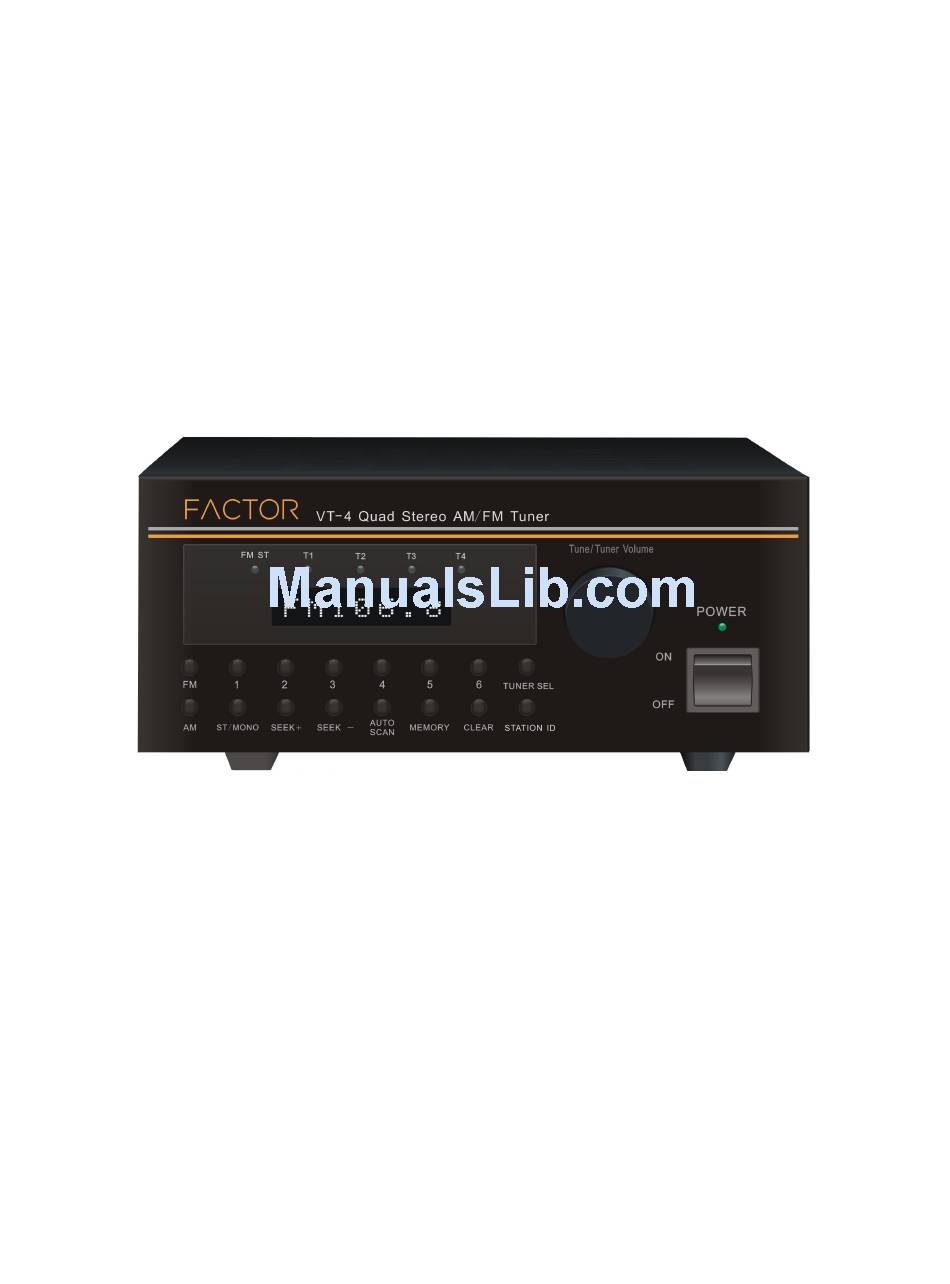

- Page 1 FACTOR ELECTRONICS PREMIUMAUDIOVIDEOLIGHTINGANDPOWERPRODUCTS VT-1 / VT-4 Professional Tuners With RBDS Owners Manual Owners Manual info@factorelectronics.com www.factorelectronics.com...
-
Page 2: Important Safety Instructions
IMPORTANT NOTE: THIS OWNER'S MANUAL IS PROVIDED AS AN INSTALLATION AND OPERATING AID. FACTOR ELECTRONICS DOES NOT ASSUME ANY RESPONSIBILITY AS TO ITS ACCURACY AND SHALL NOT BE LIABLE IN TORT OR CONTRACT FOR ANY DIRECT, CONSEQUENTIAL OR INCIDENTAL LOSS OR DAMAGE ARISING FROM THE INSTALLATION, USE OR INABILITY TO USE THIS PRODUCT. - Page 3 Introduction Congratulations and thank you for purchasing Factor Electronics products. The Factor Electronics “VT” series digital tuners are designed and built to provide ultra reliable performance for professional background music and multi-room multi- source audio applications. All Factor Electronics tuners feature color-coded outputs, and ultra low noise components.
- Page 4 5 After all your connections are made Quick Start Guide press the power switch ON Diagram A 9 Press presets 1 - 6 7 After all your connections are made 6 Press the 8 Adjust the FM button press the Auto Scan button volume 2 Connect the included 4 After all your connections are made...
- Page 5 Use the remote to control the tuner functions within 30 feet of the tuner maintaining line of sight for best results. The VT-1 VT-4 remote can also be used with IR repeater systems, which support IR frequencies between the ranges of 36K to 56K.
- Page 6 VT-1/ VT-4 Remote Functions Tuner Select The VT-4 provides 4 independent tuners. Press tuner buttons 1,2,3 or4 to select the tuner you wish to control. When using the VT-1 tuner these buttons will have no effect. Station Presets The pre-set buttons provide access to the tuner per-sets and work in conjunction with the AM/FM, Auto Scan, Memory and Clear buttons.
- Page 7 VT-1/ VT-4 Remote Functions STATION ID- The Station ID button displays the radio station ID for 3 seconds. Example FM105.7. If the currently selected station does not broadcast RBDS then “RDS N/A” will be displayed for 3 seconds. The default display status displays RBDS information constantly when RBDS is broadcast from the selected station.
- Page 8 Front Panel Operation and Connections Preset Buttons 1-6 - The pre-set buttons provide access to the tuner per-sets and work in conjunction with the AM/FM, Auto Scan, Memory and Clear buttons. Press pre-set buttons 1-6 to instantly recall stations once stations are stored in the pre-set memory.
- Page 9 Front Panel Operation and Connections Auto Scan – Press the Auto Scan button and hold for three seconds. The tuner will scan all AM or FM stations and load them into the internal memory in ascending order. This will overwrite all saved pre-sets. Note: if the tuner is in AM mode before pressing the Auto Scan button only AM stations will be scanned.
- Page 10 Rear Panel Operation and Connections Rear panel VT-1 Rear panel VT-4 info@factorelectronics.com www.factorelectronics.com...
- Page 11 VT-1 or VT-4. All tuner functions except ON/OFF can be controlled through the IR port. The VT-1 and VT-4 Infrared frequency rage is 36K to 56K. This feature allows the VT-1 and VT-4 to be controlled remotely from another room or building with a compatible Infrared repeater system.
- Page 12 Website: www.factorelectronics.com Warranty Factor Electronics "VT" Series tuners are warranted to be free from defects in workmanship and materials for a period of three (3) years without charge for parts or labour. The warranty applies only to the original owner. The owner’s responsibilities are to provide proof of purchase and transportation to the dealer the unit was purchased from or transportation to the Factor Electronics factory.
