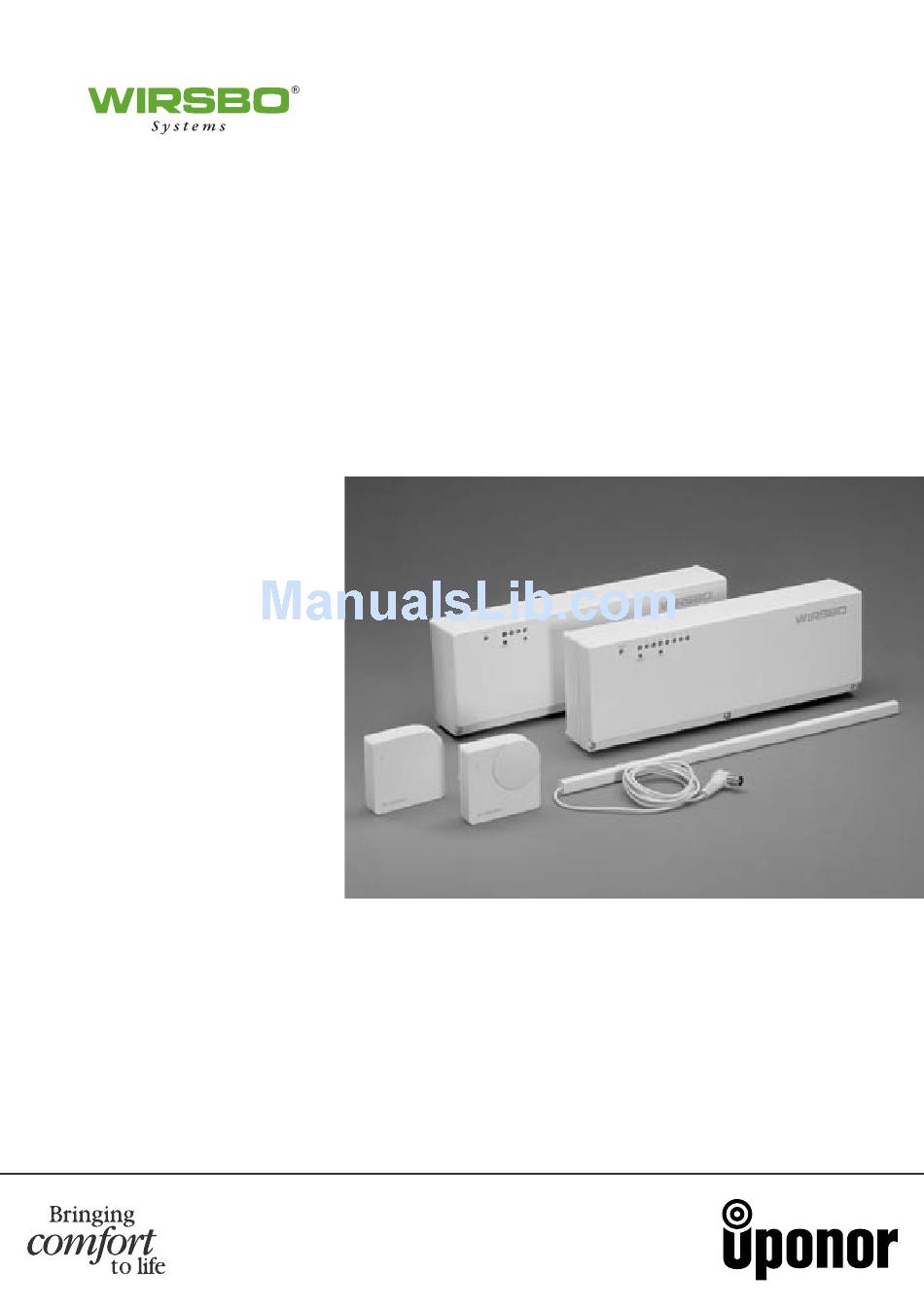

- Page 1 Dec. 2002 Wirsbo CoSy Radio Installation and Operating Instructions...
-
Page 2: Table Of Contents
5.5 Deregistering all thermostats ................ 10 5.6Transmission test..................... 10 5.7Thermostat in transmission mode..............10 5.8 Output (Actuator) test..................11 6 Technical data ......................12 7 Notes .......................... 13 8 Wiring diagram......................14 2 Wirsbo CoSy Radio - Installation and operating instructions... -
Page 3: Overview
The public thermostat has a completely plain front cover. Wirsbo CoSy Radio is CE-marked and has been approved for Controls are concealed controls and all settings are made use throughout the EU and in all former EFTA countries. -
Page 4: Function
The divisions on on the dial/potentiometer. the scale correspond to 1°C and the graduation indicates the deviation from the reference value, which is approx. 21°C. Fig. 5Temperature set-back switch 4 Wirsbo CoSy Radio - Installation and operating instructions... -
Page 5: Battery And Changing The Battery
The current limiter monitors the current must always be mounted vertically. to the actuators. When several actuators are switched on simultaneously, e.g. after a prolonged power failure or where Wirsbo CoSy Radio - Installation and operating instructions 5... -
Page 6: Alarm
7 and 8 until their thermostats have been registered and the heating loops coils have also been com- missioned. Fig. 7 Removing and replacing base unit cover. 6 Wirsbo CoSy Radio - Installation and operating instructions... -
Page 7: Installation And Wiring
14. Replace the internal antenna or connect an external antenna. 15. Replace the cover. Fig. 10 Switches in base unit 16. Reconnect the unit to the mains supply / connect the plug. Wirsbo CoSy Radio - Installation and operating instructions 7... -
Page 8: Installation Of External Antenna
Also check that the table in chapter 7 Notes has been correctly completed. Fig. 12 Changing output 7 or 8 to pump control. Refit one of the loops. 8 Wirsbo CoSy Radio - Installation and operating instructions... -
Page 9: Registration And Test Functions
5-6 minutes at 3-7 second intervals. See 5.7 Thermostat in transmission mode. Push 3 sec. Transmission button Power Toggle Fig. 14Transmission button Fig. 15 Setting base unit in registration mode Wirsbo CoSy Radio - Installation and operating instructions 9... -
Page 10: Deregister One Thermostat
• Press the transmission button on the thermostat again to complete the transmission test. It is important to check the transmission whilst the thermostat is close to its final installation position. 10 Wirsbo CoSy Radio - Installation and operating instructions... -
Page 11: Output (Actuator) Test
Hence the output test should not be done with more than 8 and 4 actuators respectively activated at the same time. Wirsbo CoSy Radio - Installation and operating instructions 11... -
Page 12: Technical Data
Current limitation, 24 V Approx. 650 mA Outputs 1-4 24 V max. 1A relay controlled Pump output Max. 2 A, 1-pole, closing for 230 V max Re-activation of pump output 10 mins. 12 Wirsbo CoSy Radio - Installation and operating instructions... -
Page 13: Notes
7. Notes Output Timer Room Actuator Output Room Actuator Example: Kitchen Bathroom Wirsbo CoSy Radio - Installation and operating instructions 13... -
Page 14: Wiring Diagram
230 V 24 V 24 V 230 V WIRSBO WIRSBO Output 7 and 8 wired for actuator Output 7 or 8 wired as pump relay Fig. 17 Base Unit, 8 channels 14 Wirsbo CoSy Radio - Installation and operating instructions... - Page 15 Output for actuator or pump relay External FuseT 200 mA Antenna Transformer 230 V 24 V 24 V 230 V WIRSBO WIRSBO Fig. 18 Base Unit, 4 channels Wirsbo CoSy Radio - Installation and operating instructions 15...
