Summary of Contents for Fisheye FIX AQUAVOLT 3500

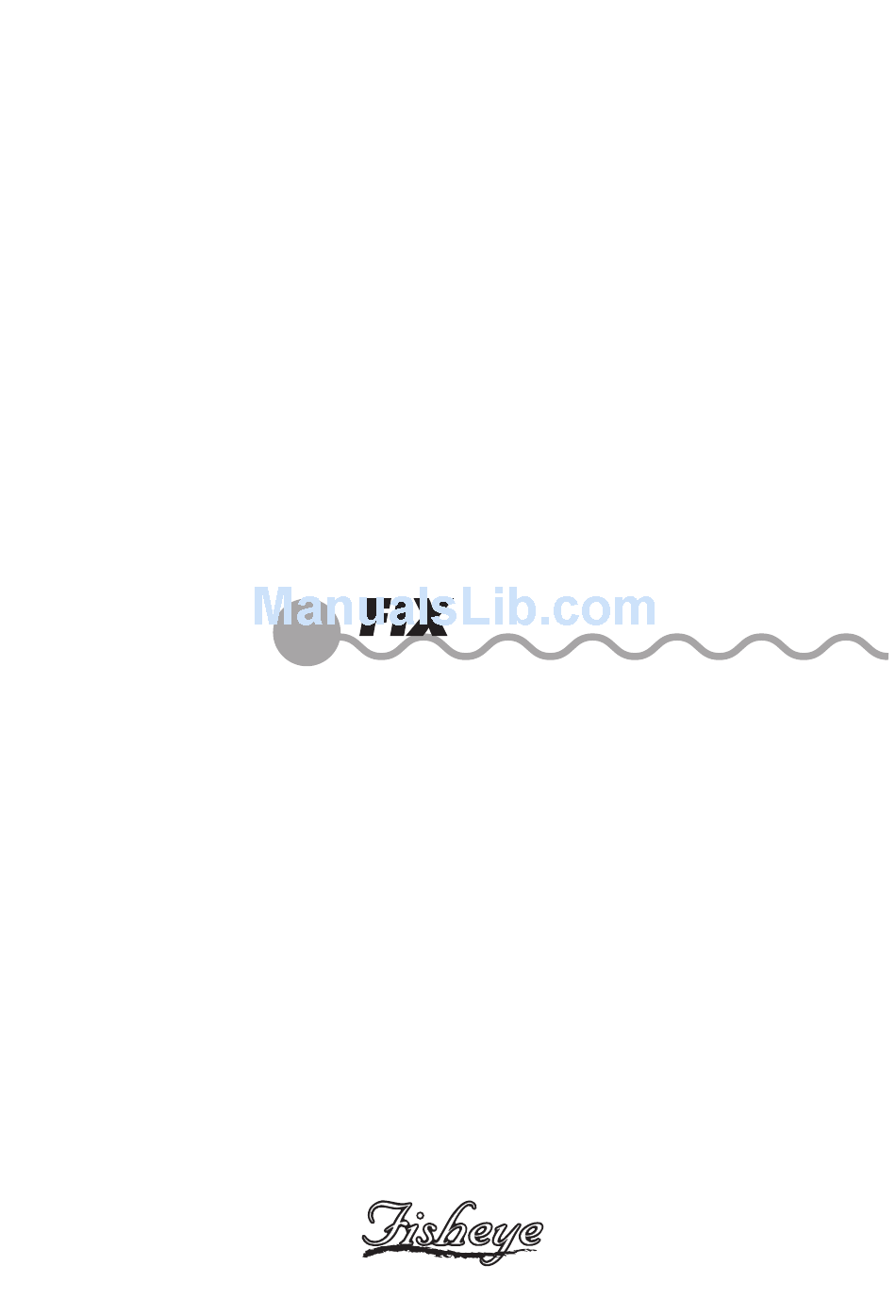

- Page 1 フィックスアクアボルト 3 5 0 0 AQUAVOLT 3500 取扱説明書 PRODUCT MANUAL...
-
Page 2: Table Of Contents
About this product manual * Contents of this Manual subject to change without notice. * If this Manual has errors, omissions, mistakes or unclear content please contact Fisheye or your local supplier for clarification. * This Manual may not be copied, transmitted or otherwise used in whole or part for any reason except personal use. -
Page 3: Introduction
Use this product in accordance with this Manual, and always perform indicated pre-dive checks, inspections and maintenance. Fisheye and its agents are not responsible for any damages, including personal, physical or material, caused by improper use, not in accordance with this user manual, or when product is repaired, modified or disassembled by any unauthorized person or facility. - Page 4 CAUTION This product is designed to withstand depths of 100 meters (330 feet). Using this product at greater depths, or even shallower depths, strong impact shock combined with depth pressure may cause water leakage. Use caution to monitor depth and protect product from shock. To prevent water leakage and damage, first read and understand this Manual thoroughly, inspect product before and after use and perform necessary maintenance at appropriate intervals.
-
Page 5: Product Characteristics / Specifications
PRODUCT CHARACTERISTICS / SPECIFICATIONS With 24 high intensity white LEDs emitting 3500 lumens. From center to edge, uniform wide beam without waves or hotspots. Excellent for digital camera, video and general diving applications. Subtle lighting with light intensity dial which can be adjusted by 2% increments available. Various information displayed on back light installed LCD panel, makes visual confirmation easy. -
Page 6: Name Of Parts ・・・・・・・・・・・・・・・・・・・・・・・・・・・・20
Name of Parts Rear Body Front Body Optical Fiber Connector (for optional Remote Controller) Adapter Holder Power / Light Output Adjustment Button LCD Panel Overpressure relief valve Light Output Adjustment Dial Display on the LCD Panel Lighting display Inside temperature display Remaining battery Remaining lighting time display charge display... - Page 7 Protection mode at high temperature When the light head goes over 60℃ during use, the protection mode engages and reduces the lighting to 20% maximum. High temperature mark [Hot!] will be displayed on the LCD panel. If the protection mode at high temperature engages, turn off the power switch and cool down the light head.
-
Page 8: Use Method
Turning on the light The light turns on 100% when [Power/Light Intensity Button] is pressed once when it is fully recharged. Fisheye logo will be displayed on the LCD panel for about HINT 2 seconds after it is turned on. -
Page 9: Disconnecting The Battery ・・・・・・・・・・・・・・・・・・・・・・・・・・・・23
Disconnecting Battery 1. Hold the front body firmly and rotate the rear body anticlockwise with the other hand to remove. 2. Tilt the front body and take out the battery. HINT Follow the opposite procedure when installing the battery. Do not work with wet hands or under wet circumstances as it may result in electric CAUTION shock or damage. -
Page 10: Charging Battery
Charging Battery Take the battery out of the light. Connect the AC adapter to the recharging cradle and insert the plug into a power outlet. The indicator lamp on the right side will become red. Set the battery in the cradle. The ind icator lamp will become green. -
Page 11: Maintenance
MAINTENANCE O-ring Check The FIX AQUAVOLT 3500 is waterproof due to an O-ring seal. There is one user serviceable O-ring. Regarding O-ring care & maintenance, pay attention to the following points to ensure CAUTION the O-ring's waterproof integrity and prevent water leakage. -
Page 12: Pre-Diving Check ・・・・・・・・・・・・・・・・・・・・・・・・・・・・26
Pre-diving Check Leakage check is recommended before using the product. Submerge the product by horizontally lowering in a tub or bowl filled with water. Take out of the water at 3 second, 30 second and 3 minute intervals, open the rear case and make sure that there is no sign of leakage inside the body. -
Page 13: Spare O-Ring Diagram ・・・・・・・・・・・・・・・・・・・・・・・・・・・・27
Spare O-ring Diagram Light Body (Front) Inner diameter 49.5mm Light Body (Rear) Inner diameter 49.5mm - 27 -... -
Page 14: Options ・・・・・・・・・・・・・・・・・・・・・・・・・・・・28
OPTIONS ●FIX AQUAVOLT3500 Li-Ion Battery ●FIX AQUAVOLT3500 Battery Protection Cap ●FIX AQUAVOLT3500 Remote Controller ●FIX AQUAVOLT3500 Cradle ●FIX AQUAVOLT3500 AC Adapter ●FIX AQUAVOLT3500 Spare O-ring set ●Ultralight Control Systems Direct Base ●FIX Maintenance Kit ●FIX Maintenance Kit Light - 28 -... -
Page 15: Warranty Conditions ・・・・・・・・・・・・・・・・・・・・・・・・・・・・29
WARRANTY CONDITIONS Fisheye Co., Ltd. warrants and will repair or replace the product free of charge for one year from purchase, when used in accordance with this User Manual. However, this Warranty does not cover any losses, damage or water intrusion to any other equipment for any reason. - Page 16 MEMO - 30 -...
- Page 17 MEMO - 31 -...
-
Page 18: Warranty Information
Not valid unless all information provided above. Contact your dealer immediately if any information is missing. 株式会社フィッシュアイ 〒171-0052 東京都豊島区南長崎5-29-7 TEL:03-5996-5637 FAX:03-5996-7202 www.fisheye-jp.com E-mail:info@fisheye-jp.com ご購入後のメンテナンス ・ 修理等は株式会社フィッシュアイにて承ります cs@fisheye-jp.com フィッシュアイカスタマーサービス 03-5988-0191 International Distribution & Service 5-29-7 Minami Nagasaki Toshima-ku, Tokyo 171-0052 JAPAN Fisheye Co., Ltd. TEL +81-3-5996-5637 FAX +81-3-5996-7202 www.fisheye-jp.com E-mail:info@fisheye-jp.com...
