Summary of Contents for Conbrov HDV8
-
Page 1: User Manual

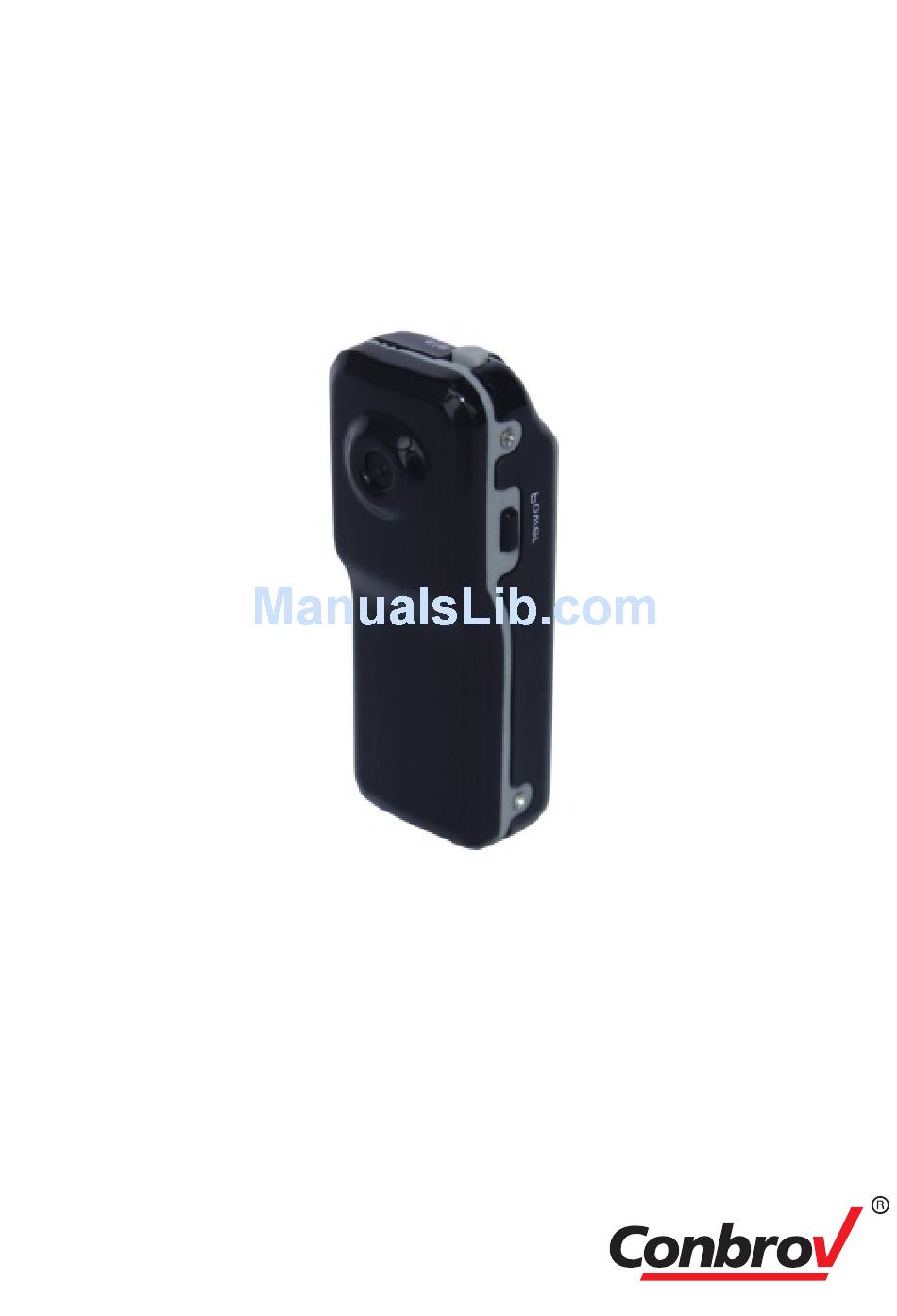

The smallest Video Camera with waterproof Case MODEL NO: HDV8 User Manual Important Notice - Please ensure that you read the complete user manual carefully before using any part of the product. - Keep this copy safe for future reference in case of... - Page 2 Sound activated Charging mode mode Standby mode Motion detection mode...
-
Page 3: General Overview
General overview This manual is specifically meant for this product and covers tutorials for the Mini High-Performance Sport Camera. User can easily use its Sound activated mode or Motion detection mode even the normal recording mode for home security use. Additionally, User can also use the waterproof case to record sports activities outdoor. -
Page 4: Safety Instructions
Safety Instructions Please read the following instructions before using the camera: - Ensure that the camera is tested for the first time use and confirm that it suits the intended purpose. - We are not responsible for any missing video information due to wrong operation, Micro-SD malfunctioning or camera angle limit etc. -
Page 5: Product Accessories
Product accessories Wall mount bracket Camera Helmet bracket Bike bracket headband Bracket Waterproof case clip... - Page 6 Product accessories USB cable Weatherproof case Silicon case The smallest Water-Proof DV MODEL NO: HDV8 User Manual -Please read the user manual carefully before using the product. -Please keep the user manual well for future checking. Neck Lanyard User manual...
-
Page 7: Product Structure
部件名称 Product Structure Lens Power Button Mini USB Port Mode button （sound detection/ motion detection） Microphone Micro-SD slot Led Indicator Reset Record Button... -
Page 8: Charging Information
充电 部件名称 Charging information Yellow indicator Charging indicator means in charging status status In charging Yellow light Charging Yellow light done -The camera is chargeable by the use of provided USB cable. -During charging, Yellow light indicator is ON. It goes OFF once fully charged. -It's usually take 4-5 hours for a fully charge. - Page 9 充电 部件名称 How to insert and take out Micro-SD card Insert Micro-SD card Take Micro-SD out Important notice: - The camera has the ability to record video only when Micro-SD is inserted. - Please avoid by all means to insert or remove Micro-SD when the camera is either powered ON or connected to the computer.
-
Page 10: Time And Date Settings
充电 部件名称 Time and date settings It is not compulsory to set time or date unless when necessary for personal purposes. The user can choose to set or ignore depending on their target of product use. Step 1: Use the provided USB cable to connect the camera to the computer. - Page 11 Time and date settings Step 2: Please open TIME_SET.TXT, type into it exactly as the following information and then please Save the file and close it. File name TIME_SET - TXT file Edit Format View Help [date] Year/Month/Day 2015/03/23 23:15:12 Hour/Minute/Second Step 3: Disconnect the camera from the computer and power it on.
- Page 12 充电 部件名称 Operating the normal recording mode The camera should be fully charged and Micro-SD inserted. If not, the blue indicator will flashes and then the camera will automatically power off. Power on the camera 1. Power on the camera: Press the power button to switch ON, the red and blue indicators will be both on shortly and then only blue indicator stays ON.
- Page 13 充电 部件名称 Operating the normal recording mode Taking video: - Press the power function button to switch ON. - Hold the Record button for 3 seconds to enable video record feature. - The blue indicator will flashes 3 times quickly and then goes off (No indicator during recording) - Press the record button again will stop the...
- Page 14 Operating the Sound Activated mode Press the Mode button (When camera is power on in stand by mode) Red indicator flashes and then goes off at sound activated mode(No indicator during recording) Important notice: - It will record every 2 minutes per file if there’s a sound activated the camera.
- Page 15 Operating the Motion detection mode Press the Mode button (When camera is power on in stand by mode) Green indicator flashes and then goes off at Motion detection mode(No indicator during recording) Important notice: - It will record every 2 minutes per file if there’s a motion activated the camera.
-
Page 16: Play Back Pictures And Videos
Play back pictures and videos Connect the camera using the provided USB cable to computer. Press the camera power button,you will find the camera removable disk It is strongly suggested that you copy the recorded files to computer to playback. Because the USB Transmitting-Data-Ability will reduce the Playback video quality. - Page 17 Parameters Item Parameter Size 22mm*16mm*57mm Video format Video coding M-JPEG 1920*1080 Max video resolution Max picture resolution 2592*1944 13-60fps Windows Media Player or Playback software other popular software supported PC system supported Windows DC-5V Charging power Port type Mini 5Pin USB Storage Micro SD Card High capacity Li-battery...
- Page 18 Parameters Indicator status Both Red and Blue indicators Power on are ON Standing by Blue indicator is ON Green or Red indicator flashes Motion or Sound then goes OFF( No indicator triggered when recording) Take a picture Blue indicator flash once Blue indicator flashes then Video recording goes OFF ( No indicator...
- Page 19 Reset If the camera doesn’t work well or meet any unknown errors, please reset the camera. Reset hole Please use something like a needle to insert into “reset hole” to press the button inside. The reset button is especially designed to be inside the reset hole to avoid any wrong operation.
