Summary of Contents for GPRINTER BABY POS DT92

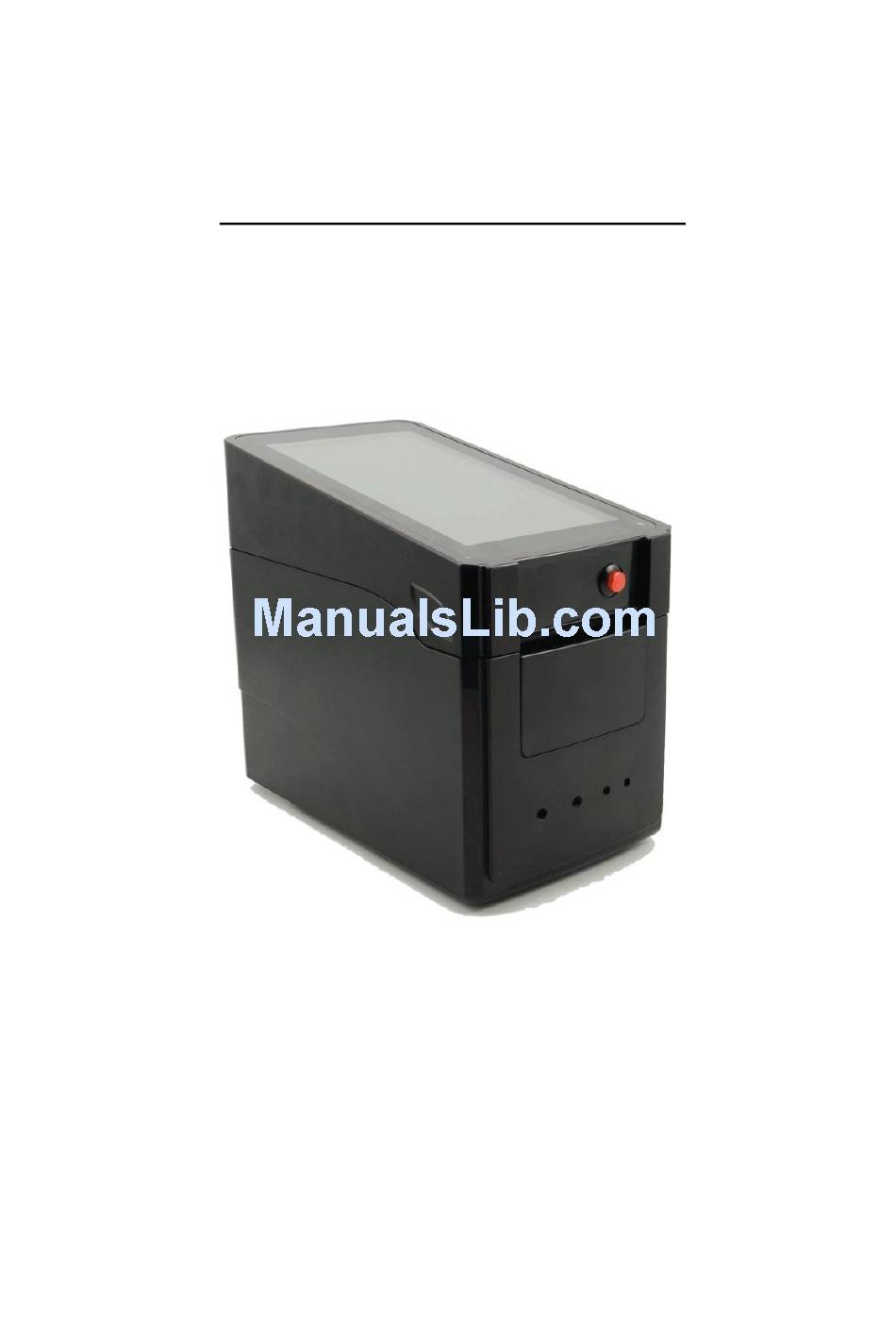

- Page 1 BABY POS (DT92) User Manual...
-
Page 2: Product Information
1. Product information Thanks for choosing our BABY POS (DT92), please read this manual carefully for correct operation of this device. This smart printer has been integrated Android operation system, no need to connect computer. You can operate this device as easily as operate your smart phone. You will experience the wonderful functions of this device in application in industry and mobile internet, whatever you are user or developer. - Page 3 2. Main Features . Support 20~58mm width thermal paper roll and label. . Print head pressure adjustable, label and paper automatic recognition & calibration. . Standard interface: 4xUSB+ 1xEthernet+1xCash drawer+1xPower . Integrated Wi-Fi, Bluetooth, support cash drawer connection, 3G module optional .
-
Page 4: Technique Specification
7. Power port 8. Cash drawer port 9. Ethernet port 10. USB port 11. USB port 12. Printer power ON/OFF switch 4、Technique Specification 4.1 Tablet Display 7” LCD, resolution: 1024*600 Operation Multi-touch， capacitive panel Quad core, integrated CPU, 1.6GHZ DDR3,1GB 1~2GB Flash TF card... - Page 5 4.2 Paper Paper type Thermal paper roll, adhesive thermal label roll( continuous type or with gap ) Paper width 20mm~59mm Paper diameter 100mm max. 4.3 Printer Print method Direct thermal printing Resolution 203DPI Print speed 101mm/s normal; 127mm/s max； Print width 56mm max.
-
Page 6: Cable Connection
① Make sure paper roll installed correctly and close the top cover correctly. ② Turn on printer power and display power. ③ When hear the paper feeding sound, this indicates printer detect itself automatically. 6.2 Self test ④ Click Gprinter application software icon，click SET... - Page 7 ⑤ Choose model DT-92/GP-2120TL，choose Port and click Connect, then top right corner will be updated and show connection status. ⑥ Click “Print test” button to printer. 6.3 Screen unlocks / wakes up Slide to unlock to enter home screen. ...
- Page 8 These tools are convenient for you to use in daily operation. 6.8 Download You can download Gprinter APP from website, for you to better use our smart printer. 6.9 Equipment upgrade Support OTA remote upgrade. When smart printer is connected with network, it may...
-
Page 9: Product Maintenance
the equipment, after installation, please restart your printer. If you are satisfied with current system, you can choose to exit the system update. Note：During OTA remote upgrading, do not cut off the power, otherwise your printer can not be used. 6.10 Power off ... - Page 10 ■ Do not touch print head by your hand and metal object, avoid scratch and damage on print head, roller and gap sensor surface, screen. ■ Do not use petrol, acetone etc organic solvent to clean print head, roller. ■ After cleaning the gap sensor, please calibrate the label paper again. ■...
