Summary of Contents for GENTRON Sportsman Series

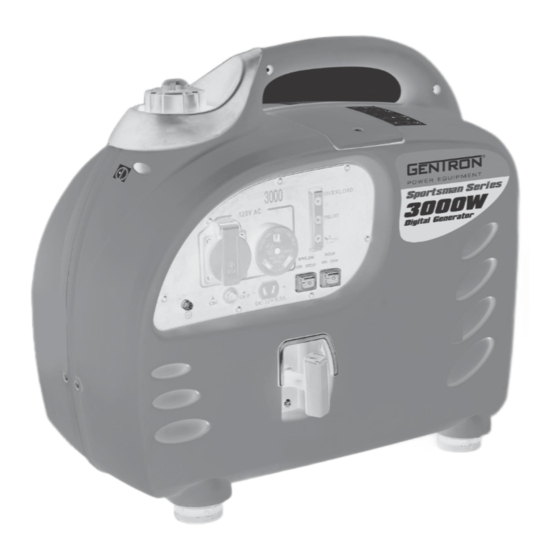

- Page 1 3000 WATT DIGITAL INVERTER GENERATOR...
- Page 2 Owner’s Manual DANGER Carbon Monoxide Using a generator indoors WILL KILL YOU IN MINUTES. Carbon Monoxide Generator exhaust contains high levels of carbon monoxide (CO), a poisonous gas you cannot see or smell. If you can smell the generator exhaust, you are breathing CO.
- Page 3 Owner’s Manual Preface Thank you for using our generator. This manual includes the operation and maintenance of the GG3000D All information in this publication is based on the latest product information available at the time of approval for printing. We reserve the right to make changes at any time without notice and without incurring and obligation.
-
Page 4: Safety Instruction
Owner’s Manual Safety Instruction WARNING! The generator is designed to give safe and dependable service if operated according to instructions. Read and understand this manual carefully before operating the generator or it may cause serious injury and equipment damage. WARNING! Exhaust contains poisonous carbon monoxide. - Page 5 Owner’s Manual Safety Instruction WARNING! • Gasoline is extremely flammable and is explosive under certain conditions. Refuel in a ventilated area with engine stopped. • Keep away from cigarette, smoke and sparks when refueling the generator. Always refuel in a well-ventilated location. WARNING! •...
-
Page 6: Table Of Contents
Owner’s Manual Content 1. COMPONENT IDENTIFICATION 2.SAFETY INSTRUCTIONS 3.SAFETY LABEL LOCATIONS 4.PRE-OPERATION CHECK 4.1 Check the engine oil level 4.2 Check the fuel level 4.3 Check the air cleaner 5. GENERATOR USE 5.1 Starting the engine 5.2 High altitude operation 5.3 Generator use 5.4 AC applications 5.5 Output and Overload indicators... -
Page 7: Component Identification
Owner’s Manual Digital Inverter Generator WARNING! Read this manual carefully before using the machine, for your own safety. 1 COMPONENT IDENTIFICATION 1. Fuel cap 9. Overload indicator light 2. Air vent knob 10. Output indicator light 3. Choke knob 11. Oil alert indicator light 4. -
Page 8: Safety Instructions
Owner’s Manual Control panel SMART THROTTLE Engine speed is kept at idle automatically when the electrical appliance is disconnected and it returns to the proper speed to power of the electrical load when electrical appliance is connected. This position is recommended to minimize the fuel consumption while in operation. -
Page 9: Safety Label Locations
Owner’s Manual 3. SAFETY LABEL LOCATIONS These labels warn you for potential hazards that can cause serious injury. Read the labels and safety notes and precautions described in the manual carefully. If a label comes off or becomes hard to read, contact your dealer for a replacement. PRE-OPERATION CHECK Be sure to check the generator on a level surface with the engine stopped. -
Page 10: Check The Engine Oil Level
Owner’s Manual Use high-detergent, premium quality 4 –stroke engine oil, certified to meet or exceed U.S. automobile manufacturer’s requirements for API Service Classification SG. SF.(15W40) Select the appropriate viscosity for the average temperature in your area. Ambient Temperature Loosen the cover screw and remove the left side maintenance cover. Remove the oil filer cap, and wipe the dipstick with a clean rag. -
Page 11: Check The Fuel Level
Owner’s Manual 4.2 Check the fuel level Turn the fuel cap lever to ―OFF‖ position before transporting. Use automotive fuel (Unleaded or low leaded is preferred to minimize combustion chamber deposits). !! Don’t use fuel-containing alcohol: Fuel system damage or engine performance problems resulting from the use of fuels that contain alcohol are not covered under the warranty. -
Page 12: Generator Use
Owner’s Manual Never run the engine without the air cleaner. Rapid engine wear will result from contaminants. Such as dust and dirt, being drawn through the carburetor, into the engine. It is normal for a little oil to appear under the air filter box if the generator is running for a long period of time, or a lot of oil is in the engine. - Page 13 Owner’s Manual 3. Choke (Type 1) To start a cold motor slide the choke lever all the way to the left. To restart a hot motor set the choke lever halfway. Choke (Type 2) To start a cold motor pull out the choke completely to close. To restart a hot motor, press the choke completely to open.
-
Page 14: High Altitude Operation
Owner’s Manual 6. After the engine starts, allow the engine to run continuously to warm up. 7. Slide the choke in completely after the engine is started. If the engine stops and will not restart, check the engine oil level before troubleshooting in other areas. Before using the device once it is connected, switch off the ECO switch. -
Page 15: Generator Use
Owner’s Manual Operation of the generator at lower altitude than the carburetor is jetted for may result in reduced performance, overheating, and serious engine damage caused by an excessively lean air/fuel mixture. 5.3 Generator use WARNING! 5.3.1 • To prevent electrical shock from faulty appliances , the generator should be grounded. Connect an electric conductor (cable) of at least 1.5mm to 2mm between the generator’s ground terminal and an external ground source. -
Page 16: Output And Overload Indicators
Owner’s Manual 5.5 Output and Overload indicators. The output indicator light (green) will remain lighted during normal operating conditions. If the generator is overloaded or if there is a short in the connected appliance, the output indicator light (green) will go OFF, the overload indicator light (red) will go ON and current to the connected appliance will be shut off. -
Page 17: Dc Applications
Owner’s Manual When the output indicator light (green) does not light and the overload indicator light (red) lights instead, set the engine switch to STOP, stop the engine at once and then start the engine again. 3. Confirm that the equipment to be used is switched off, and insert the plug of the equipment to be used into the AC receptacle unit A. - Page 18 Owner’s Manual Loading voltage (V) Loading voltage (V) Loading current (A) Opening the smart throttle Closing the smart throttle DC Max. Output power 13.5 The generator cannot sense a sensibility load with the same power which the manual indicates°£ It only can sense 40%-70% power which the manual indicates.
-
Page 19: Start The Engine
Owner’s Manual 5.7 Start the engine • The DC receptacle may be used while the AC power is in use. • An overloaded DC circuit will trip the DC circuit protector. If this happens, disconnect the DC load before resetting circuit protector to resume operation. - Page 20 Owner’s Manual 2. Turn the engine switch to the OFF position 3. 2. Turn the lever fully counter clockwise to the "OFF" position Be sure to tighten the fuel cap and the engine switch is in the ―OFF‖ position when stopping, transporting and/or storing the generator.
-
Page 21: Maintenance
Owner’s Manual 6 MAINTENANCE • The purpose of the maintenance and adjustment schedule is to keep the generator in the best operating condition. • Inspect or service as scheduled in the table below. Shut off the engine before performing any maintenance, If the engine must be running, make sure the area is well ventilated. -
Page 22: Changing Oil
Owner’s Manual (2) Service more frequently when used in dusty areas. (3) These items should be serviced by an authorized dealer, unless the owner has the proper tools and is mechanically proficient. See the Shop Manual. Temperature (°) Time for changing oil (hour) Recommended power factor Normal 100%... -
Page 23: Air Cleaner Service
Owner’s Manual Wash your hands with soap and water after handing used oil. Please dispose of used motor oil in a manner that is compatible with the environment. We suggest you take it in a sealed container to your local service station for reclamation. Do not throw it in the trash or pour it on the ground. 6.2 Air cleaner service A dirty air cleaner will restrict airflow to carburetor. -
Page 24: Spark Plug Service
Owner’s Manual 1. Remove bolts from the top of the maintenance cover. Take out the ignition coil rubber boot. Remove the spark plug with spark plug wrench. -
Page 25: Transportation And Storage
Owner’s Manual Visually inspect the spark plug. Discard it if the insulator is cracked or chipped. Clean spark plug with a wire brush if it is to be reused. 5. Install the spark plug carefully by hand, to avoid cross threading. 6. -
Page 26: Before Storing The Units For An Extended Period
Owner’s Manual 7.2 Before storing the unit for an extended period: 1. Be sure the storage area is free of excessive humidity and dust. 2. Drain the fuel. Gasoline is extremely flammable and explosive under certain conditions. Do not smoke or allow flames or sparks in the area. 2. -
Page 27: Spark Arrester Service
Owner’s Manual Spark Arrestor service Un-cleaned muffler will make noise and affect the engine’s operation. Clean and maintenan the Spark Arrestor timely, make sure the generator works normally. The Spark Arrestor needs cleaning frequently if you use the generator in very dirty conditions, or replace the Spark Arrestor if necessary. -
Page 28: Troubleshooting
Owner’s Manual 8 TROUBLESHOOTING Engine will not start: • Check fuel level • Is the engine switch and fuel valve ―on‖? Turn them to the ―on‖ position • Enough lubricating oil? Add recommended oil if neccessary. • Is there fuel in the carburetor? •... -
Page 29: Technical Data
Owner’s Manual Specification 9.1 Size and weight Type GG3000D L x W x H 21.8 x 12 x 19.488 Net weight kg/lbs 26/57 9.2 Engine Model 157F Type 4-stroke OHV 1-Cylinder Displacement (cc) Compression ratio 9.2:1 Engine speed 5400rpm (ECO switch is off) Cooling system Forced air cooling Ignition system... -
Page 30: Wiring Diagram
Owner’s Manual... -
Page 31: Parts Diagram
Owner’s Manual PARTS DIAGRAM... -
Page 32: Parts List
Owner’s Manual PARTS LIST Name Name Engine assembly M6 x 20 flange bolt Spark plug Step motor Cable holder Throttle frame M3x 5screw GB/T818-2000 Throttle frame 2 stator assembly Throttle base M5x30flange blt GB/T16674-986 2 Throttle arm Flywheel assembly Step motor spring M12 flange nut Low oil sensor Primer bulb... - Page 33 Owner’s Manual PARTS LIST Case connection plate 120v receptacle Rear cover junction plate Ground terminal M5 x10 screw Reset button Oil cap\dipstick M4 x10 self-tapping screw Carburetor gasket , paper Rubber engine mount Carburetor gasket plastic M6x30 flange bolt Carburetor connecting flange Engine mounting frame M 6x 25 flange GB\T16674-1986 2 Foot outer shroud...
