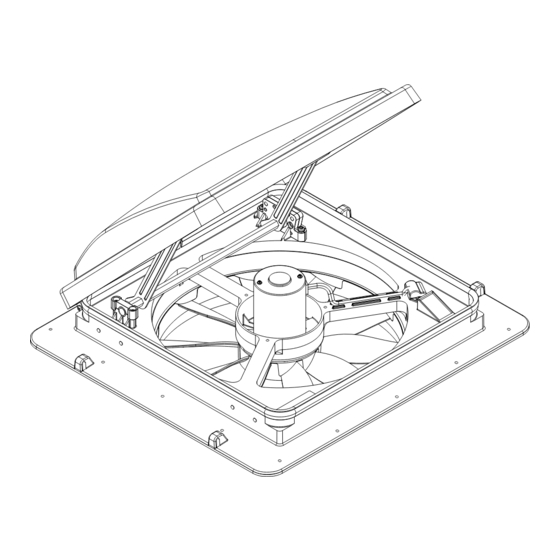

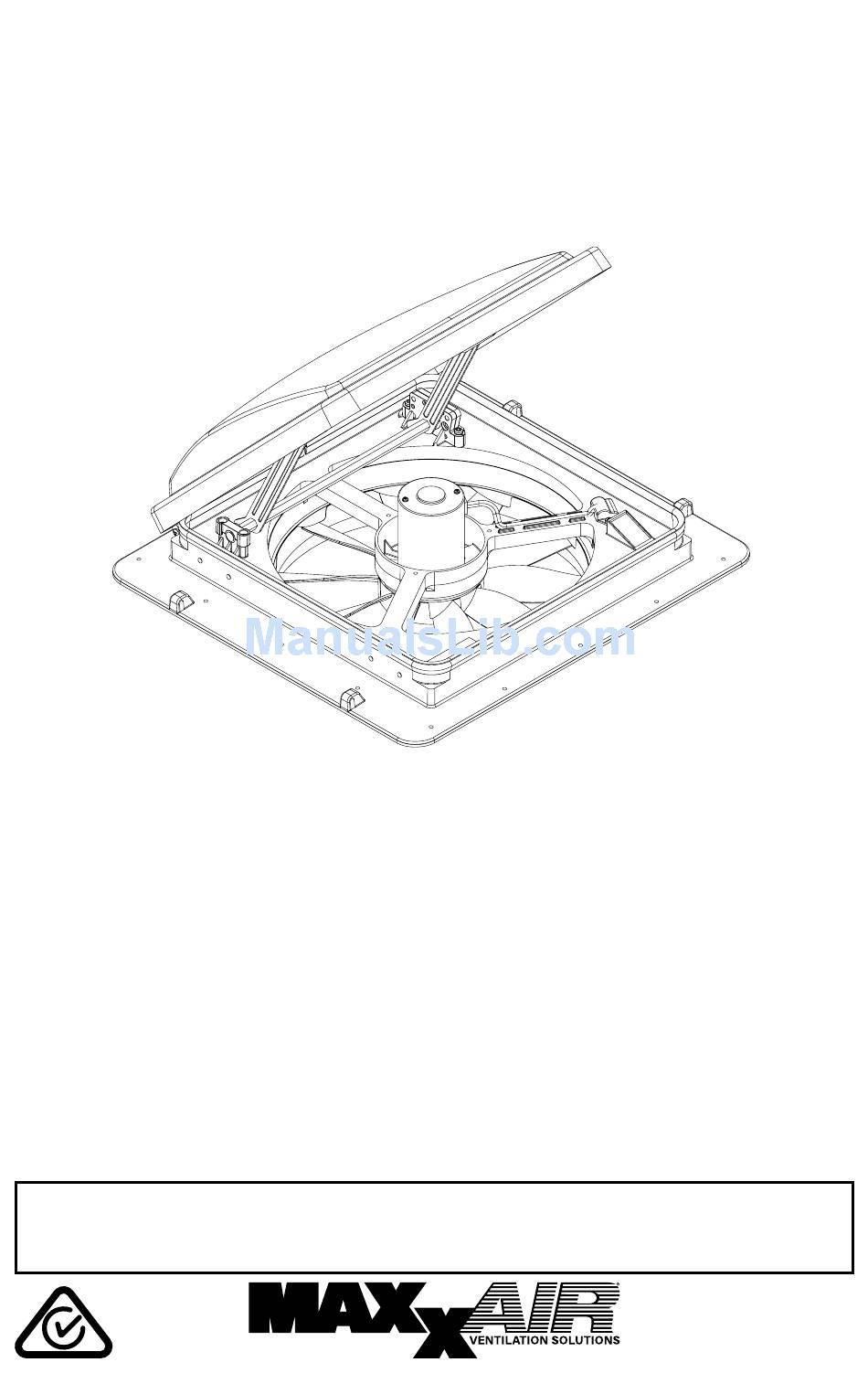

MAXXFAN
INSTALLATION INSTRUCTIONS,
INFORMATION AND OPERATING GUIDE
FOR MAXXFAN
READ AND SAVE THESE INSTRUCTIONS
NOTE: Refer to supplied Operating Instructions regarding the model you have purchased.
The MAXXFAN installs into a standard Caravan roof opening of 355mm by 355mm.
To determine if your roof opening is correctly sized, simply remove the interior ceiling garnish
trim ring of your existing roof vent and measure the ceiling opening or verify the opening is
large enough by sliding the MAXXFAN interior Garnish trim ring into the opening.
The MAXXFAN is designed for a minimum roof thickness of 50mm to a maximum of
110mm. If your roof thickness is less than 50mm, build additional thickness at the ceiling
opening using wood or other suitable material. Longer Garnish Rings are available to allow
installation in caravans with thicker roof sections.
The MAXXFAN is designed for a nominal 12 Volt DC system and requires a circuit capable
of supplying a minimum of 5 amps to the MAXXFAN. Confirm that the circuit you intend
to use will accommodate the additional load.
electrical connections.
WARNING!
in the manner intended by AIRXCEL, INC. Should you have questions, please contact
your AIRXCEL/MAXXAIR Distributor.
Plus MODELS 4000KI • 4500KI • 4540KI
®
To reduce risk of fire, injury to persons or damage to property, use only
Use the proper gauge stranded wire for
®
P/N: 11C90000KIA
REV C, 01-2016
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Airxcel maxxfan 4000KI
Summary of Contents for Airxcel maxxfan 4000KI
-
Page 1: Installation Instructions
Use the proper gauge stranded wire for electrical connections. WARNING! To reduce risk of fire, injury to persons or damage to property, use only in the manner intended by AIRXCEL, INC. Should you have questions, please contact your AIRXCEL/MAXXAIR Distributor. P/N: 11C90000KIA REV C, 01-2016... - Page 2 It can be reset by removing and re-applying power. If your fan fails to operate or needs reset, contact your AIRXCEL / MAXXAIR distributor for assistance or solicit the aid of an electrical technician. FOR REMOTE CONTROL MODELS: Please refer to the REMOTE CONTROL OPERATING GUIDE in this manual for use and testing of your remote control.
- Page 3 FOR REMOTE CONTROL MODELS: If you have questions, please visit Attach the included cradle to wall with (2) #6 www.Airxcel.com or contact your screws provided. Handheld Remote Control may AIRXCEL / MAXXAIR Distributor. be placed into wall cradle for storage.
- Page 4 MAXXFAN Serial Number readily available. This limited warranty does not cover labor or any freight costs for the return of the product to or from AIRXCEL, INC. or costs associated with installation, removal or reinstallation of the product. For WARRANTY INFORMATION on products purchased in Australia or New Zealand, please visit www.coastrv.com.au •...
- Page 5 INFORMATION AND OPERATING GUIDE FOR MAXXFAN Plus MODELS ® 4000KI • 4500KI • 4540KI KNOB, VENT LID OPEN/CLOSE Manual Opening Models Pull to unlock prior to turning. Rotate Knob clockwise to Close Vent Lid; Rotate Knob counter-clockwise to Open Vent Lid. Push “IN”...
-
Page 6: Keypad Controls
KEYPAD CONTROLS MAXXFAN Plus MODELS ® 4000KI • 4500KI • 4540KI NOTE: A beeping sound will confirm each key press ON/OFF: Use this key to start the fan or to turn off the fan. On Automatic Opening Models, the lid will also open or close when the fan is turned on or off. - Page 7 REMOTE CONTROL OPERATING GUIDE WIRELESS REMOTE CONTROL FOR MAXXFAN Plus MODELS: 4500KI • 4540KI ® FAN ON & POWER OFF - Press this button: • To start the fan Remove protective film from • To turn the fan off Display Screen •...
- Page 8 FANMATE cover. FRESH AIR, RAIN OR SHINE! AVAILABLE IN WHITE BLACK SMOKE *Warranty limited to repair or replacement, see Airxcel.com for details. OTHER GREAT PRODUCTS FROM MAXXAIR ® MAXXFAN Deluxe ® with BUILT-IN RAIN SHIELD •...
