Xtreme version 9 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the version 9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Xtreme version 9

  • Page 2: Table Of Contents

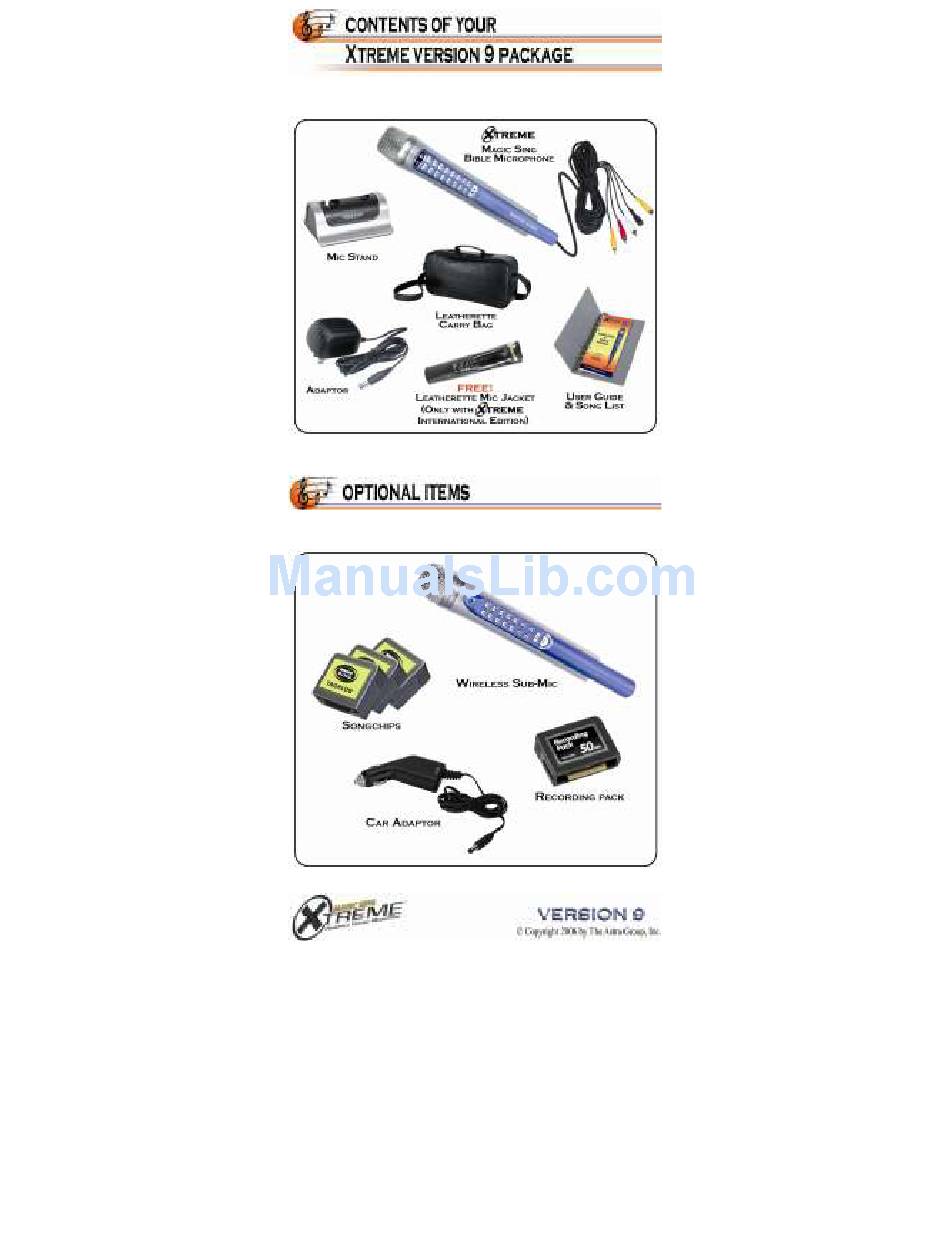

    Contents of Your Xtreme Version 9 Package……………... Taking Care of Your Xtreme Version 9……………………….. III. Setting Up Xtreme Version 9 with Your Video/Audio System…………….... Key Function Guide……......A) Basic Karaoke Control Functions…... 1. Volume Control………………….. • Main Mic Volume……………... • Music Volume………………….

  • Page 3: Taking Care Of Your Xtreme Version 9

    2. Use only the Adaptor supplied in your V9 package. If this is lost or damaged, replace only with an Adaptor supplied by The Astra Group, Inc. or by authorized Xtreme Magic Sing dealers. The plug of other adaptors may fit,...

  • Page 4: Setting Up Xtreme Version 9 With Your Video/Audio System

    1. Install your V9 and its attachments as shown in the following diagrams. 2. Switch on the TV and system. Put the TV in video mode. 3. Turn on your V9 by pressing...
  • Page 5 Caution: Use only the adaptor supplied with your Version 9 package, or a Magic Sing adaptor supplied by The Astra Group, Inc. or an authorized Xtreme Magic Sing dealer. Using other adaptors can damage your mic even if they have a compatible plug.
  • Page 7 • Turns the power on or off. 2. Pilot LED light • Indicates if the power is on or off by emitting Light → Green light = Power is ON → No light = Power is OFF • Used to scroll through songs or other menus and options.

  • Page 8: A) Basic Karaoke Control Functions

    1) Volume Control • Main Mic Volume Press To adjust mic volume over 15 steps • Background Music Volume Press To adjust volume of background music over 15 steps...

  • Page 9: Sub-Mic Volume

    • Sub-mic Volume Press To adjust volume of sub-mic over 15 steps • Echo Volume Press To adjust echo volume over 15 steps 2) Pause / Resume Press To pause or resume playback of selected song 3) Song Selection • Random • Press Mic will randomly play songs •...

  • Page 10: Select / Reserve

    • Select / Reserve Press (Song No.) + Select songs to play in the sequence you like. Press song number, then , then repeat for next song. The TV screen displays only 6 songs, but you can pre-select up to 20 songs to play in sequence. 4) Key •...

  • Page 11: Octave Adjust

    • Octave Adjust Press To adjust octave level down or up after selecting male/female voice. Once the right scale is reached, press to select and play. Press once more and to adjust octave again. 5) Tempo Press To increase / decrease tempo of songs 6) Change Melody Instrument Press Default instrument will change from piano to the next...

  • Page 12: B) Record And Play Functions

    1) Recording Press (Song No.) + To start recording the selected song Press to stop. Press again to resume recording. 2) Playback Press To display onscreen the list of songs recorded Press to scroll to the song you want to play. Press to playback or stop.

  • Page 13: C) Games

    1) Song Contest Press It’s fun to play this game by dividing people into two teams. Each team selects three songs at random which they will sing by turns. The team which gets a higher score wins. To stop the game, just press the button.

  • Page 14: D) Configuration

    color by completing a line of pieces as described above. 3) If you can make a valid move, you must make that move. 4) If you can’t make any move, you must pass your turn and your opponent plays again. Press three times to enter the configuration menu.
  • Page 15 a high score if your singing skill does not qualify to be that of a star singer. LYRIC LINE (AUTO / 2 LINE / 3 LINE) • This function allows you to select how many lyric lines to see on the TV screen during song playback. LYRIC FORMAT (CENTER / LEFT-RIGHT / MIX ALL •...

  • Page 16: Song Chip

    1. Turn off your Version 9 microphone. 2. Open the back cover. 3. Insert the chip firmly with the arrow pointing towards the head of the microphone. 4. Close the back cover and turn the power on. 5. Up to 4 song chips may be installed at a time.

  • Page 17: Wireless Sub-Mic

    1. The main mic should be turned off. 2. Take out the back cover of the main mic and put in the sub-mic receiving pack. 3. Turn on the main mic by pressing 4. If you press , the TV screen will display “SUB-MIC ON.”...

  • Page 18: Troubleshooting Guide

    1. If your Version 9 doesn’t power up When you are using the power adaptor • → Make sure that the adaptor is correctly plugged into the power outlet. → See to it that the male plug is appropriately inserted into the female plug.

  • Page 19: Specifications

    Voice Frequency Range : 200-1500 Hz • Battery : 1.5V x 2 Alkaline • TV Channel : Video Channel • Wattage : 500 mA • Overflow (Under 10V) : Built-in Protection • Circuit for Reverse Voltage Dimension : 48 x 45 x 260 mm •...

  • Page 20: Technical Service Centers

    For your repair services, please contact one of the following technical centers. ENTER INTERNATIONAL PHILIPPINES • INC. Peter Kim Marketing Manager Unit 1, Ground Floor, Building 2, Jannov Plaza 2295 Pasong Tamo Ext., Makati City TEL: +63-2-848-5415/+63-2-891-0584 FAX: +63-2-891-0583 E-mail: eip@globelines.com.ph ENTER TECH ES2 TECH CORP •...
  • Page 21 ENTER TECH, GERMANY OFFICE • Friday Kim Marketing Manager European Marketing Division Korea Business Development Center (SBC) Industriestrasse 34, D-65760 Eschborn, Germany TEL: +49-6196-776822 FAX: +49-6196-779822 E-mail: friday@enter-tech.com ENTER TECH, INDIA OFFICE • Charlie Shin Marketing Manager Flat No. 208 on 2 floor in “C”...
