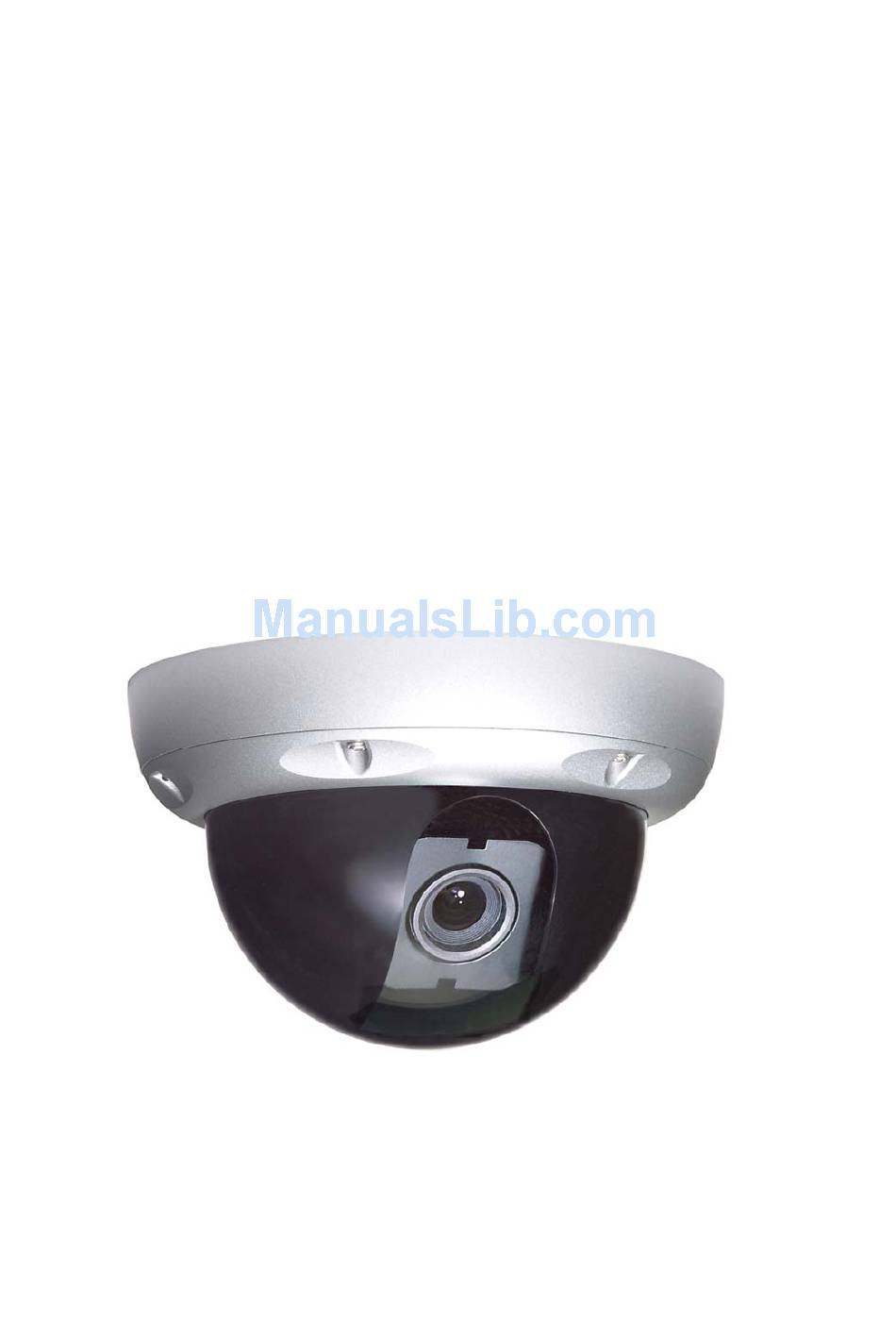

Network ip CAMERA OPN-815/825 User’s Manual (Version1.2)
Page 2
To support various wireless devices such as Mobile Phone, PDA to see real time Video in Wireless Internet handset. For more information or inquiry, please contact us to the followings ; Home Page : www.onix.co.kr e-mail : onix@onix.co.kr Telephone ; 82-2-839-5544...
Page 3
IMPORTANT NOTES OPN -815/825 may be damaged by electrical and physical shock. DO NOT throw or drop it onto floor. DO NOT put TV or heavy items on OPN -815/825. OPN -815/825 is indoor use only. If it is used outdoor, it is required to use the separate case to maintain water-proof, humidity-proof and control proper temperature around the unit.
Page 5
4.9.H ………………………………………………………………………………...38 OMEPAGE PDATE 4.10.F ……………………………………………………………………….….……38 IRMWARE PDATE 4.10.1.Remote Upgrade………………………………………………………………………………...….………38 4.10.2.System Re-booting………………………………………………………..…………………..……………40 5. BASIC USE………………………………………………………….……………41 5.1.U …………………………………………………………….………………..41 SE OF IEWER 5.2.U IP S ……………………………………………………….………………44 SE OF ETTING TILITY 5.3.U …………………………………………………………………….………………48 SE OF ERVER 5.4.U ……………………………………………………………………………….……….48 SE OF ELAY 5.5.U ……………………………………………………………………………….……..49 SE OF ENSOR 5.6.S...
1. Feature 1.1 Package Please see the package as follows. OPN -815/825 Adapter User Manual Software CD Cross Cable Package of Products is composed of main body of product, exclusive Adapter, User Manual, Software CD, Cross Cable (see the above). Please check before starting installation. Be sure to use the provided Adapter exclusively for OPN -815/825.
1.2 Outer View 1.2.1 Web board view ① ② ③ Pic. 1―1 Wed board View POWER: Light on when power is supplied. LINK: Light on when LAN Cable is connected to OPN -815/825. LAN: Light on when connected to Network...
1.2.2 Connection cable view ③ ⑧ ⑦ ⑥ ⑤ ④ ② ① Pic. 1―2 Connection Cable View 1) Camera Port: To connect Camera, Output of the same video signal that put into the Video Input Port. U484 Power loop out /Video input Connector from Camera Module 2) Power Supply &...
Page 9
U484 COMP_VIDEO COMP_VIDEO_GND CA21 Molex 35362-04(2mm) 470uF/6V(cap8d) U485 VIDEO_LOOP_OUT VIDEO_LOOPOUT_GND Molex 35362-04(2mm) 3) LAN Port : To connect LAN Cable port for Internet to connect to Internet U472 LAN Connector U472 3.3V TPTX+ TPTX- TPRX+ TPRX- LINK_LED_Cathode LINK_LED_Cathode Molex 55456-6...
Page 11
3.3V U464 Bead 220ohm RXD1_B TXD1_B Bead 220ohm 485A+ 485B- Molex 55456-6 7) Hardware Reset: To initialize basic setting. Push and hold for seconds to start initialization. 8) Debug Port : Not use U463 JTAG Debug Port U463 3.3V Molex 55456-6...
2. Installation and Video Check 2.1 Installation On the assumption that User PC and OPN -815/825 Sever is used under static IP, and OPN -815/825 is to be directly connected with User PC or Local Network, the installation procedure is to be ; ⑪...
Page 13
Pic. 2―2 Network Setting of User PC 1) Set IP Address, Subnet Mask and Gate-way of User’s PC with 192.168.1.50, 255.255.255.0 and 192.168.1.1 as shown on [Pic. 2-2]. Pic. 2―3 Web Browser Input 2) Run Web Browser as shown on [Pic. 2-3] and input 192.168.1.8 in URL and click “Enter”, then [Pic. 2-4] is to be shown.
Page 14
Pic. 2―4 OPN -815/825 Main Page 3) Click “Connect” Button of [Pic. 2-4]. Pic. 2―5 User login 4) Input ID and Password and click on the lock [Pic. 2-5] to see the Video feed. 5) User’s Authority to see Video feed on OPN -815/825 is as follows ; Table 2-1 User ID, Password, Rights User ID User Password...
Page 15
8) Message Window [2-6] appear soon, click ‘Yes’. If click ‘No’, Web Viewer doesn’t work. . Pic. 2―6 ActiveX Download 9) Upon installation, Web Viewer [Pic. 2-7] appears and image of Camera is to be seen. Pic. 2―7 Web Viewer 10) After checking the video feed [Pic 2-7], go to the next Chapter ‘3.
3. Basic Setting 3.1 Check Network and Installation Type This Chapter is for basic setting of OPN -815/825. To install Hardware of OPN -815/825, basic understanding of Network is required. Please refer to Chpater 6 in case knowledge of Network Environment is required..
Page 17
Pic. 3―1 Main Page of OPN -815/825 5) Click ‘Administrator’s Page’ of [Pic. 3-1], then Browser shows [Pic. 3-2] Log-in Page. Pic. 3―2 Administrator Page Log-in 6) Put ‘admin’ in ID and Password line, click ‘Login’, then [Pic.3-3] ‘Administrator's Page’ will be shown. (ID, Password of OPN -815/825 is preset as admin/admin in Administrator’s Page.
Page 18
Pic. 3―3 Administrator’s Page 7) Click “Network Setting’ in left menu on [Pic..3-3], [Pic. 3-4] appears. 8) Click ‘Static IP Address’ in ‘IP Setting’ of [Pic. 3-4], and input IP Address, Subnet Mask, Default Gateway according to Network environment to connected OPN -815/825. 9) For setting of ‘DNS Server’, input DNS Address to fit with Network Environment to set.
Page 19
Pic. 3―4 Network Setting 13) Click ‘Click Here’ upon appearing of IP Change Window of [Pic. 3-5]. 14) IP Change loading Page appears as [3-6], the Main Page of changed address is connected. (May not find the main page of changed address under Cross Cable connection, but IP been changed.) Pic 3―5 IP Change...
Pic. 3―6 IP Change loading Page 15) Remove LAN Cable (Cross Cable) connected between OPN -815/825 and PC. 16) Connect OPN -815/825 to Network with LAN Cable (Straight Cable). 17) Connect PC to Network with LAN Cable (Straight Cable).. 18) Set up IP Address, Subnet Mask and Gate way of PC according to Network environment. 19) Check Run Web Browser on PC, input IP address set in OPN -815/825 onto URL and click ‘Enter’, Check if IP Setting is correct or not, referring to...
Page 21
Pic. 3―7 Network Setting 5) Click on ‘Dynamic IP Address’ in ‘IP Setting’. 6) Click ‘Save’ Button. 7) Upon completion of setting, close the Web Page and find IP of OPN -815/825 in ‘IP Utility’ program provided with Proprietary Viewer (see ‘5.
Pic. 3―8 Initial Page of OPN -815/825 3.3 Installation with IP Sharing Device (Router) 1) After checking Video in ‘ 1. Installation and Video Check’, then go to the next step. 2) Connect OPN -815/825 and PC with LAN Cable (Cross Cable). 3) Cable Connection and Network Setting should be done same as per ‘1.
Page 23
Pic. 3―9 Network Setting 10) Click ‘Click Here’ upon appearing of IP Change Window of [Pic. 3-10]. 11) IP Change loading Page appears as [3-11], the Main Page of changed address is connected. (may not find the main page of changed address under Cross Cable connection, but IP has been changed.) Pic.
Page 24
13) Check Video of OPN -815/825 referring to ‘1. Video Check’ as soon as it is connected to IP newly set up. 14) Go to Network Setting Page of Administrator’s Page as per 4), 5), 6), 7) of ‘Static IP Setup’.
Pic. 3―13 Main Page of OPN -815/825 After [Pic.3-13] appears, check Video of OPN -815/825 referring to‘1. Video Check’. 22) Check 2 (Check from outside) After registration of OPN -815/825 in Server (refer to ‘‘Use of Server’ of ‘‘ 5. Basic Use’, connect to OPN -815/825 by Domain Name (Server Name) allocated to OPN -151.
4. Expert Setting After registration of OPN -815/825 in Server (refer to ‘Use of Server’ of ‘‘ 5. Basic Use’’, connect to OPN -815/825 by Domain Name (Server Name) allocated to OPN -815/825. (For example, run Web Browser and input Domain Name allocated to OPN -815/825 in URL. In http://OPN - 815.goodip.net, ‘OPN -815/825’...
4.1 General Setting Pic. 4―3 General Setting 4.1.1 Title Setting Pic. 4―4 Title Setting Server title is to be English without space. Click ‘Save’ Button to save title after input name. 4.1.2 Administrator’s ID and Password Change ※ Cautions : Change Administrator’s ID and Password and do not disclose the information to others. Administrator’s ID and Password should be English, within 20 characters, without space.
Remember Administrator’s ID and Password. In case of forgetting Administrator’s ID and Password, click ‘reset’ button for returning to initial value, and change Administrator’s ID and Password. 4.1.3 User Registration This is to register an account of user who monitor and control Video of OPN -815/825. Administrator’s ID and Password should be English, within 20 characters, without space.
4.1.5 Skip Login (Automatic Monitoring) Pic. 4―9 Skip Login Check on ‘Skip Login’ of [Pic.4-9], and click ‘Connect ID’ and save the value, then Web Viewer will be appeared automatically and Video of Camera can be seen upon connection to Home Page of OPN - 815/825.
4.1.7 Set Download Route of Plug-in Type ActiveX This is to set how to download Active X of Web Viewer, locally or from outer Server designated. In case setting as local download, it has a merit to use in private network without Internet. In case of setting as download from outside, it has a merit to download the updated Active X of Web Viewer automatically.
4.3 Video & Audio Setting Pic. 4―14 Video and Audio Setting 4.3.1 Video Setting Select and tick on the Channel to use, input Video format (NTSC or PAL), Resolution, Bit rate, Frame rate and Key frame. Pic. 4―15 Video Setting...
OPN-815/825/825/825 supports “dual-streaming’ setting. Users can configure two different video setting value. ※ Dual-Streaming: proprietary encoder chip, CT6002 is embedded into OPN -815/825. CT6002 enables users to configure two different video setting from one analog video source. Dual-streaming function can be used in two ways as follows.
4.4 Color Setting This is to adjust color of channel. Pic. 4―17 Display Color Setting Upon adjustment of color on [Pic.4-17], then click ‘Save’ to save the setting value. In case to return to default value, click ‘Default’. Even in this case, it is required to click ‘Save’ Button for saving the setting value.
Designate condition to drive Event in ‘Alarm Condition’, such as Sensor Event, Motion detection Event or Sensor + Motion detection Event, If Sensor Event is selected, do Sensor setting ‘4.6 DIO Setting’. Sensitivity : To select the sensitivity of motion detection. The larger number represents higher sensitivity to motion.
4.6 DIO Setting Pic. 4―19 DIO Setting Tick on sensor to use and select type of sensor to use. Sensor Type : designate type of sensor, NC, NO. Designate name of sensor to use. 4 conditions are selectable for Relay. Relay name is to be input. Disable : not to use Relay Remote Control : to control Relay through Internet using Viewer...
4.7 RS232C Setting Pic. 4―20 RS232C Setting It is available to select P/T/Z module supported or P/T/Z Integrated Camera. Models of Camera supported by OPN -815/825 are: ONIX – D (RS485) A-120 (CryptoCam / RS232), Canon VC-C4R (RS232), Wonwoo PT-101 (RS485),...
4.8 Preset Setting ⑤ ① ② ③ ④ Pic. 4―21 Preset Setting It is available to pre-set Pan/Tilt/Zoom Cameras. Preset Setting is available up to 20, but may be less than 20 for some model of Camera. (1) : Select Channel ; to select the channel to preset. (2): Preset No.
4. 10 Firmware Update 4.10.1 Remote Upgrade In case firmware is upgraded in the near future, ONIX’s Upgrade Server (Http://goodip.net) will automatically upgrade Firmware of OPN -815/825. Upgrade is only supported via Internet. Information on the latest version of OPN -815/825 will be posted in Data Room of ONIX’s Homepage.
Page 39
Pic. 4―23 Firmware Update Address of ‘Update Server Address’ in [Pic.4-23] is basically set as ‘goodip.net’. Check ‘Current Software Version’ in ‘Current Version’ of [Pic.4-23] and go ahead with update if current version is lower than the latest version. Upon clicking ‘Update’ button in [Pic.4-23] ‘Remote Update’, [Pic.4-24] will appear.
DNS Server Address in ‘3. Basic Setting’ and try to upgrade again. If user keep finding [Pic.4-28] or cannot upgrade, contact head office of ONIX SYSTEM Co., Ltd. or local agent. Pic. 4―28 Upgrade Server Connection Error 4.10.2 System Re-booting This is the function to re-boot Inner Software of OPN -815/825.
5. Basic Use 5.1 Use of Web Viewer Pic. 5―1 Web Viewer Table. 0-1 Definition of Web Viewer Button Function Connect Define 1 screen Connect Define 2 screen Open Administrator’s Page Display Screen 100%. Double-clicking mouse on enlarged screen has the same function. Enlarge Video of a channel at 640 x 480.
Page 42
While pressing Mouse on the direction, P/T, Camera moves. Un-pressing Mouse makes Camera stop. Keeping pressing on screen to a point makes Camera move to the direction, un-pressing Mouse makes Camera stop. Audio MUTE & Speaker Volume MIC Volume P/T/Z Speed, Control Speed of Pan/Tilt. ‘S’ makes speed of P/T slow. ‘F’ makes speed of P/T fast.
Page 43
Display Camera Menu. Function of special Camera. Upon detection of Event on OPN -815/825, there will be a flickering on Screen and alarm sound beeping. To stop the sound, double-click on the flickering screen. Connect one-way Audio (hearing only) Connect two-way Audio communication (can speak via Server) Beef off Recoding Capture a selected path.
Zoom-in, Zoom-out Function ②⑤ ‘+’ is Zoom In, Pressing the key makes doing the function. Un-pressing stops the function ‘-‘ is Zoom Out, Pressing the key makes doing the function. Un-pressing stops the function. 5.2 Use of IP Setting Utility Upon running IP Setting Utility, the following program is to be displayed.
Page 45
The following window shows list of IP along with Web Server Port Number and Model Name of OPN - 815/825. Click ‘IP Find’ Button to find IP of OPN -815/825 on local Network. Pic. 5―4 IP Check After finding IP, double-click IP of OPN -815/825 to go to the editable Mode as follows. Pic.
Page 46
Pic. 5―6-2 Windows Start Page Pic. 5―6-3 Windows Control Panel...
‘DIO Setting’ ‘4. Expert setting’. The built-in relay of OPN-815/825 can be used up to AC250V/0.5A. In case more capacity is needed, please contact head office of ONIXSYSTEM or local agent. ④ U471 MIC input / SPK output / Relay Control output...
As Relay has no polarity, any port of the line can be connected to plug in. Up to 2 Relay can be connected, and is to be controllable on Viewer, OPN-815/825 itself and Mobile Phone. In case to connect outer electric device (light lamp,) to OPN-815/825, there should be no separate Relay.
SENSOR_2 SENSOR_2 Molex 55456-6 Pic. 5―10 OPN-815/825 Sensor Connection As sensor has no polarity either, any port of the line can be connected to plug in. Up to 2 Sensors can be connected to use. 5.6 See and Control of Still Image in Mobile phone or PDA Sorry!! Preparing…..
5.7.3 Program Installation Pic. 5―11 Program Installation Pic. 5―11 Installation click ‘Next’ Button. Pic. 5―12 Select Installation Folder [Pic.5-12] is to select the folder where the program is to be installed. The route is changeable at user’s option. To install in the default folder, click “Next” to go to the next step.
Click “Ignore” to next installation. Pic. 5―16 Installation Completed Upon completion of installation, click ‘Finish’ Button. 5.7.4 Use of Program Upon installation, there will appear an icon of ‘ip camera’ on your PC. Double-click the icon to run the Program, and then Program will be run as [Pic.5-17]. 5.7.4.1 Viewer Screen...
Page 54
Pic. 5―17 Viewer Screen Table 0-3 Definition of Viewer Menu Close Menu General Menu Setting ([Pic.5-18]) Connect to Administrator’s Page of OPN-815/825([Pic.5-22]) See Program Information Move to Preset Location set in Camera, Select Relay Control 1. Preset Move Double-click the name of Preset in the list to go to the preset location.
Page 55
Open, Search and select File ([Pic.5-20]) Capture Image on the screen To control P/T of camera connected to OPN-815/825. (Pan/Tilt is controlled just by clicking on Screen, or clicking Direction Key on Keyboard) To control of the speed of Pan/Tilt of Camera (S:slow, F:fast)
Page 56
5.7.4.2 General Setting Menu (10) Pic. 5―18 General Setting Menu Table 0-4 Description of General Menu Description Description Select the directory to capture Set the duration of Schedule recording. Set the duration of Motion recording. Set the duration of passive recording (to be recorded during the time users selected schedule) Set the duration of Sensor recording.
Page 57
Not to connect Audio For 1 way audio to listen only For 2 way audio communication Input User ID Input User Password Save Password Input the information of OPN-815/825 to be connected in [Pic.5-19] and save it. Connect to OPN-815/825 by...
Page 58
clicking ‘CONNECT’ Button on [Pic.5-19]. It is available to control Pan/Tilt/Zoom, Preset, Relay, Audio connection according to user’s requirements. 5.7.4.4 Play of Recorded File Click ‘Open File’ on [Pic.5-17]. (10) (11) (14) (15) (16) Pic. 5―20 Play Recorded File Table 0-6 Play of Recorded File Description Description Select the folder of recorded files.
Page 59
Search files by the date Select the date to search 5.7.4.5 Use of Pop-up Menu The Pop-up Menu of [Pic.5-21] will appear, upon clicking the right button on the Screen during monitoring Video on OPN-815/825 (10) (11) (12) Pic. 5―21 Pop-up Menu...
Page 60
Table 0-8 Description of General Menu Description Select the directory to capture Designate the folder to record after select the directory to save the Set the address of Server in case connecting to OPN-815/825 by the MAC Address (default : goodip.net)
6. Network Environments It is required to follow the recommendation of the environments where OPN -815/825 will be installed or the similar environments. 6-1. Private line Environment Usually Company, University, Research center uses the leased line. They use many public IP addresses. In order to install OPN -815/825 under this environment, select “Static IP Address”...
7. Appendix Appendix A Basic Setting Table Item Default (Basic Setting) Remarks Network Setting Static IP / Dynamic IP Static IP IP Server Enable IP Address 192.168.1.8 Gateway 192.168.1.1 Subnet Mask 255.255.255.0 Connection Port Authentication /Control Port 9000 Video Streaming Port 9001 One way Audio...
Page 63
Frame Rate 15fps Bit Rate 200kbps Other Setting Time Zone Asia/Seoul(Korea) *. Note : In case to reset Hardware and Network Setting, ID and Password of User and Administrator will be automatically returned to the above default value. Appendix B Specification of Products Item Specification...
Page 64
Input / Output Digital In 2Port – Open/Close Digital Out 2 Ports – Relay Open/Close Input Normal Open Max current :0.5A Max voltage :240VAC Peripheral device RS232 1Port, RS485 Ethernet RJ45 Communication 1 Port (select one of them) Video Input Video BNC Jack - Loop Through Out Output...
Page 65
Appendix C To solve problem C-1 Basic Check-point C-1-1 Booting Check if power plug is connected correctly. Power Cable : Use cable for OPN -815/825, contained in Product box. Power LED : The front left LED twinkles on upon supplying Power. C-1-2 Network cable (LAN cable) and cable connection check Check if network cable is straight LAN cable.
Page 66
Appendix D Serial port (RS232c) explanation and example D-1 Pin Number D-2 Pin Signal No 1 : Not Used No 2 : RxD No 3 : TxD No 4 : Not Used No 5 : GND No 6 : Not Used No 7 : RTS No 8...
Page 67
ONIX SYSTEM INC. 8F ACE VIII B/D 191-7, KURO-DONG, KURO-KU, SEOUL, KOREA Tel: +82-2-839-5544 Fax: +82-2-839-5055 E-Mail: onix@onix.co.kr...
