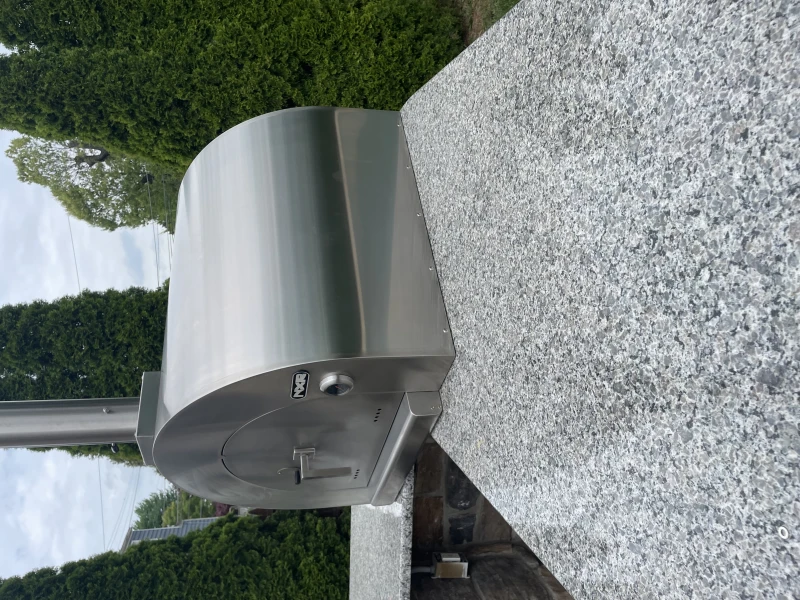

Wood Burning Pizza Oven Care & Assembly Instructions
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
Warning:
This product is intended for outdoor use only.
Read the manual carefully and completely before use.
Warning: accessible parts may be very hot, keep out of reach of children.
Do not move the device during use.
Not intended to be installed in or on boats.
Keep this manual for future reference.
Never operate this appliance unattended.
Questions, problems, and/or missing parts? Before returning to your retailer,
please send an email to our customer service department:
or prefer to speak to a live agent in the USA; call 001-888-909-8818 (International calling rates will apply)
Monday-Friday 9AM-5PM PST;
nxrcs@duro-global.com
Languages Spoken: English.
ITM. / ART. 924780
Model: P80-02
Advertisement
Table of Contents
Summary of Contents for NXR P80-02
- Page 1 ITM. / ART. 924780 Model: P80-02 Wood Burning Pizza Oven Care & Assembly Instructions IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY Warning: This product is intended for outdoor use only. Read the manual carefully and completely before use.
-
Page 2: Table Of Contents
Limited Warranty 19-20 ........................... Thank you for purchasing the NXR wood burning pizza oven. We appreciate your business and we recommend that you read this entire owner's manual before operating your new appliance for the first time. Take a look at our safety instructions prior to use. This manual contains instructions on how to properly install and set up your new pizza oven, as well as insights into great features that our product offers. -
Page 3: Safety Instruction
10 feet away from your new NXR wood burning pizza oven. Before cleaning, allow 1 hour for your NXR wood burning pizza oven to cool. Use a dry brush and wet mop to clean; use only soap and water. Never use... -
Page 4: Pizza Oven Exploded View
PIZZA OVEN EXPLODED VIEW... -
Page 5: Pizza Oven Parts List
PIZZA OVEN PARTS LIST Part Part Part name Part name Chimney Left and right side panel feet Dust tray Wood holder Pizza Stone (Pre-installed) Front panel Chimney holder (Pre-installed) Panel connectors 1/4”-20 Philip's head screw Pizza oven dome 5/16”-20 Butter fly shape screw Pizza oven door Pizza peel Hooks bracket... -
Page 6: Pizza Oven Packing Information
PIZZA OVEN PACKING INFORMATION IMPORTANT Please Note: Your pizza oven will be packed in 2 boxes. When delivered, please verify you received both boxes. Box 1 of 2: Pizza Oven Dome Box 2 of 2: Pizza Oven Base... -
Page 7: Pizza Oven Base Installation (Parts From Box 2/2)
Pizza Oven Base Installation (Parts from box 2) Step 1: Connect the 4 piece connector (part 16) onto the base Back panel by 8 piece 1/4”-20 Philip's head screw (Part 17). Tool needed: Phillips screwdriver (not included) Part 22 Part 16 Part 17 Step 2: Same as step 1, connect the 4 piece connector (part 16) onto the base Front panel (part 15). - Page 8 Step 5: Connect the back panel to the left pane with 2 of the butterfly shape screws. Part 22 Part 18 Part 12 Step 6: Use the same method as step 5, connect the front panel to the left side panel with 2 of the butter fly shape screws (by hand turning in).
- Page 9 Step 7: Connect the right panel with 4 of the butterfly shape screws by hand turning in. Part 12 Part 22 Part 18 Part 22 Part 23 Step 8: Place the wood holder into the pizza oven base. Part 14...
- Page 10 Step 9: Install the counter top on the pizza oven base. The counter top is very heavy and requires at least 2 people to carry and put onto the pizza oven base board. Part 11 By adjusting the counter top position, please make sure the 4 blocker on the bottom of the counter top are fully insert into the left &...
- Page 11 Step 10: Install the hook bracket onto the side edge of the counter top by 3 screws (part 20) Tool needed: Phillips screwdriver (not included) Part 19 Part 20 Step 11: Place 5 hooks on the hook bracket, the hooks are for hanging the pizza peel, pizza shovel, and brush.
-
Page 12: Install The Pizza Oven Top To The Base (Parts From Box 1/2)
INSTALL THE PIZZA OVEN TOP TO THE BASE (Parts from box 1) Step 1: Install the pizza oven chimney by hand plug in. Part 01 Part 05 Step 2: To install the ash tray, place the item behind the oven dome. Part 02... - Page 13 Step 3: Install the Pizza Oven Dome on the Base. The pizza oven dome is very heavy and requires two people to carry and put onto the pizza oven base board. Please make sure the pizza oven dome is in the middle of the counter top.
- Page 14 Step 4: Place the pizza oven door on the pizza oven dome, and placing pizza peel, shovel, and brush onto the hooks. Part 06 Part 09 Part 08 Part 07 ASSEMBLY FINISHED Assembly fin...
-
Page 15: Start Cooking Pizza
Fire-in-the-oven cooking 315°C (600°F) + is used for baking pizza, pizza-like flat breads and certain types of appetizers, all of which cook in a couple of minutes. Your NXR Pizza Oven can be pizza-ready in about 45 minutes. ... - Page 16 Baking the Pizza After the oven have reached the desired temperature 315°C (600°F) + for cooking pizza, then clean the stone. Test to make sure you pizza is not stuck on your peel by moving your pizza peel forward and backward using short jerks - it should slide easily around.
-
Page 17: Troubleshooting
TROUBLESHOOTING PROBLEM DESCRIPTION PROBLEM SOLUTION The temperature not reaching Make sure to put enough wood into the pizza 315°C (600°F) - 371°C (700°F) oven. Close the door for 1-2 minutes to keep the heat. Too much smoke Take out some wood or use better quality wood. -
Page 18: Ordering Parts
Description of replacement part needed. Quantity of parts needed. To obtain replacement parts, contact NXR Customer Relations. Please send email to our customer service department: nxrcs@duro-global.com If you prefer to speak to a live agent in the USA;... -
Page 19: Limited Warranty
LIMITED WARRANTY DURO warrants to the original consumer-purchaser only that this product (Model #P80-02) shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below, beginning on the date of purchase. The manufacturer reserves the right to require photographic evidence of damage for review and examination that defective parts be returned, or for postage. - Page 20 Pickup and delivery of your product. Postage fees or photo processing fees for photos sent in as documentation. Repairs to parts or systems resulting from unauthorized modifications made to the product. The removal and/or re-installation of your product. ...
- Page 21 NOTES...
