- Page 1 Manual GPSvision.de Bedienungsanleitung TK5000 Manual for TK5000 Manual / Bedienungsanleitung TK5000 - Version 2.0 - GPSVision.de - Incutex Germany GmbH Seite 1...
- Page 2 Die Vervielfältigung dieses Handbuchs und die Nutzung von Bildern oder Texten, auch der auszugs- weise Nachdruck (mit Ausnahme kurzer Zitate in Fachartikeln), ist nur mit ausdrücklicher schriftlicher Genehmigung von der Incutex Germany GmbH (Markus Nechwatal) gestattet. Manual / Bedienungsanleitung TK5000 - Version 2.0 - GPSVision.de - Incutex Germany GmbH Seite 2...
-
Page 3: Table Of Contents
10.11 Command structure description 31 7.15 activate power saving mode 2 16 10.12 commands-use order 32 7.16 activate power saving mode 3 16 10.13 commands, new command templates 32 Manual / Bedienungsanleitung TK5000 - Version 2.0 - GPSVision.de - Incutex Germany GmbH Seite 3... -
Page 4: Hardware

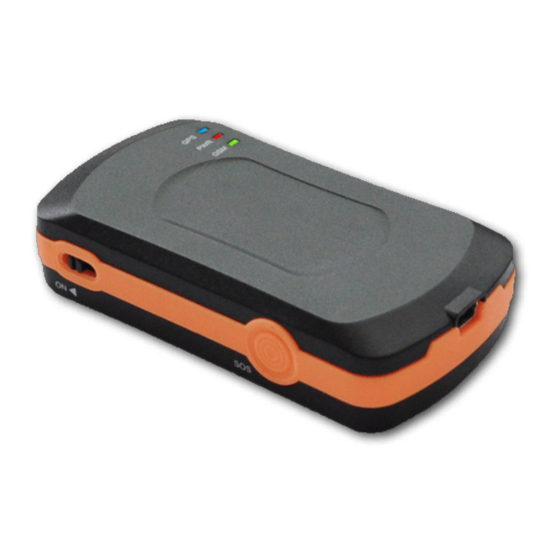

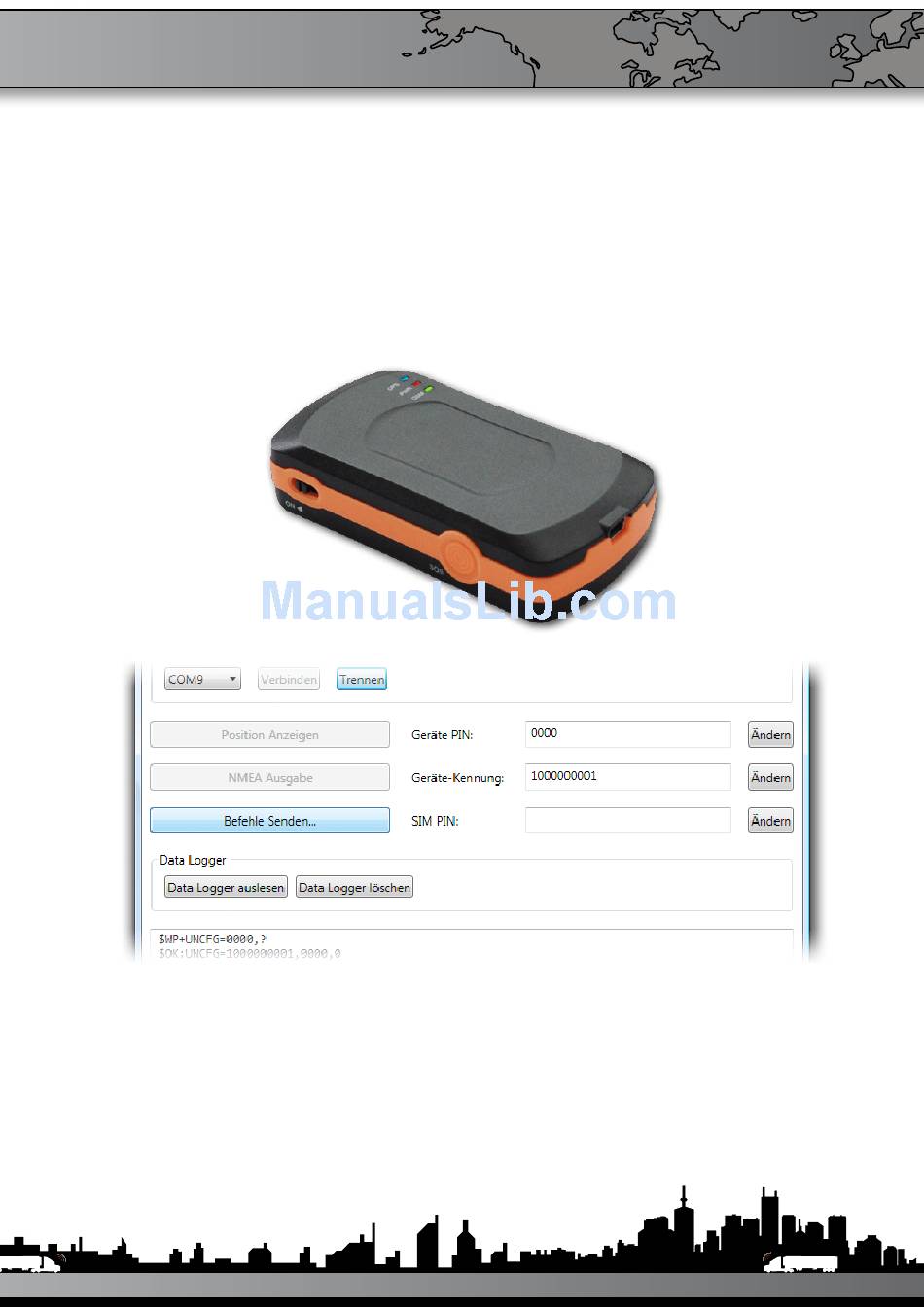

Manual GPSvision.de Bedienungsanleitung TK5000 1. Hardware The GPS Tracker TK5000 can be used for mobile and permanent installations. Applications, data and accessories, visit our website or online store. Note: Please read the instructions at least once. 1.1 Hardware description 1. Status LEDs (GPS, Power, GSM) 2. -
Page 5: Led Status
How to set the motion alarm, you can find in the log description (English) or in the PC software (GPS Tool) in "send commands ..." Manual / Bedienungsanleitung TK5000 - Version 2.0 - GPSVision.de - Incutex Germany GmbH Seite 5... -
Page 6: User Information
GPSvision.de Bedienungsanleitung TK5000 3. Hardware accessories There are many accessories for the TK5000, that extend the scope of use. • external battery packs up to 365 days of standby • waterproof containers such as boxes and bags • additionally charging cable for fixed installation in the vehicle • GPS Tracking portal for real-time tracking and route functions... - Page 7 You can now call the tracker with your mobile number and receive a text message seconds later. You can now enter the coordinates in Google Maps or click on the link directly (see 4.) Manual / Bedienungsanleitung TK5000 - Version 2.0 - GPSVision.de - Incutex Germany GmbH Seite 7...
- Page 8 The other data such as speed, time, etc., are irrelevant to the tracking. After entering, click on “Search Maps”. Now you will see the map with the exact position of the GPS tracker. Manual / Bedienungsanleitung TK5000 - Version 2.0 - GPSVision.de - Incutex Germany GmbH Seite 8...
-
Page 9: Commands
Manual GPSvision.de Bedienungsanleitung TK5000 6. Commands There are a variety of commands for the GPS Tracker TK5000 available, which are constantly being expanded through firmware updates. Therefore please visit our website regularly. CAUTION: All commands can be sent via USB, and GPRS to the device. -
Page 10: Command Syntax
(see 6.6). In the example, the number stands for "incorrect command parameters". Check if the command you have sent is correct. Manual / Bedienungsanleitung TK5000 - Version 2.0 - GPSVision.de - Incutex Germany GmbH Seite 10... -
Page 11: Error Codes
Over speeding event $WP+SPD Emergency contact number $WP+EMSMS Unauthorized movement event $WP+EMOV Entering-sleeping mode event $WP+PSM Power low report $WP+LOWBATT 50-99 User defined event position $WP+SETEVT Manual / Bedienungsanleitung TK5000 - Version 2.0 - GPSVision.de - Incutex Germany GmbH Seite 11... -
Page 12: Overview Of All Commands
Set / read device ID, Password, and SIM PIN code More details on the commands available in the GPS tool, or in the log description. Manual / Bedienungsanleitung TK5000 - Version 2.0 - GPSVision.de - Incutex Germany GmbH Seite 12... -
Page 13: Brief Description Of The Tracker Commands
Here you set numbers, the tracker is allowed to send coordinates to. You can authorize up to five phone numbers. Enter the numbers in the command line. A call number: for example $WP+CITRACK=0000,+491791111,,,,33 The country code "+49" must be named. Manual / Bedienungsanleitung TK5000 - Version 2.0 - GPSVision.de - Incutex Germany GmbH Seite 13... -
Page 14: Quickguide: Position Format
Usually the central number is your phone number. The central number you must determine if you use the tracker in the SMS service. $WP+COMMTYPE=0000,? Command: Manual / Bedienungsanleitung TK5000 - Version 2.0 - GPSVision.de - Incutex Germany GmbH Seite 14... -
Page 15: Position Query Time
"500" is the distance in meters. Change the meter to the desired distance in the command line. Then click "Send". $WP+TRACK=0000,2,0,500,0,0,1,15 Command: Manual / Bedienungsanleitung TK5000 - Version 2.0 - GPSVision.de - Incutex Germany GmbH Seite 15... -
Page 16: Position Query Angle
You can change the meter and the angle. Tracker sends, if two conditions are met. 7.13 Automatic queries STOPPING If you "send" the following command to the tracker all automatic position queries are stopped. $WP+TRACK=0000,0 Command: Manual / Bedienungsanleitung TK5000 - Version 2.0 - GPSVision.de - Incutex Germany GmbH Seite 16... - Page 17 "Send" it to the tracker. $ WP + PSM = 0000,3,300,1,0 → 60 seconds The tracker can ONLY be woken from this mode via phone or SMS. $WP+PSM=0000,3,300,1,0 Command: Manual / Bedienungsanleitung TK5000 - Version 2.0 - GPSVision.de - Incutex Germany GmbH Seite 17...
- Page 18 60 seconds later, the motion alarm is active. Include your phone number. $WP+EMOV=0000,+4917911111,,,,,1 Command: 7.21 deactivate movement alarm With this command, the motion alarm is turned off. $WP+EMOV=0000,,,,,,0 Command: Manual / Bedienungsanleitung TK5000 - Version 2.0 - GPSVision.de - Incutex Germany GmbH Seite 18...
- Page 19 Now you just have to pretend the radius in meters. The number "500" are the radius in meters, this value can change in the command line. minimum of 50 feet 65,000 meters $WP+SETEVT=0000,50,1,9.529976,48.868806,500,1 Command: Manual / Bedienungsanleitung TK5000 - Version 2.0 - GPSVision.de - Incutex Germany GmbH Seite 19...
-
Page 20: Low Battery
In this command, the tracker stores a position within a certain distance. In the example the number "500" is the distance in meters. Change the command line to the desired distance in meters. $WP+REC=0000,2 ,0,500,0,0,15 Command: Manual / Bedienungsanleitung TK5000 - Version 2.0 - GPSVision.de - Incutex Germany GmbH Seite 20... - Page 21 The previously stored positions are not deleted. $WP+REC=0000,0 Command: 7.33 DELETE data logger Use this command to erase the memory of the data logger. All data will be lost. $WP+CLREC=0000 Command: Manual / Bedienungsanleitung TK5000 - Version 2.0 - GPSVision.de - Incutex Germany GmbH Seite 21...
-
Page 22: Technical Details
3D G sensor GPS Chip MTK 3329 (66 channels) battery 1100mAh Li-ion GPS sensitivity -165 dbm standby up to 100 hours GSM module Simcom Manual / Bedienungsanleitung TK5000 - Version 2.0 - GPSVision.de - Incutex Germany GmbH Seite 22... - Page 23 You got the driver via e-mail or CD. Change in the following folders: \ TK5000 \ USB Driver \ XP in this folder you will find the TK5000.inf Click the right mouse button on this file. This opens a menu, you click the left mouse button on "Ins- tall".
- Page 24 10 seconds After you have connected the tracker via USB to computer, the following window appears: Click "No, not this time" and then click "Next". Manual / Bedienungsanleitung TK5000 - Version 2.0 - GPSVision.de - Incutex Germany GmbH Seite 24...
- Page 25 Manual GPSvision.de Bedienungsanleitung TK5000 Click on "Install software automatically" and then click "Next". Then click on "Continue Installation". This step can be repeated. Manual / Bedienungsanleitung TK5000 - Version 2.0 - GPSVision.de - Incutex Germany GmbH Seite 25...
- Page 26 Manual GPSvision.de Bedienungsanleitung TK5000 Click "Finish". The USB drivers are now installed. Manual / Bedienungsanleitung TK5000 - Version 2.0 - GPSVision.de - Incutex Germany GmbH Seite 26...
- Page 27 ATTENTION: Don't connect the Tracker with your computer yet. You got the driver via CD or via e-mail. Change in the following folders: \ TK5000 \ USB Drivers \ Vista in this folder you will find the Setup.exe Open the Setup.exe by double clicking it.
- Page 28 This process may be repeated several times. If the Windows-safety reports, click on "install this driver anyway". To complete the setup, click "Finish". Continue with the next step. Manual / Bedienungsanleitung TK5000 - Version 2.0 - GPSVision.de - Incutex Germany GmbH Seite 28...
- Page 29 USB driver so that the tracker will be recognized by your computer. Normally, your trackers are automatically recognized. If not, then follow the installation instructions for "Windows Vista". Manual / Bedienungsanleitung TK5000 - Version 2.0 - GPSVision.de - Incutex Germany GmbH Seite 29...
-
Page 30: Gps Tool (Pc Software)
You have received the GPS tool via CD or via e-mail. Change to the following folder: \TK5000\GPS-Tool in this folder you can find the file GPSTrackerConfigurator.exe Open the file GPSTrackerConfigurator.exe by double-click. Manual / Bedienungsanleitung TK5000 - Version 2.0 - GPSVision.de - Incutex Germany GmbH Seite 30... -
Page 31: Sending Commands
• Click the "Connections". There you will find the COM port. 10.1 sending commands... After the connection to the tracker is made, click on the button "Send Commands". Manual / Bedienungsanleitung TK5000 - Version 2.0 - GPSVision.de - Incutex Germany GmbH Seite 31... - Page 32 Protocol Description This columnyou can find the English protocol description. It gives detailed information about the command as parameters, minimum values, maximum values, command structure, etc. Manual / Bedienungsanleitung TK5000 - Version 2.0 - GPSVision.de - Incutex Germany GmbH Seite 32...
- Page 33 4. Enter the real command in field "Command" (z.B. $WP+IMEI={0}). As Password, you must enter the placeholder "{0}", so that it can then be replaced by the real password. 5. Click on "OK". The window disappears afterward. Click "Save". Manual / Bedienungsanleitung TK5000 - Version 2.0 - GPSVision.de - Incutex Germany GmbH Seite 33...
