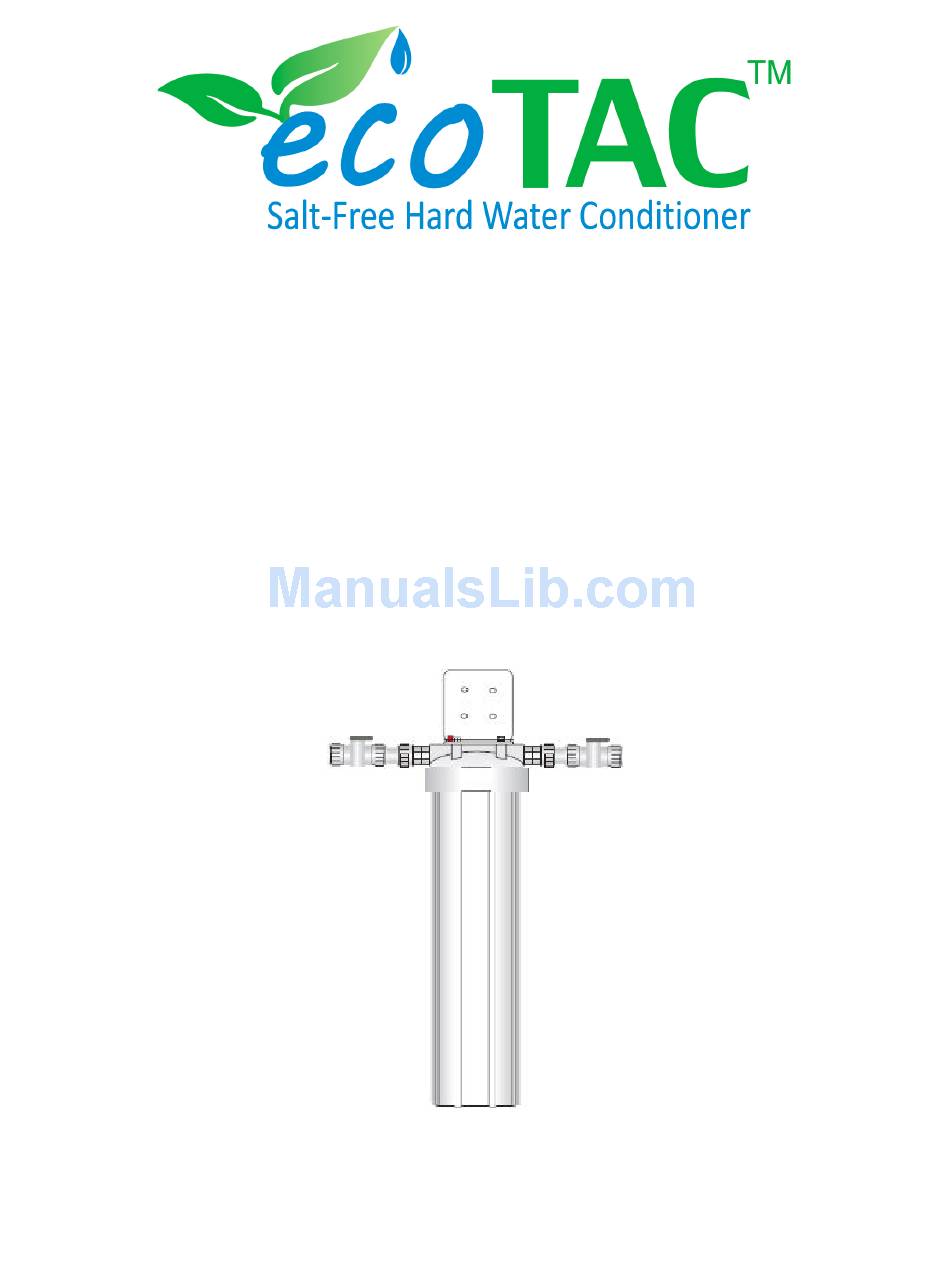

ecoTAC™ Protector 4
Hard Water Mineral Scale Protection for
Water Heaters, Dish Washers, and
Other Low Flow Rate Applications
OWNER'S MANUAL &
INSTALLATION GUIDE
PLEASE READ THIS MANUAL CAREFULLY BEFORE ATTEMPTING
INSTALLATION. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY VOID
YOUR WARRANTY, CAUSE INJURY, OR RESULT IN PROPERTY DAMAGE.
Advertisement
Table of Contents
Summary of Contents for EcoTAC Protector 4
-
Page 1: Installation Guide
Protector 4 Hard Water Mineral Scale Protection for Water Heaters, Dish Washers, and Other Low Flow Rate Applications OWNER’S MANUAL & INSTALLATION GUIDE PLEASE READ THIS MANUAL CAREFULLY BEFORE ATTEMPTING INSTALLATION. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY VOID YOUR WARRANTY, CAUSE INJURY, OR RESULT IN PROPERTY DAMAGE. -
Page 2: Table Of Contents
Congratulations on the purchase of your ecoTAC™ Salt-Free Hard Water Conditioner. You have purchased one of the finest hard water treatment systems on the market today. ecoTAC™ conditioners use the latest in salt-free hard water conditioning media technology to reduce or eliminate hard water mineral scale. -
Page 3: Package Contents & Parts List
• one (1) heavy-duty filter housing with 3/4” quick-connect fittings and pressure relief button • one (1) mounting bracket and related screws (4) • one (1) ecoTAC™ filter cartridge (shipped inside housing – remove protective wrap before using) • one (1) spanner wrench •... -
Page 4: Operating Conditions
While we strongly recommend that a licensed plumber perform all installation work, a mechanically- inclined homeowner can install an ecoTAC™ system. In all cases, it is critical that the installation be done in accordance with these instructions and all applicable plumbing codes. Be sure to obtain all required permits. -
Page 5: Housing
• The fittings on the ecoTAC™ system are designed to quick-connect (“push fit”) to 3/4” PEX, copper, or CPVC pipe. You will need a short piece of 3/4” PEX or CPVC pipe (see specs below) and a suitable union for each side of the housing (inlet and outlet) to connect to your pipe type and size. -
Page 6: Mounting
– you can always remove a slightly larger section upon final assembly if necessary. STEP 4. It is now time to assemble the system. Your ecoTAC™ unit is supplied with quick-connect fittings for your convenience. These fittings do not require any tools or sealants (Teflon, etc.) These fittings connect by... - Page 7 Diagram #1 STEP 4B. Follow this step only if you are also installing a S10 sediment, C6 carbon, or Fe6 iron removal pre-filter(s) with your ecoTAC unit. Assemble the components according to Diagram #2 below in the following sequence: S10 Sediment Pre-Filter Package or Similar (if equipped)
- Page 8 If this is the case, be sure to install regulation ground clamps to the metal pipe on each side of the ecoTAC™ unit and connect a jumper wire between the 2 clamps (#4 gauge solid copper wire recommended). Consult a certified electrician or plumber if you are unsure.
-
Page 9: What To Expect In The First Few Weeks
If you have a traditional water heater, we recommend that you clean out this material by opening the bottom drain valve on the hot water heater 30 to 60 days after installation of ecoTAC™. Be sure to turn off the electricity or gas to your water heater before draining your tank. Follow the manufacturer’s instructions for draining and flushing the tank. -
Page 10: Maintenance Information
CLR or Lime Away are good cleaner choices for this purpose. We then recommend that you coat the walls in the shower, and your glass shower doors with Rainx, a commercial product used for automobile windshields. -
Page 11: Warranty
9. Flush the system by running water from a nearby faucet for 5 minutes prior to using the water. WARRANTY Your ecoTAC™ system components are warranted by HomePlus Products Inc. to be free of defects in material and workmanship for a period of one year from the date of purchase provided that your system was purchased from an Authorized dealer;... - Page 12 The warranty is issued exclusively to the original consumer purchaser of record and is not transferable. The provisions of the foregoing warranty are in lieu of any other warranty, whether express or implied, written or oral (including any warranty of merchantability or fitness for a particular purpose). HomePlus Product Inc.’s liability arising out of the manufacture, sale, or supplying of the products or their use or disposition, whether based upon warranty, contract, tort, or otherwise, shall not exceed the actual purchase price paid by the authorized distributor or consumer for the product.
