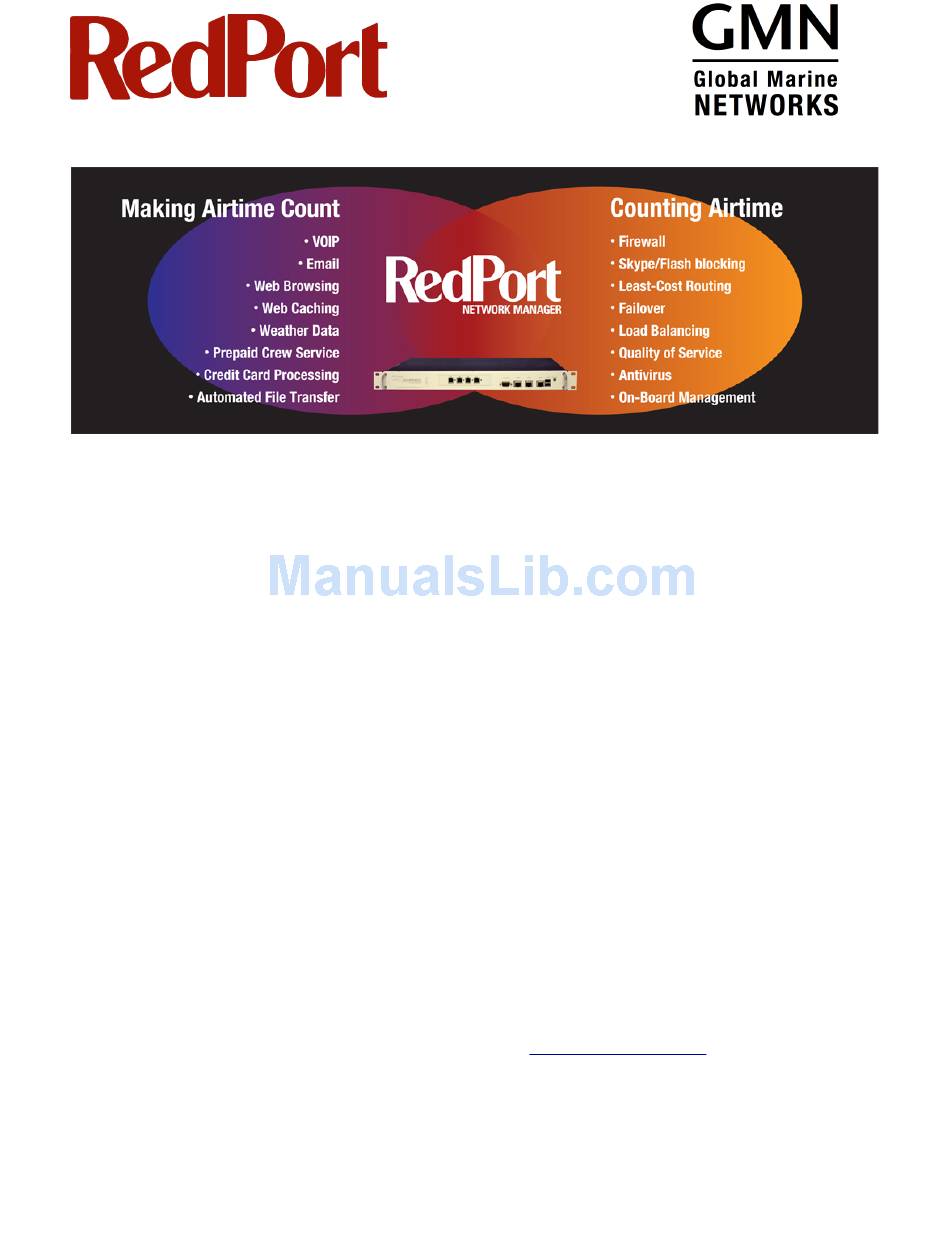

GMN RedPort Quick Start Manual

Network manager
Hide thumbs
1
2
3
Table of Contents

Advertisement

Quick Links

Download this manual
Congratulations on the purchase of your RedPort wXa appliance. With RedPort you will
increase satellite data transfer efficiency and decrease airtime costs while preventing
unwanted costly transmissions. We are confident that RedPort will serve you well. The
following information will get you up and running quickly. Please refer to the RedPort
wXa user guide for additional information.
Port Definitions
• ETH0 is configured as the LAN port with IP address 192.168.10.1.
ETH1 is configured as WAN with DHCP and should be connected to your primary satellite unit.
• ETH2 is configured as WAN2 with DHCP and should be connected to your backup satellite unit.
• WLAN is configured as the WiFi port (on units with WiFi) with IP address 192.168.20.1.

WiFi Hotspot

• Protocol: 802.11g (a and b are disabled by default)
• Security: WPA2 (WPA and WEP disabled by default)
• SSID: webXaccelerator
• Secret: webXaccelerator
• WiFi IP: 192.168.20.1

Router Administrative Page

• IP: 192.168.10.1 - Use a web browser and URL
or via WiFi.
• user: admin
• password: webxaccess

Quick Start Guide

http://192.168.10.1
on the LAN port

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RedPort and is the answer not in the manual?

Questions and answers

Summary of Contents for GMN RedPort

  • Page 1: Quick Start Guide

    We are confident that RedPort will serve you well. The following information will get you up and running quickly. Please refer to the RedPort wXa user guide for additional information.
  • Page 2 Web Compression Web compression is disabled by default. The following steps are required to enable compression. 1. Contact your supplier for a RedPort wXa account username and password. 2. Login to the web admin 3. Go to "Services->Proxy server" 4. Click on the "Upstream Proxy" and enable it and enter the information below: •...
  • Page 3 Boot/Halt The RedPort wXa uses an internal solid state silicon disk drive (SSD) to store its configuration and cache webpages. Care should be taken when shutting down the unit to prevent loss of data and lengthy disk checks on startup. To properly shutdown the unit, login to the web admin and execute the "Diagnostics->Halt function".
