RF SR-2818 Instruction Manual

RF wireless LED remote controller
Model:SR-2818 with SR-1009Fxx

Product introduction

SR-2818 RGBW remote controller is full touch remote controller which has 8 different zones. It can get Red/ Green/ Blue/
White color directly. The remote controller can save up to 8 colors or 8 modes into corresponding buttons (1-8 buttons)
for each zone. You can choose any color through color wheel. There is a USB port to charge internal battery.

Parameter

Remote
Part No. Operation Voltage
SR-2818 3.6VDC
Receiver
Input Voltage
Part No.
SR-1009FA 12-36VDC
SR-1009EA 12-36VDC
SR-1009FA3 12-36VDC
SR-1009FA7 12-36VDC

Product Size

115.4
Eight zones/areas
Touch button RGB+W controller
Chargeable by USB
Receivers work with WIFI-RF converter to be controlled by smart phone
Operation DIMENSIONS
Frequency ø/h (mm)
434MHz/868MHz 59x115x12
USB charging capability
Output Current Output Power
4x5A
4x(60-180)W
4x8A 4x(96-288)W
4x350mA
4x(4.2-12.6)W
4x700mA 4x(8.4-25.2)W

Brief introduction of buttons

Play & Pause button
Save color button
Return previous status button
Speed down & speed up button

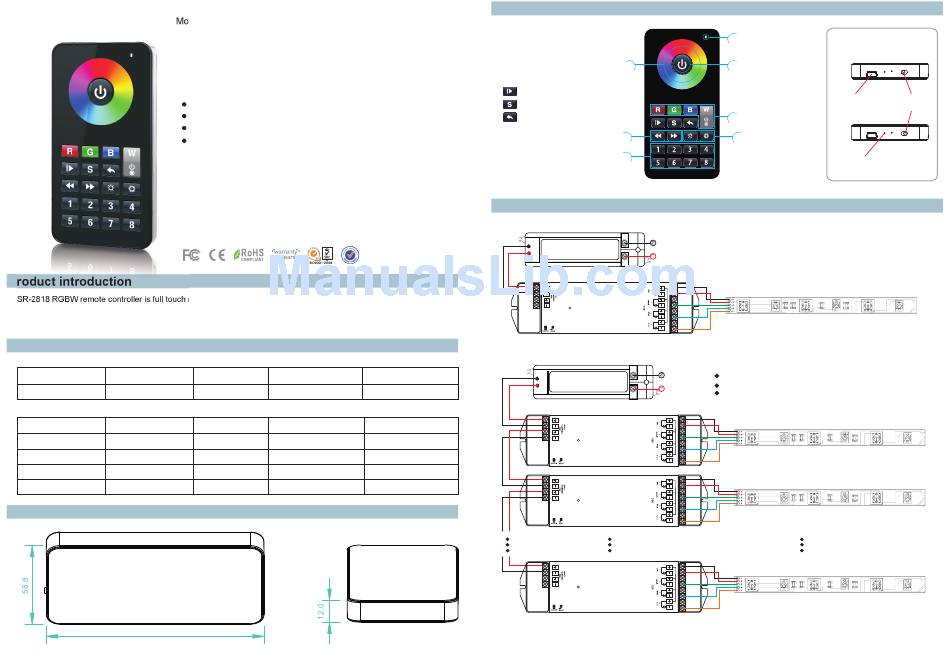

Wiring diagram

1)Receiver Connection Diagram for Single Unit
2) Receiver Connection Diagram for Multiple Units
Remarks
Lithium battery,
Remarks
Constant voltage
Constant voltage
Constant current
Constant current
Indicator
Color wheel ON/OFF button
R/G/B/W button
Brightness button
Zone button
Power Supply
110V-230VAC
12-36VDC
SR-1009FA
LED CONTROLLER
Learning Key
Note:
One receiver can work with 1-8pcs SR-2818
Power Supply
110V-230VAC
12-36VDC One SR-2818 control multiple receivers
The power supply chosen must be 20% higher than the
actual load
SR-1009FA
LED CONTROLLER
Learning Key
SR-1009FA
Learning Key LED CONTROLLER
SR-1009FA
LED CONTROLLER
Learning Key
Bottom
USB port OFF
ON
Indicator will be on while remote is charging.
Indicator will be off while it's full power.
