OWNER'S MANUAL

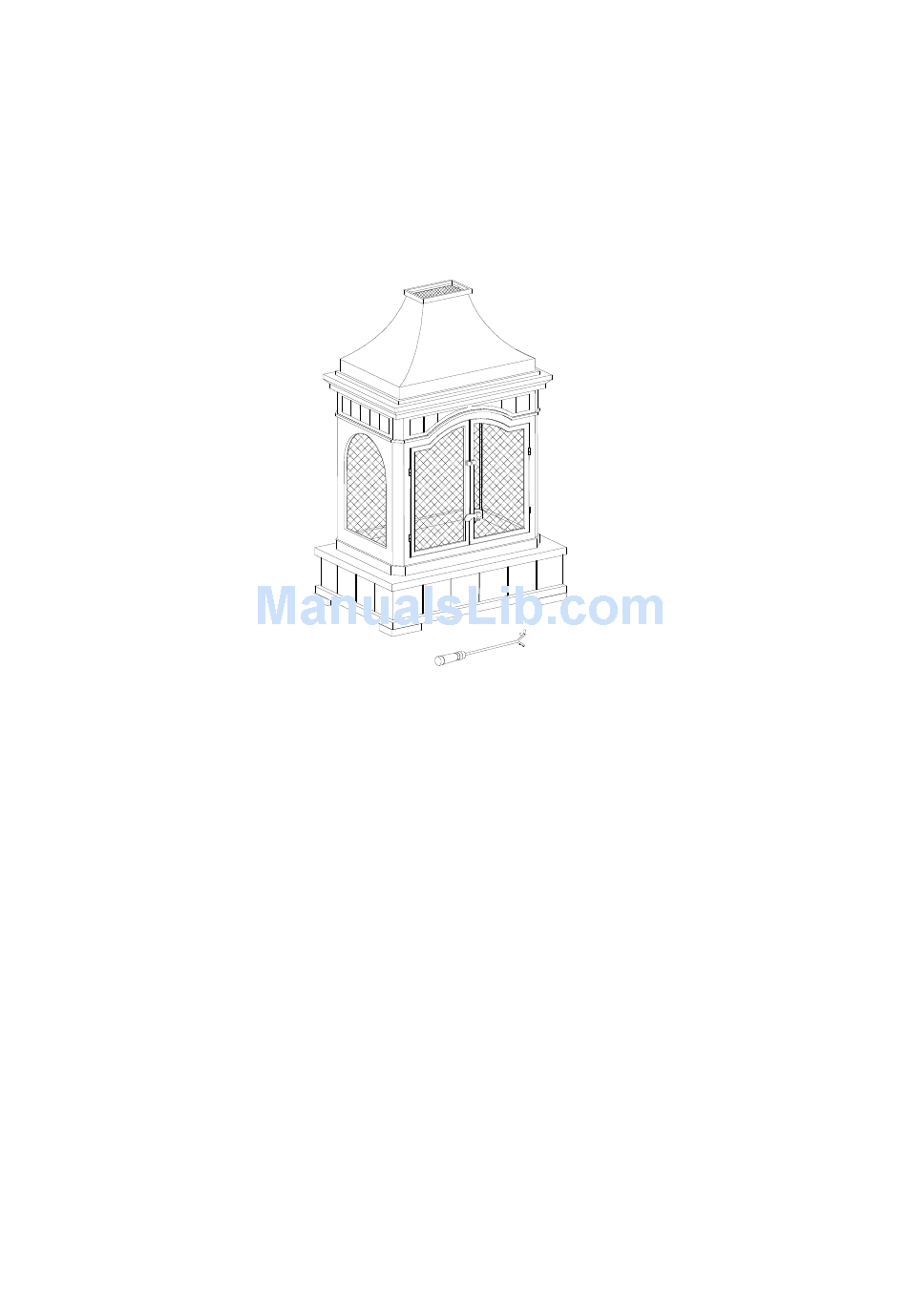

Monroe Fire Place
Style # L-OF087PST-B
SAFETY
INFORMATION:
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
WARNINGS:
FOR OUTDOOR USE ONLY! NEVER LEAVE FIRE UNATTENDED! Do not allow children or pets
near the fireplace without supervision. DO NOT USE THE FIREPLACE TO COOK FOOD! The
fireplace is not designed for cooking food.
CAUTIONS:
Burn only wood or charcoal in the fireplace. DO NOT use gasoline or kerosene to start the fire in your
fireplace. Use only an acceptable method of lighting the fire, such as match and lighter. DO NOT use
this unit on a wood deck or on combustible surfaces such as dry grass, leaves, mulch, etc. The
fireplace should be placed no closer than 5 feet from walls during use. DO NOT attempt to move the
fireplace while it is hot or in use.
PREPARATION:
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and diagram above. If any part is missing or damaged, do not attempt to assemble the
product. Contact customer service for replacement parts.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L-OF087PST-B and is the answer not in the manual?

Questions and answers

Summary of Contents for Monroe L-OF087PST-B

  • Page 1 OWNER'S MANUAL Monroe Fire Place Style # L-OF087PST-B SAFETY INFORMATION: Please read and understand this entire manual before attempting to assemble, operate or install the product. WARNINGS: FOR OUTDOOR USE ONLY! NEVER LEAVE FIRE UNATTENDED! Do not allow children or pets near the fireplace without supervision.
  • Page 2 Part List DESC Top base Back panel Side panel Foot Doorframe (Door has been preassembled) Knob Latch Fire bowl Base Poker M6*20 Bolt M6*15 Bolt M6*10 Bolt D6.5 Flat washer Step 1 Step 2 Connect Foot (E) and Top base (B) with Bolt 2 .First, fix Knob (F1) to Doorframe (F) with Bolt (BB), Flat washer (DD).
  • Page 3 Step 5 Step 6 5. Put Top (A) on the top of Top base (B). 6. Put Fire bowl (G) on the Base (H) as lustration. Use & Care:...
  • Page 4 MANUAL DEL PROPIETARIO Chimenea Monroe Estilo No. L-OF087PST-B INFORMACIÓN DE SEGURIDAD Por favor lea y asegurese que entiende todo el manual antes de tratar de montar, operar o instalar esteproducto. ADVERTENCIAS PARA USO EN EXTERIORES SOLAMENTE. NUNCA DEJE EL FUEGO DESATENDIDO. No permita a los niños ni a las mascotas acercarse a la chimenea sin su supervisión.
  • Page 5 Lista de Piezas DESCRIPCION CANTIDAD Casco Base del Casco Placa trasera Placa lateral Columna Cuadro de la Puerta (Con la puerta ya montada) Pomo Pestillo Recipiente para Leña Base Atizador Tornillo M6*20 Tornillo M6*15 Tornillo M6*10 Arandela Plana D6.5 Etapa 1 Etapa 2 Conecte la Columna (E) a la base del Casco 2 .Primero fije el Pomo (F1) al Cuadro de la Puerta...
  • Page 6 Etapa 5 Etapa 6 5. Coloque el Casco (A) sobre la base del 6. Coloque el Recipiente para leña (G) sobre la Casco (B). Base (H) como en la ilustración 6. Uso y cuidado:  ¡Sólo para uso en exteriores! ...
