Summary of Contents for TD Electronics TDSESOTH05

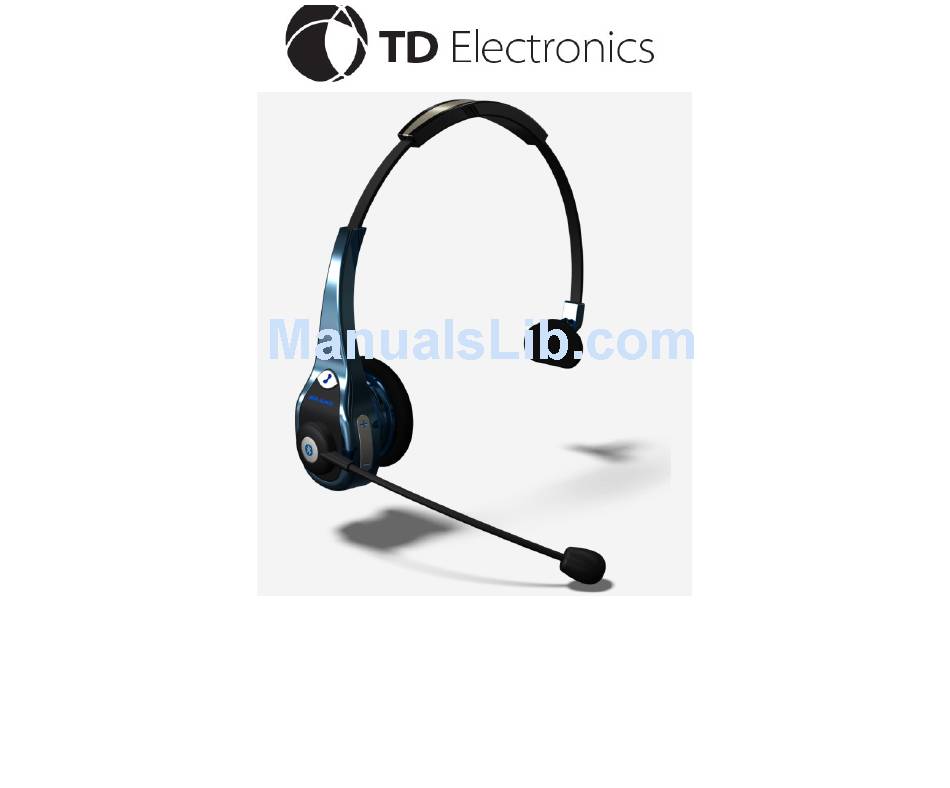

- Page 1 TD Single Ear Stereo Headset Part #: TDSESOTH05...
-
Page 2: Notice Before Using
1. Notice Before Using Thank you for purchasing the TD Electronics Bluetooth® Headset (TDSESOTH05). Please read this User's Manual completely before you use the Headset. The TDSESOTH05 has been developed using Bluetooth® wireless technology and is capable of connecting with Bluetooth® devices designed with Audio Gateway. -
Page 3: Package Contents List
2. Package Contents List Please inspect this package and refer to the package contents list below to verify all items were included in this package: A. TDSESOTH05 headset.............1 B. AC Wall Charger..............1 C. DC Car Charger..............1 D. USB Charging Cable............1 E. - Page 4 3. TDSESOTH05 Bluetooth® Headset Overview...
-
Page 5: Battery Information
4. Battery information... -
Page 6: Charging The Battery
Important: Ensure that the battery is fully charged if you do not use the device for a long period of time. To avoid a complete discharge of the battery, the TDSESOTH05 should be charged at least every 3 months. 5. Charging the battery... - Page 7 The TDSESOTH05 is operated with a rechargeable battery. Charge the battery completely before its first use. Read the section "Battery information" before starting the charging process. Connect the charger to the correct outlet. When the charger is connected to the headset, the red indicator light will turn on.
-
Page 8: Pair To Your Bluetooth® Phone
"Beep" tone every 20 seconds, and the red indicator light starts to flash. - For using the TDSESOTH05 with iPhone or Blackberry, an additional battery meter feature will be activated and the remaining battery capacity will display on your phone. - Page 9 Bluetooth® enabled mobile phone. Pairing is a one-time process and required only for the first connection with the cell phone The TDSESOTH05 can be paired with up to eight cell phones and be connected simultaneously with two cell phones.
- Page 10 3 seconds. (Note: The PIN code is preprogrammed and cannot be changed.) - After pairing, the TDSESOTH05 automatically connect with the cell phone. For some cell phones, you have to manually confirm the connection. Once paired, the headset will change to standby mode and the indicator light will flash blue every 10 seconds.
- Page 11 7. Multi-connection function The multi-connection function allows for the simultaneous use of the TDSESOTH05 with two cell phones. This is an advantage for users with a personal and a business cell phone. Establishing a connection with two cell phones There are several options of connecting the TDSESOTH05 with already paired cell phones.
- Page 12 This allows you to determine the sequence of connections. If two cell phones are connected with the TDSESOTH05, the cell phone connected first is the first device and the other one the second device. Another connection can be established only after first disconnecting one of the two cell phones.
-
Page 13: Turning Headset On /Off
The other functions are executed the same way using the TDSESOTH05 as a connection with only one cell phone. 8. Turning headset on /off Turning on your headset While the headset is turned off, press and hold On/Off for 3 seconds until you hear a tone from low to high. -
Page 14: Wearing Your Headset
At any working state after the headset is powered on, press and hold On/Off for 5 seconds. You will hear a tone from high to low, and the Red indicator light will be solid for 2 seconds. The headset has now powered off. Note: To conserve power, if the headset is not connected to a device for approximately 10 minutes, the headset will... - Page 15 10. Using the TDSESOTH05 Making a call - Using phone's keypad In standby mode, dial the number on your phone's keypad to make a call. - Use Voice-Dialing In standby mode, press the On/Off 3-4 seconds, you will hear a short tone from the headset, and the phone will prompt you to say the voice tag which you have already attached to your contact.
- Page 16 In standby mode, double press the On/Off button, The last number you dialed will be re-dialed. Note: If two cell phones are connected with the TDSESOTH05, hold the Volume (-) button for 2 seconds to dial the last number of the cell phone connected previously.
- Page 17 Reject an incoming call When you receive an incoming call, press and hold On/Off button for 3 seconds to reject the incoming call. Transferring a call While a call is in progress, press and hold Volume (+) for 3 seconds. The call will be transferred from your phone to your headset.
- Page 18 press On/Off shortly. This will accept the waiting call and end current calling. - If there is an incoming call while a call is in progress, press and hold On/Off for 3 seconds to accept the incoming call and place the current call on hold. - While a call is on hold and you are engaged in an additional call, press On/Off shortly to end the current call and resume the call holding.
-
Page 19: Volume Control
The mute function is now cancelled. Music streaming The TDSESOTH05 supports A2DP profile that allows for wireless streaming of stereo music from a phone or other Bluetooth enabled music device. The music will pause automatically while a call is dialed out/incoming, and resume when the conversation has ended. -
Page 20: Safety And General Information
11. Reset the TDSESOTH05 The TDSESOTH05 can be paired with up to eight cell phones. You can delete the paring list and reset the headset to the factory settings by doing the following: – The headset must be turned on and not be connected to any cell phone or device. - Page 21 Do not modify, repair or disassemble device (Especially the battery). Doing this will void the warranty. Do not place heavy objects on the device. Use only the supplied and approved chargers. Please contact TD Electronics for replacement or support with this product.
- Page 22 Unplug this device when unused for long periods of time or during lightening storms. 10) The battery used in this device may present a risk of fire or chemical burn if mistreated. 13. FCC & IC Statement Operation is subject to the following two conditions: (1) This device may not cause harmful interference.
-
Page 23: Ec Declaration Of Conformity
14. EC Declaration of Conformity Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Note: The manufacturer is not responsible for ANY interference, for example RADIO or TV interference, caused by unauthorized modifications to this equipment. -
Page 24: Warranty
Portugal, Spain, Sweden, and United Kingdom and within EFTA in Iceland, Norway and Switzerland. WARRANTY This TDSESOTH05 is under warranty for 12 months from the date of your purchase. All returns must be accompanied by proof of purchase. Manufacturer warrants to original purchaser that the product finished hereunder shall be free from defects in material and workmanship under normal use and service. - Page 25 of delivery of product to purchaser, F.O.B. point of origin replace any defective parts in respect to the product or replace the product with new or like new product at Manufacturers option. In the event of a defect, return the product in tact to the Manufacturer (shipping to Manufacturer will be paid by purchaser) with evidence of purchase date within last 12 months for proper handling of the warranty claim.
- Page 26 General Provisions: This warranty is given in lieu of all other express warranties, implied warranties, including without limitation, implied warranties or merchantability and fitness for a particular purpose, are limited to the duration of this limited warranty, in no event shall the Manufacturer or seller be liable for damages in excess of the purchase price of the product Top Dawg Electronics...
