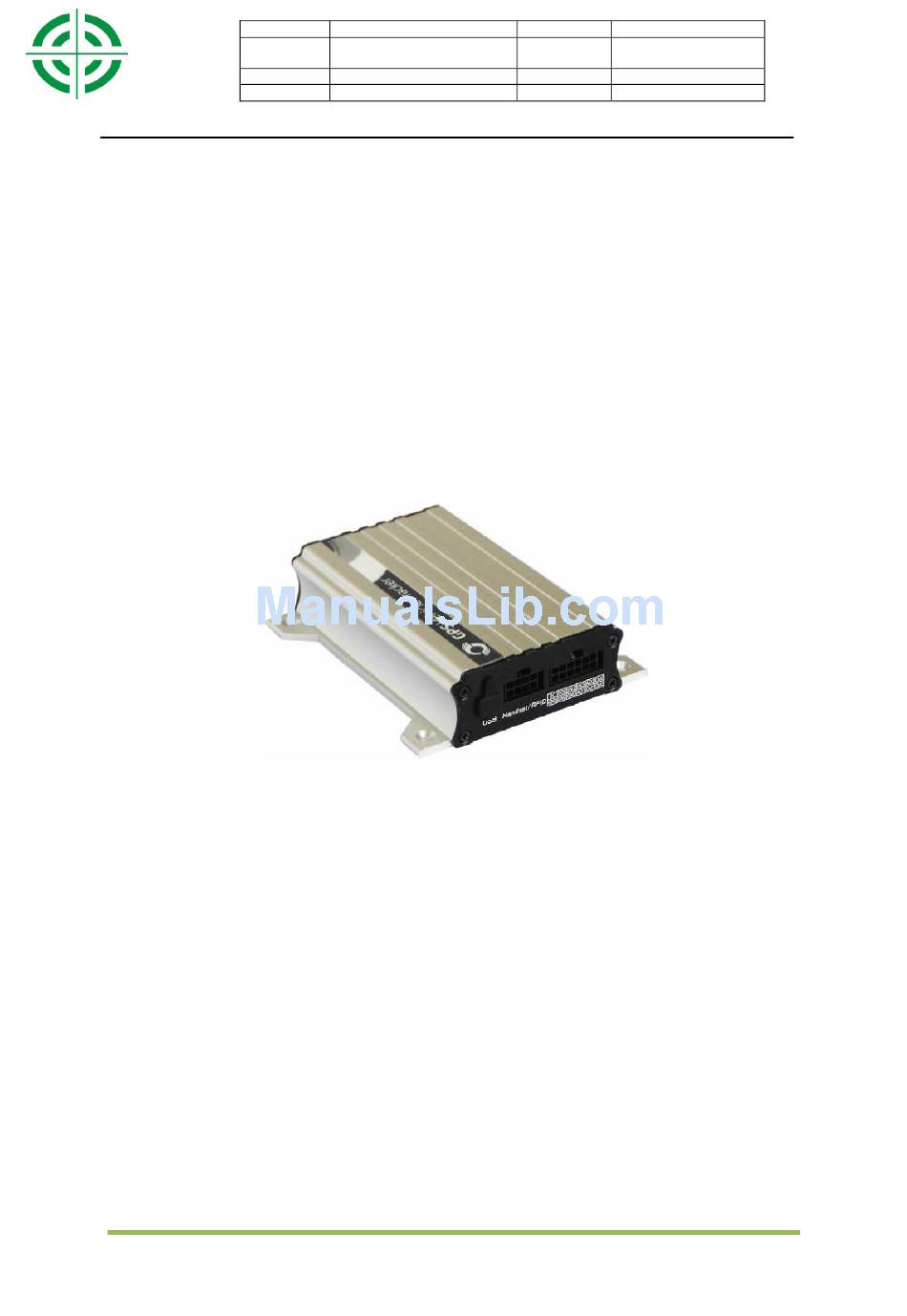

METRACKCO
manage.track.protect.relax
Copyright © 2013 Moango Group Holdings All rights reserved.- 1 -
File Name:
METRACKCO T1 User Guide
Project:
T1
Sub Project:
User Guide
Revision:
V1.8
METRACKCO
Creator:
Creation Date:
Update Date:
Page:
Confidential:
®
GPS Vehicle Tracker
T1
Humphrey Ngundue
2011-07-18
2013-06-26
- 1 - of 22
External Documentation
Advertisement
Table of Contents
Related Manuals for METRACKCO T1
Summary of Contents for METRACKCO T1
- Page 1 File Name: METRACKCO T1 User Guide Creator: Humphrey Ngundue Project: 2011-07-18 Creation Date: Update Date: 2013-06-26 Sub Project: User Guide Page: - 1 - of 22 Revision: V1.8 Confidential: External Documentation METRACKCO manage.track.protect.relax ® METRACKCO GPS Vehicle Tracker Copyright © 2013 Moango Group Holdings All rights reserved.- 1 -...
-
Page 2: Table Of Contents
Install RFID Reader (RS232 Interface) ..........................- 20 - Install Camera (RS232 Interface) ............................- 21 - Install GPS/GSM Antennas ..............................- 21 - Mount the T1 unit ..................................- 22 - Copyright © 2013 Moango Group Holdings All rights reserved.- 2 -... -
Page 3: Copyright And Disclaimer
In no event shall Meiligao (METRACKCO) be liable for direct, indirect, special, incidental, or consequential damages (including but not limited to economic loss, personal injury, and loss of asset and property) arising out of the use or inability or illegality to use the product or documentation. -
Page 4: Specifications
File Name: METRACKCO T1 User Guide Creator: Humphrey Ngundue Project: 2011-07-18 Creation Date: Update Date: 2013-06-26 Sub Project: User Guide Page: - 1 - of 22 Revision: V1.8 Confidential: External Documentation METRACKCO manage.track.protect.relax Low Battery Alarm Speeding Alarm ... -
Page 5: T1 And Accessories
File Name: METRACKCO T1 User Guide Creator: Humphrey Ngundue Project: 2011-07-18 Creation Date: Update Date: 2013-06-26 Sub Project: User Guide Page: - 1 - of 22 Revision: V1.8 Confidential: External Documentation METRACKCO manage.track.protect.relax 4 T1 and Accessories I/O Cable +... - Page 6 Make sure the SIM Lock code is turned off; If you require the function of sending an SMS location report to the authorized phone number when it makes a call to the T1, please make sure the SIM installed supports display caller ID Before installing the SIM card, turn off the power for T1.
-
Page 7: Charging
3 hours. 8 hours is highly appreciated. Configuration and testing suggested be prior to installation. 6.3 LED Indications Press and hold the Power On/Off button for 3~5 seconds to turn on/off T1. GPS LED (Blue) One button is pressed or input is active. - Page 8 File Name: METRACKCO T1 User Guide Creator: Humphrey Ngundue Project: 2011-07-18 Creation Date: Update Date: 2013-06-26 Sub Project: User Guide Page: - 1 - of 22 Revision: V1.8 Confidential: External Documentation METRACKCO manage.track.protect.relax Click on the link then the location can be shown directly on Google Maps on your mobile phone.
-
Page 9: Multiple Phone Numbers- A71
If no preset phone number, it is empty (default is empty). Send command “0000, A71” to delete all phone numbers. When the SOS button is pressed, T1 will make a call to phone number 1, 2 and 3. It will stop calling when one number answers. -
Page 10: Sleep Mode - A73
File Name: METRACKCO T1 User Guide Creator: Humphrey Ngundue Project: 2011-07-18 Creation Date: Update Date: 2013-06-26 Sub Project: User Guide Page: - 1 - of 22 Revision: V1.8 Confidential: External Documentation METRACKCO manage.track.protect.relax Authorize a phone number to make a silent call to the tracker. The tracker will answer the call automatically and allows the caller to listen to what is happening around the tracker. -
Page 11: Time Zone- B35
This part mainly shows you how to use the METRACKCO Parameter Editor. Note: Don’t connect T1 to external battery when configuring. Please refer to the METRACKCO Parameter Editor User Guide for more information regarding configuration and functions. Run ‘PL2303_Prolific_DriverInstaller’ to install the driver for the USB data cable. - Page 12 ‘Prolific USB-to-Serial Comm Port’ as the following picture shows. Note: Remember this Com number. It needs to be input into the METRACKCO Parameter Editor. It is COM3 in this example and it would be COM4 or COM5... in your computer.
-
Page 13: Sms Tracking
Click ‘Read Settings’ button to show the default or previous settings of the tracker. Note: METRACKCO Parameter Editor is in the CD. The language will be automatically adjusted to be the same as your PC operation system’s language. Please use “Ctrl+L” to change the language. - Page 14 Event Selected event’s SMS reports will be sent to the authorized phone number. For more details, please refer to METRACKCO GPRS/SMS Protocol. For description of events from SOS/Input 1 Active to Tow Alarm, please refer to tap II GPRS Tracking.
-
Page 15: Gprs Tracking
External Power Off Alarm when external power supply if off or cut. No GPS Signal Report when T1 enters GPS blind area or no GPS signal. Get GPS Signal Report when T1 exits GPS blind area or get GPS signal. - Page 16 Interval = 0, stop tracking by time interval. Max time interval = 65535*10 seconds GPRS Report Times = 0, report without limit. = [1,65535], set report times, T1 will stop reporting when reaching the times. IP & Port Input server’s IP address and port number.
- Page 17 External Power Off Alarm when external power supply if off or cut. No GPS Signal Report when T1 enters GPS blind area or no GPS signal. Get GPS Signal Report when T1 exits GPS blind area or get GPS signal.
-
Page 18: Installation
File Name: METRACKCO T1 User Guide Creator: Humphrey Ngundue Project: 2011-07-18 Creation Date: Update Date: 2013-06-26 Sub Project: User Guide Page: - 1 - of 22 Revision: V1.8 Confidential: External Documentation METRACKCO manage.track.protect.relax 7 Installations 7.1 Install I/O Cable The I/O cable is a 12-pin cable including power, analog input, negative/positive input and output. -
Page 19: Power/Gnd (Pin1/Pin2)
File Name: METRACKCO T1 User Guide Creator: Humphrey Ngundue Project: 2011-07-18 Creation Date: Update Date: 2013-06-26 Sub Project: User Guide Page: - 1 - of 22 Revision: V1.8 Confidential: External Documentation METRACKCO manage.track.protect.relax Output low voltage sink current (effective): 400mA max. -
Page 20: Output (Pin10/Pin11/Pin12)
File Name: METRACKCO T1 User Guide Creator: Humphrey Ngundue Project: 2011-07-18 Creation Date: Update Date: 2013-06-26 Sub Project: User Guide Page: - 1 - of 22 Revision: V1.8 Confidential: External Documentation METRACKCO manage.track.protect.relax 7.1.4 Output (PIN10/PIN11/PIN12) 7.1.5 Analog Input (PIN8/PIN9) 7.1.5.1 Analog Input Application 1–... -
Page 21: Install Handset Phone (Rs232 Interface)
7.2 Install Handset Phone (RS232 Interface) PIN Number Color Description Power Output. Output Voltage: 5V Black Ground Orange Handset Phone RS232 TX (T1 RX) Yellow Handset Phone RS232 RX (T1 TX) Blue Microphone Positive Green Microphone Negative Purple Speaker Positive... -
Page 22: Install Camera (Rs232 Interface)
White TX, Camera RS232 RX, T1 TX Note: when connecting T1 with camera, the below connecting wire is needed. The 8PIN interface connects to T1, and the 4PIN interface to camera. The interface can only be connected to one of the camera, handset and RFID reader. - Page 23 File Name: METRACKCO T1 User Guide Creator: Humphrey Ngundue Project: 2011-07-18 Creation Date: Update Date: 2013-06-26 Sub Project: User Guide Page: - 1 - of 22 Revision: V1.8 Confidential: External Documentation METRACKCO manage.track.protect.relax Connect GPS antenna to the GPS connector which is labeled ‘GPS’. The optimum location for the GPS antenna is on the roof of the vehicle.
-
Page 24: Mount The T1 Unit
METRACKCO manage.track.protect.relax 7.6 Mount the T1 unit If mounting required, there are 4 screw holes on the T1, 2 along either side that act as fixing points to the vehicle Please do not hesitate to email us at info@metrackco.com if you have any questions.
