Summary of Contents for Telkom SS-10 3G
-
Page 1: User Manual

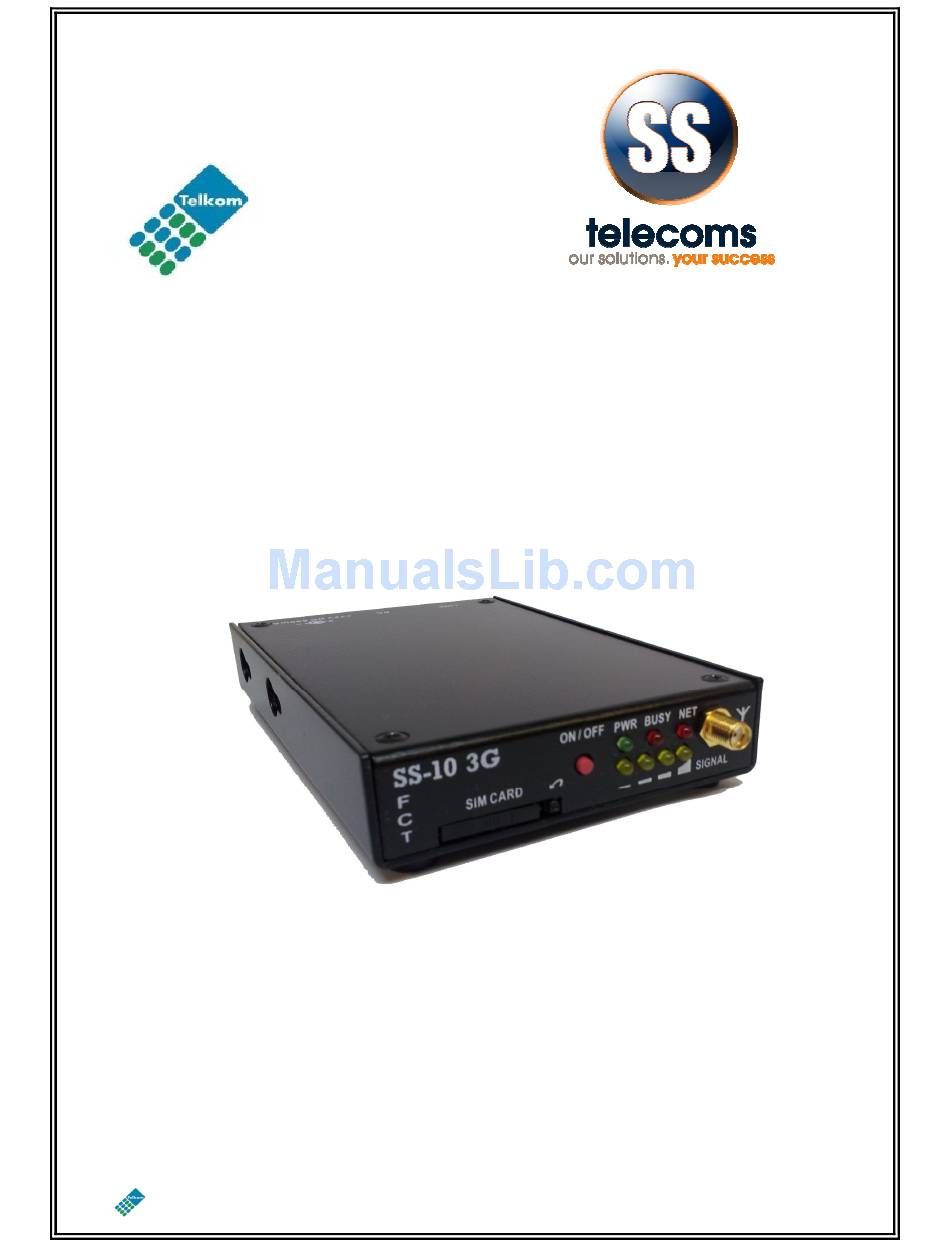

SS-10 3G FIXED CELLULAR TERMINAL USER MANUAL DOC. NO: SS-10 3G-14 (Rev. 01) Page 1 of 20... -
Page 2: Table Of Contents
CALL BACK ......................16 CALL BARRING ....................... 17 SMS OPTIONS ......................18 NETWORK ........................ 19 UPGRADE OF THE SS-10 3G FIRMWARE .............20 TECHNICAL SPECIFICATIONS...............20 CONTACT DETAILS ..........Error! Bookmark not defined. DOC. NO: SS-10 3G-14 (Rev. 01) Page 2 of 20... -
Page 3: Introduction

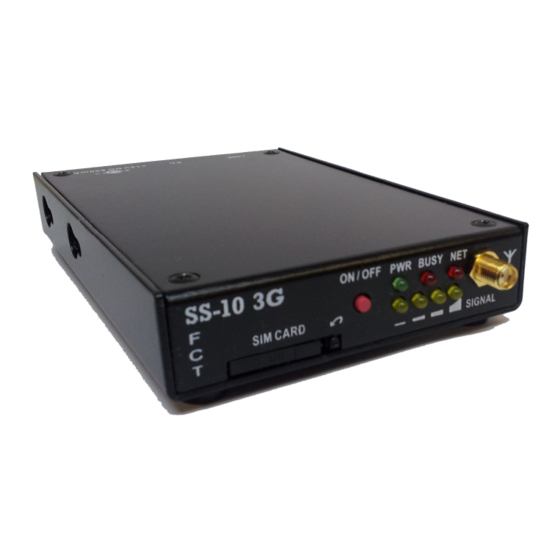

INTRODUCTION The purpose of the SS-10 3G Fixed Cellular Terminal (FCT) is to provide a means of making telephone calls where there is no fixed line infrastructure or where it may be more cost effective to use the GSM/3G infrastructure for carrying the call. -
Page 4: Features
Number of answered calls Total duration of answered calls SMS report on zero traffic (no calls made for specified interval) Request reports Request setting information Change set-up information by SMS 2 authorized maintainers DOC. NO: SS-10 3G-14 (Rev. 01) Page 4 of 20... - Page 5 Programmable by serial port, telephone or SMS DOC. NO: SS-10 3G-14 (Rev. 01) Page 5 of 20...
-
Page 6: Description
12V and 18V to (Only pins 2 & 3 Use a standard PC the unit are used) serial cable for Description Inside DC positive voltage connecting the unit to Outside GROUND a PC DOC. NO: SS-10 3G-14 (Rev. 01) Page 6 of 20... -
Page 7: Setup
SETUP Setup of the SS-10 3G can be done by using one of the following methods: SMS Setup Method: Sending SMS commands to the unit; Telephone Setup Method: Using a telephone connected to the SS-10 3G; PC Serial Port Setup Method: Sending commands to the unit by connecting it... -
Page 8: Settable Parameters
Set the break time in 10 of a second. Some PABX systems require a current break to indicate that the call has terminated. The SS-10 3G can provide such a break. If it is not required then set this parameter to 0. -
Page 9: Reporting Setup
SS-10 3G Identity This command is only available from the serial port. It is used to set a 16 character ID so that the SS-10 3G can identify itself in SMS messages that are sent. DOC. NO: SS-10 3G-14 (Rev. 01) -
Page 10: Sim & Network
PIN number. It is important to make sure that the PIN is entered correctly. If the PIN is not correct then the SS-10 3G will output a message on the serial port indicating this. It will also flash the IN USE and NETWORK LED’s in an alternating pattern until it is... -
Page 11: Authorized User
AUTHORIZED USER Parameter Description Notes Authorised User 1 Gives authorisation to user 1 for controlling access to the SS-10 3G unit via SMS by entering the user’s numbers. Country code to be included, e.g. +27828221381 Authorised User 2 Gives authorisation to user 2 for controlling access to the SS-10 3G unit via SMS by entering the user’s numbers. -
Page 12: Call Barring
Delete a number from the call back list. E.g. **72*0821111111 Allow Any Number Set to 1 allows any number to be called back Set to 0 enforces the listed numbers DOC. NO: SS-10 3G-14 (Rev. 01) Page 12 of 20... -
Page 13: Setup Information
Sends a test SMS to the pre-programmed SMS<enter> destination. **<nn>*<ddd><enter> Sets parameter nn to value ddd. Sets the ID of the SS-10 3G to sssss. This is used to identify the particular SS-10 3G SETID<sssss><enter> (site name) when automatic SMS messages are sent. -
Page 14: Setup Of The Unit By Using The Ss-10 Tool
Display the following: IMEI +VER IMEI, Software Revision and Hardware type of the GSM/3G engine. Displays SS-10 3G firmware revision number. To update the firmware, load the Firmware file from the File Menu. UpLoad Firmware Use UpLoad Firmware button to load the Firmware into the unit. -
Page 15: Call Parameters
CALL PARAMETERS Click on SETUP to start with the setup of the SS-10 3G. Call Parameters: Call setup, Audio and Line levels can be changed in this window. Call Setup Sets the total number of digits required before dialing. Dialled Digit Count It is recommended that this parameter is set to 10. -
Page 16: Call Back
Allow Any Number number will be called back. This is the only national dialling code that will be recognised as valid National Dial Code for call back. Default is +27. DOC. NO: SS-10 3G-14 (Rev. 01) Page 16 of 20... -
Page 17: Call Barring
Allow Incoming Calls The SS-10 3G can be set to allow or ignore incoming calls. The SS-10 3G can be set to terminate an outgoing call after a set Auto Call Termination duration. To enable or disable the upload of the Call Barring List to the SS-10 Upload Numbers to SS-10 when using the “Update SS-10”... -
Page 18: Sms Options
SMS OPTIONS SMS Options: The SS-10 3G can be set to send fault reporting via SMS to a required destination number. It can authorise two users to control the unit via SMS. Feed bridge voltages Module voltage Number of unanswered calls... -
Page 19: Network
Interval if needed. Manage SIM security. When using ‘Other’, the 5-digit network operator ID should be obtained from the local Network Operator. The SS-10 3G can be Network Selection forced onto the 2G (GSM) or 3G (WCDMA) band. Alternatively, the unit can be set to use the band with the best signal (Auto). -
Page 20: Upgrade Of The Ss-10 3G Firmware
The latest firmware for the SS-10 3G is available from: http://www.sstelecoms.com/ Connect unit to PC Connect the SS-10 3G unit to the PC by using a serial cable and make sure it is switched on. Upgrade the Load the SS-10 3G Tool Program:...
