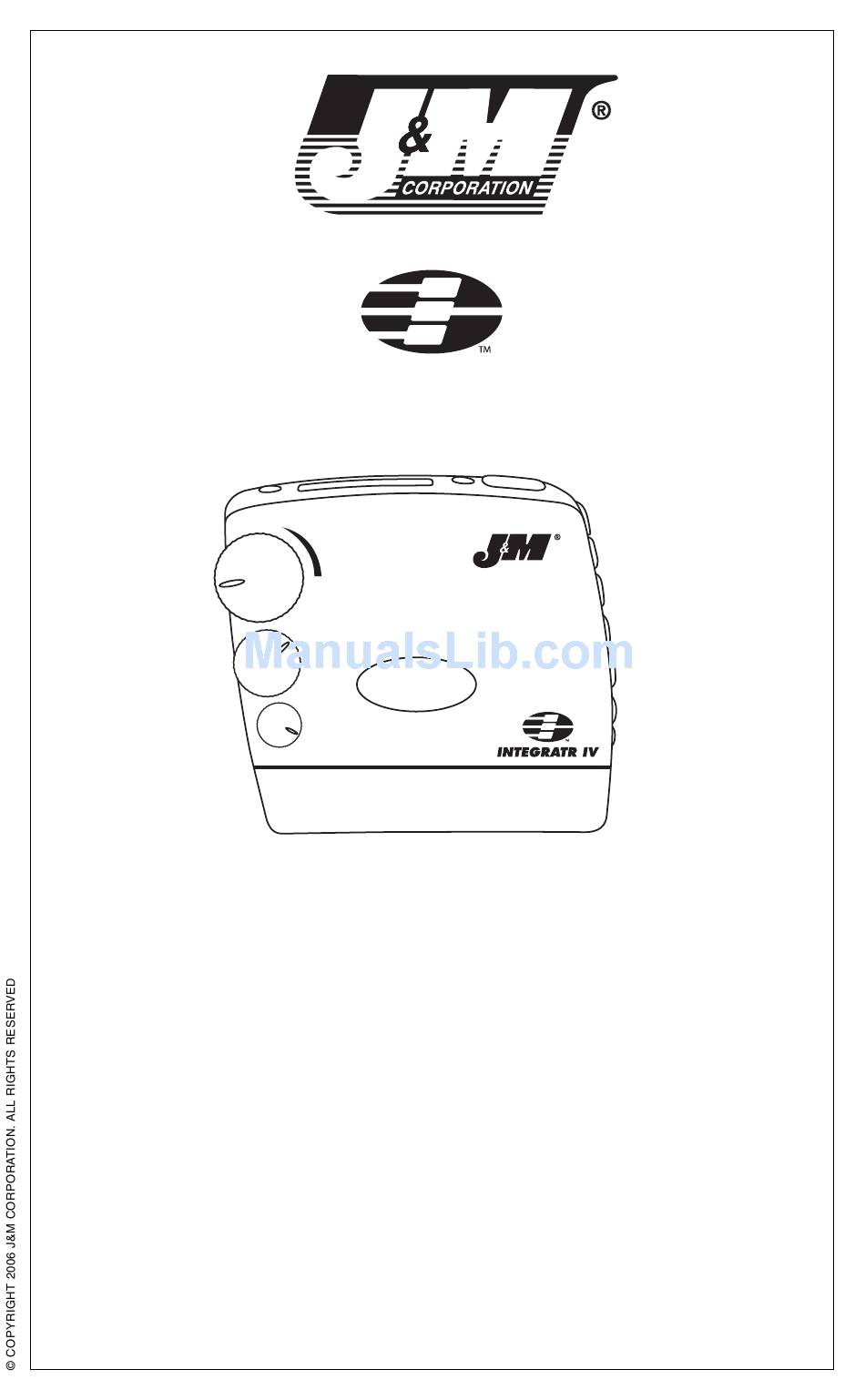

Page 1: Audio System

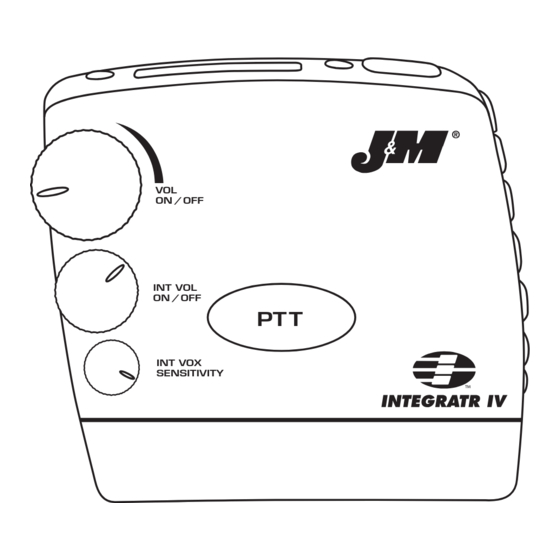

Quality Motorcycle Audio ™ INTEGRATR ON / OFF INT VOL ON / OFF PT T INT VOX SENSITIVITY Portable Motorcycle Audio System Installation and Operation Instructions... - Page 2 • Navigation (GPS) device (equipped with audio output jack) The Integratr IV also provides the connection jacks for the rider /passenger head- sets for all of the functions noted above. The Integratr IV has been optimized to provide excellent music fidelity for your listening enjoyment.
- Page 3 Controls and Functions Diagram A A. On/Off Music Volume Control J. Passengers Helmet Headset Jack B. Intercom Volume On/Off Control K. FRS/GMRS Jack C. Intercom Vox Sensitivity Control L. Auxiliary Audio Input D. PTT Switch M. Cell Phone Input E. Seek Up N.
- Page 4 1) Install Alkaline batteries into the battery tray and slide the tray onto the bottom of the Integratr IV. 2) Place the Integratr IV in the included belt pouch or your tank bag. Auxiliary Audio Input The Integratr IV provides a port to connect auxiliary audio players (such as MP3/ IPOD devices) to the audio channel (Level 1).
- Page 5 / off switch is turned "on". Requirements • The Integratr IV will function properly only if the rider and passenger are wearing helmets outfitted with J&M Dual-Mode helmet headsets along with the proper lower section hook-up cords.
- Page 6 Integratr IV. FRS / GMRS Two-Way Radio • The Integratr IV provides a port to connect FRS / GMRS radio's of various types such as Kenwood FreeTalk™ with corresponding adapter cable JMSR-AC16 or Motorola "...
- Page 7 • Navigation audio input cable JMSR-AC04 • AWD audio input cable JMSR-AC05 • Mount your AAWD to the motorcycle and connect it to the Integratr IV. • Mount your GPS to the motorcycle and connect it to the Integratr IV.
- Page 8 Noise and Interference Motorcycle audio systems are by their very nature noisy. While we do not guaran- tee this system to be completely free from electrical noises and interference, we have taken many steps to achieve that goal: the power supply system is well fil- tered and the cables associated with the unit are shielded.
