ASSEMBLY

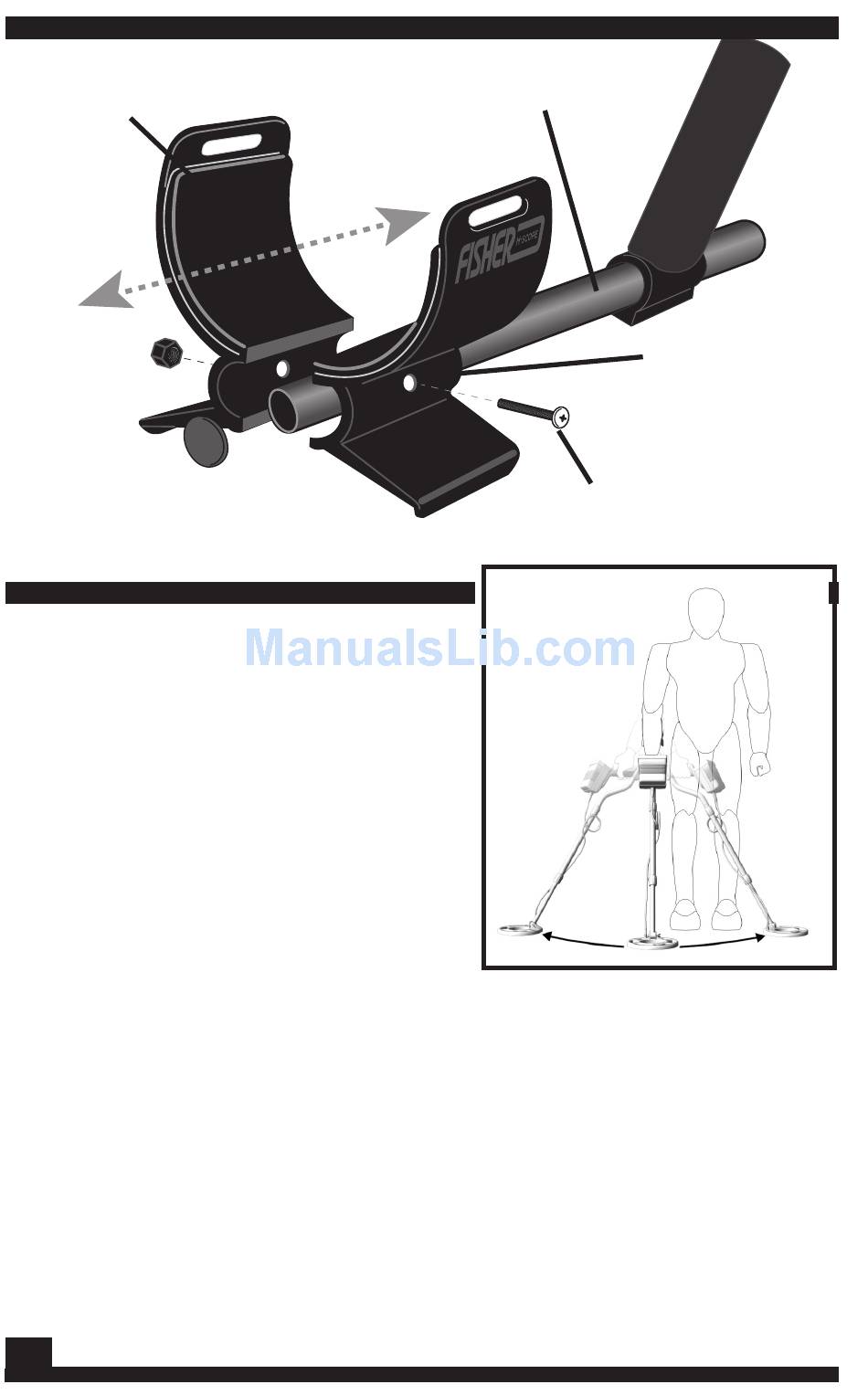

Adjustable Arm Rest
Figure 3.

SETTING UP

Figure 4.
When searching on land
or in shallow water, keep
your arm straight and your
search coil no more than 2
inches above the ground.
SETTING UP FOR LAND OR SHALLOW WATER
Put the headphones around your neck to keep them out of
the way while making the following adjustments:
1. Adjust the stem length and coil angle so the search
2. Leave enough slack in the coil cable to allow the
6
coil rests flat on the ground about 6 inches in front
and slightly to the right of your foot (to the left of your
left foot if you're left handed).
coil to swivel as far as it can in either direction. The
coil wing nut should be tight enough to prevent the
coil from moving.
Upper Stem
Screw
Screw Hole
