  • Page 1 TM-335 Public Address Mixer/Amplifier Operating Manual ASHLY AUDIO INC. 847 Holt Road Webster, NY 14580-9103 Phone: (585) 872-0010 Toll-Free: (800) 828-6308 Fax: (585) 872-0739 www.ashly.com...
  • Page 2: Safety Instructions

    Operating Manual - TM-335 Public Address Mixer/Amplifier Important Safety Instructions Consignes de sécurité à lire atten- The lightning flash with arrowhead symbol, within an equilateral triangle, Le symbole de la flèche dans un triangle équilateral symbolisant la foudre is intended to alert the user to the presence of uninsulated "dangerous est prévu pour sensibiliser l’utilisateur à...
  • Page 3: Table Of Contents

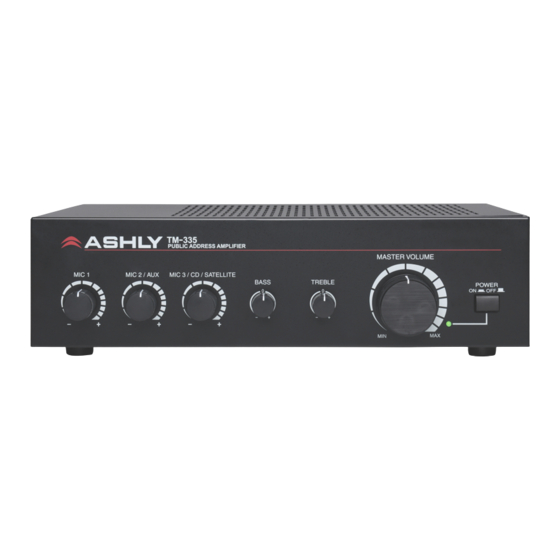

    . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 ‰ Overview The Ashly TM-335 is a table-top 35W mono mixer amplifier, suitable for applications requiring background music with priority paging/ducking from either a microphone or telephone paging system input.
  • Page 4: Front Panel Features

    Operating Manual - TM-335 Public Address Mixer/Amplifier ‰ Front Panel Features 1) Mic 1 Level This controls the level of Mic 1 input. 2) Mic 2/Aux Level This controls the level of the selectable Mic 2 or summed Stereo Aux inputs.
  • Page 5: Rear Panel Features

    Operating Manual - TM-335 Public Address Mixer/Amplifier ‰ Rear Panel Features 1) AC Mains This is the AC cord for connecting to 120VAC mains, 60Hz, 40W. Certain export models connect to 230V and are labelled accordingly. 2) Main Speaker Outputs This 5.08mm Euroblock connector is used for speaker output wiring.
  • Page 6 Operating Manual - TM-335 Public Address Mixer/Amplifier (rear panel features continued ..) 7) MIC 1 Ducking Depth This control adjusts the ducking depth of channels 2 and 3 when MIC 1 input has signal present. Turning the control clockwise increases the amount of ducking.
  • Page 7: Speaker Wiring

    Operating Manual - TM-335 Public Address Mixer/Amplifier ‰ Speaker Wiring ● Before connecting speakers to the TM-335 unit, be sure to disconnect the AC power cable. ● Make certain that the load impedance is not less than the rated impedance indicated.
  • Page 8: Typical Application

    Operating Manual - TM-335 Public Address Mixer/Amplifier ‰ Typical Application In this example, a dynamic microphone is connected to MIC 1, a stereo tv output is wired to channel 2, and a CD player or satellite receiver is connected to channel 3 using the RCA inputs. A telephone system paging output is connected to the telephone input.
  • Page 9: Dimensions

    Operating Manual - TM-335 Public Address Mixer/Amplifier ‰ Dimensions...
  • Page 10: Schematic Block Diagram

    Operating Manual - TM-335 Public Address Mixer/Amplifier ‰ Schematic Block Diagram...
  • Page 11: Specifications

    Operating Manual - TM-335 Public Address Mixer/Amplifier ‰ Specifications...
  • Page 12: Limited Warranty

    ASHLY AUDIO, INC. shall be obligated to only correct defects in the product itself. ASHLY AUDIO, INC. is not liable for any damage or injury, which may result from, or be incidental to, or a consequence of, such defects.
