Summary of Contents for Sangean BTS-102

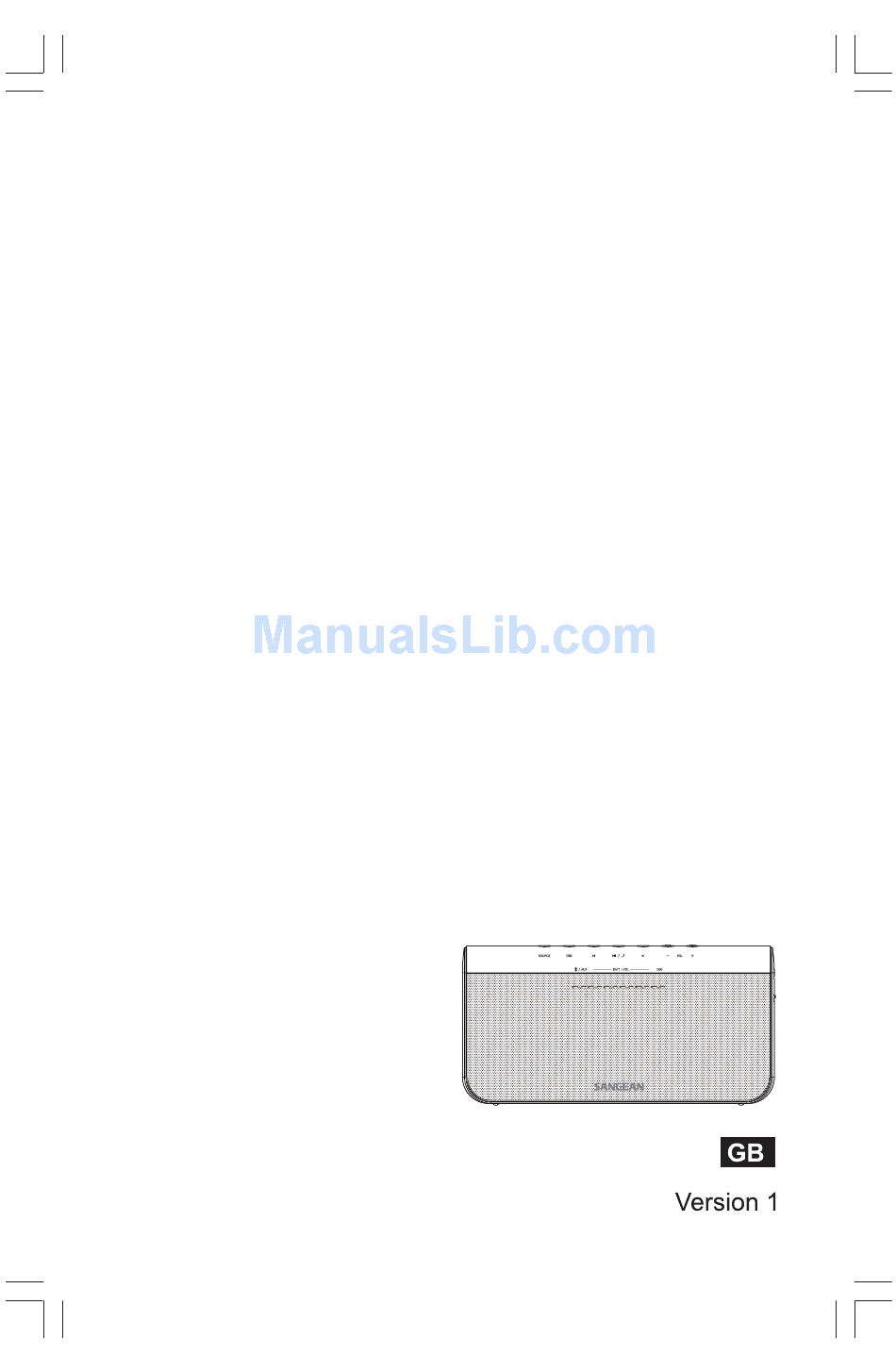

- Page 1 BTS-102...
- Page 2 The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by SANGEAN ELECTRONICS INC. is under license.
-
Page 4: Opening The Cover
Controls Source button DBB button Previous track button Bluetooth/Call answer-hangup button/Play and Pause button Next track button Volume up/down button Bluetooth/Aux-in indicator Battery status/Volume indicator DBB on/off indicator Speaker Aux in socket DC In USB charging socket Power button Key lock NFC detection tag Microphone Opening the cover... - Page 5 Using the AC power adaptor to charge the unit This unit operates on a built-in Li-on battery that can be recharged using the AC power adaptor. The AC power required for this unit should be 12volts DC at 1.5A center pin positive.
- Page 6 Power on the speaker Before power-on the speaker, make sure to set the key lock to its off position (down). There are two ways to power on your speaker. ● You can press the Power button to turn on the speaker. ●...
-
Page 7: Battery Status Indicator
Battery status indicator To check the current battery level, press and hold the Power button to switch on the speaker and the battery status indicator will show on the front panel in solid white indicating the current battery level. Battery is fully charged (more than 75% of battery capacity) Battery is partially charged (between 50-75% of battery capacity) - Page 8 Pairing and connecting a device to the speaker You need to pair your Bluetooth device with your BluPad (BTS-102) before you can auto-link to play/stream Bluetooth music through your Bluetooth speaker. Paring creates a `bond' so two devices can recognize each other.
- Page 9 Locate the Bluetooth device list and select the device named ‘SANGEAN BLUPAD.’ With some mobiles (which are equipped with earlier versions than BT2.1 Bluetooth device), you may need to input the pass code “0000”.
- Page 10 Bluetooth device can pair or link with your speaker. 3. If ‘SANGEAN BLUPAD” shows in your Bluetooth device list but your device cannot connect with it, please delete the item from your list and pair the device with your speaker again following the steps described previously.
-
Page 11: Playing Audio Files In Bluetooth Mode
Playing audio files in Bluetooth mode When you have successfully connected your speaker with the chosen Bluetooth device you can start to play your music using the controls on your connected Bluetooth device. 1. Once playing has started adjust the volume to the required setting using the Volume buttons on your radio or on your enabled Bluetooth device. -
Page 12: Disconnecting Your Bluetooth Device
Speaker memory and reconnecting a device BluPad can memorize up to 8 sets of paired device, when the memory exceed this amount, the oldest pairing history will be over written. If your Bluetooth device already paired with the speaker previously, the unit will memorize your Bluetooth device and it attempts to reconnect with a device in memory which is last connected. - Page 13 Pairing and playing your device via NFC Your speaker is equipped with wireless NFC (Near Field Communication) feature, allowing NFC-enabled devices to pair and play the music with your BluPad. For non- NFC devices, please refer to the above sections for standard Bluetooth pairing. Turn on the NFC feature on your device.
- Page 14 Note: 1. NFC connectivity performance may vary depending on the connected Bluetooth devices. Please refer to the Bluetooth capabilities of your device before connecting to your speaker. All features may not be supported on some Bluetooth/NFC enabled devices. 2. The location of the NFC detection area is not the same on all devices.
- Page 15 Playing music via auxiliary input socket A 3.5mm Auxiliary input socket is provided on the left hand side of the unit to permit an audio signal to be fed into the unit from any devices that features a headphone or audio output, such as an iPod, MP3 or CD player.
- Page 16 Using BluPad as handsfree speaker phone Your speaker can be used as a speakerphone. When calls come in to your music source device while the music is playing, it will pause the music automatically to allow you to answer the phone. 1.
-
Page 17: Factory Reset
DBB (Dynamic Bass Boost) Press the DBB button to activate the Deep Bass Boost function to have stronger bass sound. The DBB indicator will light in green. Press again to cancel the DBB function. Key lock The key lock function is used to prevent unintentional power-on of the speaker in order to minimize unnecessary battery drainage. - Page 18 If the battery does not recharge after several attempts, it may be drained (has a low charge), please contact info@sangean.com.tw for repair information. However, if you do not want us to replace the battery, you will need to dispose of used batteries/device in accordance to the laws and regulations in your area.
-
Page 19: Specification
Specification Amplifier Output power 3W+3W Frequency response 50Hz~20kHz Aux In Input sensitivity 300mVrms @100Hz Speaker Stereo speaker 40mm 4 ohm 6W Full range Passive Radiator 156x40mm Bluetooth Bluetooth specification Bluetooth® Ver 4.0 Profile Support A2DP, AVRCP, HFP V1.6, HSP V1.2 Bluetooth Audio CODEC aptX, SBC Transmitting Power Specification Power Class 2... - Page 20 General DC-IN DC Jack 12V 1.5A Power consumption 12V 1A (Charging in power OFF mode) 12V 1.2A (Charging in power ON mode) Charging current 900mA Charging time 3.5 hours Storage temperature -20°C~ 60°C Operating temperature -10°C ~ 45°C Weight 736g The company reserves the right to amend the specification without notice.
