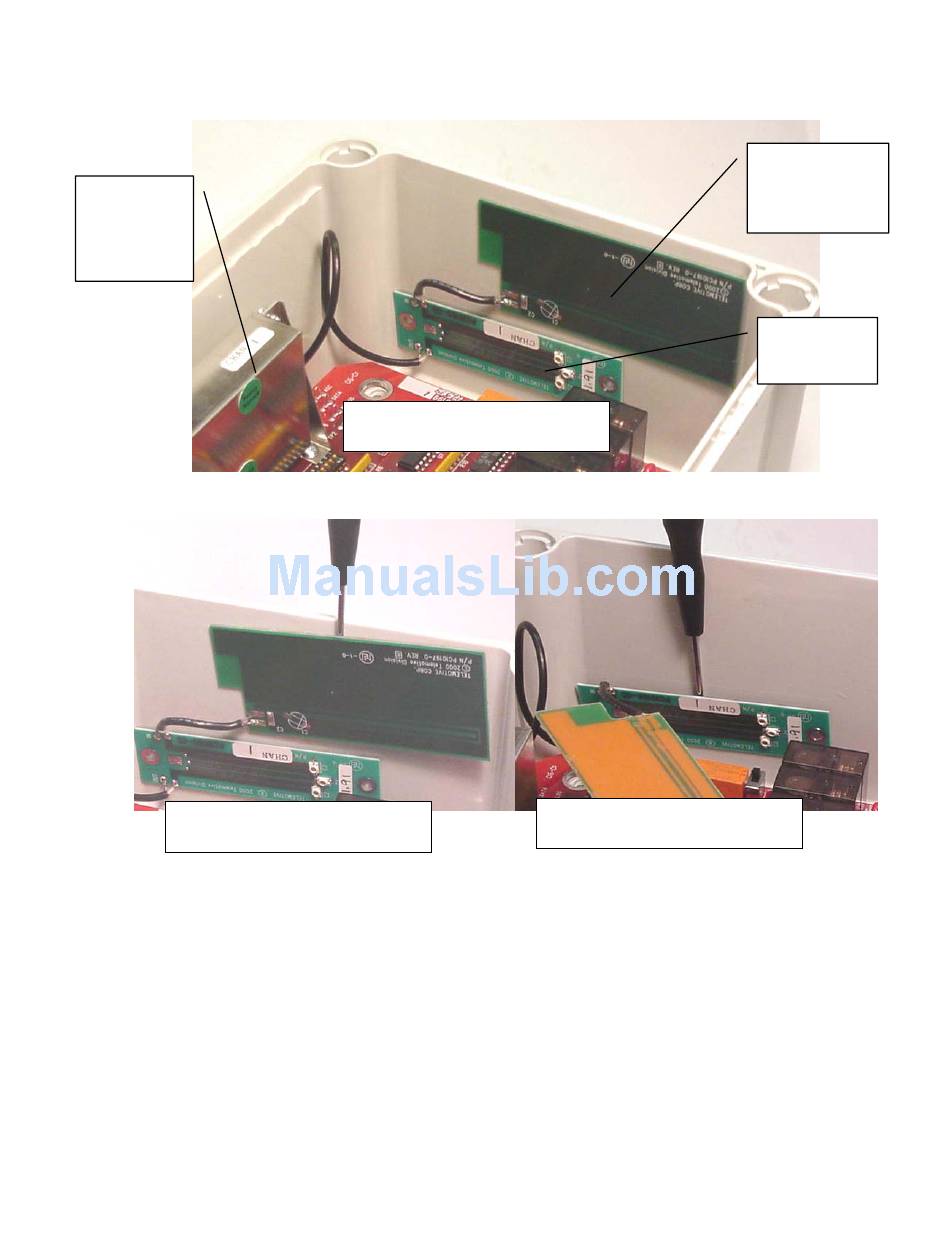

AN102-0 Remote Antenna Kit For TeleMotion 3.2
RF
Receiver
A13151-0
Remove internal antenna
With a small blade screwdriver pry off above, units are held with double stick tape
TC102-0
Rev A.
Installation Guide
TeleMotion 3.2 Receiver
1
Internal
antenna
E10197-0
Filter
E10196-0
Remove filter
Advertisement
Table of Contents
Summary of Contents for Telemotive AN102-0
- Page 1 AN102-0 Remote Antenna Kit For TeleMotion 3.2 Installation Guide Internal antenna E10197-0 Receiver A13151-0 Filter E10196-0 TeleMotion 3.2 Receiver Remove filter Remove internal antenna With a small blade screwdriver pry off above, units are held with double stick tape TC102-0...
- Page 2 AN102-0 Remote Antenna Kit For TeleMotion 3.2 Installation Guide (Continued). Unsolder cable connection to filter board. Marked “IN”. Remote Antenna Adapter WA12030-3 Remote Antenna Solder Remote Antenna Adapter cable to Adapter cable filter cable connection point marked “IN”. Note that shield braid goes closest to the word “IN”.
- Page 3 AN102-0 Remote Antenna Kit For TeleMotion 3.2 Installation Guide (Continued). DO NOT ADJUST OR ATTEMPT TO TUNE. 1. Drill ½” hole where needed. Make sure cable is long enough to reach hole. Try to keep as far away as possible from motor or power wiring.
