TOP VIEWS
LONG LEAD = ANODE (+)
- +
GATE 1
DRAIN
GATE 2
5/16"
1/8"
E B C
OUTPUT GND INPUT
Q2 & Q3
LETTERING ON F.E.T. MUST BE
U3
L.E.D.
Q1, Q4-Q9
VISIBLE FROM TOP OF BOARD

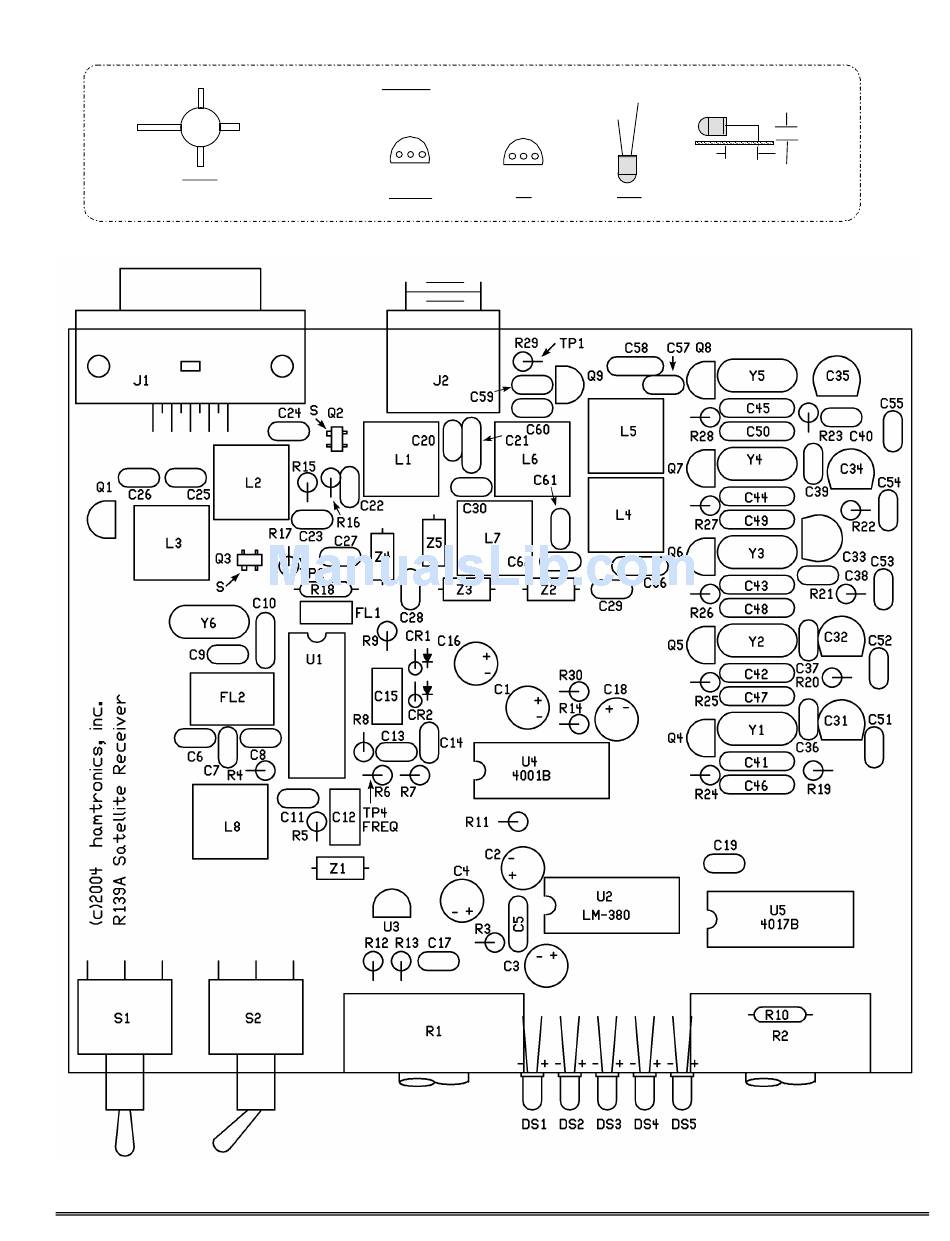

Figure 3. R139 Component Location Diagram
