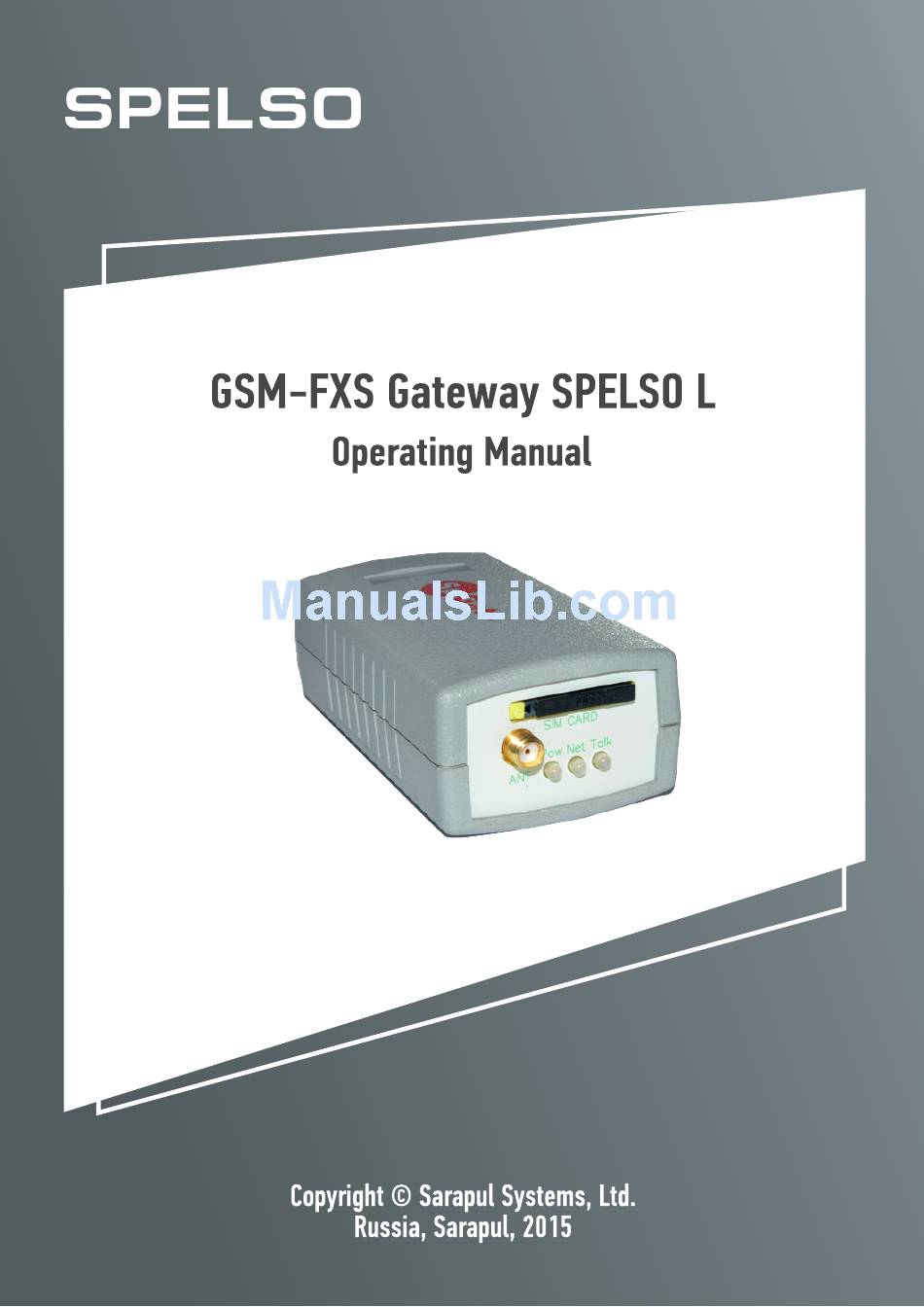

Summary of Contents for Spelso L
-
Page 2: Table Of Contents
Contents 1. Function ………………………………………………………………...…….. 2 2. Overview ………………………………………………………………..……. 2 3. Status Indication ……………………………………………………..……….. 3 4. Technical Specifications ………………………………………………...…… 4 5. Parts kitting ………………………………………………………………..…. 5 6. Gateway operation …………………………………………………………… 5 6.1. Connection ………………………………………………………………..5 6.2. Outgoing call ……………………………………………………………….. 6 6.3. Gateway setup ……………………………...………………………………. 6 6.4. -
Page 3: Function
– preprogrammed number autodial function; – additional symbols transfer with tone signals. 2. Overview GSM-FXS Gateway SPELSO L is a device in a plastic case with the following connectors: – RJ-11 connector for telephone or PBX connection; – power connector;... -
Page 4: Status Indication
Figure 2.1. GSM-FXS Gateway SPELSO L 3. Status Indication LED indicators are located on the gateway front panel: – Power - power indicator; – Net - indicator of GSM cellular network signal level; – Talk - telephone line status indicator. -
Page 5: Technical Specifications
4. Technical Specifications Refer to Table 4.1 for GSM-FXS Gateway SPELSO L specifications. Table 4.1 GSM Gateway Specifications Power specifications Supply voltage, V Average power consumption in call mode, W, no more than Maximum power consumption, W, no more than... -
Page 6: Parts Kitting
Power unit Aerial Telephone cable Passport Package 6. Gateway operation 6.1. Connection Refer to figure 6.1 for GSM connection. Fig. 6.1 GSM-FXS Gateway SPELSO L connection Install the gateway in accordance with the GSM cellular network signal level (NET indicator). -
Page 7: Outgoing Call
Before connecting the gateway, switch off PIN code protection for the SIM card. Power adapter is intended for a 220 V network. Normal functioning of the GSM Gateway is guaranteed only if the factory parts are used. The usage of other parts may lead to gateway failure or damage. For example, if a standard small aerial is used in a low signal area, there might be poor signal reception or noise in the sound. - Page 8 1. Speed dial programming – Enter a cell number in the speed dial list in the range from 0 to 9. – Press "#". – Enter a telephone number. – To confirm press "#". 2. Refer to Table 6.2 for the GSM channel settings menu Table 6.2 GSM channel settings menu Setting...
-
Page 9: Balance Request
6.4. Balance request To request the balance on a SIM card installed for a GSM Gateway: 1. Lift the receiver and wait for a continuous tone. 2. Enter the balance request number (for example, *102# for Beeline or *100# for MTS Russia). 3. -
Page 10: Safety Instructions
Noise, voice 1. The GSM aerial is 1. Fix the aerial at a distance from interruption too close to the the gateway and telephone wires gateway or analogue (lines). telephone wires (lines). 2. Low signal 2. Check signal level using the Net reception. -
Page 11: Warranty
Delivery and shipment under the warranty is performed at the manufacturer's expense. 12. Manufacturer Information Manufacturer: Sarapul systems, Limited Liability Company Russia, Udmurtiya, Sarapul cuty, 148e Azina str. Postal address: 427960, Russia, Udmurtiya, Sarapul, POB 91 Telephone/fax: +7 (34147) 2-56-92, 2-17-57 Website: www.spelso.com...
