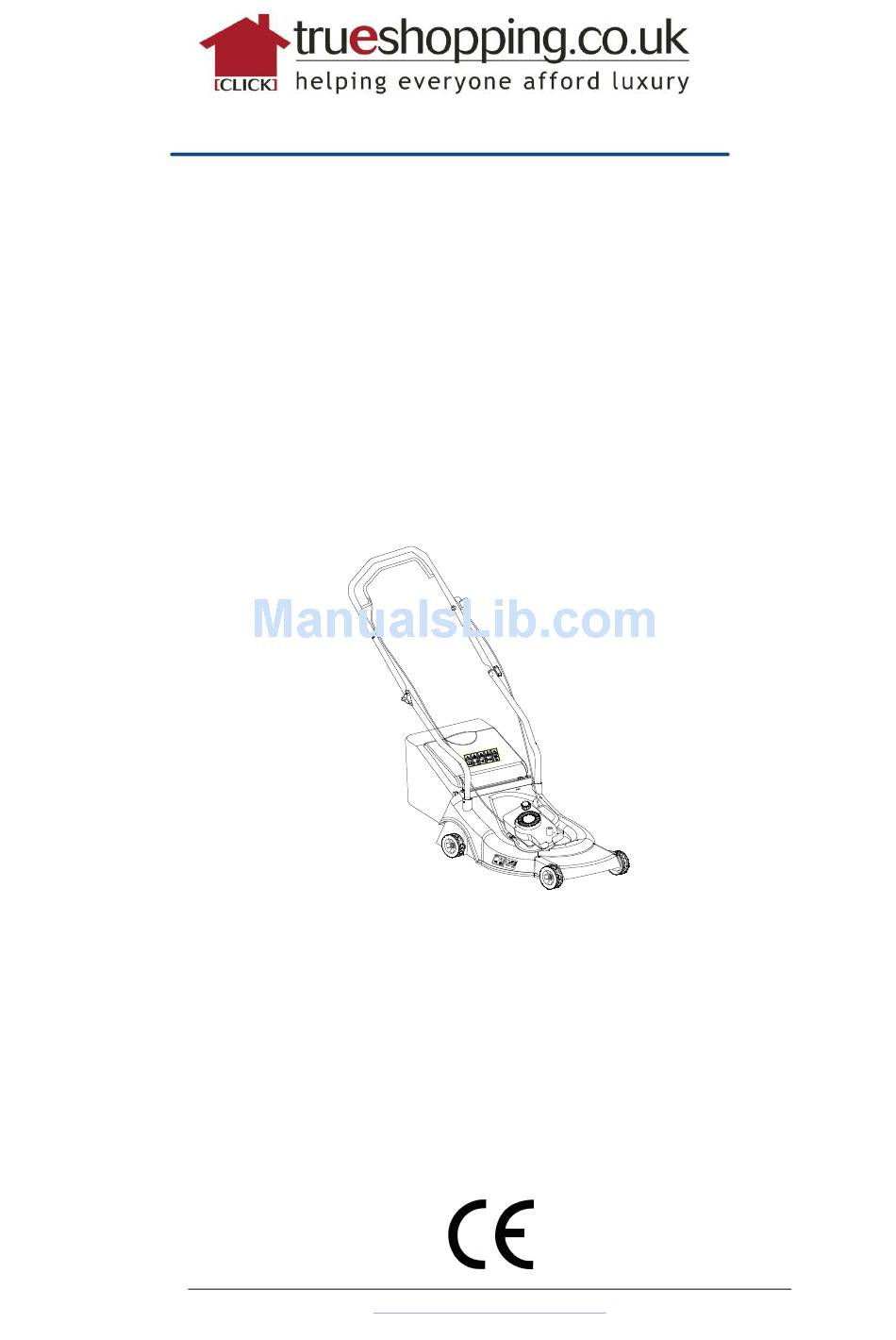

JL40T-C2
Lawnmower User Manual
CUT 400 mm / 16"
CAUTION: Before using the lawnmower, carefully read this manual which
has been purposely drawn up to provide you with all the necessary
information for proper use, which is in compliance with basic safety
requirements.
www.Trueshopping.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JL40T-C2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Trueshopping JL40T-C2

Summary of Contents for Trueshopping JL40T-C2

  • Page 1 Offering a wide selection of products at competitive prices JL40T-C2 Lawnmower User Manual CUT 400 mm / 16” CAUTION: Before using the lawnmower, carefully read this manual which has been purposely drawn up to provide you with all the necessary information for proper use, which is in compliance with basic safety requirements.
  • Page 2 Trueshopping Manufacturer: Zhejiang Jieling Machine Co.,Ltd. Address: Dingqiaotou Industrial Area, Ciwu Town, Zhuji City, Zhejiang Province 311815, P. R. Caution: Read this manual carefully before use. Caution: Keep other people well away from the danger area. Caution: Risk of hand and feet injuries.

  • Page 3: Product Specifications

    Trueshopping PRODUCT SPECIFICATIONS Model JL 40T-C2 Cutting Width(mm) Engine Model JL1P65F Moving type Hand-push Cutting Height(mm) 25-55mm Drive speed Single Cutting Height Adjustment 4 wheel individual adjustment Grass bag capacity 45 L Max. speed of the blade(r/min) 2800 Noise level(dB)

  • Page 4: Assembly Of Grass Catcher

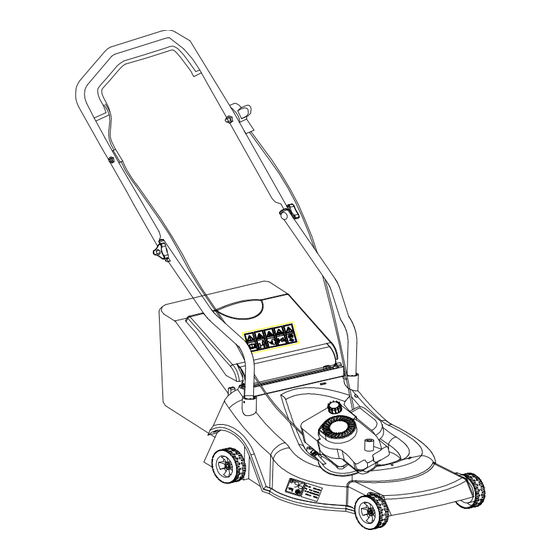

    Trueshopping 1-DESCRIPTION 1 Carter 2 Engine 3 Inferior handle 4 Engine control bar 5 Superior handle 6 Throttle control 7 Grass catcher 2-ASSEMBLY OF GRASS CATCHER a) Put the metallic frame inside the grass catcher fig A b) Fix the bag on the metallic frame.

  • Page 5: Cutting Height Ajustments

    Trueshopping 3-ASSEMBLY OF THE HANDLE Open out the handle and screw the handle parts with the two screws and plastic nuts. Put the recoil starter on the lift of the handle and fix the cable with the plastic collar. Introduce the rope of the recoil starter handle on its support guide rope.

  • Page 6: Safety Precautions

    Trueshopping 5-SAFETY PRECAUTIONS a) Always use the lawnmower with the grass catcher or/ and the deflector in position. b) Stop the engine before emptying the grass catcher or before you change the cutting height. c) While the engine is running, never place your hands or feet under the lawnmower or under the grass ejection area.

  • Page 7: Operation

    Trueshopping 6-OPERATION Before using the machine you must read the engine instruction book. Engine delivered without oil: add 0.6 litre of oil before starting the engine. ENGINE STARTING: Once the machine has been set up properly, start the engine as follows:...

  • Page 8: Security Measures

    Trueshopping 8-SECURITY MEASURES General conditions of use 1. This machine is to be used exclusively for cutting natural grass. Never use the mower for other purposes. Any other use can lead to damaging the mower. 2. Persons under 16 years of age and persons who are not familiar with the user instructions must not use the mower.
  • Page 9 Trueshopping Before carrying, lifting or removing the mower. If you leave the mower unattended or changing the cutting height. Remove and emptying the grass catcher. After hitting a foreign object, stop the engine and check the mower in order to see if it is damaged.

  • Page 10: Maintenance And Storage

    Trueshopping Maintenance and Storage WARNING: Stop the engine and unplug the spark plug before repairing or maintenance. Make sure that all nuts, bolts and screws are kept well tightened to keep the lawnmower in a safe operating condition. Never store the lawnmower with a tank of gasoline in an enclosed area where gasoline fumes could reach a strong heat source or a flame.

  • Page 11: Only Use Original Spare Parts

    When reassembling the blade, make sure that the cutting edges face in the direction of the engine rotation. The blade screw must be torqued to 3.7 K·gm(37Nm) with a Dynamometric tool. ONLY USE ORIGINAL SPARE PARTS. 10-SPARE PARTS-MODEL JL40T-C2 www.Trueshopping.co.uk - 11 –...
  • Page 12 Trueshopping www.Trueshopping.co.uk - 12 –...
  • Page 13 Trueshopping JL40T-C2 Parts list PARTS NO PARTS NAME Q.T.Y. JL46Z04-04 Blade bolt JL40T03-01 Flat washer JL46Z04-07 Blade washer JL40T03-02 Blade JL46Z04-03 Blade adapter JL46Z04-08 JL40T-C02-02 Right mounting panel JL40T-C02-01 Left mounting panel JL40T-C03-01 Under pan JL46Z-C02-02 wheel cover JL40T02-06 Left bolt...
  • Page 14 Trueshopping JL40T01-03 Rope Guide Support JL40T-D01-05 right lower handle JL40T-C04-04 Grass bag JL40T-C04-01 Frame GB896-86 Circlip φ5 JL40T-C04-02 Rear deflector pole JL40T-C04-03 Rear deflector spring JL40T04-02 Rear deflector JL40T02-04 right bolt www.Trueshopping.co.uk - 14 –...
