Summary of Contents for Conan CS290

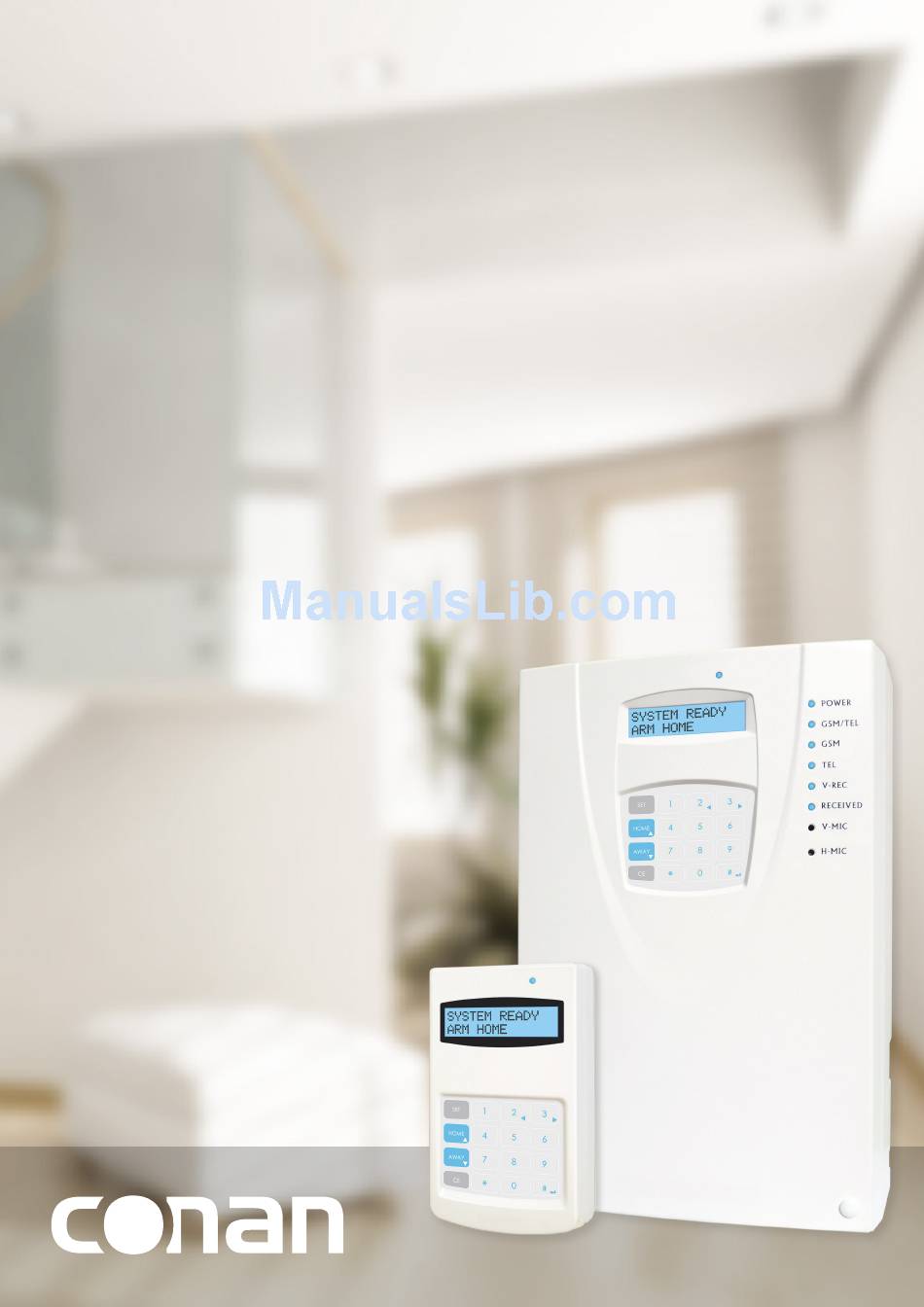

- Page 1 CS290 WIRELESS SECURITY ALARM SYSTEM USER MANUAL...
- Page 3 Please take the time to read this user manual carefully. The Conan security system has many adjustable-features and each of the different sensors and accessories operate in different ways. Understanding these features and the operation of sensors and accessories will empower you to have the system installed in a way that maximises the protection it provides.
-
Page 4: Important Information
Warranty The Conan security system and accessories are covered by a 3-year warranty. Warranty and guarantees are void in the case of improper installation or usage, or if it is altered and/or repaired by an unauthorised service centre. -
Page 5: Table Of Contents
A2.3 - Recording dial-out voice messages ................... 10 A2.4 - Further information on telephone setup & functions ............... 11 A3 - PIN codes ......................... 12 A3.1 - Changing the SETUP-PIN ......................12 A3.2 - Changing the MASTER-USER PIN ....................12 Conan Wireless Security Alarm System - CS290... - Page 6 A4.5 - Arming/disarming by telephone dial-in (touch-tones) or SMS ..........13 A5 - Planning the installation ..................14 A5.1 - Perimeter protection ........................14 A5.2 - Interior protection ......................... 14 A5.3 - Explore your surroundings ......................15 Conan Wireless Security Alarm System - CS290...
- Page 7 B4.3 - Pairing with the security console ....................24 B4.4 - Mounting to the wall ........................25 B4.5 - Testing ............................. 25 B4.6 - Adjusting the sensitivity ......................... 26 B4.7 - Extending battery life ........................26 Conan Wireless Security Alarm System - CS290...
- Page 8 B8.2 - Connecting the power ......................... 36 B8.3 - Pairing to the security console ..................... 37 B8.4 - Registering as a secondary siren ....................37 B8.5 - Adjusting the volume ........................37 B8.6 - Mounting the siren ........................38 Conan Wireless Security Alarm System - CS290...
- Page 9 B10.4 - Pairing with the security console ....................43 B10.5 - Pairing with security accessories ....................43 B10.6 - Mounting to a wall ........................44 B10.7 - Reset to factory defaults ......................44 Conan Wireless Security Alarm System - CS290...
- Page 10 D1.1 - Log of Security Sensors ......................... 60 D2 - Troubleshooting ....................... 63 D2.1 - Security console troubleshooting ....................63 D2.2 - Sensors and accessories troubleshooting .................. 64 D3 - Technical Support ....................64 viii Conan Wireless Security Alarm System - CS290...
-
Page 11: Section A - Essential Setup & Operation
Section A - Essential Setup & Operation Conan Wireless Security Alarm System - CS290... -
Page 12: A1 - Understanding The Security Console
A1.1 - Front panel overview Wireless Tx/Rx (Transmit/Receive) LED Voice recording active LED LCD screen Wireless signal LED Power LED Keypad (digits 0-9) GSM/telephone LED Microphone (voice recording) GSM-active LED Microphone (listen-in) Telephone-active LED Casing screws Conan Wireless Security Alarm System - CS290... -
Page 13: A1.2 - Rear Panel Overview
A2 - Understanding the security console A1.2 - Rear panel overview Backup battery switch Power adaptor socket Tamper detector switch Speaker Land-line telephone jack Conan Wireless Security Alarm System - CS290... -
Page 14: A1.3 - Telephone Communications
3. The display will show the GSM signal strength: 1-9 Low, 10-19 Medium, 20-31 High. 4. Position the GSM aerial to maximise signal strength. 5. Press the cancel (CE) button on the console to exit the GSM signal strength screen. Conan Wireless Security Alarm System - CS290... -
Page 15: A1.4 - Connecting The Power
2. Using a small flat-head screwdriver, move the backup battery switch to the desired setting (on or off). A1.6 - Keypad overview Please familiarise yourself with the buttons on the security console keypad as they are referred to often during the setup process: Conan Wireless Security Alarm System - CS290... -
Page 16: A1.7 - Entering Setup Mode
2. Press the up/down arrow buttons until LANGUAGE is displayed, then press # (enter). 3. Using the keypad, enter either 0 (English), 1 (Swedish) or 2 (Dutch). 4. Press the # (enter) button. Conan Wireless Security Alarm System - CS290... -
Page 17: A1.11 - Turning Voice Feedback On/Off
(see “A1.7 - Entering setup mode”, p. 2. Press the up/down arrow buttons until ALARM MODE is displayed, then press # (enter). 3. Press the (0) button for off, or (1) for on 4. Press the # (enter) button. Conan Wireless Security Alarm System - CS290... -
Page 18: A1.15 - Setting Entry/Exit Delay Duration
To disable partition-2 from being displayed on the LCD screen (recommended): 1. Make sure you are NOT in setup mode (press the CE cancel button several times to ensure). 2. Press buttons 8 2 # on the keypad. Conan Wireless Security Alarm System - CS290... -
Page 19: A1.18 - Wall Mounting Instructions
3. Place the security console mounting keyholes over the screws and gently pull down until securely in place. You may need tighten or loosen the screws to ensure a secure fit. Conan Wireless Security Alarm System - CS290... -
Page 20: A2 - Telephone Communication Setup
Please keep the following information in mind when recording your messages: • The inbuilt microphone is located on the front of the security console, labelled V-MIC. • Do not speak too closely to the microphone as this may distort the recording. Conan Wireless Security Alarm System - CS290... -
Page 21: A2.4 - Further Information On Telephone Setup & Functions
A2.4 - Further information on telephone setup & functions Further information the telephone setup and functions can be found in the advanced setup & operation section, “C6 - Telephone Setup and Functions”, p. 54 Conan Wireless Security Alarm System - CS290... -
Page 22: A3 - Pin Codes
4. The word PASSWORD will be displayed on the LCD display. 5. Press the # (enter) key. 6. Press the 1 key (MASTER-USER) 7. Enter a new 4-digit MASTER- USER-PIN. 8. Press the # (enter) key to confirm. Conan Wireless Security Alarm System - CS290... -
Page 23: A4 - Arming/Disarming The System
“B1 - CS154 Key-chain Remote”, p. 17 A4.5 - Arming/disarming by telephone dial-in (touch-tones) or SMS Arming/disarming is covered in the advanced setup & operations section, see “C6.2 - Call-in setup”, p. 56 Conan Wireless Security Alarm System - CS290... -
Page 24: A5 - Planning The Installation
Interior protection provides security where an intruder manages to gain access to your home, ie. if the intruder moves beyond any perimeter protection. Interior protection is mainly serviced by motion sensors, which detect movement in a room or hallway. Conan Wireless Security Alarm System - CS290... -
Page 25: A5.3 - Explore Your Surroundings
During the next section please remember to always write down the ID numbers and other settings you assign to sensors and accessories into the log, and to keep this information up-to-date at all times. Please “D1 - Sensors & Accessories Log”, p. 60 Conan Wireless Security Alarm System - CS290... -
Page 26: Section B - Installing Sensors & Accessories
Section B - Installing Sensors & Accessories Conan Wireless Security Alarm System - CS290... -
Page 27: B1 - Cs154 Keychain Remote
(enter) key. 4. Key in the security accessory ID# you chose above onto the security console keypad, then press the # (enter) key. 5. Press the panic button on the key-chain remote for 2s Conan Wireless Security Alarm System - CS290... -
Page 28: B1.4 - Manually Triggering Alarms
To partially arm the security system for flexible protection when you’re at home: 1. Press and hold the arm home button for approximately 2s. B1.5.3 - Disarming the system To disarm the security console: 1. Press and hold the unlock button for approximately 2s. Conan Wireless Security Alarm System - CS290... -
Page 29: B2 - Cs132 Door/Window Sensor
(enter) key. 4. Key in the security accessory ID# you chose above onto the security console keypad, then press the # (enter) key. 5. Now immediately press the tamper switch inside the door/window sensor. Conan Wireless Security Alarm System - CS290... -
Page 30: B2.4 - Setting Sensor Attributes
Mounting screws are also provided for the contact magnet, offing an alternative to using the double-sided tape. B2.6 - Panic button The door/window sensor features a panic button for added protection. Pressing the panic button will activate the panic alarm. Conan Wireless Security Alarm System - CS290... -
Page 31: B3 - Cs122/Cs122P Motion Sensor
To change the motion sensor battery: 1. Follow the steps above for opening the motion sensor casing. 2. Remove/replace a CR123 battery 3. Follow the steps above for closing the motion sensor casing. Conan Wireless Security Alarm System - CS290... -
Page 32: B3.3 - Pairing With The Security Console
4. Adjust the position as desired (refer section 4.7) 5. Insert and tighten the supplied bolt into the ball joint , locking the motion sensor into position. Conan Wireless Security Alarm System - CS290... -
Page 33: B3.6 - Walk Testing
One method is to stand very still in the room and try to encourage your pet(s) to enter the room - if the red LED behind the motion sensor window illuminates then further adjustment is required. Conan Wireless Security Alarm System - CS290... -
Page 34: B4 - Cs128 Glass-Break Sensor
(enter) key. 4. Key in the security accessory ID# you chose above onto the security console keypad, then press the # (enter) key. 5. Now immediately press the tamper switch inside the glass-break sensor. Conan Wireless Security Alarm System - CS290... -
Page 35: B4.4 - Mounting To The Wall
If necessary adjust the location and/or sensitivity (see below) of the glass-break sensor until it is no longer triggered by the sound source. Conan Wireless Security Alarm System - CS290... -
Page 36: B4.6 - Adjusting The Sensitivity
3. Test the sensor to ensure the sensitivity is as desired. 4. Close the glass-break sensor casing. B4.7 - Extending battery life Once you have completed installation and testing you can remove the in order to help test-mode jumper PIN preserve battery life. Conan Wireless Security Alarm System - CS290... -
Page 37: B5 - Cs360 Smoke Detector
1. Follow the steps above for detaching the mounting base plate. 2. Open the battery compartment door. 3. Remove/replace the CR123 battery and close the battery compartment door. 4. Follow the steps above for attaching the mounting base plate. Conan Wireless Security Alarm System - CS290... -
Page 38: B5.4 - Pairing With The Security Console
“beep” if the battery is nearing the end of its life. It is important that you change the battery after receiving a low-battery alert. It is also recommended to change the battery annually. Conan Wireless Security Alarm System - CS290... -
Page 39: B6 - Cs310T Keypad
4. Press the up/down arrow keys on the security console until REGISTER ID is displayed, then press the # (enter) key. 5. Key in the security accessory ID# you chose above onto the security console keypad, then press the # (enter) key. 6. Now immediately press 9# on the battery keypad. Conan Wireless Security Alarm System - CS290... -
Page 40: B6.4 - Mounting To The Wall
Long Tone: Error B6.6 - Manually triggering alarms Alarm Mode Key sequence Activate the panic alarm Activate the silent panic alarm Activate the fire alarm FIRE Activate the medical alarm MEDICAL Conan Wireless Security Alarm System - CS290... -
Page 41: B6.7 - Reset To Factory Defaults
To partially arm the security system for flexible protection when you’re at home: 1. Enter a 4-digit USER-PIN code. 2. Press the home button. B6.8.3 - Disarming the system To disarm the security console: 1. Enter a 4-digit USER-PIN code. 2. Press the # button. Conan Wireless Security Alarm System - CS290... -
Page 42: B7 - Cs310W Lcd Keypad
Although it is now paired, the LCD keypad also needs to be registered as a secondary keypad, enabling it to control the security console and report the information shown on the security console’s screen. Conan Wireless Security Alarm System - CS290... -
Page 43: B7.4 - Turning Off Partition-2 Lcd Display
2. The keypad will now “slide” into the mounting bracket. Make sure that the keypad’s mounting bracket socket clicks into place within the mounting bracket so that it is held securely. Conan Wireless Security Alarm System - CS290... -
Page 44: B7.6 - Setup And Functions
Your security console will store up to 250 system events. You can review system events directly on the LCD keypad display Overview of the LCD display for reviewing system events: Date & Time of Event Memory Event Number Security Accessory ID Event Description Conan Wireless Security Alarm System - CS290... -
Page 45: B7.9 - Lcd Display - Security Accessory Status
To partially arm the security system for flexible protection when you’re at home: 1. Press the home button. B7.10.3 - Disarming the system To disarm the security console: 1. Key in the user PIN code. 2. Press the # (enter) button. Conan Wireless Security Alarm System - CS290... -
Page 46: B8 - Cs146 Indoor Siren
2. Plug the tip of the power adaptor into the power adaptor socket located on the end of the power lead extending from the top of the indoor siren. 3. Turn the power socket on. Conan Wireless Security Alarm System - CS290... -
Page 47: B8.3 - Pairing To The Security Console
Turning anti-clockwise increases the siren tone volume. To adjust the volume of the alarm siren: 1. Using a small flat-head screwdriver, adjust the . Turning clockwise decreases the siren volume trimmer siren volume. Turning anti-clockwise increases the siren volume. Conan Wireless Security Alarm System - CS290... -
Page 48: B8.6 - Mounting The Siren
You may need tighten or loosen the screws to ensure a secure fit. 4. Now affix the remaining screw through the bottom screw hole on the indoor siren to firmly lock it into place (this is optional but recommended). Conan Wireless Security Alarm System - CS290... -
Page 49: B9.1 - Opening & Closing The Outdoor Siren Casing
5. Plug the plug adaptor tip into the power adaptor socket as shown in the image on the right. Be careful it is a close fit. 6. Do not close the outdoor siren casing just yet. 7. Turn the power socket on. Conan Wireless Security Alarm System - CS290... -
Page 50: B9.3 - Pairing With The Security Console
To adjust the volume of the alarm siren: 1. Adjust the using a small flat-head screwdriver. Turn anti-clockwise decrease the siren volume trimmer volume, clockwise to increase. Conan Wireless Security Alarm System - CS290... -
Page 51: B9.6 - Activating/Deactivating The Armed-Status Led
3. Place the outdoor siren mounting keyholes onto the two screws and gently pull the outdoor siren down until it locks into place. You may need tighten or loosen the screws to ensure a secure fit. Conan Wireless Security Alarm System - CS290... -
Page 52: B10 - Cs315 Signal Repeater
To connect the power adaptor: 1. Plug the power adaptor into a power socket. 2. Plug the power adaptor tip into the power socket of the signal repeater 3. Turn the power socket on. Conan Wireless Security Alarm System - CS290... -
Page 53: B10.4 - Pairing With The Security Console
The signal repeater will then go back into paring mode for a further 25s. 6. Continue to pair further sensors/accessories to the signal repeater as required (max. 20). Only pair sensors and accessories that are unable to communicate directly with the security console. Conan Wireless Security Alarm System - CS290... -
Page 54: B10.6 - Mounting To A Wall
Warning: Resetting the CS315 signal repeater will result in the loss of settings and you will need to pair it with both the security console and any paired sensors/accessories again. To reset the signal repeater: 1. Using a paperclip, gently press the reset button for 3s. Conan Wireless Security Alarm System - CS290... -
Page 55: Section C - Advanced Setup & Operation
Section C - Advanced Setup & Operation Conan Wireless Security Alarm System - CS290... -
Page 56: C1 - Security Console Quick Reference Guide
C6.1.6 Instant-arm settings C5.1 Entry/exit delay tone C5.2 Turn keypad sounds on/off A1.12 Turning voice feedback on/off A1.11 Setting the language A1.10 Setting the time A1.8 Setting the date A1.9 Attribute definitions C3.1 Conan Wireless Security Alarm System - CS290... -
Page 57: C2 - Pin Codes
5. Press a single digit (1 - 9) representing a user number. 11234 6. Now enter a new 4 digit user PIN code. USER-PIN code 7. Press the enter key. User ID number Conan Wireless Security Alarm System - CS290... -
Page 58: C3 - Attributes
Sensors that have the silent attribute enabled will only activate a silent alarm when triggered and the system is armed (arm-home or arm-away). Any sirens installed will not sound, although telephone and/or SMS notifications will still be sent. Conan Wireless Security Alarm System - CS290... -
Page 59: C3.2 - Enabling An Attribute For A Sensor
O (disabled) O (disabled) Attribute ID (24-hour) Attribute ID (chime) Attribute ID (delay) Attribute ID (bypass) Attribute ID (silent) Sensor ID (21) Sensor ID (21) Sensor ID (21) Sensor ID (21) Sensor ID (21) Conan Wireless Security Alarm System - CS290... -
Page 60: C3.4 - Examples Of Sensor Attribute Settings
Activate the alarm when motion is detected and the system is armed in arm-away mode. • Allow you time to leave the property after arming the system, as well as allowing you time to disarm the security console when entering the property. Conan Wireless Security Alarm System - CS290... -
Page 61: Sensor Alarm
This scenario is most typical for windows in your home as you would be unlikely to require the entry/exit delay for windows. In this case, you do not need to enable any attributes on the door/window sensor. Conan Wireless Security Alarm System - CS290... -
Page 62: C4 - Pairing Sensors And Accessories
It is important that you keep track of the sensor attribute settings within your sensors and accessories log (see “D1 - Sensors & Accessories Log”, p. 60). It’s possible to have different attributes enabled for the sensor at the same time. Conan Wireless Security Alarm System - CS290... -
Page 63: C5 - General Security Console Settings
Telephone call/SMS will be sent (if configured to do so) Fire Alarm Telephone call/SMS will be sent (if configured to do so) Medical Alarm Telephone call/SMS will be sent (if configured to do so) Conan Wireless Security Alarm System - CS290... -
Page 64: C6 - Telephone Setup And Functions
(see “A1.7 - Entering setup mode”, p. 2. Press the up/down arrow buttons until REDIAL TIME is displayed, then press # (enter). 3. Key in the number of redial attempts (between 1-6), then press the # (enter) button. Conan Wireless Security Alarm System - CS290... - Page 65 2. Press the up/down arrow buttons until VOICE REPLAY is displayed, then press # (enter). 3. Using the keypad, enter the number of times a voice message is replayed (1-6 times). 4. Press the # (enter) button. Conan Wireless Security Alarm System - CS290...
-
Page 66: C6.2 - Call-In Setup
2. Press the up/down arrow buttons until TONE TIMES is displayed, then press # (enter). 3. Using the keypad, enter the number of tones (rings) between 1-9 the security console will wait before answering, then press the # (enter) button. Conan Wireless Security Alarm System - CS290... - Page 67 C6.2.2 - Touch-tone telephone control The Conan security system can be controlled by any touch tone telephone, from anywhere in the world. To control the system via telephone, you will need to have the security console connected to a fixed telephone line or otherwise have a SIM card installed (see “A1.3 - Telephone communications installation”, p.
- Page 68 Entry/exit delay tone A1.11, p. 7 {PIN-0} 5 5 X 0 (off) - 1 (on) Sensor ID (20-89) Set SMS name for a sensor {PIN-0} 6 9 X Y Name (25 char. max) Conan Wireless Security Alarm System - CS290...
-
Page 69: Section D - Appendices
Section D - Appendices Conan Wireless Security Alarm System - CS290... -
Page 70: D1 - Sensors & Accessories Log
CS310W & CS154 Use only ID# range 20-39 and 50-69 for the CS122(P), CS128 & CS132 Only use ID# range 40-49 and 70-79 for the CS360, CS146, CS148 & CS315 ID # Accessory type Location Conan Wireless Security Alarm System - CS290... - Page 71 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 Conan Wireless Security Alarm System - CS290...
- Page 72 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 Conan Wireless Security Alarm System - CS290...
-
Page 73: D2 - Troubleshooting
Locate the reset switch (see image above for location – it is below the GSM SIM card holder) and press and hold for 3s. The console should “beep” (after about 10s) letting you know it has been reset. This will reset your PIN codes to factory settings. Conan Wireless Security Alarm System - CS290... -
Page 74: D2.2 - Sensors And Accessories Troubleshooting
60) so that it reflects the changed ID. D3 - Technical Support We are here to help. Please email us at tech@envioustechnology.com.au or telephone (03) 9017 5822 if you require any assistance with your Conan security system. Conan Wireless Security Alarm System - CS290...
