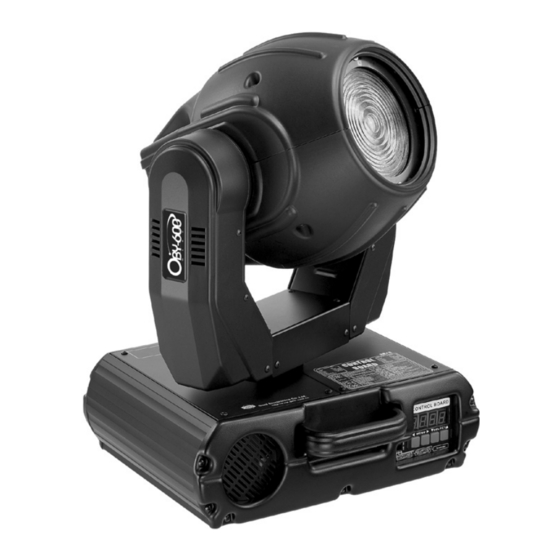

- Page 1 User manual OBY-600 WASH BEGLEC CVA http://www.beglec.com CAUTION!
-
Page 2: Table Of Contents
Thank you for purchasing OBY Series that elaborate manufactured by Geni abundant experience of stage-lights. Hereafter you can get high quality and low breakdown products on the market from Geni Electronics Co., Ltd.; OBY Series concentrated unexpectedly lighting effects for animating stages. -
Page 3: Features
Features Great effect variety Delicate and streamline appearance to allow movement and installation be easier Smooth 570 rotation angle about the x-axis and 270 rotation angle about the Y-axis, electronic sensor to automatically reset CMY mixer to allow the color to be various and richer and make color adjustment more accurate by adding offset color micro-adjusting function One color disk with six dichroic color and open, which contains 3200... -
Page 4: Description Of The Appearance
Description of the appearance Filter... -
Page 5: Inspection
Inspection Carefully unpack the carton, and make sure if any damage or loss caused by transportation. Contact your Geni dealer to assure your right by telephone or facsimile immediately if damage has occurred or if something is missing. Packing List: A. -
Page 6: Lamp Installation
Lamp Installation Warning Remove the power cord before installing the lamp. Keep projector-head upward (See Figure below.) and loosen four screws on the cover with appropriate tool then open the top cover and put it aside. Loosen and grab the screws on the shutter cover with Pull the reflector backward appropriate tool. -
Page 7: Rigging
Rigging: Oby-600 can be set on the flat stage floor directly or use clamp to mount on any kinds of trusses for fitting the mobility of various venues. Mount two attached brackets(a) on the bottom (See Figure ), and collocate the appropriate clamps(b) to rig with trusses. Must use the safety ropes that can hold the ten times as heavy as the fixture through the eye bolts(c) on the bottom of the base and trusses;... -
Page 8: Connection With The Mains
Connection with the mains Connect the device to the mains with the power-plug. The occupation of the connection-cables is as follows: The earth has to be connected! In general, lighting effects should not be connected to dimming-packs. Linking Use 3-pin XLR data cables to link the controller to DMX lighting equipment. -
Page 9: Dmx Channel Chart
DMX Channel chart CH 1 Dimmer from dark to lightest. 0-255 Dimmer Close Open 8-63 Shutter from slow to fast. CH 2 64-71 Open 72-127 Fade out fast to slow. Shut 128-135 Open 136-191 Fade in slow to fast. 192-199 Open 200-253 Random shutter slow to fast... - Page 10 Macro off 8-15 Macro 1 16-23 Macro 2 24-31 Macro 3 32-39 Macro 4 40-47 Macro 5 48-55 Macro 6 56-63 Macro 7 64-71 Macro 8 72-79 Macro 9 80-87 Macro 10 88-95 Macro 11 96-103 Macro 12 104-111 Macro 13 112-119 CH 7 Macro 14...
- Page 11 CH 10 Pan cors. CH 11 Tilt cors. CH 12 X-axis fine tuning of 2 scale. Pan fine. CH 13 Y-axis fine tuning of 1 scale. Tilt fine. Pan/Tilt adjustment in the auto movement mode adjust nearness is moving slowly 8-63 Pan/Tilt adjustment in the manual mode Adjust nearness is moving rapidly .
- Page 12 Function of the control channels - 8 bit protocol...
-
Page 13: Control Board
Control Board... -
Page 14: Replacing The Fuse
Replacing the Fuse If the fixture does not function, that may be the fuse was burned out. It may be time to replace the fuse of same type and specification for eliminating this fault. Remove the electric power and flip the switch to " off " position before replacing the fuse. -
Page 15: Product Specifications
Product Specifications Physical Dimension (L x W x H): 416 x 400 x 564 mm Weight: 230V /27.5 kg, 110V /30.5 kg AC supply AC input: Certified power cord with plug or without plug Voltage: Magnetic - 210/230/245V / 50Hz, 208/230V / 60Hz Electronic ballast - 100/120 /210/230/250V, 50/60Hz Fuse:...
