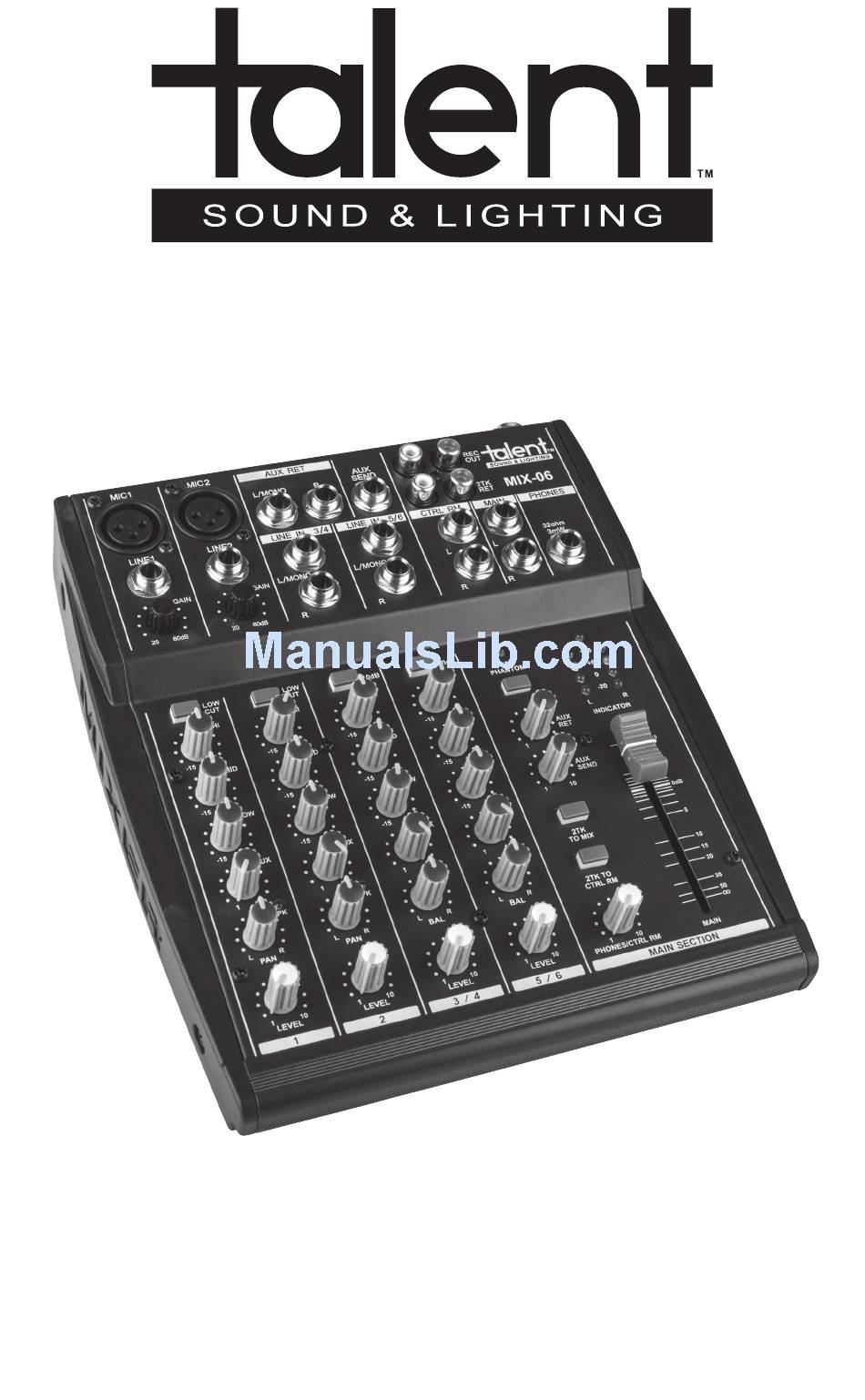

- Page 1 6-Channel Portable Mixer Model: MIX-06 User Manual www.talentaudio.com...
-
Page 2: Precautions
Regular care and inspection will be rewarded by a long product life and maximum reliability. Your Talent MIX-06 MINI MIXER was packed carefully at the manufacturing site, and the packing box was designed to protect the unit from rough handling. We recommend that you examine the packaging and its contents for any signs of physical damage that may have occurred during transportation. -
Page 3: Table Of Contents
You’ll find the compact, rugged MIX-06 easy to schlep from gig to gig, and its operation is simple and intuitive. In order to exploit fully the MIX-06’s many benefits, please read this manual carefully to understand all of the product’s functions and operations. -
Page 4: Control Panel
CONTROL PANEL MONO CHANNEL 1) MIC XLR connector for microphones, input level range: SECTION -60 to -20 dB. This connector can provide +48V phantom power for condenser microphone when the Phantom switch is on. 2) LINE Balanced/unbalanced 1/4’’ phone jack for connecting a line level source, input level range: -40 to 0 dB. -
Page 5: The Stereo Channel
CONTROL PANEL STEREO CHANNEL SECTION 1) L/MONO AND R Two unbalanced 2-pole phone jacks for stereo line input. Input level range: -10 dB. If the source signal is mono, connect to the L/Mono input jack only. 2) -10 dB ATTENUATOR Matches the output levels of sources connected to the mixer’s stereo input sockets. -
Page 6: Master Control Section
CONTROL PANEL MASTER CONTROL 1) MAIN OUTPUT CONTROL Slide fader used for adjusting the final SECTION L/R output level sent to the MAIN output sockets. 2) OUTPUT LEVEL METER This level meter indicates the signal level of the stereo MAIN output (Left and Right). -
Page 7: Rear Panel
CONTROL PANEL 10) AUX RET L/MONO & R These are two auxiliary input phone jacks. The rated input level is -10 dB. Only connect the output of your source device to L/MONO if the source is mono, thus the right signal is the same as the left. 11) AUX SEND Outputs the auxiliary signal. -
Page 8: Application Example
POWER AMP POWER AMP EFFECT PROCESSOR ST. MAINOUT L/R AUX SEND AUX RET CTRL RM MIC1 MIC2 AUX RET SEND L/MONO MIX-06 Compact Mixer LINE IN 3/4 LINE IN 5/6 CTRL RM MAIN PHONES LINE1 LINE2 32ohm HEAD PHONES L/MONO... -
Page 9: Specifications
SPECIFICATIONS Input Rated Inputs Number Input modes Connector Impedance Input level Microphones Balanced 2K ohm -60 dB 3-pole TRS Mono LINE IN Balanced 47K ohm -40 dB Stereo LINE IN Unbalanced 2 TRS 10K ohm -10 dB Stereo PLAY IN Unbalanced 2 RCA 10K ohm... -
Page 10: System Block Diagram
SYSTEM BLOCK DIAGRAM... - Page 11 Please return your Talent product to your place of purchase prepaid. Many Talent resellers require a return authorization (also known as an RA or RMA). Please contact your Talent reseller for more details.
