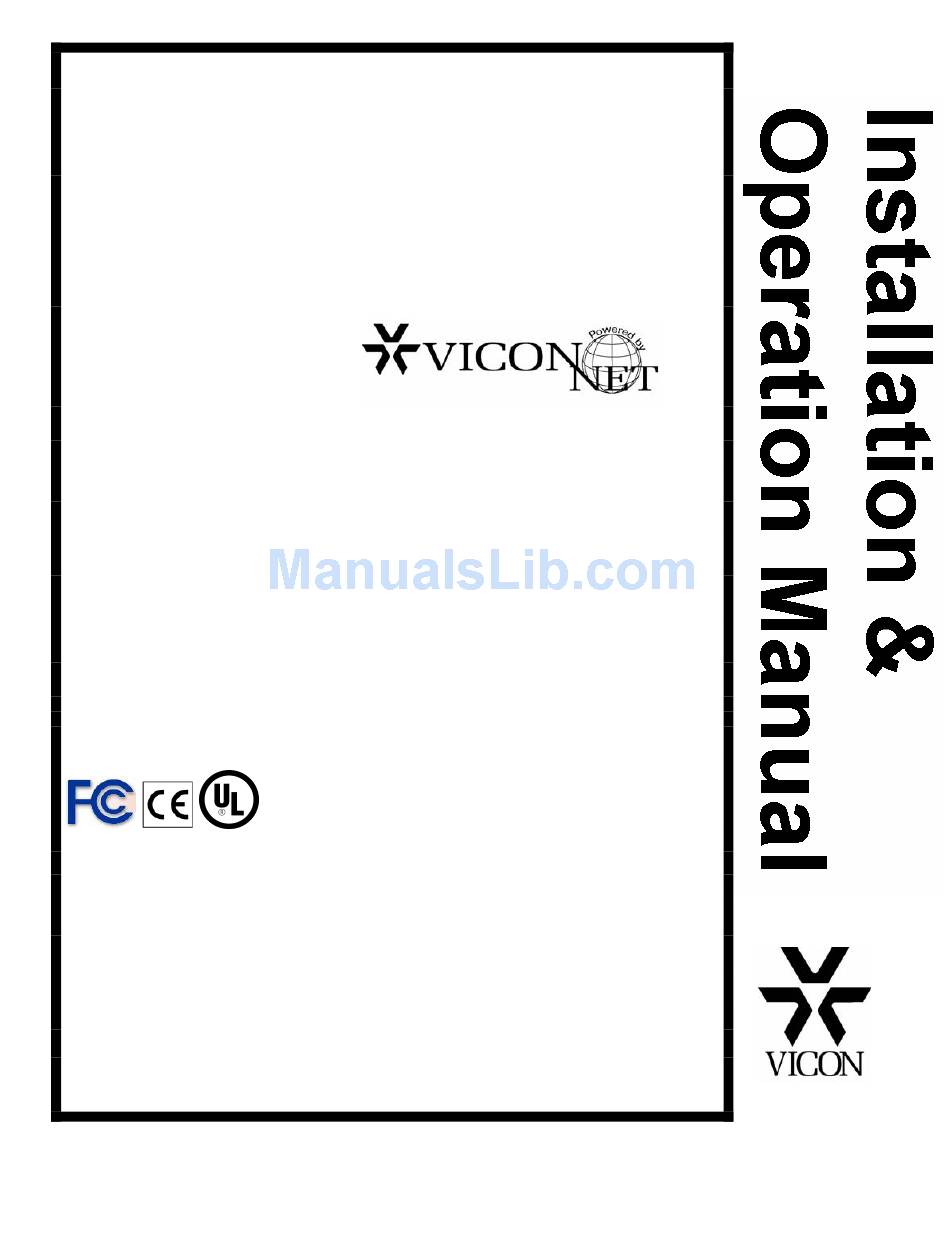

Vicon KRX-3 Installation & Operation Manual

Video decoder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
XX184-00-00
KRX-3 VIDEO DECODER
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your
requirements or that the operation will be entirely error free or perform precisely as described in the
documentation. This system has not been designed to be used in life-critical situations and must not be
used for this purpose.
Copyright © 2006 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
ViconNet and its logo are trademarks of Vicon Industries Inc.
Kollector Elite and Kollector Pro and their logos are trademarks of Vicon Industries Inc.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
Windows is a trademark of Microsoft Corp.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: +44 (0) 1489 566300 WEB: www.vicon-cctv.com
Vicon Part No. 8009-8184-00-00 Section 1 Rev 0407

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KRX-3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vicon KRX-3

  • Page 1 XX184-00-00 KRX-3 VIDEO DECODER Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.

  • Page 3: Fcc Notice

    Warning: Power must be removed from this unit before removing circuit modules or ribbon cables. Caution: This unit contains circuit cards with integrated circuit devices that can be damaged by static discharge. Take all necessary precautions to prevent static discharge Important Notice • i XX184-00-00 KRX-3 Video Decoder...

  • Page 4: Important Safeguards

    8. Accessories - Do not place the unit on an unstable surface 22. ESD Precaution - Take all normal electrostatic discharge to avoid falling. Use only UL Listed Vicon recommended mounting precautions to avoid component damage during installation and accessories.

  • Page 5: Important Notice

    Other company and brand products and service names are trademarks or registered trademarks of their respective holders. To ensure that the KRX-3 is protected during a power surge or failure and that no important data is lost, it should be connected to an uninterruptible power source (UPS) before use.

  • Page 6: About This Manual

    This KRX-3 Installation and Operation Manual is comprised of the following chapters: Chapter 1, Introduction, introduces the KRX-3 Video Decoder. Chapter 2, Quick Installation, is for experienced installers, and provides an illustration of how the KRX-3 should be connected to its various peripherals.

  • Page 7: Table Of Contents

    Wall Mounting ...............................6 Installing the KRX-3............................7 Step 1: Connecting the Cabling ........................7 Step 2: Connecting the Power Supply......................7 CHAPTER 4 - OPERATION..........................9 About This Chapter............................9 Powering-On the KRX-3 ...........................9 Powering-Off the KRX-3 ...........................9 Table of Contents • v XX184-00-00 KRX-3 Video Decoder...
  • Page 8 Cable Types ..............................25 CHAPTER 9 – TWISTED-PAIR CABLE RECOMMENDATIONS..............26 Materials .................................26 Cable Types ..............................26 CHAPTER 10 – NETWORK CABLE RECOMMENDATIONS ................27 CHAPTER 11 – TECHNICAL INFORMATION ....................28 VICON STANDARD EQUIPMENT WARRANTY....................29 vi • Table of Contents XX184-00-00 KRX-3 Video Decoder...

  • Page 9: Chapter 1 - Introduction

    National Electrical Code ANSI/NFPA 70, state and local wiring codes. The KRX-3 is a Video Decoder used to convert network data from a digital IP source to an analog output for display on any monitor with an S-Video, mini D-sub or coaxial BNC-F input. This enables distribution directly to a monitor and eliminates the need for separate workstations with dedicated monitors.

  • Page 10: Unpacking And Inspection

    Unpacking and Inspection All Vicon equipment is tested and inspected before leaving the factory. It is the carrier’s responsibility to provide suitable delivery. Inspect the cartons upon delivery and, if damage is present, make detailed notes on the carrier’s bill. Then, obtain the carrier agent’s signature and file a damage claim as soon as possible.

  • Page 11: Chapter 2 - Quick Installation

    3. Make all connections to monitors, LAN, and power. NOTE: The KRX-3 maybe powered by PoE using the LAN connection or with 24 VAC. Recommended 24 VAC power supply models are the S24WPS-1 for 120VAC installations and S24PS-230 for 230 VAC installations or latest equivalents.

  • Page 12: Chapter 3 - Installation

    Unpacking the Server Carefully open the carton. Remove the accessory kit and the KRX-3 from the box and place them on a large, flat working surface. Open the accessory kit and verify the contents against the list in Table 1-1.

  • Page 13: Unit Components

    Unit Components This section describes the KRX-3 front and rear panels. Panel Connectors and Indicators The following picture shows the KRX-3 panel. Each panel component is described below. Figure 3-1: Rear Panel Layout The KRX-3’s rear panel contains the following components: RS-232 Port: A 5-position terminal block used for diagnostics (for service use).

  • Page 14: Mounting

    Desktop The KRX-3 can rest on a clean and dry flat surface, like a desk or tabletop. Four (4) rubber bumpers are provided for stable mounting. There must be an area of no less than 3 in. (76 mm) left around the exterior to provide suitable airflow for cooling.

  • Page 15: Installing The Krx-3

    Step 2: Connecting the Power Supply To ensure that the KRX-3 is protected during a power surge or failure and that no data is lost, it should be connected to an uninterruptible power source (UPS) before use. The power supply must be supplied by the customer.
  • Page 16 2. Connect the UPS power cord to the wall outlet. 3. Power on the UPS and ensure that it is working properly. NOTE: Refer to your UPS device’s User Manual for details on proper connection. 8 • Chapter 3 - Installation XX184-00-00 KRX-3 Video Decoder...

  • Page 17: Chapter 4 - Operation

    1. Verify that the KRX-3 is set up as detailed in Chapter 3, Installation. 2. Ensure that the 24 VAC power supply to the KRX-3 or connect PoE via network cable (RJ-45). The Status Indicator will illuminate blue (blinking) to indicate the server is ON and running properly.
  • Page 18 10 • Chapter 4 - Operation XX184-00-00 KRX-3 Video Decoder...

  • Page 19: Configuring The Viconnet (Ip/Lan) Version

    Configuring the ViconNet (IP/LAN) Version The KRX-3 is shipped with one CD that contains the ViconNet Version 4 software needed to setup your IP system, including the application setup, the firmware and setup software (VNSetup). Ensure that the ViconNet Workstation meets the minimum requirements, and is running the ViconNet application (Version 4) (VNSetup).

  • Page 20: Configuring The Network Settings

    VNSetup is installed on the configuring PC\Workstation. Installation is done using the CD included. Make sure the MAC address and password of the KRX-3 is available. Use MAC Address log provided. Verify that the KRX-3 is physically connected to the configuring workstation via the network.
  • Page 21 4. The unit will display in the Selected unit box. Click Refresh unit to see the latest status. Note: In order to install firmware, the PC and KRX-3 must be on the same IP network. The following paragraphs describe the other tabs in the VNSetup utility.
  • Page 22 Setup The Setup tab allows you to change where Upgrade, Log and Password management files are stored. The default is C:\VUG. 14 • Chapter 4 - Operation XX184-00-00 KRX-3 Video Decoder...
  • Page 23 Gateway, DNS, DHCP, and Debug level, on a scale of 0-4, where 4 is most debug information. Time zone, Daylight saving time, Local time, Local date are not applicable for the KRX-3. Note: Debug level should only be changed by direction of the Vicon’s Technical Services Team.
  • Page 24 The Install tab allows you to install and upgrade to newer versions of the software. The Version to install: drop-down lists all software available on the VMC for the KRX-3. Note: If the list is grayed out, make sure that you are pointing to the correct directories. See the Setup section in this chapter.
  • Page 25 Info The Info tab displays the KRX-3 general information. Note: Info will only display if connectivity has been established. Chapter 4 - Operation • 17 XX184-00-00 KRX-3 Video Decoder...
  • Page 26 Advanced The Advanced tab allows you to handle troubleshoot and repair network problems and/or unit with a KRX-3 should they occur. Four buttons are provided to quickly resolve problems. Restarts the hardware. Restart unit Restarts the unit’s firmware. Unjam unit Returns the unit to the initial network settings.
  • Page 27 Custom The Custom tab allows you to set the TV system type and the output types for channels 1 and 2 of the KRX-3. Channel 3 only provides a composite output. It also allows you to scale the VGA output to fill the screen on large monitors and provides you with the option to display the Vicon logo on inactive screens.
  • Page 28 Select None, BNC, S-Video or VGA 720x576 in the Function options drop-down. Channel 3 only provides None or BNC. Click Apply to save the settings. An example showing the VGA setting for channel 1 follows. Note: Each channel is configured separately. 20 • Chapter 4 - Operation XX184-00-00 KRX-3 Video Decoder...
  • Page 29 To expand the VGA output screen size, select VGA scaling in the Function selection drop-down. Select enable in the Function options drop-down. Click Apply to save the settings. An example showing VGA scaling enabled follows. Note: Expanding the screen size may possibly impact picture quality. Chapter 4 - Operation • 21 XX184-00-00 KRX-3 Video Decoder...
  • Page 30 To display the Vicon logo on inactive screens, select Show logo in the Function selection drop-down. Select enable in the Function options drop-down. Click Apply to save the settings. An example showing Show logo enabled follows. 22 • Chapter 4 - Operation...

  • Page 31: Chapter 5 - Troubleshooting

    Verify that the monitor(s) is correctly connected to the correct output type: BNC, S-Video or VGA. Chapter 6 - Maintenance There is no maintenance required on the KRX-3; however, a periodic dusting of the exterior will ensure maximum unit cooling.

  • Page 32: Chapter 7 - Shipping Instructions

    Chapter 7 – Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A.

  • Page 33: Chapter 8 - Coaxial Cable Recommendations

    Let the required picture quality and cable distances provide a guide in choosing the best cable type. For cables other than the approved Vicon types below, contact the manufacturers listed below. Note that “BC” refers to bare copper and “TC” refers to tinned copper.

  • Page 34: Chapter 9 - Twisted-Pair Cable Recommendations

    Choose a Belden cable type by referring to the characteristics and maximum distances listed below. The maximum distance for the most reliable digital control refers to the distance between the KRX-3 and the Camera Dome/Receiver Assembly. The characteristics of the cables in the table below should be used as a guideline when cables other than Belden are used.

  • Page 35: Chapter 10 - Network Cable Recommendations

    Chapter 10 – Network Cable Recommendations Caution: Careful selection of proper cable is essential to obtain the best performance. Vicon assumes no responsibility for poor performance when cables other than the recommended types, or equivalent, are used. Materials Use pure copper stranded conductors to obtain a low DC resistance. The preferred insulation and cable jacket is Polyvinyl chloride (PVC).

  • Page 36: Chapter 11 - Technical Information

    24 VAC ±20%, 50/60 Hz nominal Input Voltage NOTE: Vicon recommends the use of uninterruptible power supply systems (UPS) to prevent voltage fluctuations that can affect operation and cause damage to the equipment. 740 mA max. @ 24 VAC; PoE: 256 mA typical @ 48 VDC...

  • Page 37: Vicon Standard Equipment Warranty

    Software supplied either separately or in hardware is furnished on an “As Is” basis. Vicon does not warrant that such software shall be error (bug) free. Software support via telephone, if provided at no cost, may be discontinued at any time without notice at Vicon’s sole discretion.
  • Page 38 Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-CCTV (2288) 800-645-9116 Fax: 631-951-CCTV (2288) Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44 (0) 1489 566300 Fax: +44 (0) 1489 566322 Germany vin-videotronic infosystems gmbh...
