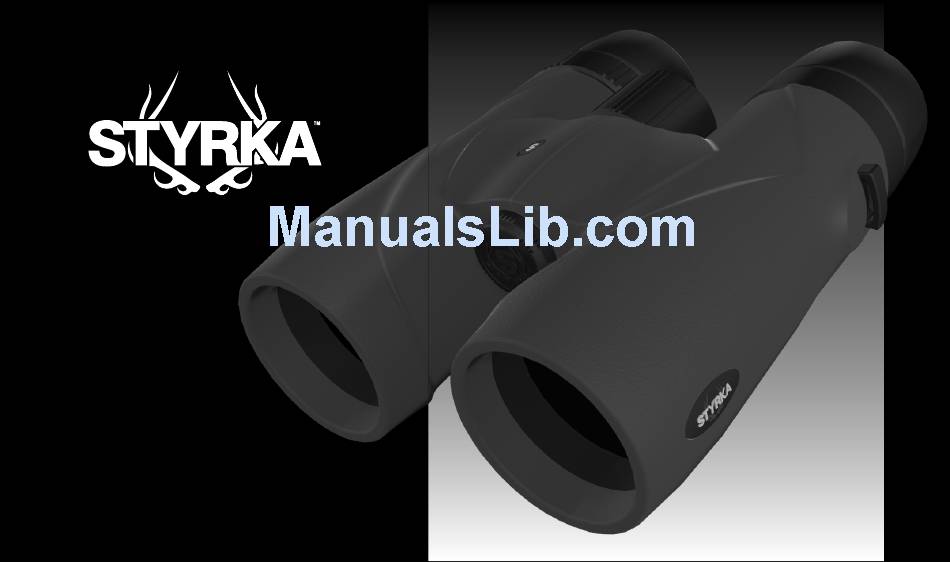

- Page 1 Binoculars Binoculars SERIES RIES...
-
Page 2: Warranty
Warranty It’s all about the experience! At STYRKA, we strive to make sure your experience in the fi eld is a great one. And we stand behind our products to do just that. That’s why the STYRKA Pride Warranty is so simple. In the event of damage or malfunction, we will repair or replace your STYRKA product free of charge. - Page 3 SERIES Binoculars...
- Page 4 STYRKA S3 Series Binoculars Thank you for purchasing your STYRKA Eyepiece S3 Binocular. We are certain this binocular Eyecup will provide you with years of enjoyment and faithful service in the fi eld. Please read the Diopter Adjustment instructions carefully before using your Ring binocular to ensure proper use and care.
- Page 5 Adjusting the Interpupillary Distance The interpupillary distance, the distance between pupils, varies from person to person. The binocular must be correctly aligned (adjusted) to the distance between your pupils to achieve a single, clear image. To adjust this distance, lift the binocular up to your eyes (using both hands) and look through them at a distant object.
- Page 6 Setting the Diopter / Focusing 6. Your binocular is now adjusted to your eyes and To ensure a crisp, sharp image the focusing system of the binocular must be set to compensate for any focusing on any object can now be achieved by differences in your eyesight.
-
Page 7: Eyecup Adjustment
Eyecup Adjustment The STYRKA S3 Series features twist-up eyecups to accommodate both eyeglass and non-eyeglass wearers. If you do not wear eyeglasses, twist the eyecups counterclockwise until they reach the up position. If you wear eyeglasses, make sure that the eyecups are in the down position to obtain the maximum fi... - Page 8 Fig. 5 Waterproof / Fogproof STYRKA S3 Series binoculars are waterproof and fi lled with dry nitrogen gas to prevent the housing from fogging internally. This allows the binoculars to be used in all weather conditions.
-
Page 9: Care And Storage
Care and Storage Your STYRKA binocular will provide you years of dependable service in the fi eld if it is cared for and stored properly. 1. Protect the binocular from impact and do not 5. Do not leave the binocular in a car on a hot/ force any of the moving parts beyond their limits. - Page 10 Cleaning Proper cleaning of the lenses is essential to maintaining the optical integrity of your binocular. Dirty lenses diminish the amount of light transmitted through the binocular and your overall viewing experience. 1. Remove any dust on the lenses with a soft lens brush or can of pressurized air.
-
Page 11: Specifications
Specifi cations 8x42 10x42 Magnifi cation Objective Lens Diameter 42mm 42mm Angular Field of View 8.1˚ 6.5˚ Linear Field of View @ 1000yds 425ft 341ft Exit Pupil 5.25mm 4.2mm Eye Relief 17.2mm 15.2mm Close Focus 6.5ft 6.5ft Relative Brightness 27.5 17.6 Twilight Factor 18.3... - Page 12 STYRKASTRONG.COM ©2016 STYRKA. All rights reserved. • Printed in China...
