Summary of Contents for ATI Technologies Heat Force 1500

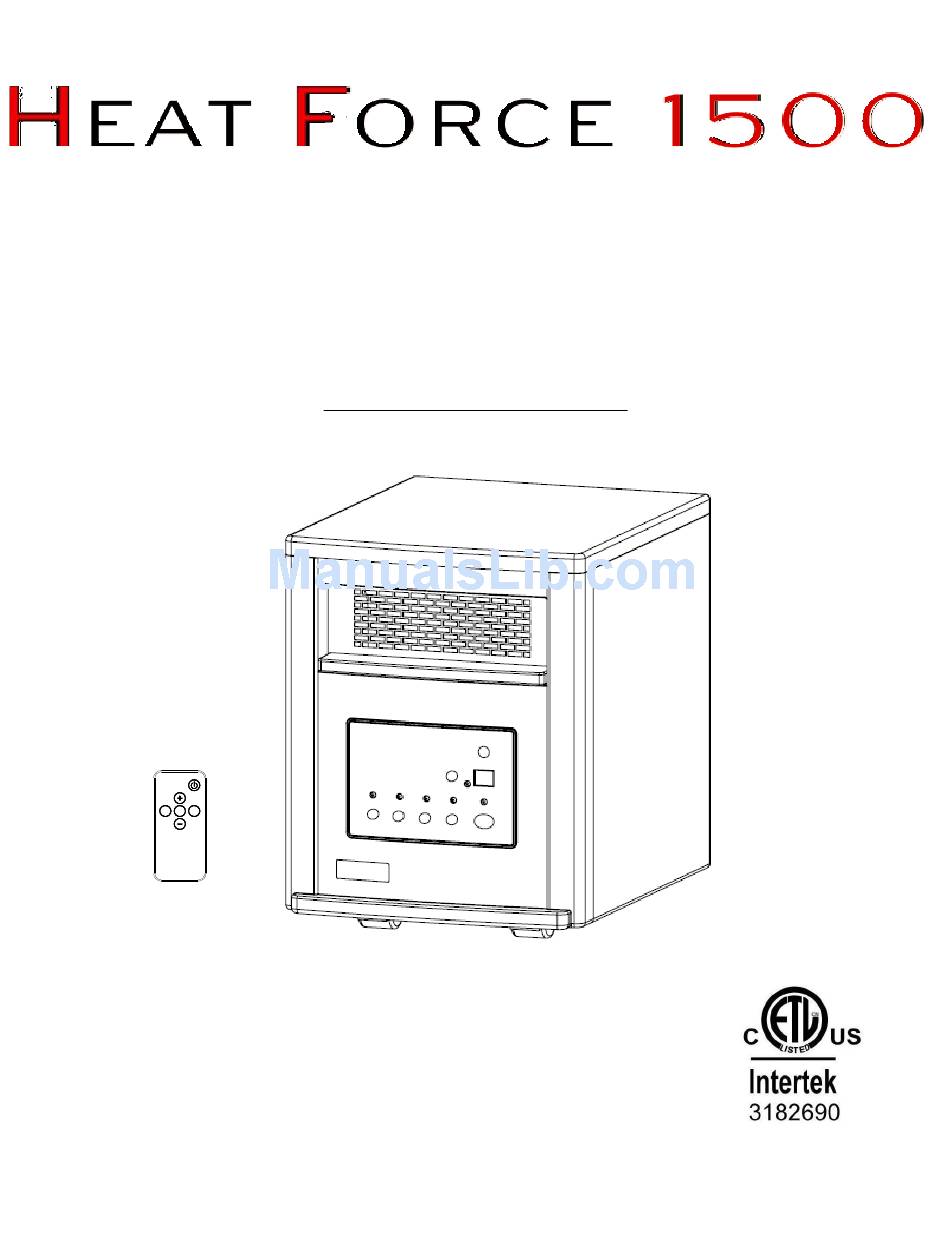

- Page 1 INFRARED ZONE HEATING SYSTEM OWNER’S MANUAL Model No. ATI-HF-X www.advancedtechinfrared.com TIMER MODE...
-
Page 2: Important Instructions
PLEASE SAVE THESE INSTRUCTIONS WARNING: READ THIS OWNER’S MANUAL CAREFULLY BEFORE USE. Thank you for choosing the Heat Force 1500 Infrared Zone Heating System. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new heater. -
Page 3: Specifications
AWG minimum size and rated not less than 1500W. 14. To avoid fire or shock hazard, plug the unit directly into a 115 V AC electrical outlet. 15. To disconnect heater, turn controls to OFF, then remove plug from outlet. Pull firmly on the plug, DO NOT unplug by pulling on the cord. -
Page 4: Product Diagram
WARNING: This heater has a voltage rating of 120 volts. The cord has a plug as shown in A. An adapter as shown in C is available for connecting three-blade grounding-type plugs to two-slot receptacles. The grounding lug extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box. -
Page 5: Control Panel
Control Panel 1、Signal-receiving window: for receiving remote control signal. 2、Digital display: indicate set room temperature or time value according to the timer. 3、Power indication Light: indicate when the unit connects to power supply. 4、ON/OFF switch button: for power-on or off. 5、Energy-saving mode: The light ‘s on when energy-saving mode goes. - Page 6 Power button: Used for power-on or power-off Temp up button: to make set temperature raise Mode button: Used for mode selection UV. lamp button：used for on/off the sterilization function and fan Temp down button: to make set temperature ecline Timer button: used for setting timer and adjust time value of timing PREPARATION Place the heater on a firm, level surface and plug into a grounded 120V 60Hz power outlet.
-
Page 7: Operating Instructions
OPERATING INSTRUCTIONS 1、Start and select working mode Turn the heater on by pressing the ON/OFF button on the control panel or by pressing the Power button on the supplied remote control. Select a heat setting. Press the MODE button to toggle between the three heat settings. -
Page 8: Maintenance
4、Setting timer to power-off Attention! ONLY under power-on mode can you set timer power-off function. When starting the unit, press the timer button on the control panel. Digital display turns the set temperature to time value for the timer. Press the timer button more than once, the value will vary from 0 to 12hr (1 hr interval) in circulation. - Page 9 Turn off the power switch in the rear of the unit. 2. Unplug the unit and let it cool completely. 3. To keep the heater clean, the outer shell may be cleaned with a soft, damp cloth. You may use a mild detergent if necessary. After cleaning, dry the unit with a soft cloth. CAUTION: DO NOT let liquid enter the heater.
-
Page 10: Troubleshooting
STORAGE Store the heater in a cool, dry location when not in use. To prevent dust and dirt build-up, use the original packaging to repack the unit. TROUBLESHOOTING If the heater will not operate, please check the following before seeking repair of service: 1.
